In-Vehicle Networking
NEXCOM has released two fanless in-vehicle PoE switches to simplify the installation of in-vehicle technology to address the growing need for onboard video surveillance and internet connectivity.

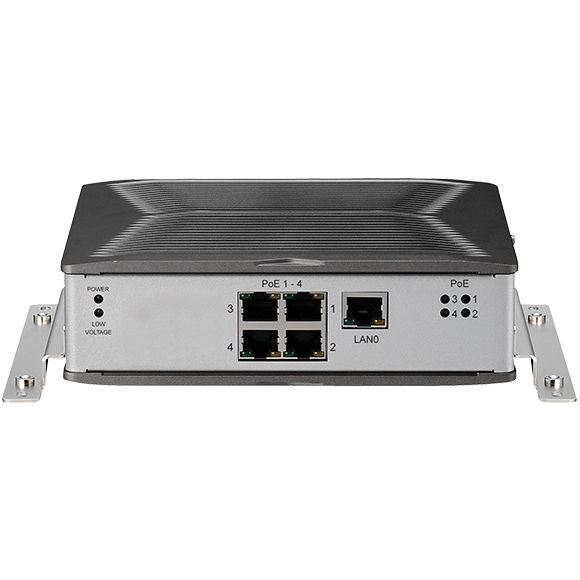

VES30-4S

VES30-4S mobile PoE switch is designed for telematics applications in harsh environments with fanless enclosure. It provides 5 Giga bit Fast Ethernet ports including 4 IEEE 802.3af compliance PoE ports to transfer large amounts of video streaming, voice and critical data across Ethernet network smoothly and quickly.
As the power source from a vehicle is unstable by nature, the mobile PoE switches support a wide voltage input range of 9VDC to 36VDC and provide smart power management with low battery voltage protection, power-on and power-off delay timer, and auto ignition power on/off functions. These unique features can secure reliable operation and prevent premature failure of both the PoE switches and vehicle.
VES30-4S is encased in a fanless dustproof enclosure and can operate under shock, vibration, and temperature extremes from -30 to 70°C. The mobile PoE switches are also small in size and support din rail mounting for ease of installation with PD devices such as IP cameras and Wi-Fi access points.
VES30-4S
4 + 1 Gigabit Ethernet Switch with 4-Port PoE- Main Feature
- 4 x 10/100/1000 Mbps PoE port (802.3af compliance)
- 15.4W at 48VDC for each PoE port
- Low battery voltage protection
- CE/FCC, E13 mark certification
- Wide power input range 9 ~ 36VDC
- -30 ~ 70°C operating temperature
- Ignition power on/off support
- Power on/off delay time setting
Architecture | Switch architecture. Highly integrated, unmanaged-smart gigabit, store and forward switch4K entry MAC address table with automatic learning and aging |
Power over Ethernet | PoE standard IEEE 802.3af Power over Ethernet/PSEPoE power supply type end-spanPoE power output per port 48V DC, 350mA. max. 15.4 watts |
Network Connector | 4-port RJ45 for 10/100/1000 base-T. PoE IEEE 802.3af compliance, total 60W1-port RJ45 for 10/100/1000 base-T |
Standard Compliance | IEEE 802.3 for 10BaseT EthernetIEEE 802.3u for 100BaseT(X) Fast EthernetIEEE 802.3ab for 1000BaseT(X) Gigabit EthernetIEEE 802.3x for flow controlIEEE 802.3af Power Over Ethernet |
I/O Interface | Power: 1 x 9~36VDC input with ignitionEthernet: 4 x RJ45 10/100/1000 Mbps PoE port, 802.3af compliance 1 x RJ45 10/100/1000 MbpsLED: 1 x power indicator 4 x PoE indicator 1 x low voltage protection indicator |
Power Management | Selectable boot-up & shut-down voltage for low power protection by Dip switchPower on/ off delay time setting by Dip switch |
Dimensions | 167 x 51.49 x 139.6 mm (65.75" x 20.27" x 54.96")Weight: 1kgSupport Horizontal Mounting, DIN- Rail Mounting (option) and vertical Mounting (option) |
Environment | Operating temperatures: Ambient with air -30°C to 70°CStorage temperatures: -35°C to 85°CRelative humidity: 10% to 90% (non-condensing)Vibration (random): 1g@5~500 HzVibration: Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock: Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g Non-Operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
Standards/Certifications | CE approvalFCC Class BE13 Mark |

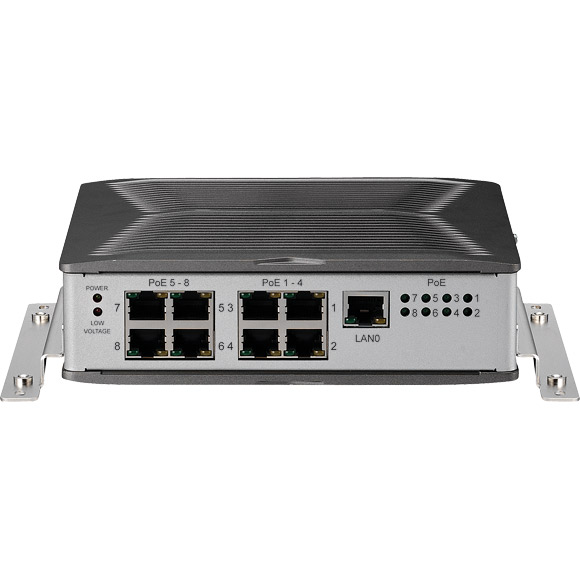

VES30-8S

VES30-8S mobile PoE switch is designed for telematics applications in harsh environments with fanless enclosure. It provides 9 Giga bit Fast Ethernet ports including 8 IEEE 802.3af compliance PoE ports to transfer large amounts of video streaming, voice and critical data across Ethernet network smoothly and quickly.
As the power source from a vehicle is unstable by nature, the mobile PoE switches support a wide voltage input range of 9VDC to 36VDC and provide smart power management with low battery voltage protection, power-on and power-off delay timer, and auto ignition power on/off functions. These unique features can secure reliable operation and prevent premature failure of both the PoE switches and vehicle.
VES30-8S is encased in a fanless dustproof enclosure and can operate under shock, vibration, and temperature extremes from -30 to 70°C. The mobile PoE switches are also small in size and support din rail mounting for ease of installation with PD devices such as IP cameras and Wi-Fi access points.
VES30-8S
8 + 1 Gigabit Ethernet Switch with 8-Port PoE- Main Feature
- 8 x 10/100/1000 Mbps PoE port (802.3af compliance)
- 15.4W at 48VDC for each PoE port
- Low battery voltage protection
- CE/FCC, E13 mark certification
- Wide power input range 9 ~ 36VDC
- -30 ~ 70°C operating temperature
- Ignition power on/off support
- Power on/off delay time setting
Form Factor | Full size mini-PCIe (USB 2.0) form factor |
I/O Connector | DB9 connector for 2 x CAN 2.0 B |
Dual CAN 2.0B Port | Compliant with ISO 11898-2, ISO 11898-1 (11-bit and 29-bit ID)Speed: 10k bps ~1M bpsDual 120 Ohm line termination, enabled/disabled by dip switch |
Dimension | 51mm (L) x 30mm (W) (2.01" x 1.18")Weight: 13g |
Environment | Operating Temperatures: -40 ~ 85°CStorage Temperatures: -40 ~ 90°CRelated Humidity (with system chassis): 5% ~ 90% |
Electrical Protection | IEC 61000-4-2 Electrostatic Discharge (ESD): ± 8KV /15KV (contact/air) |
Software | VIOB-CAN-04-RAG SDK |
VES30-4S

VES30-4S mobile PoE switch is designed for telematics applications in harsh environments with fanless enclosure. It provides 5 Giga bit Fast Ethernet ports including 4 IEEE 802.3af compliance PoE ports to transfer large amounts of video streaming, voice and critical data across Ethernet network smoothly and quickly.
As the power source from a vehicle is unstable by nature, the mobile PoE switches support a wide voltage input range of 9VDC to 36VDC and provide smart power management with low battery voltage protection, power-on and power-off delay timer, and auto ignition power on/off functions. These unique features can secure reliable operation and prevent premature failure of both the PoE switches and vehicle.
VES30-4S is encased in a fanless dustproof enclosure and can operate under shock, vibration, and temperature extremes from -30 to 70°C. The mobile PoE switches are also small in size and support din rail mounting for ease of installation with PD devices such as IP cameras and Wi-Fi access points.
VES30-4S
4 + 1 Gigabit Ethernet Switch with 4-Port PoE- Main Feature
- 4 x 10/100/1000 Mbps PoE port (802.3af compliance)
- 15.4W at 48VDC for each PoE port
- Low battery voltage protection
- CE/FCC, E13 mark certification
- Wide power input range 9 ~ 36VDC
- -30 ~ 70°C operating temperature
- Ignition power on/off support
- Power on/off delay time setting
Architecture | Switch architecture. Highly integrated, unmanaged-smart gigabit, store and forward switch4K entry MAC address table with automatic learning and aging |
Power over Ethernet | PoE standard IEEE 802.3af Power over Ethernet/PSEPoE power supply type end-spanPoE power output per port 48V DC, 350mA. max. 15.4 watts |
Network Connector | 4-port RJ45 for 10/100/1000 base-T. PoE IEEE 802.3af compliance, total 60W1-port RJ45 for 10/100/1000 base-T |
Standard Compliance | IEEE 802.3 for 10BaseT EthernetIEEE 802.3u for 100BaseT(X) Fast EthernetIEEE 802.3ab for 1000BaseT(X) Gigabit EthernetIEEE 802.3x for flow controlIEEE 802.3af Power Over Ethernet |
I/O Interface | Power: 1 x 9~36VDC input with ignitionEthernet: 4 x RJ45 10/100/1000 Mbps PoE port, 802.3af compliance 1 x RJ45 10/100/1000 MbpsLED: 1 x power indicator 4 x PoE indicator 1 x low voltage protection indicator |
Power Management | Selectable boot-up & shut-down voltage for low power protection by Dip switchPower on/ off delay time setting by Dip switch |
Dimensions | 167 x 51.49 x 139.6 mm (65.75" x 20.27" x 54.96")Weight: 1kgSupport Horizontal Mounting, DIN- Rail Mounting (option) and vertical Mounting (option) |
Environment | Operating temperatures: Ambient with air -30°C to 70°CStorage temperatures: -35°C to 85°CRelative humidity: 10% to 90% (non-condensing)Vibration (random): 1g@5~500 HzVibration: Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock: Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g Non-Operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
Standards/Certifications | CE approvalFCC Class BE13 Mark |
