NEXCOM provides robust and reliable marine computers for customers and partners, including high performance fanless computers, various sizes of applied panel PCs and displays. The certified marine computers are ideal for severe environments, and can be applied to fishing and container vessels, recreational boats, workboats, sailing yachts, etc. All marine solutions are built and tested according to critical industrial standards to ensure compliance.

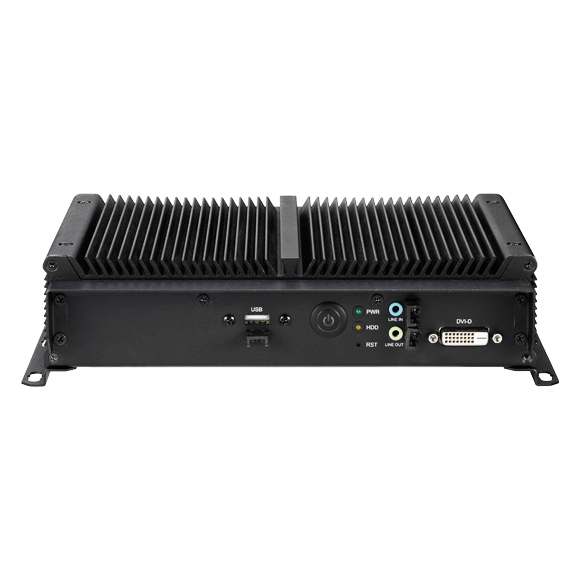

CE-HW-01/01-I5
CE-HW-01/01-I5 computer features the Intel® Core i7-4650U/ i5-4300U processor with low power consumption and deliver a reliable, durable, high-performance platform of wide versatility for use in maritime and offshore environments. It has an isolated RS-232/422/485 port, four gigabit Ethernet LAN ports, five USB posts, and also supports dual independent display through a DVI-D and a DVI-I outputs.
The CE-HW series computers are designed with a wide -15°C to 70°C temperature range, supports 24VDC power input, and come with a fanless minimalistic enclosure designed. It features a rugged chassis proven against best anti-vibration, providing a most reliable platform even in harsh environments. The CE-HW series computers are compliant to IEC-60945 maritime standards.
CE-HW-01/01-I5
Intel® Core™ i7-4650U/i5-4300U Marine Fanless System
- Main Feature
- Onboard Intel® Core™ i7-4650U/i5-4300U processor
- 4 Gigabit Ethernet
- 1x DVI-D and 1x DVI-I display output
- 3 USB 2.0, 2 USB 3.0
- 1 RS232/422/485 isolated
- DDR3L supported
- M.2 SATA supported
- Built in 24VDC power input
- IEC-60945 maritime standards compliance
- Onboard TPM
| System | CPU - CE-HW-01: Onboard Intel® Core™ processor i7-4650U, 1.7 GHz, 4M Cache - CE-HW-01-I5: Onboard Intel® Core™ processor i5-4300U, 1.9 GHz, 3M CacheBIOS AMI BIOSEthernet - LAN chip: 2x Intel® I210-IT Gigabit LAN + 2x Intel® 82574 Gigabit LAN - Ethernet interface: 10/100/1000 Mbps - Support wake up on LANSystem memory: 2x 204-pin DDR3L SO-DIMM socket, support up to 16GB DDR3L-1066/1333, non-ECC and un-bufferedGraphics: Intel® HD GraphicsWatchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)H/W status monitor: monitoring system temperature, and voltage |
| I/O Interface-Front | DisplayPort: 1x DVI-D portUSB: 1x USB 2.01x Mic-in and 1x Line-outPower status/HDD status LEDsPower on/off switchReset button |
| I/O Interface-Rear | Ethernet: 4x RJ452nd DisplayPort: 1x DVI-I portUSB: 2x USB 2.0, 2x USB 3.0COM #1: 1x RS232/422/485DC power input connector: 3-Pin Phoenix terminal blocks |
| Device | 1x SATA M.2 connector1x mini-PCIe connector |
| Power Requirements | DC power input: - Input voltage: 24VDC - Reverse polarity protection - Galvanic isolated - Power consumption: 20W to 35W |
| Mechanical & Environment | Fanless system designPantone black RAL9005, extruded and painted aluminum housingIP protection: IP20 top coverVibration - 1Grms @ random condition, 5~500Hz, 2hr/axis (operating/non-operating)Shock - IEC 68 2-27 - 20G @ wall mount, half sine, 11msOperating temperature: -15°C to 70°CStorage temperature: -25°C to 75°COperating humidity: 10%~90% relative humidity, non-condensingDimension: 250 x 164.4 x 57.9 mmWeight: 3 KG |
| Certifications | CE approvalFCC Class ACCC approvalIEC-60945 maritime standards compliance |

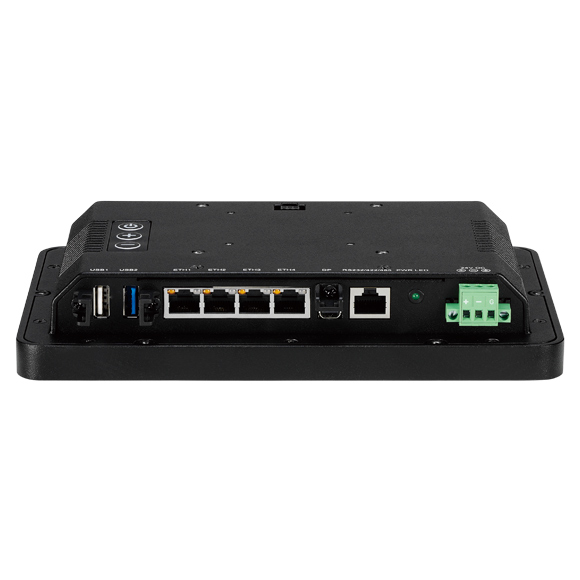

(M)PPC-080T-BT-01
PPC-080T-BT-01 8-inch panel computer features the Intel® Atom™ E3845 processor with low power consumption and deliver a reliable, durable, high-performance platform of wide versatility for use in maritime and offshore environments. The panel PC has a touch screen LCD panel with 800 x 480 (WVGA) resolution and 600-nit brightness. The front panel which adopts a flush panel design and has IP65 front panel. It offers a projected-capacitive, glove-friendly multi-touch screen for outdoor applications.
PPC-080T-BT-01 has a RJ45 output for RS-232/422/485, four gigabit EtherNet LAN ports, two USB posts, and also comes with a mini DisplayPort for external monitor, allowing you to extend the screen size and reduce the total cost of system development. The PPC-080T-BT series panel computers are designed with a wide -25°C to 70°C temperature range, supports 24VDC power input and come with a minimalistic and fanless enclosure designed, and satisfy IEC-60945 maritime standards compliance.
(M)PPC-080T-BT-01
8” WVGA 16:9 Marine Panel PC with Intel® Atom™ E3845, 1.91GHz- Main Feature
- 16:9 8” WVGA marine panel computer
- Intel® Atom™ E3845, Quad Core, 1.91GHz
- 8” PCAP touch screen with AR coating
- 4 Gigabit EtherNet/mini DisplayPort for external monitor
- 1 USB 2.0, 1 USB 3.0
- 1 RJ45 output for RS232/422/485
- DDR3L 4GB/ M.2 SATA 128GB
- IP65 compliant front panel
- Built in 24VDC power input
- Mounting support: flush/VESA 75mm x 75mm
- IEC-60945 maritime standards compliance
| Panel | LED size: 8”, 16:9Resolution: WVGA 800 x 480Luminance: 600cd/m2Contrast ratio: 600LCD color: 16.2MViewing angle: 60(U), 60(D), 70(L), 70(R)Backlight: LED |
| Touch Screen | Projected capacitive (flush panel type)Light transmission: 89%Interface: USBWith AR coating |
| System | CPU: onboard Intel® Atom™ processor E3845, 1.91 GHz, 2M L2 CacheBIOS AMI BIOSSystem memory: 1x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default), support up to 4GB DDR3L-1067/1333, non-ECC and un-bufferedStorage device - 1x SATA connector, support SATA 3Gb/s and SATA 6Gb/s - 1x SATA M.2 connector, 128G M.2 SATA (default)Graphics: Intel® HD GraphicsWatchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)H/W status monitor: monitoring system temperature, and voltageBacklight control - Control button: increase brightness, decrease brightness, backlight on/off - Auto dimming function can be adjust by ambient light sensor - Panel backlight can be controlled by software with 45 steps, dimming range from 0% to 100% |
| Rear I/O | EtherNet: 4x RJ452nd DisplayPort: 1x mini DisplayPortUSB: 1x USB 2.0, 1x USB 3.0COM #1: 1x RJ45 output for RS232/422/485Power status LEDDC power input connector: 3-pin Phoenix terminal blocks |
| EtherNet | LAN chip: 4x Intel® I210-IT Gigabit LANEtherNet interface: 10/100/1000 MbpsSupport wake up on LAN |
| Power Requirements | Input voltage: 24VDCReverse polarity protectionGalvanic isolatedPower consumption: 13W to 25W |
| Mechanical & Environment | Fanless system designColor - Pantone black RAL9005, powder painting for aluminum front bezel - Pantone black RAL9005 for backlight button membraneIP protection - IP65 front bezel - IP20 back systemMounting: flush/VESA 75mm x 75mmVibration - 1.15Grms @ random condition, 1~200Hz, 1.5hr/axis (operating/non-operating)Shock - IEC 68 2-27 - 20G @ wall mount, half sine, 11msOperating temperature: -25°C to 70°CStorage temperature: -25°C to 75°COperating humidity: 10%~90% relative humidity, non-condensingDimension: 218.5 x 147.5 x 39.5 mmWeight: 3 KG |
| Certifications | CE approvalFCC Class AIEC-60945 maritime standards compliance |

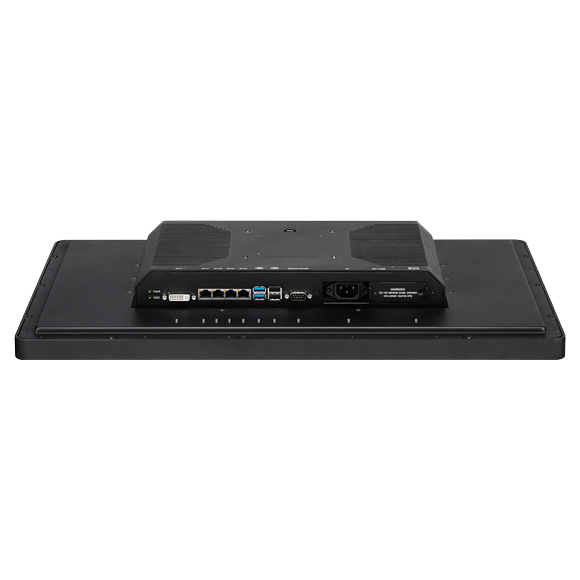

MPPC-240T-HW-01
PPC-240T-HW-01 24-inch panel computer features the Intel® Core i5-4300U processor with low power consumption and deliver a reliable, durable, high-performance platform of wide versatility for use in maritime and offshore environments. The panel PC has a touch screen LCD panel with 1920 x 1080 (Full HD) resolution and 300-nit brightness. The front panel which adopts a flush panel design and has IP65 front panel. It offers a projected-capacitive, glove-friendly multi-touch screen for outdoor applications.
PPC-240T-HW-01 has an Isolated RS-232/422/485 port, four Gigabit Ethernet LAN ports, four USB posts, and also comes with a DVI-I port for connecting secondary display, allowing you to extend the screen size and reduce the total cost of system development. The PPC-240T-HW series panel computers are designed with a wide -25°C to 70°C temperature range, supports full range 110/230VAC or 24VDC power inputs and come with a minimalistic and fanless enclosure designed, and satisfy IEC-60945 maritime standards compliance.
(M)PPC-240T-HW-01
24” Full HD 16:9 Marine Panel PC with Intel® Core™ i5-4300U, 1.9GHz- Main Feature
- 16:9 24" Full HD Marine Panel Computer
- Intel® Core™ i5-4300U, Dual Core, 1.9 GHz
- 24" PCAP touch screen with AR coating
- 4 Gigabit Ethernet/1x DVI-I port for connecting secondary display
- 2 USB 2.0, 2 USB3 .0
- 1 RS232/422/485 isolated
- DDR3L 4GB/M.2 SATA 128GB
- IP65 compliant front panel
- Full range AC + 24VDC power inputs
- Mounting support: flush/VESA 100mm x 100mm
- IEC-60945 maritime standards compliance
| Panel | LED size: 24", 16:9Resolution: Full HD 1920 x 1080Luminance: 300cd/m2Contrast ratio: 5000LCD color: 16.7MViewing angle: 89(U), 89(D), 89(L), 89(R)Backlight: LED |
| Touch Screen | Projected capacitive (flush panel type)Light transmission: 91%Interface: USBWith AR coating |
| System | CPU: onboard Intel® Core™ processor i5-4300U, 1.9GHz, 3M CacheBIOS AMI BIOSSystem memory: 2x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default), support up to 16GB DDR3L-1066/1333, non-ECC and un-bufferedStorage device - 1x SATA M.2 connector, 128G M.2 SATA (default) - 1x mini-PCIe connectorGraphics: Intel® HD GraphicsWatchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)H/W status monitor: monitoring system temperature, and voltageControl buttons - Poweron/off, reset, brightnessBacklight control - Auto dimming function can be adjust by ambient light sensor - Panel backlight can be controlled by software, dimming range from 0% to 100% |
| Rear I/O | Ethernet: 4x RJ452nd display port: 1x DVI-I portUSB: 2x USB 2.0, 2x USB 3.0COM #1: 1x RS232/422/485Power status/ HDD status LEDsAC power input connector: IEC 60320 C14 connectorDC power input connector: 3-Pin Phoenix terminal blocks |
| EtherNet | LAN chip: 2x Intel® I210-IT Gigabit LAN + 2x Intel® 82574 Gigabit LANEthernet interface: 10/100/1000 MbpsSupport wake up on LAN |
| Power Requirements | AC power input - Input voltage: 110/230VAC - Power consumption: 28W to 55WDC power input - Input voltage: 24VDC - Reverse polarity protection - Galvanic isolated * Note: only one power source (AC or DC) to be connected. No failover functionality |
| Mechanical & Environment | Fanless system designColor - Pantone black RAL9005, powder painting for aluminum front bezel - Pantone black RAL9005 for backlight button membraneIP protection - IP65 front bezel - IP20 back systemMounting: flush/VESA 100mm x 100mmVibration - Compliance with EN60945 protected b - Sweep 2 Hz – 13.2 Hz at ±1 mm, 13.2 Hz – 100 Hz at 7m/s2 and for 2 h on each resonance (Q>5), 2h on one resonance/observed frequency (Q<5), otherwise (Q=0) 2 h at 30 Hz in all three axes, 12 minutes/axisShock - IEC 68 2-27 - 20G @ wall mount, half sine, 11msOperating temperature: -25°C to 70°CStorage temperature: -25°C to 75°COperating humidity: 10%~90% relative humidity, non-condensingDimension: 590 x 366.6 x 71.66 mmWeight: 9 KG |
| Certifications | CE approvalFCC Class ACCC approvalIEC-60945 maritime standards compliance |
