Kiosk Panel PC
Applied Panel PC/ Monitor
NEXCOM fanless Panel PC adopts an all-in-one concept that integrates a single board computer, TFT LCD Panel with LED backlight, and user-friendly touch screen within a slick and compact NEMA 4 / IP65 chassis. Designed to serve as a flexible and reliable industrial computing platform, each Panel PC and Monitor is a compact, highly integrated, network-ready computer with exceptional I/O connectivity. The industrial-grade machinery computer from NEXCOM is designed for use in any light industrial environments.
Industrial Panel PC/ Monitor
NEXCOM heavy Industrial Panel PC (IPPC) is equipped with powerful Intel® Processor, TFT LCD Panel with LED backlight, and user-friendly touch design. NEXCOM Industrial Panel PC provides expansion slots for add-on boards in a NEMA4/ IP66 heavy-duty aluminum front bezel and vibration-resistant, its rugged design of aluminum chassis is suitable for any harsh industrial environments. NEXCOM heavy Industrial Touch Monitor (IPPD) shares identical appearance with IPPC series for the same harsh industrial environment application.Human Machine Interface
NEXCOM offers a full line of HMIs (Human Machine Interface) with IP66 certified LCD front panel in sizes from 4.3" to 15". They are the ideal choice for demanding HMI applications including factory, marine and building/home automation. The JMobile software has more than 200 communication drivers available, allowing you to connect to a wide variety of control devices to support PLC applications and improve the efficiency of machine manufacturing.

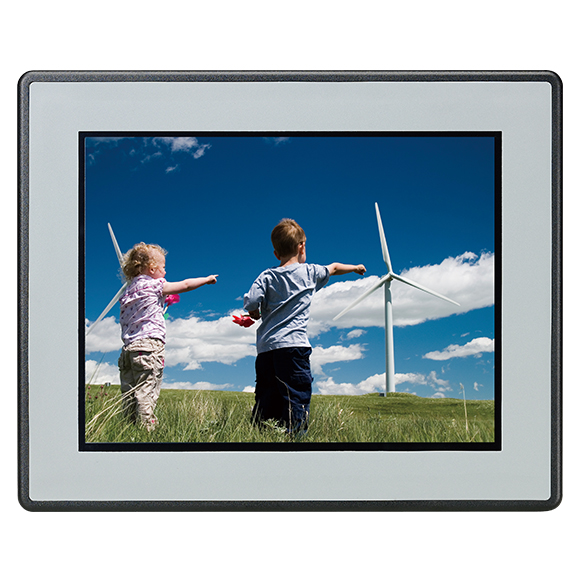

Applied Panel PC/ Monitor APPC 0840T
Incorporated a 8” 4:3 touch screen LCD panel with resolutions up to 800 x 600 (SVGA) and 400 nits brightness, the APPC 0840T are fanless Panel PC based on the Atom™ E3826 processor. The industrial motherboard is reengineering to have RAM and mini-PCIe aligned in the same side of the board with its Intel® Atom™ E3826 CPU. This dedicated motherboard benefits users both in future capability expansion and ease for maintenance. The Panel PC comes with flush panel design and can have IP65 front for industrial applications. The touch screen provides the durable, reliable, and scratchable benefits for easy maintenance in wide applications.
The ultra slim APPC 0840T makes it become industrial slimmest model for space-critical applications, such as, access control, small automation machineries, forklift and truck etc. This APPC 0840T supports fieldbus module, WWAN/WLAN expansion and others via dual Gigabit Ethernet connectors, one mini-PCIe slot and one SIM card holder. With support for wide power input of 12~30VDC, this APPC 0840T can gain a strong foothold in industrial field and machine devices. In addition, this APPC 0840T can hook 2nd display via a VGA port for dual independent display. 0840T has two RS232/422/485 ports, three USB 2.0 port, one USB 3.0 port and fieldbus port.
APPC 0840T
8” TFT SVGA 4:3 Flush Panel PC with Intel® Atom™ E3826, 1.46GHz,Touch Screen, 2GB DDR3L, 4x USB, 2x COM and VGA- Main Feature
- 4:3 8” SVGA fanless panel computer
- Intel® Atom™ E3826, Dual Core, low power consumption CPU
- Flush panel by 5-wire touch screen
- Dual GbE/2nd display-VGA/2x RS232/422/485/Line-out
- 3 x USB 2.0/1 x USB 3.0/1 x mini-PCIe socket/1 x CFast
- Remote power switch
- DDR3L 2GB/2.5” HDD bracket
- IP65 compliant front panel
- Support fieldbus module
- Mounting support: Panel/Wall/Stand/VESA 75mm x 75mm
- Wide range power input 12~30VDC
| Panel | LCD size: 8”, 4:3Resolution: SVGA 800 x 600Luminance: 400cd/m2Contrast ratio: 500LCD color: 262KViewing angle: 50(U), 70(D), 70(L), 70(R)Backlight: LED |
| Touch screen | 5-wire resistive (flush panel type)Touch light transmission: 82%Touch interface: USB |
| System | CPU: On-board Intel® Atom™ dual core processor E3826, 1.46GHz, 1M L2 CacheBIOS: AMI BIOSSystem memory: 1x 204-pin DDR3L SO-DIMM socket, 2GB DDR3L (default), support up to 8GB DDR3L-1066/1333, non-ECC and unbufferedStorage device: - 1 x external locked CFast socket - 1 x hard drive bay: optional 1x 2.5” SATA HDD or 1x SATA DOMWatchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)H/W status monitor: monitoring system temperature, and voltageExpansion: 1x Mini-PCIe socket1 (support optional Wi-Fi, 3.5G module or fieldbus card) |
| Rear I/O | Ethernet: 2x RJ452nd display VGA port: 1x DB15Audio port: 1x Line outUSB: 3 x USB 2.0; 1 x USB 3.0Power switchRemote power switchR eset buttonCOM #1: RS232/422/485COM #2: RS232/422/485Fieldbus: (protocol interface optional) FBI90E-PNM: PROFINET Master, Dual RJ-45 FBI90E-EP: Ethernet/IP Master, Dual RJ-45 FBI90E-ECM: EtherCAT Master, Dual RJ-45 FBI90E-PBM: PROFIBUS Master, DB9 FBI90E-DNM: DeviceNet Master, 5-pins Phoenix Contact terminal |
| Audio | HD codec: realtek ALC886-GRAudio interface: Line-out audio jack |
| Ethernet | LAN chip: dual Intel® I210AT Gigabit LANEthernet interface: 10/100/1000 Based-Tx Ethernet compatible |
| Mechanical & Environment | Color: Pantone BlackIP protection: IP65 frontMounting: panel/ wall/ stand/ VESA 75mm x 75mmSystem with panel mounting kit w/o panel mounting holePower input: 12~30VDCPower adapter: Optional AC to DC power adapter (+12V, 60W)Vibration: - IEC 68 2-64 (w/ HDD) - 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating) - 2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating) - 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)Shock: - IEC 68 2-27 - HDD: 20G@wall mount, half sine, 11msOperating temperature: -5°C to 50°CStorage temperature: -20°C to 75°COperating humidity: 10%~90% relative humidity, non-condensing limits to be at 90% RH at max 50°CDimension: 217.4x176.4x68.9mmWeight: 2.3Kg |
| Certifications | CE approvalFCC Class A |
| OS Support Lists | Windows 8 32bit/64bitWindows 7 32bit/64bitWinCE 7.0 |
Human Machine Interface eLITE610
The eLITE610 is Intel Atom x5-E3930 high performance HMI with the JMobile software offers full vector graphic capabilities and plenty of connectivity options. The eLITE610 features a bright 10.1” TFT widescreen (16:9) display with 2 Giga LAN and 2 USB 3.0.
Highlight
- JMobile runtime included. Full compatibility with JMobile Studio
- Full vector graphic support. Native support of SVG graphic objects. Transparency and alpha blending
- Multilanguage applications. Easily create and manage your applications in multiple languages to meet global requirements. Far east languages are supported. Tools available in JMobile studio support easy third-party translations and help reducing development and maintenance costs of the application
- Data display in numerical, text, bargraph, analog gauges and graphic image formats
- Rich set of state-of-the-art HMI features: data acquisition, alarm handling, scheduler and timed actions (daily and weekly schedulers, exception dates), recipes, users and passwords, e-mail and RSS feeds, rotating menus
- Includes support for a wide range of communication drivers for factory and building automation systems
- Multiple drivers communication capability
- Remote monitoring and control. Client- server functionality. Mobile clients supported
- Remote maintenance and support with VNC-based functionality
- Off-line simulation of the HMI application with JMobile studio
- Powerful scripting language for automating HMI applications. Script debugging improves efficiency in application development
- Rich gallery of symbols and objects
- Project templates
- Optional plug-in modules for fieldbus systems, I/O and controllers
- Display backlight dimmable to 0%
eLITE610
10.1” Widescreen WSVGA HMI Panel PC with Intel Atom® x5-E3930- Main Feature
- 10.1”TFT color display, LED backlight
- 1024 x 600 pixel (WSVGA) resolution, 16.7M colors
- Resistive touchscreen
- 2 x Giga LAN and 2 x USB 3.0
- 1 x RS232/422/485 communication port
- Extremely cost efficient HMI with plastic chassis
- Slim design, mounting depth less than 30mm
- System frame ground protection (GPE) design
| Panel | 10.1”, 16:9, WSVGA, 1024 x 600Luminance: 240 cd/m2 typ.LCD color: 16.7MActive display area: 10.1” diagonalBacklight: LED |
| Ratings | Power supply voltage: 24 Vdc (19.2 to 28.8 Vdc)Current consumption: 1.64A at 24Vdc (max.)Weight: Approx. 1.37Kg |
| Operator Interface | Touch: resistive |
| System Resources | CPU: Intel Atom® x5-E3930 processorOperating System: Windows 10 Enterprise (64-bit)RAM: 4GB DDR3LFlash: 32 GBReal time clock: YesBuzzer: Yes |
| Interface | Ethernet: 2x 10/100/1000MbitUSB: 2 x USB 3.0Serial: 1 x RS232/422/485 BIOS configuration |
| Environmental Conditions | Operating temperature: -5°C to 50°CStorage temperature: -20°C to 70°COperating and storage humidity: 5%~85% relative humidity, noncondensingPanel/VESA mountingProtection class: IP66 (front), IP20 (rear) |
| Dimensions | Faceplate LxH: 282 x 197mmCutout AxB: 271 x 186mmDepth D+T: 29 + 6mm |
| Certifications | CE (Emission EN61000-6-4; Immunity EN61000-6-2 for installation in industrial environments)FCC |

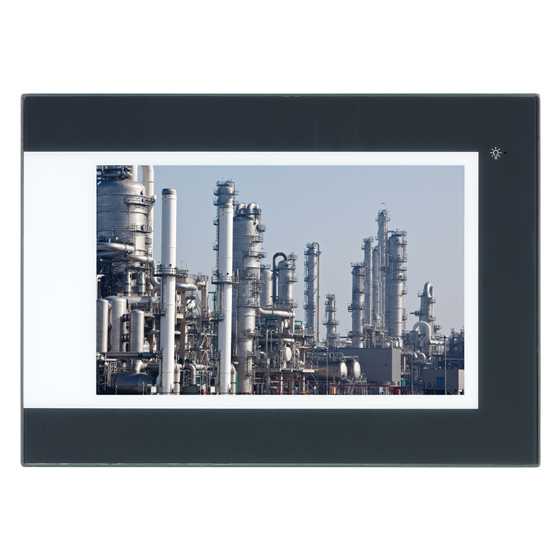

Industrial Panel PC/ Monitor IPPC 1040P
The 10.1” fanless panel PC IPPC 1040P incorporating an industrial motherboard is intended for versatile industrial applications. The panel PC has a touch screen LED backlight LCD panel with 1280 x 800 (WXGA) resolution. The front panel which adopts flush design and complies with IP66 standard makes it the perfect fit in industrial applications.
The IPPC 1040P supports WWAN/WLAN expansion and others via dual Gigabit Ethernet connectors, two mini-PCIe slots and one SIM card holder. With support for wide power input of 12~30VDC, IPPC 1040P can gain a strong foothold in industrial field and machine devices. In addition, IPPC 1040P can hook 2nd display via a VGA port for dual independent display. IPPC 1040P has two isolated RS232/422/485 ports.
IPPC 1040P
10.1” TFT WXGA 16:9 Heavy Industrial Panel PC with Intel® Celeron® Quad Core Processor J1900, up to 2.42GHz, Multi-Touch Screen, 4GB DDR3L, 3 x USB, 2 x COM- Main Feature
- Intel® Celeron® quad core processor J1900, up to 2.42GHz, 2M L2 cache
- Metal housing with robust aluminum front zero bezel for harsh environment
- 10 points P-Cap multi-touch with zero bezel flush front design
- Dual GbE/2nd display-VGA/ Line-out
- 3 x USB/2 x mini-PCIe sockets/1 x CFast/2 x RS232/422/485
- DDR3L 4GB/2.5” HDD bracket
- IP66 compliant front panel
- Mounting support: panel/wall/stand/VESA 100mm x 100mm
- Wide range power input 12~30VDC
| Panel | LCD size: 10.1”, 16:9Resolution: WXGA 1280 x 800Luminance: 300cd/m2Contrast ratio: 1300:1LCD color: 262KViewing angle: 85 (U), 85 (D), 85 (L), 85 (R)Backlight: LED |
| Touch | Ten points P-Cap (projected capacitive touch)Touch light transmission: 90%Anti-scratch surface: 7H hardnessTouch interface: USB |
| System | CPU: onboard Intel® Celeron® Quad Core processor J1900, 2.0GHz, 2M L2 Cache (maximum frequency 2.42GHz if turbo boost enabled)BIOS: AMI BIOSSystem memory: 2 x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default), support up to 8GB DDR3L-1066/1333, non-ECC and un-bufferedStorage device: - 1 x External locked CFast socket - 1 x Hard drive bay: optional 1 x 2.5” SATA HDD or 1 x SATA DOMWatchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)H/ W status monitor: monitoring system temperature, and voltageExpansion: 2 x mini-PCIe sockets (support optional Wi-Fi, 3.5G module)Front LED indicator to show operating status |
| Rear I/O | Ethernet: 2 x RJ452nd display VGA port: 1 x DB15Audio port: 1 x Line-outUSB: 2 x USB 2.0, 1 x USB 3.02-pin remote power on/off switchPower switchReset buttonCOM #1: RS232/422/485 w/ 2.5kv isolatedCOM #2: RS232/422/485 w/ 2.5kv isolated |
| Audio | HD codec: Realtek ALC886-GRAudio interface: Line-out audio jack |
| Ethernet | LAN chip: dual Intel® I210AT Gigabit LANEthernet interface: 10/100/1000 based-Tx Ethernet compatible |
| Mechanical & Environment | Color: Pantone 432C\RAL 70 24 front bezelIP protection: IP66 frontMounting: panel/wall/stand/VESA 100mm x 100mmSystem with panel mounting kit w/o panel mounting holePower input: 12~30VDCPower adapter: optional AC to DC power adapter (+12V, 60W)Vibration: - IEC 68 2-64 (w/ HDD) - 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating) - 2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating) - 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)Shock: - IEC 68 2-27 - HDD: 20G@wall mount, half sine, 11msOperating temperature: -10°C to 60°CStorage temperature: -20°C to 75°COperating humidity: 10%~90% relative humidity, non-condensingDimension: 308 x 223 x 60.7mmWeight: 3.7Kg |
| Certifications | CE (including EN61000-6-2/EN61000-6-4)FCC class A |
| OS Support Lists | Windows 7 32-bit/64-bitWindows 10 64-bit |
