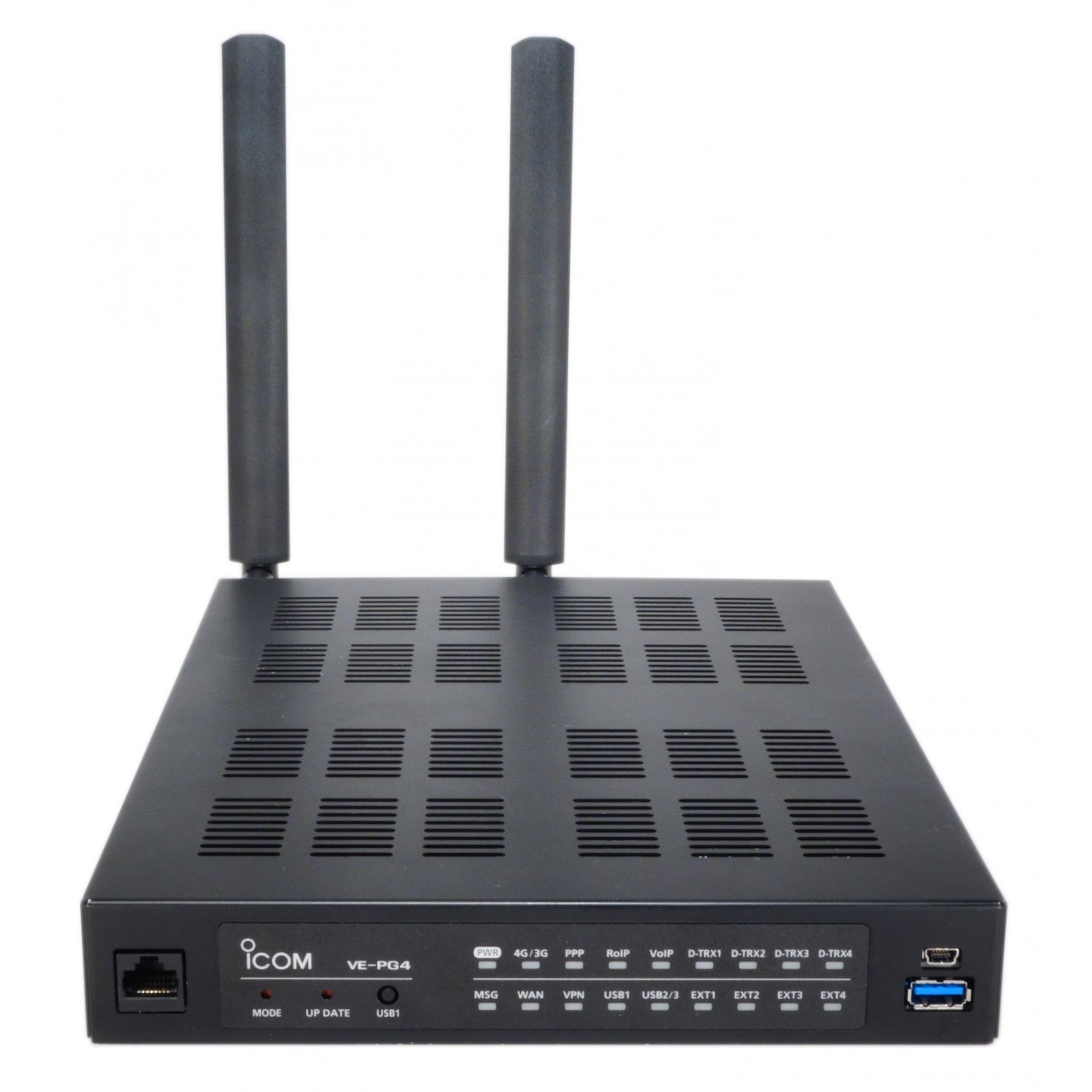

VE-PG4 RoIP Gateway
Bridges your Land Mobile Radio Systems

The VE-PG4 allows you to bridge almost any modern communications system to Icom’s universe of Network products and more.
Interconnect in a Variety of Ways:- LTE PTT Products
- Wireless LAN radio products
- Icom IDAS conventional and trunking systems
- Analog Radio Systems
- P25 systems
- DMR systems
- SIP Phone
![]() |
Install an LTE-CONNECT SIM card to the built-in LTE module and the VE-PG4 can interconnect the IP501H with conventional radio systems and IP100H terminals. Receive and transfer GPS position information from the IP501H to a PC. |
![]() |
The VE-PG4 interconnects with two or more radio systems, even when the systems use different bands. All received audio is bridged to opposing radio system, so a radio user can talk to all connected radio users. The built-in digital voice converter converts analog audio to IDAS™ compatible digital audio. |
![]() |
Connect two or more VE-PG4s through LAN or LTE (4G) and 3G networks. The communication area can be flexibly expanded, and dispersed radio sites can be connected, regardless of distance or radio system used. |
![]() |
Public address system, siren, warning light and other external devices can be connected to the VE-PG4. When detecting an emergency signal, users can start emergency notification from either a digital transceiver, IP transceiver or public address system. |
GENERAL | |
---|---|
Power supply | 12 V DC ±10%, 4A maximum 100–240V AC (with the supplied AC adaptor) |
Operating temperature range | 0 to +40°C, +32 to +104°F |
Operating humidity | 5–95% (At no condensation) |
Dimensions (W×H×D) (Projections are not included) |
213 × 36.8 × 270 mm, 8.4 × 1.4 × 10.6 in (Approximate) |
Weight | 1.8 kg, 4 lb (Main unit, approximate) |
Regulatory compliance | FCC Part 15 Class B/ ICES003, Part22, Part24, Part27, EN301 489-1, EN301 489-19, EN301 489-52, EN301 908-1, EN301 908-2, EN301 908-13, EN303 413, EN62479, EN62311, EN62368-1 |
INTERFACE | |
---|---|
LAN/WAN | RJ-45 type × 1 (Auto MDI/MDI-X) 10BASE-T/100BASE-TX/1000BASE-T *WAN/LAN port selectable. |
LAN | RJ-45 type × 1 (Auto MDI/MDI-X) 10BASE-T/100BASE-TX/1000BASE-T |
USB Host interface Console interface |
USB 3.0 Standard A receptacles ×3 USB 2.0 mini B receptacles ×1 |
Network 4G bands 3G bands |
LTE B2, B4, B12 W-CDMA B2, B5 |
External port Connectors Audio input Audio output Control input Control output |
2.54 mm (0.1 in) pitch quick connector (4 terminals ×3) ×4 –10 dBs / –40 dBs selectable Input impedance 10 kΩ unbalance 0 dBs / –20 dBs selectable 600Ω load unbalance / 8Ω 1W speaker Low voltage contacts (3.3V DC / 1mA) / Voltage input (3–16V) No voltage contacts (30V / 100mA) / Open collector (3–16V 10mA) |
All stated specifications are subject to change without notice or obligation.
*Service availability depends on the country. Network coverage provided by a custom SIM card.
COMPATIBLE MODELS | |
---|---|
IP Communication Terminal
|
Wireless LAN connection. (Access Point is required.) |
LTE Transceivers
|
LTE (4G) or 3G Network connection. |
Satellite PTT
|
OPC-2412 cable is required. |
VHF/UHF Repeaters
|
Either UC-FR5000 (LAN) or OPC-2390 is required. |
VHF/UHF Transceivers
|
OPC-2275 cable is required. |
VHF Marine Transceivers
|
OPC-2273 cable is required. |
VHF Air Band Transceivers
|
OPC-2275 cable is required. |
Supplied Accessories
- Antennas
- Antenna bases with 1.5m (4.9 ft.) cable
- AC adapter, BC-236
- Quick connectors
Cables
Connects to M605

Connects to F5061D or A120

Connects external microphone/speaker

Connects serial device with RS-232

Connects to FR5000

Microphones


Remote Communicator
