Digital Land Mobiles
Produced to pass rigorous in-house test as well as environmental tests to the US Military Standard 810 specifications, Icom digital (IP) land mobile radio terminals with roaming feature and repeater systems let you connect dispersed sites or different bands over IP network with no control server. No matter your location, Icom digital systems will provide seamless communication across your remote sites using existing IP network.
Powerful professional HF in a compact package
The F8101 is designed specifically for long distance radio communications.It operates on HF frequencies from 500kHz to 29.9999MHz and transmits with up to 125W PEP (Peak envelope Power).

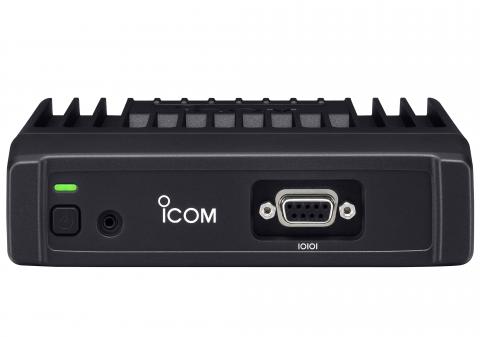

F5122DD / F6122DD Specifications
General | |
---|---|
Frequency coverage |
IC-F5122DD
136–174MHz IC-F6122DD
400–470MHz |
Number of channels | 128 channels |
Type of emission |
8K30F1D, 4K00F1D (4FSK) |
Channel spacing |
12.5/6.25kHz |
Over-the-air data rate | 9600/4800bps |
Power supply requirement | 13.6V DC |
Current drain (approx.) Tx High (25W) Rx Standby |
6A 400mA |
Antenna impedance | 50Ω (BNC) |
Operating temperature range |
–30°C to ?60°C ; –22°F to +60°F |
Dimensions (W×H×D) (Projections not included) |
150×40×134.7mm; |
Weight (approx.) | 900g; 2.0lb |
Ethernet interface (Depending on version) |
10BASE-T (Full/Half-duplex), 100BASE-TX (Half-duplex) with Auto-negotiation function |
RS-232 connection rate | 1200, 2400, 4800, 9600, 19200, 38400 baud |
Transmitter | |
Output power (at 13.6V DC) |
25W, 10W, 2.5W (Hi, L2, L1) |
Spurious emissions | 70dB min. |
FSK error | 2.5% typ. (DN/DVN) |
Frequency stability | ±1.0ppm |
Receiver | |
Sensitivity (at 1% BER) | –4dBμV/–5dBμV emf typ. (DN/DVN) |
Adjacent channel selectivity | 64dB/60dB typ. (DN/DVN) |
Spurious response | 76dB/70dB typ. (DN/DVN) |
Intermodulation | 68dB/66dB typ. (DN/DVN) |
Dimensions
Applicable U.S. Military Specifications
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
Standard | MIL 810 G | |
Method | Proc | |
Low Pressure | 500.5 | I, II |
High Temp. | 501.5 | I, II |
Low Temp. | 502.5 | I, II |
Temp. Shock | 503.5 | I-C |
Solar Radiation | 505.5 | I |
Rain Blowing/Drip | 506.5 | I, III |
Vibration | 514.6 | I |
Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.

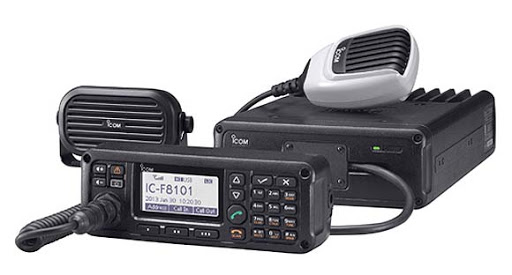

F8101 Features
Communication can be a difficult challenge when working in a remote area, and the more isolated you are, the tougher it can be. With the Icom F8101 HF Mobile Transceiver, over-the-horizon contacts are a whole lot easier!
The F8101 is designed specifically for long distance radio communications. It operates on HF frequencies from 500kHz to 29.9999MHz and transmits with up to 125W PEP (Peak envelope Power). The F8101 supports SSB, AM, CW and Data operating modes and includes the latest Digital Signal Processor (DSP) technology for improvement in both transmitter and receiver performance. The Clear Talk function utilizes DSP to separate the noise from signals for clearer audio.
When infrastructure is limited or nonexistent, Icom’s F8101 compact, rugged, built to MIL-STD-810-G and water resistant (IP54) radio, is the perfect solution.
Output power: |
125W | |
ALE: |
2G | |
RX Frequencies: |
0.5-29.9999MHz | |
Addresses: |
500 Selcall; 500 ALE |
ALE (Automatic Link Establishment)
The built-in ALE system automatically selects the best channel and establishes a communication link. ALE provides interoperability with other 2G ALE radios using MIL-STD-188-141B and FED-STD-1045A ALE standards. ALE individual call, net call, sounding, AMD (Automatic Message Display) and LQA (Link Quality Analysis) polling are available.
Selcall (Selective Calling)
The F8101 provides CCIR493-4 based 4-digit and 6-digit open standards Selcall, widely used in HF networks and HF calling systems. Supported Selcall functions include: selective calling, phone call, message call, position call, status call, emergency call and channel test call. For security, the owner password enabled stun feature can remotely disable the radio operation and the radio can be GPS tracked.
User-Friendly Operation
The F8101 is designed for simple, straightforward operation. The Administrator/User feature can limit the functions that are accessed by the User. The Administrator can enter the operating frequency and assign memory channels from the front panel or the remote control microphone.
The following functions can be assigned to the [I], [II], and [III] soft key buttons: Main menu, Manager menu, Set mode, Selcall address list, RX history, and TX history.
Function button menus are shown at the bottom of the display.
Additional Features
- Optional cooling fan for full duty cycle in data and voice mode operations
- BITE (built-in test equipment) function
- Clear talk using DSP
- Mute functions
- GPS receiver connection
- USB port for PC connection
- ±0.3ppm frequency stability (–30˚C to +60˚C)
- PTT tune function automatically starts tuning when the PTT button is pushed.
- TX Power protection (PA unit high temperature, high SWR, low battery)
- Display mode: SWR, voltage, clock, GPS position, direction and elevation
- FCC part 90 compliant
Specifications
General | |
---|---|
Frequency coverage | Receive: 0.5–29.9999MHz, Transmit: 1.6–29.9999MHz |
Type of emission |
J3E, A3E, A1A, F1B, J2B |
Number of channels | 500 channels |
Number of addresses | Selcall 500 channels, ALE 500 channels |
Operating temperature | –30°C to +60°C; –22°F to +140°F |
Frequency stability | ±0.3ppm (at –30°C to +60°C) |
Power supply requirement | 13.8V DC Negative ground 11.73–15.87V |
Antenna impedance | 50Ω (SO-239) |
Current drain Receive Transmit |
Less than 3A (Max. audio), 1.0A (Stand-by) Less than 28A (Maximum output) |
Dimensions (W×H×D)(Projections not included) |
174×62×259 mm; 6.85×2.44×10.2 in (Controller attached type) |
Weight (approx.) | 3.9kg; 8.6lb (Controller attached type) |
Transmitter | |
---|---|
Output power |
125, 50, 10W PEP (typical) 30, 12.5, 3W (typical) 75, 50, 10W PEP (typical) |
Spurious emissions |
64dB typical below PEP |
Carrier suppression |
50dB below PEP |
Unwanted sideband 400Hz 1kHz |
55dB below PEP 65dB below PEP |
3rd IMD |
25dB below PEP |
Duty cycle Normal conversation Data mode All modes with CFU-F8100 |
(at 14.1MHz, 25°C) 100% (at –30°C to +60°C) 25%* (at –30°C to +30°C) 100% (at –30°C to +45°C) *Maximum 5 minute continuous transmission. |
Receiver | ||
---|---|---|
Sensitivity (at 10dB S/N) |
0.5–1.5999MHz 14dBμV 22dBμV |
1.6–29.9999MHz –14dBμV 6dBμV |
Squelch sensitivity |
Threshold |
Tight |
Selectivity |
|
|
Spurious response |
More than 70dB |
|
Audio output power |
4.0W at 10% distortion with a 4Ω load |
|
Clarifier |
±200Hz |
Applicable U.S. Military Specifications & IP Rating
Tested on the F8101, CFU-F8100 and MB-126.
Standard | MIL 810 G | |
Method | Proc | |
Low Pressure | 500.5 | I, II |
High Temp. | 501.5 | I, II |
Low Temp. | 502.5 | I, II |
Temp. Shock | 503.5 | I-C |
Solar Radiation | 505.5 | I |
Rain | 506.5 | I, III |
Humidity | 507.5 | II |
Salt Fog | 509.5 | – |
Dust Blowing | 510.5 | I |
Vibration | 514.6 | I |
Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Tested on the F8101 and CFU-F8100.
Ingress Protection Standard | ||
Dust & Water | IP54 (Dust-protection and water resistant) |
F8101 Supplied Accessories
- RF unit
- Microphone: HM-193
- Mic hanger kit
All stated specifications are subject to change without notice or obligation.
Options and Accessories
Antennas
NVIS kit to use with
AH-740 (2.2-30MHz)
Automatic tuning antenna
(2.5-30MHz)
Heavy-duty moving coil antenna
(1.6-30MHz)
Antenna Tuners
Cables
GPS/External modem connection cable
Control cable for AT-140 (32.8ft)
Cooling Fan
External Speakers
GPS
Microphones
Remote control mic
Hand mic
Mounting Bracket
Remote Mounting
Remote mouting kit
OPC-609: 6.2ft., OPC-607: 9.8ft., OPC-726: 16.4ft., OPC-608: 26.2ft
