Industrial Gateway Solutions
Focusing on high-performance computing and the latest network technology, the Network and Communication Solutions (NCS) Group is committed to helping customers build cutting-edge network infrastructure in the digital world. Integrating a wide range of technologies based on x86 and RISC architecture and our software expertise, NCS’ network application platform is widely adopted in CDNs, cyber security, load balancers, uCPEs, routers, SD-WAN, edge computing, storage, NVRs, and other industrial network applications for business of all sizes.
SoC-Based Appliance > IFA 2610
NEXCOM's security hardware platform, ISA 1120A, copes with software-design flexibility while offering shielded industrial network protection. Leveraging Intel® x86 architecture, security software vendors can shorten time to market against escalating industrial cyber threats. Layered protection combined with accelerated encryption/decryption can be deployed with industrial-grade ISA 1120A which helps factories build secure network access for remote asset monitoring, maximized system uptime, and operating reliability.

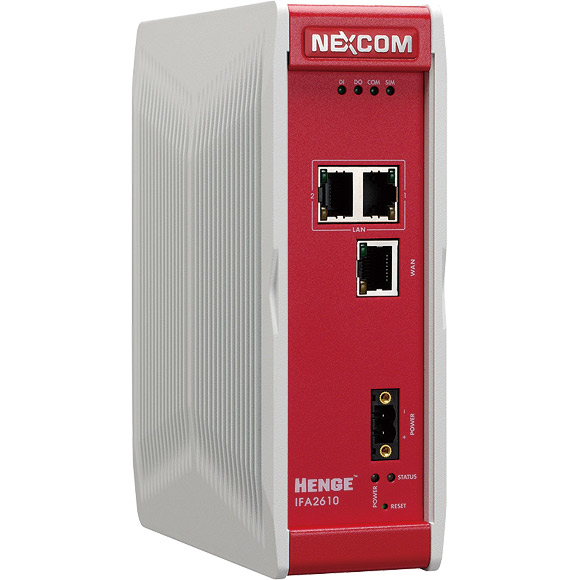

IFA 2610
CoreFort™ industry Firewall, 3 ports VPN Router with Rugged Design- Main Feature
- Stateful (L4) packet firewall
- Intrusion prevention (IPS)
- SSL VPN secure remote access
- DI/DO support
- Serial gateway (RS485)
- Versatile logging & report system
| Network Security | Stateful packet firewallIntrusion detection/prevention (IDS/IPS)Multiple public IPsSNMP support (V1/V2/V3)VoIP/SIP supportPortscan detectionDoS and DDoS protectionSYN/ICMP flood protectionDNS proxy/routing |
| Multi-WAN/Failover | Supports multiple Uplinks/WANs: Ethernet (Static/DHCP), PPPoEAutomatic WAN Uplink FailoverMonitoring of WAN Uplinks |
| Traffic Shaping | Bandwidth Management |
| User Authentication | Active Directory /NTLMLDAPLocal |
| Network Address Translation | Destination NATIncoming Routed TrafficOne-to-One NATSource NAT (SNAT)IPSec NAT Traversal |
| High Availability | Hot Standby (active/passive)Node Data/Configuration Synchronization |
| Bridging | Firewall Stealth ModeOSI-layer 2 firewall-functionSpanning treeUnlimited bridgesUnlimited interfaces per bridge |
| VPN (Virtual Private Network) | IPsec - Encryption: 3DES, AES 128/256-bit,MD5, SHA1 - Diffie hellman (2, 5, 14, 15, 16,17,18) - Authentication: Pre-shared key, RSA keys X.509-certificates IKEv1, L2TP - DPD (dead peer detection) - NAT Traversal - Compression - PFS (perfect forward secrecy) - VPN: site-to-site - VPN: client-to-site (road warrior) - Integrated certificate authorityTrue SSL/TLS VPN (OpenVPN) - Encryption: DES, 3DES, AES 128/192/256-bit, CAST5, Blowfish - Authentication: Pre-shared key, X.509-certificates , certification authority, and local - Support for VPN over HTTPS proxy (OpenVPN) - PPTP passthrough - VPN: site-to-site - VPN: client-to-site (road warrior) - VPN: client for Microsoft Windows, Mac OS X and Linux - Multiple logins per user - VPN failover |
| Services | Event notification & handlingNTP (Network Time Protocol)DHCP ServerSNMP ServerDynDNS |
| Logs and Reports | Customizable Real-time DashboardLive Log Viewer (AJAX based)Detailed User Based Web Access ReportNetwork/System/Performance StatisticsRule-based logging settings (Firewall Rules)Syslog: Local or RemoteopenTSA trusted time stamping |
| Management | Easy Web-based Administration (SSL)Secure Remote SSH/SCP AccessCentralized Management (via SSL) |
| Updates and Backup | Centralized updates through CoreFort™ networkScheduled backupEncrypted backups via e-mailInstant recovery/backup to USB stick |
| Routing | Static RoutesSource-based RoutingDestination-based RoutingPolicy-based Routing (based on interface, MAC, protocol, or port) |
| Hardware Specification | 1 x 10/100/1000 Base-T Ethernet WAN2 x 10/100/1000 Base-T Ethernet LAN1 x USB1 x DI/DORS-232/422/485microSD 4GB |
| Physical and Power | DIN rail/wall mount (optional)FanlessDimension(H x W x D): 167 x 59 x 140mmWeight(G.W. Kg):1.90KgIP30Terminal block,24V DC |
| Environmental Specification | Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)Storage Temperature -20°C ~ 70°C(-4°F ~ 158°F)Humidity: 5% ~ 95%, non-condensing |
| Certification | Safety: UL 508FCC/CE/RoHS |
| Package Content | IFA 2610 x 1QIG x 1Power Input 5.08mm Terminal Block x 1DI/DO Terminal Block x 1 |
X86-Based Appliance > ISA 1120A
The 1U rackmount uCPE TCA 5170 helps telecom companies build virtualization environments based on Intel® Xeon® D-2123IT processor (Skylake). Packing excellent multi-core CPU performance and server-grade LAN functions into a small form factor, this 1U rackmount uCPE creates virtualized environments for flexible VNF deployments in enterprises and branch offices.
- SD-WAN Control Plane
- vCPE (Virtualized CPE)
- uCPE (Universal CPE)
- Firewall/IPS/AntiVirus
- VPN and network security appliance
- SMB routers
- Industrial IoT gateway
- Industrial networking appliance
- Vehicle applications

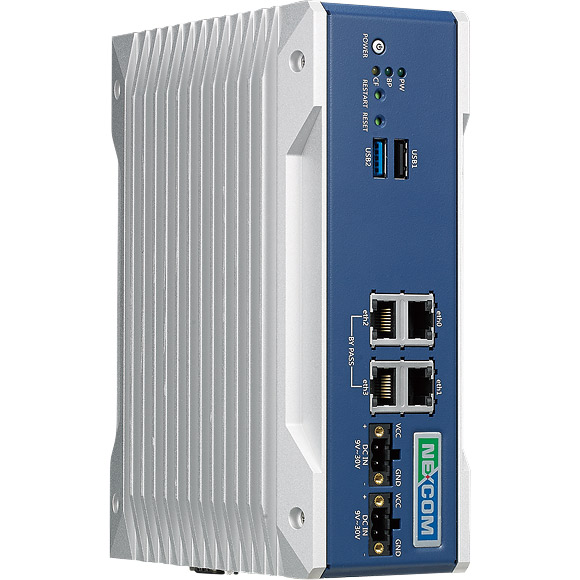

ISA 1120A
Intel Atom® Processor E3800 Product Family BGA Type, with 4 PCIe GbE LAN ports- Main Feature
- Intel Atom® processor E3815, BGA type
- DDR3-1066 SO-DIMM memory, Max. 8GB
- Support 4 PCIe GbE LAN ports
- Support -40°C~70°C extended operating temperature
- Redundant DC Input, support 9~30V DC input
| Main Board | ISA 1120AIntel Atom® processor E3815, BGA type 1 core 1.46GHz |
| Main Memory | DDR3L 1067 SO-DIMM memory, max. 8GB |
| LAN Features | 4 x LAN Chip: Intel® i210-ITSupport 10/100/1000 link speed4 x copper ports |
| Expansion | VGA 1 x DB15 connect (on-board) |
| I/O Interface-Front | 1 USB 2.0 + 1 USB 3.04 x RJ45 port (bypass function 1 pair)2 x DC input 1 x 2-pin1 x Reset button1 x GPIO buttonLED for Power status/bypass status/CFast status |
| I/O Interface-Rear | 2 x Console port (support RS232/RS422/RS485) |
| Devices | Support 1 x CFast type slot |
| Power Input | Redundant DC input power adapter (65W), support +9V to +30VDC input |
| Chassis Dimensions | Chassis dimension: 190 mm x 140 mm x 70 mmCarton dimension: 301 mm x 268 mm x 250 mm |
| Weight | Without packing: 2.2 KgWith packing: 3.8 Kg |
| Environment | Operating temperature: -40°C~70°CStorage temperature: -40°C~85°CRelative humidity: 5%~95% non-condensing |
| Certifications | CE approvalFCC Class AUL |
SoC-Based Appliance > DNA 1520
DNA 1520 adopts Cavium latest ARMv8.1 64-bit SOC to provide a high performance platform. It can support Cavium Octeon-TX either CN80xx or CN81xx series CPUs. Daughter board design is flexible to support different features, like Wi-Fi, 3G/LTE and PoE. It is a universal platform which can be for below applications.
- SD-WAN Control Plane
- vCPE (Virtualized CPE)
- uCPE (Universal CPE)
- Firewall/IPS/AntiVirus
- VPN and network security appliance
- SMB routers
- Industrial IoT gateway
- Industrial networking appliance
- Vehicle applications
DNA 1520
Cavium ARM64 Multiple Applications Platform- Main Feature
- Cavium Octeon-TX CN80/81xx CPU based on ARMv8.1 64-bit architecture
- On-board 1GBytes SLC NAND flash. Can support up to 2GBytes
- On-board DDR4, default 1GB 32-bit with 4-bit ECC, up to 2GB (CN80xx)
- On-board DDR4, default 2GB 64-bit with 8-bit ECC, up to 4GB (CN81xx)
- On-board 4GBytes eMMC
- Support 802.3bz 10G standard which can be backward compatible with 1/2.5/5Gbps
- Support secure boot
- Support 1-pair bypass feature
- Flexible daughter boards design to support Wi-Fi, 3G/LTE and PoE (2-port 802.3at or 4-port 802.3af)
- Dual power DC inputs by Industrial Phoenix 2-pin type (9V-36V DC) and standard coaxial power type with screw (12V DC)
- Fanless mechanical design
| CPU | Cavium Octeon-TX CN80xx/81xx Multicore ARM64 processorARMv8.1 64-bit architectureHardware floating point, SIMD and MMU supportHardware support for Virtualization |
| Memory | On-board 128MB SPI Flash for system boot-up or other storage purpose.On-board 1GBytes SLC NAND flash. Can support up to 2GBytes.On-board DDR4 - CN80xx: default 1GBytes 32-bit with 4bit ECC. Can support up to 2GBytes - CN81xx: default 2GBytes 64-bit with 8bit ECC. Can support up to 4GBytesOn-board 4GBytes eMMC for system boot-up or other storage purpose |
| Ethernet | One 1Gb copper WAN (RJ45)One 1Gb combo DMZ (RJ45+SFP plus)One 10Gb combo WAN/DMZ/LAN (RJ45+SFP plus)Four 1Gb copper LAN (RJ45)Support 1-pair bypass feature |
| Other I/Os | One USB 3.0 HostOne Micro SD Card reader with protective coverOne RJ45 console |
| Indicators and Buttons | LEDs for Power, Alarm, WAN, DMZ, LAN(1~4), 10G, USB, SD and internet - With WiFi and LTE daughter board assembled: Optional LEDs for 2.4GHz(Wi-Fi), 5GHz(Wi-Fi) and LTE - With PoE daughter board assembled: Optional “PoE(1~4)” LEDs and one “MAX” LEDOne reset to default buttonOne system reboot button |
| Optional Daughter Boards | Wi-Fi and 3G/LTE: - One PCIe slot for half/full-size Wi-Fi PCIe card via PCIe signal - One PCIe slot for 3G/LTE module via USB signal - One SIM card slot with Tray for Micro SIM cardPoE - Supports 4-port PoE for up to 2-port 802.3at or 4-port 802.3af (65W) |
| HW Monitor | Support HW monitor features via two thermocouples and ten voltages Sensors |
| Power Input | Standard coaxial power type with screw. (PoE only can be supported from this one) - External AC to DC desktop power adapter - Power input: 100V~240VAC - Power output: DC12V/65W (non-PoE). DC12V/150W(PoE)Industrial Phoenix 2-pin type - DC9V~36V |
| Dimension | 199.5 x 105 x 185 mm |
| Weight | 3.5Kg |
| Environment | Operation temperature: -40°C~70°CStorage temperature: -40°C~85°CHumidity: 5% to 95% maximum (Non-condensing)Fanless designIP40 |
| Certifications | FCC class BULCE/CB |
