IDAS™ System Bridges the Gap Between Analog and Digital
IDAS offers a complete system of handheld radios, mobile radios, repeaters, network interface/trunking controller, remote communicator and various accessories.

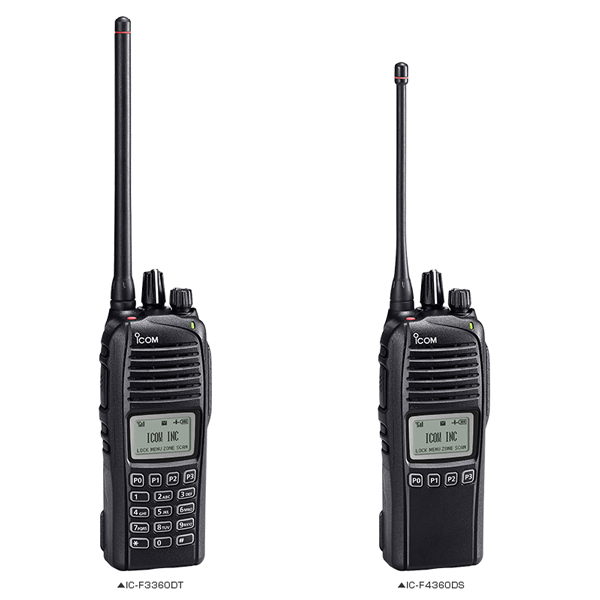

F3360D / F4360D Series
Type-C Trunking Compatible
The IC-F3360D series provides NXDN™ Type-C trunking and NXDN™ conventional systems.
- Paging call
- All call
- Individual call
- Text message
- Stun, Kill and Revive (RX)
- Over-the-air alias
- 15-bit digital scrambler
- Mixed mode operation (Conventional system)
- Broadcast call
- Group call
- Status call
- Emergency call
- Radio check (RX)
- GPS
- RAN
Menu-Driven User Interface
The menu-driven user interface provides easy and intuitive operation. The functions can be toggled with the left and right [P2] and [P3] buttons and allow you to perform various operations and settings.
Built-in GPS Receiver
Your current position data can be attached to a voice or data (status or emergency signal) transmission and can be sent?to dispatch stations.
Man Down & Lone Worker
The man down function sends an emergency signal if left in a horizontal position. The lone worker function detects if the transceiver is not operated or not moved for a preset period.
Transparent Data
When IC-F3360D series is connected to a PC or other external equipment, the transparent data function allows data communication in a digital mode.
IP67 Dust-Tight & Waterproof
The IC-F3360D series provides rugged protection against dust and water. The transceiver can with stand 1m depth of water for 30 minutes.
800mW (typ.) Audio Output
The built-in BTL amplifier doubles the audio output power and the large 40mm speaker delivers loud 800mW (typ.) audio to receive all calls under noisy environments.
Other Features
- 512 memory channels with 128 zones
- CTCSS/DTCS/DTMF encoder/decoder*
- MDC 1200 PTT ID transmission*
- Inversion voice scrambler*
- Audio compander*
F3360D / F4360D Specification
| General | |||
|---|---|---|---|
| Frequency coverage |
F3360DT/DS
136–174MHz F4360DT/DS
400-470MHz |
||
| Number of channels | 512 channels/128 zones | ||
| Type of emissions | 8K50F3E, 8K30F1E/F1D, 4K00F1E/F1D | ||
| Channel spacing | 15/12.5/6.25kHz | ||
| Power supply requirement | 7.5V DC nominal | ||
| Current drain TX High RX Max. auidio/ Sandby |
|
||
| Antenna impedance | 50Ω | ||
| Operating temperature range | -30°C to 60°C; –22°F to +140°F | ||
| Dimensions (W×H×D) (Projections not included) |
53.5×142.7×39.5 mm; 2.11×5.62×1.56 in (With BP-232WP) | ||
| Weight | 400g; 14.1oz (With BP-232WP, MB-94R & FA-SC57U) | ||
| Transmitter | |||
| Output power | 5W, 1W (Hi, Low) | ||
| Max. frequency deviation | ±2.5kHz (Narrow) | ||
| Frequency stability | ±1.0ppm | ||
| Spurious emissions | 75dB typ. | ||
| FM hum and noise |
F3360DT/DS
50dB typ. (Narrow) F4360DT/DS
45dB typ. (Narrow) |
||
| AAudio harmonic distortion | 1.5% typ. (AF 1kHz 40% deviation) | ||
| FSK error | 1% typ. (Digital 6.25/12.5kHz) | ||
| Ext. microphone connector | 14-pin multi-connector/2.2kΩ | ||
| Receiver | |||
| Sensitivity Analog Digitlal |
0.24μV typ. (at 12dB SINAD) –8.0dBμV emf typ. (at 5% BER) |
||
| Adjacent channel selectivity | 68/67/59dB typ. (Narrow/D 12.5kHz/D 6.25kHz) | ||
| Spurious response | 80dB min. | ||
| Intermodulation | 75/70/70dB typ. (Narrow/D 12.5kHz/D 6.25kHz) | ||
| Hum and noise |
F3360DT/DS
50dB typ. (Narrow) F4360DT/DS
48dB typ. (Narrow) |
||
| Ext. speaker connector | 14-pin multi-connector/8Ω | ||
| Audio output power (at 5% distortion) | 800mW typ. (Internal SP, 12Ω load) 1000mW typ. (External SP, 8Ω load) |
||
Measurements made in accordance with TIA-603, EN 301-166 and EN 300-113. All stated
specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications & IP Rating
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
| Standard | MIL 810 G | |
| Method | Proc | |
| Low Pressure | 500.5 | I, II |
| High Temp. | 501.5 | I, II |
| Low Temp. | 502.5 | I, II |
| Temp. Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
| Ingress Protection Standard (F3360D/F4360D, BP-232WP and HM-184) | |
| Dust & Water | IP67 (Dust-tight and waterproof protection) |
F3360D / F4360D Options and Accessories
- BP-232WP LI-ION BATTERY
2250mAh (min.), 2300mAh (typ.)
- BP-240 BATTERY
6 × LR03 (AAA) cells
- BP-261 BATTERY
6 × LR6 (AA) cells
- BC-147S TRICKLE CHARGER AC ADAPTER
Charges the BP-232WP in 8–10 hours (approx.).
- BC-171 REGULAR CHARGER
Charges the BP-232WP in 8–10 hours (approx.). - BC-145SA RAPID CHARGER
Charges the BP-232WP in 3 hours (approx.).
- BC-160 RAPID CHARGER
Charges the BP-232WP in 3 hours (approx.).
- BC-119N RAPID CHARGER
Charges the BP-232WP in 3 hours (approx.).
- AD-106 RAPID CHARGER
Charges the BP-232WP in 3 hours (approx.).
- BC-197 GANG-CHARGER
Charges up to six battery packs
- BC-157S GANG-CHARGER AC ADAPTER
Charges up to six battery packs
- AD-130 CHARGER ADAPTER
AD-130 charger adapter is supplied with the BC-213.
- HM-184 SPEAKER-MICROPHONE
GPS speaker-microphone for sending GPS position data with voice.
- CP-23L CIGARETTE LIGHTER CABLE AND POWER SUPPLY CABLE
For use with BC-214
- HS-94 EARHOOK-HEADSET
Earhook headset with flexible boom microphone.
- HS-95 HEADSET
Behind-the-head headset with flexible boom microphone.
- HS-97 HEADSET
Throat microphone that fits around your neck and picks up speech vibrations.
- VS-4MC PTT SWITCH CABLE
Required when using any of these headsets
- MB-93 BELT CLIP
- MB-94 BELT CLIP
Alligator type clip
- MB-94R BELT CLIP
- MB-96N LEATHER BELT HANGER
- MB-96JFL LEATHER BELT HANGER
- CP-23L CIGARETTE LIGHTER CABLE AND POWER SUPPLY CABLE
For use with BC-119N and BC-160
- OPC-515L POWER SUPPLY CABLE
For use with BC-119N
- OPC-656 CIGARETTE LIGHTER CABLE AND POWER SUPPLY CABLE
For use with BC-197 and BC-121N
- AD-118 ACC ADAPTOR
For use with Hirose Plug Accessory
- STANDARD ANTENNAS
- FA-SC25V 136-150MHz
- FA-SC55V: 150-174MHz
- FA-SC25U: 400-430MHz
- FA-SC57U: 430–470UMHz
- FA-SC72U: 470–520MHz
- CUT ANTENNAS
- FA-SC61VC: 136-174MHz
- FA-SC61US: 380-520MHz
- STUBBY ANTENNAS
- FA-SC56VS: 150–162MHz
- FA-SC57VS: 160–174MHz
- FA-SC73US: 450–490MHz

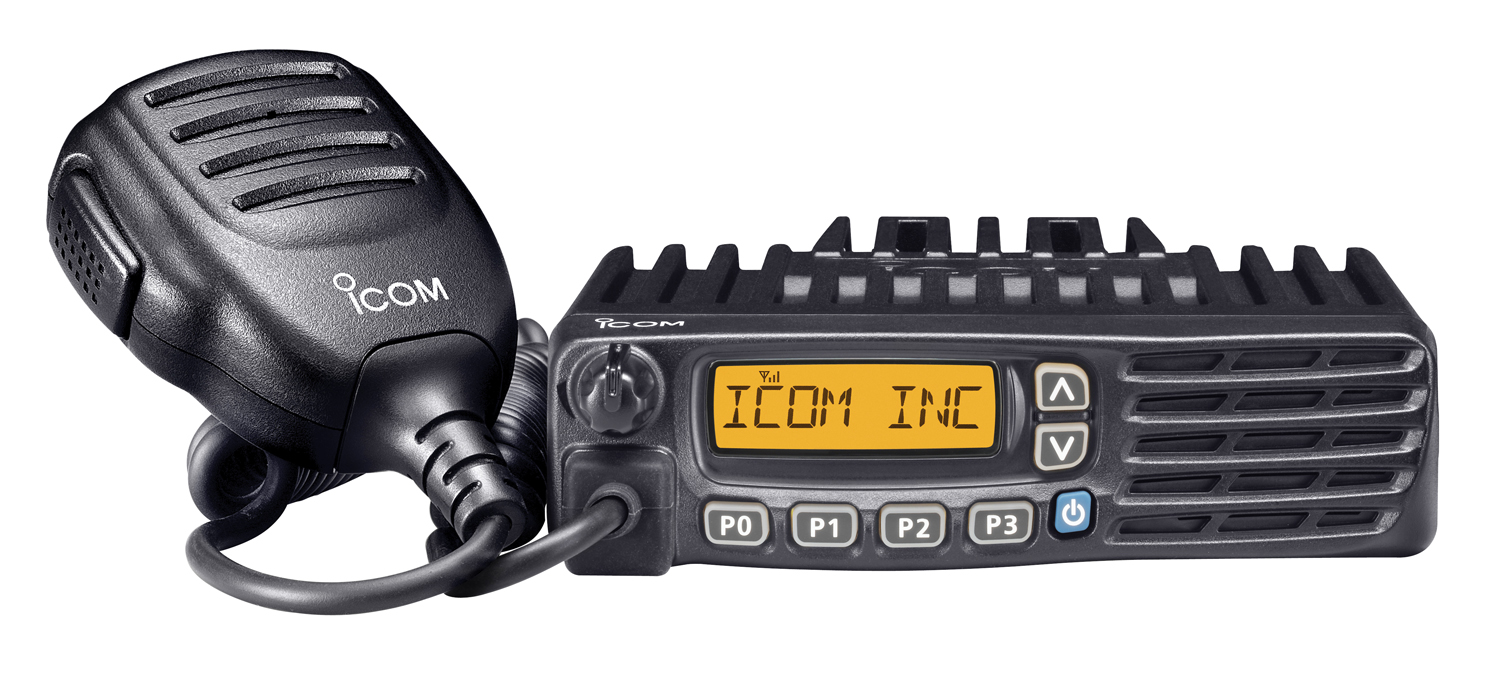

F5121D / F6121D Features
The F5121D series are paired with IDAS and offers digital conventional and single-site trunking. The optional GPS, lone worker function, Logic Trunked Radio (LTR®) and Mixed Mode Operation make it ideal for any operation
Channels: |
128 channels/8 zones | |
Output Power: |
50W VHF / 45W UHF | |
Digital Conventional: |
IDAS built-in | |
Digital Trunking: |
Built-in type D single-site | |
Frequencies: |
136-174 VHF / 400-470, 450-512 UHF | |
Programmable Keys: |
6 |
IDAS™ Digital Mode Features
- PTT ID
- Status
- Radio check
- Call alert
- Emergency (no ACK)
- GPS data (PC and software required to show received position data)
- Individual/Talkgroup list (Max 500)
- RAN (Radio Access Number)
- Stun/kill/revive (RX)
- Remote monitor (RX)
- Digital voice scrambler
- SDM (Short Data Message)
Multiple Signaling in Analog Mode
2-Tone and 5-tone signaling gives you selective calling, quiet stand-by and other convenient functions with programming. The stun/kill functions disable a radio over the air and the revive function restores the stunned radio
The following MDC features are available with the built-in MDC signaling.
- PTT ID
- Radio check (RX)
- Emergency (No ACK)
- Stun/Revive (RX)
- 500 alias table (Max.)
Scan Features
The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The transmit channel and talk back functions allow you to make a quick response while scanning.
Lone Worker Function
When the radio is not operated for a preset period, a warning beep will sound, alerting the radio user to check in. If the radio user does not check in before the preset time runs out, then the radio automatically sends out an emergency signal.
Additional Features
- CTCSS/DTCS encode/decoder*
- 8 DTMF autodial memories
- Microphone hanger action programmable
- PC programmable
- Power-on password function
- Time out timer
- Talk around function
- Nuisance delete function*
- Forced narrow function*
F5121D / F6121D Specifications
| General | |||
|---|---|---|---|
| Frequency coverage |
F5121D
136–174MHz F6121D
400-470MHz 450-512MHz |
||
| Number of channels | 128 channels (8 zones) | ||
| Type of emission | F5121D: 16k0F3E, 11K0F3E, 4K00F1E/F1D F6121D: 11K0F3E, 4K00FIE/F1D |
||
| Channel spacing | F5121D: 6.25/15/30kHz, 6.25/12.5/25kHz F6121D: 6.25/15/30kHz, 6.25/12.5kHz |
||
| PLL channel step | 2.5 kHz, 3.125 kHz (VHF) | ||
| Power supply requirement | 13.6V DC | ||
| Antenna impedance | 5OΩ (SO-239) | ||
| Operating temperature range | -30°C to +60°C; -22°F to +140°F | ||
| Current drain Tx High (50W/45W) Rx Max. audio Standby |
|
||
| Dimensions (proj. not included) (W×H×D) |
150×40×167.5mm; 5.91×1.57×6.59in | ||
| Weight | 1.1kg; 2.4lb | ||
| Transmitter | |||
| Output power (at 13.6V DC) | F5121D: 50W, 25W, 5W (hi, L2, L1) F6121D: 45W, 25W, 4.5W (Hi, L2, L1) |
||
| Max. frequency deviation | ±5.0 kHz (wide) ±2.5 kHz (narrow) |
||
| Frequency stability |
|
||
| Spurious emissions | 72dB min., 70dB min. | ||
| FM Hum and noise | F5121D: 46/40dB typ. (Wide/Narrow) F6121D: 40dB typ. (Narrow) |
||
| Audio harmonic distortion (AF 1kHz 40% deviation) |
3% typ. | ||
| External microphone connector | 600Ω (8-pin modular) | ||
| Receiver | |||
| Sensitivity (at 12dB SINAD) (at 5% BER) |
0.25μV typ. 0.18μV typ. |
||
| Adjacent channel selectivity | F5121D: 80/70dB typ. (W/N), 65dB typ. (digital) F6121D: 75/65dB typ. (W/N), 60dB typ. (digital) |
||
| Spurious response rejection | 70dB min. | ||
| Intermodulation rejection | 75dB typ. (W/N) 70dBμV emf typ. (digital) |
||
| Hum and noise | 45/40dB typ. (W/N) | ||
| Audio output power (at 5% distortion) | 4 W typ. | ||
| External speaker connector | 2-conductor 3.5 (d) mm (1⁄8")⁄8Ω | ||
Measurements made in accordance with EAIA-152-C/204D or TIA-603.
Applicable U.S. Military Specifications and IP Rating
| Standard | MIL 810 F | |
| Method | Proc | |
| Low Pressure | 500.4 | I, II |
| High Temp. | 501.4 | I, II |
| Low Temp. | 502.4 | I, II |
| Temp. Shock | 503.4 | I |
| Solar Radiation | 505.4 | I |
| Humidity | 507.4 | – |
| Settling Dust | 510.4 | III |
| Vibration | 514.5 | I |
| Shock | 516.5 | I, V |
Also meets equivalent MIL-STD-810-C, -D and -E.
Supplied Accessories
- Hand microphone (HM-152)
- microphone hanger
- DC power cable
- key assign stickers
- mounting bracket kit
All stated specifications are subject to change without notice or obligation.
F5121D / F6121D Options and accessories
Antennas
118-940MHz
144-174MHz 3dBgain, 59" high
450-470MHz 5dB gain, 40" high
152-162MHz, 21.6". Factory
tuned to 157MHz
Cables
9.8ft DC power cable
23ft DC power cable
Mic Extension cable
(16.4ft)
Mic Extension cable
(8.2ft)
D-Sub 15-pin ACC cable
D-Sub 25-pin ACC cable
External Speakers
20W
5W w/3.5mm speaker jack
Microphones
Noise cancelling
Mounting Hardware
NMO Permanent Mount, no connector
Trunk lid mount
Black magnetic mount
Power Supplies
120V power supply & cabinet
220V power supply & cabinet
IC-F5061/F6061
The IC-F5061/F6061 is ideal for public safety, transportation and delivery service users. It offers advanced multi-mode operations, improved scanning and flexible installation suitable for mobile and base stations.
Channels: |
512 with 128 zones | |
Output Power: |
50W VHF, 45W UHF | |
Frequencies: |
136-174MHz, 400-470MHz, 450-512MHz | |
Programmable Keys: |
5 | |
Versions: |
Analog Analog & IDAS Digital |
IDAS, 6.25kHz Digital Mode Ready
The IDAS 6.25kHz digital mode is available with the UT-126H* digital board. IDAS is Icom's digital land mobile ra
F5061D / F6061D Specifications
| General | |||||||
|---|---|---|---|---|---|---|---|
| Frequency range |
F5061
136–174MHz F6061
400-470MHz 450-512MHz |
||||||
| Number of channels | 512 channels/ 128 zones | ||||||
| Channel spacing |
12.5/25 kHz, 15/30 kHz 6.25 kHz (option) |
||||||
| PLL channel step | 2.5 kHz, 3.125 kHz | ||||||
| Antenna impedance | 50Ω | ||||||
| Operating Temp. range |
–30°C to +60°C –22°F to +140°F |
||||||
| Power supply requirement | 13.6V DC nominal | ||||||
|
Current drain (approx) Tx Rx |
|
||||||
|
Dimensions (W×H×D) (projections not included) |
160×45×150 mm 65⁄16×125⁄32×529⁄32 in |
||||||
| Weight (approx.) | 1.31kg; 2.9lb | ||||||
| Transmitter | |
|---|---|
| Output power (approx) |
50W (VHF) 45W (UHF) |
| Max. frequency deviation | ±5.0/2.5 kHz (Wide/Narrow) |
| Frequency error | ±1.0ppm |
| Spurious emissions | 75dB typ. |
| FM Hum and Noise | 45/40dB typ. (Wide/Narrow) |
| Adjacent channel power | 70/60dB min. (Wide/Narrow) |
| Audio harmonic distortion | 3% typ. (40% deviation) |
| Modulation limiting | 70–100% of Max. deviation |
| Ext. microphone impedance | 600Ω (8-pin modular) |
| Receiver | |
|---|---|
| Sensitivity (12dB SINAD) | 0.25μV typ. |
| Squelch sensitivity | 0.25μV typ. (at threshold) |
|
Adjacent channel selectivity |
85/75dB typ. (Wide/Narrow) |
| Spurious response | 90dB typ. |
| Intermodulation | 77dB typ. |
| Hum and noise ratio | 50/45dB typ. (Wide/Narrow) |
| Audio output power |
4W typ. at 10% distortion with a 4Ω load |
| External speaker connector |
2-conductor 3.5 (d) mm (1⁄8″) /4Ω |
Applicable U.S. Military Specifications
The F5061/F6061 and RMK-3 have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard | MIL 810 F | |
| Method | Proc | |
| High Temp. | 501.4 | I, II |
| Low Temp. | 502.4 | I, II |
| Temp. Shock | 503.4 | I |
| Solar Radiation | 505.4 | I |
| Rain* Blowing/drip | 506.4 | I,III |
| Humidity | 507.4 | – |
| Vibration | 514.5 | I |
| Shock | 516.5 | I, IV |
* Rain blowing and drip tests were performed on the controller and RMK-3 only.
Measurements made in accordance with EIA-152C/204D, TIA-603. All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- Hand microphone, HM-148
- Microphone hanger
- Key assign stickers
- DC power cable
- Mounting bracket kit
- Hand microphone, HM-148
- DC power cable
- Separation kit, RMK-3
- Amplifier
- Mounting brackets
- Cooling fan
Options and Accessories
Antennas
118-940 MHz
144-174 MHz 3dB gain, 59" high
450-470 MHz 5dB gain, 40" high
Cables
9.8 ft DC power cable
23 ft DC power cable
Mic Extension cable
(16.4ft)
Mic Extension cable
(8.2ft)
GPS Receiver
Split Dispatch Dongle
External Speakers
20W
5W w/ 3.5mm speaker jack
Internal Modules
Non-rolling voice scrambler
Rolling voice scrambler
6.25kHz digital capability
Microphones
Noise cancelling
Mounting Hardware
NMO Permanent Mount, no connector
Trunk lid mount
Black magnetic mount
Locking Trunnion
Power Supplies
110V power supply & cabinet
220V power supply & cabinet
Remote Mounting
For front panel detachment installation
OPC-609: 1.9m; 6.2ft
OPC-607: 3m; 9.8ft
OPC-726: 5m; 16.4ft
OPC-608: 8m; 26.2ft
Separation cable
Same as supplied (16.4 ft)
