Marine and offshore communication
Marine and offshore communication equipment must meet international standard. Our award-winning onshore and offshore communication solution include:
- VHF/UHF/HF SSB Radios
- VSAT Internet
- GMDSS Systems
- Port Safety Systems
The M85 is the smallest, lightest and toughest radio on the market today!
The M85 can withstand hazardous and inhospitable environments at sea and on land, as it is built to MIL-STD 810. The IP67 waterproof rating protects the radio, even if dropped in the water. Yacht and commercial customers like the M85 because of the 100 programmable land mobile channels, as well as the easy to use built-in voice scrambler for private communications. The M85 is full of the features you need including an automated emergency alarm.
Output Power: |
Marine: 5/3/1W Land Mobile: 2/1W |
|
Battery Life: |
2010mAh Li-ion battery, up to 14 hours Typical operation; Tx:Rx:Stand-by duty ratio = 5:5:90 |
|
Waterproof Rating: |
IP67 | |
Versions: |
Standard version or intrinsically safe version |
Full Featured
The M85 user-friendly display includes icons and indicators like transmit power, VOX ON/OFF, battery status, scan, weather channel and more. These icons and indictors improve the user-experience and operation. The M85 also includes a continuous 20-position rotary selector and ON/OFF volume knob, which is tilted for easy access.
For emergency situations the M85 includes the MOB Alarm, Man Down and lone worker functions. If one of these functions is activated, the radio automatically makes an emergency alarm.
The M85* built-in voice scrambler provides private communications between stations. The multi-function button on the top of the radio can be assigned to the scrambler function for easy activation. Or use the multi-function button to simply change from marine to land mobile frequencies.
*The M85UL does not include the built-in voice scrambler.
Land Mobile Use
In addition to VHF marine channels, the M85 covers 136–174MHz land mobile frequencies. Up to 100 programmable channels are available for land mobile use at 2W output power. Each channel is programmable with CTCSS and DTCS tone. Proper licensing is required to operate within the above land mobile frequencies.
Intrinsically Safe Version
Built to withstand the elements, the submersible M85UL intrinsically safe VHF handheld is perfect for commercial customers working in harsh environments. The M85UL plus the BP292UL, HM184UL all meet ANSI/TIA-4950-A, ANSI/UL 121201 requirements for:
- Intrinsically safe: Class I, Division 1, Groups C, D;
- Class II, Division 1, Groups E, F, G;
- Class III. T3C.
- Non-incendive: Class I, Division 2, Groups A, B, C, D
Additional Features
- AquaQuake™ prevents water-logged speaker
- Internal VOX capability for hands-free operation
- Weather channel receiving
- Self check function checks internal temperature and connected battery voltage
- Priority scan function
- Dual/tri-watch function for monitoring CH16 and/or call channel
- Favorite channel function for quick access to often used channels
- Built-in voice scrambler (32 codes)*
| General | |
|---|---|
| Frequency coverage Marine Tx Marine Rx Land Mobile Tx/Rx |
156.025–157.425 MHz 156.050–163.275 MHz 136.000–174.000 MHz |
| Usable channels Marine Channels Tx/Rx Land Mobile Channels Tx/Rx |
INT, USA*, CAN, WX* channel (* Varies according to version) 100 LMR channels |
| Type of emissions (Channel spacing) Marine LMR |
25 kHz 12.5 kHz |
| Antenna Impedance | 50Ω |
| Current drain Marine Tx Land Mobile Tx Rx Max. audio |
1.5A (at 5W) 0.9A (at 2W) 0.45A |
| Power supply requirement | 7.2 V DC nominal |
| Operating temperature range Marine LMR |
–20 °C to +60 °C; –4 °F to +140 °F –30 °C to +60 °C; –22 °F to +140 °F |
| Antenna Impedance | 50Ω |
| M85 Dimensions (W×H×D) (Projections not included) M85UL Dimensions (W×H×D) (Projections not included) |
56 × 92 × 29 mm; 2.2 × 3.6 × 1.1 in (With BP-290) 56 × 92 × 34.1 mm; 2.2 × 3.6 × 1.3 in (With BP-292UL) |
| M85 Weight (approx.; with BP-227) M85UL Weight (approx.; with BP-227) |
246 g; 8.7 oz (with BP-290, FA-SC58V and MBB-3) 285g, 10.1 oz (with BP-292UL, FA-SC58V and MBB-3) |
| Transmitter | |
|---|---|
| Marine channels LMR channels |
5/3/1W 2/1W |
| Max. frequency deviations Marine channels LMR channels |
±5.0 kHz (Wide) ±5.0 kHz (Wide) / 2.5 kHz (Narrow) |
| Frequency stability | ±5.0 ppm |
| Spurious emissions | -70 dBc typical |
| Hum and noise Marine channels LMR channels |
40 dB 40 dB (Wide) / 34 dB (Narrow) |
| Audio harmonic distortion | 10% (at 60% deviation) |
| Modulation limiting | 60–100% of maximum deviation |
| Receiver | |
|---|---|
| Sensitivity (at 12dB SINAD) | 0.25 µV typical |
| Adjacent Channel Selectivity Marine channels LMR channels |
70 dB typical 70 dB typical (Wide) / 55 dB typical (Narrow) |
| Spurious response | 70 dB typical |
| Intermodulation | 70 dB typical |
| Hum and noise Marine channels LMR channels |
40 dB 40 dB (Wide) / 34 dB (Narrow) |
| Audio output power Internal SP External SP |
700 mW typical (at 10% distortion with 12Ω load) 700 mW (at 10% distortion with 8Ω load) |
Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications & IP Rating
| Standard | MIL 810 G | |
| Method | Proc | |
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
| Ingress Protection Standard | |
| Dust & Water | IP67 (Dust-tight and waterproof protection) |
Supplied Accessories
| M85 | M85UL - Intrinsically Safe |
|---|---|
| Battery Pack, BP-290 Rapid Charger, BC-227 AC Adapter, BC-123S Antenna, FA-SC58V Belt Clip, MBB-3 Hand Strap |
Battery Pack, BP-292UL Rapid Charger, BC-227 AC Adapter, BC-123S Antenna, FA-SC58V Belt Clip, MBB-3 Hand Strap |
Antennas
Antenna
Battery
Li-ion 7.2V 2010mAh
AA battery case
Li-ion 7.2V 2010mAh
Li-ion 7.2V 3150mAh
Belt Clips
Standard
Swivel
Swivel leather belt hanger (use with MBB-3)
Carrying Cases
Leather case w/ swivel belt loop
Nylon case w/ clip
Chargers
Smart rapid charger
Rapid charger
AC adapter for rapid charger
12V cigarette
lighter cable
DC power cable for
rapid charger
Connectable rapid charger
(connect up to 6)
AC adapter for BC-226
Six unit gang charger
Adapter cup for BC-214
AC adapter for gang charger
DC power cable for gang charger
Headsets
Earpiece with boom mic
(use w/VS-5MC)
Behind-the-head headset
w/ boom mic (use w/VS-5MC)
Earphone with throat mic
headset (use w/VS-5MC)
PTT case to use
with headset
Microphones & Earphones
Waterproof
Waterproof w/3.5mm jack
Waterproof
Waterproof w/3.5mm jack
3.5mm tube earphone
3.5mm earhook earphone
3.5mm earphone
3.5mm earphone
Lapel mic w/2.5mm
earphone jack
2.5mm earphone
Tube earphone for EH-15B
2.5mm tube earphone
2.5mm earhook earphone
Miscellaneous
ACC adapter to use with Hirose plug accessories
3.5mm earphone jack adapter (use w/SP-27/SP-29/SP-40/SP-AT1)
Software
Battery management software
* The M85UL should only be used with the specified Intrinsically Safe options. UL certified the M85UL and accessories under the official names on the boxes and UL stickers M85UL, BP292UL, and HM184UL.
Everything about the M93D radio is professional and stylish with an easy-to-use interface. The M93 is slender, has a 2-tone body, is feature rich and smart. Enjoy Icom’s continued tradition of Float’n Flash, AquaQuake™ and Active Noise Cancelling. The M93D will keep you safe with integrated GPS - providing location, bearing and speed. Plus this handheld meets ITU-R M493-13 Class D DSC with a dedicated built-in DSC receiver for CH 70. Icom’s new M93D is built for the serious boater.
Output Power: |
5W | |
Battery Life: |
1570mAh Li-ion battery, up to 9 hours Typical operation; Tx:Rx:Stand-by duty ratio = 5:5:90 |
|
Waterproof Rating: |
IPX7 |
User Friendly
A flat sheet keypad not only makes the radio slim, but also provides positive click feeling. The M93D offers consistent and predictable operation based on the Icom’s common Marine Family User Interface. You can quickly access the required function by using soft keys. The most often-used 19 functions can be assigned at the bottom of the display and are toggled with the left and right keys.
Large LCD
The M93D’s large, full dot-matrix display clearly shows information. The large font and identifiable icons make easy to read. In addition, the display is high contrast and visible under direct sunlight.
Waypoints
Compass
Navigation
Distress Call
Position Check
Integrated GNSS Receiver
Integrated GNSS (Global Navigation Satellite System) receiver provides your location, bearing and speed with fast-setup time and pinpoint accuracy by using information from GPS, GLONASS, QZSS and SBAS (WAAS/EGNOS/MSAS). Using GNSS memory data, the M93D can fix positioning within 8–12 seconds after the radio is powered ON. Acquired position information can be used for DSC calls and navigation to waypoints.
Additional Features
- Built-in Class D DSC. A red rear panel button allows for distress calls
- Navigation function from current position to the specified waypoint
- 50 waypoint memories with alphanumeric name for navigation
- Weather channel receive with alert function
- Dual/Tri-watch function for monitoring CH16 and/or call channel
- Battery indicator shows remaining battery power in four levels
- Favorite channel function for quick access to often used functions
- AquaQuake™ draining function clears water away from the speaker grill
- Float’n Flash allows the user to see the radio when dropped in the water
- Active Noise Canceling digitally removes background noise from both transmit and receive audio
| General | |
|---|---|
| Frequency Range Tx Rx RX (Ch70) |
156.025–157.425 MHz 156.050–163.275 MHz 156.525MHz |
| Usable channel groups | INT, USA, CAN, WX channels |
| Type of emission | 16K0G3E (FM), 16KOG2B (DSC) |
| Current drain (at 7.4V DC) Tx (5.0W/1.0W output) Rx (Inter SP/Exter SP Max. audio) |
1.5A/700mA (approx.) 450mA/250mA (approx.) |
|
Operating temperature range |
-20°C to +60°C; -4°F to +140°F |
| Antenna Impedance | 50Ω |
| Dimensions (W×H×D) (Projections not included) |
57.0×144.6×38.5mm; 2.24×5.69×1.52in |
| Weight (approx.) | 10.58oz |
| Transmitter | |
|---|---|
| Output power (Hi/Low) |
5W/1W |
| Max. frequency deviation | ±5 kHz |
| Frequency stability | ±10ppm |
| Spurious emissions | –68dBc typ. |
| Receiver | |
|---|---|
| Sensitivity (at 12dB SINAD) DSC receiver (at 1% BER) |
0.25µV typical 0.56μV emf typical |
| Squelch sensitivity (Threshold) | 0.25µV typ. |
| Adjacent Channel Selectivity DSC receiver (at 1% BER) |
70dB typical 73dBμ emf typical |
| Spurious response DSC receiver (at 1% BER) |
70dB typical 73dBμ emf typical |
| Intermodulation DSC receiver (at 1% BER) |
70dB typical 68dBμ emf typical |
| Hum and noise ratio | 40dB typical |
| Audio output power Internal speaker External speaker |
(at 10% distortion) 900mW typical (12Ω load) 350mW typical (8Ω load) |
Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications & IP Rating
| Standard | MIL 810 G | |
| Method | Proc | |
| Low Pressure | 500.5 | I, II |
| High Temp. | 501.5 | I, II |
| Low Temp. | 502.5 | I, II |
| Temp. Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
| Ingress Protection Standard | |
| Water | IPX7 (Waterproof protection) |
Supplied Accessories
- AC adapter, BC-123SA
- Battery charger, BC-220
- Battery pack, BP-285
- Cigarette lighter cable, CP-25H
- Belt clip, MB-133
- Antenna, FA-SC59V
- Hand strap
Antennas
Battery
Li-ion 7.2V 1570mAh (typical),
1485mAh (minimum)
Belt Clips
Swivel type
Long leather belt hanger
Chargers
Rapid charger
100-240V AC adapter
for charger
12V cigarette lighter cable
DC power cable for
rapid charger
Six unit gang charger
100-240V AC adapter
for gang charger
DC power cable
for gang charger
Microphones
Waterproof speaker mic

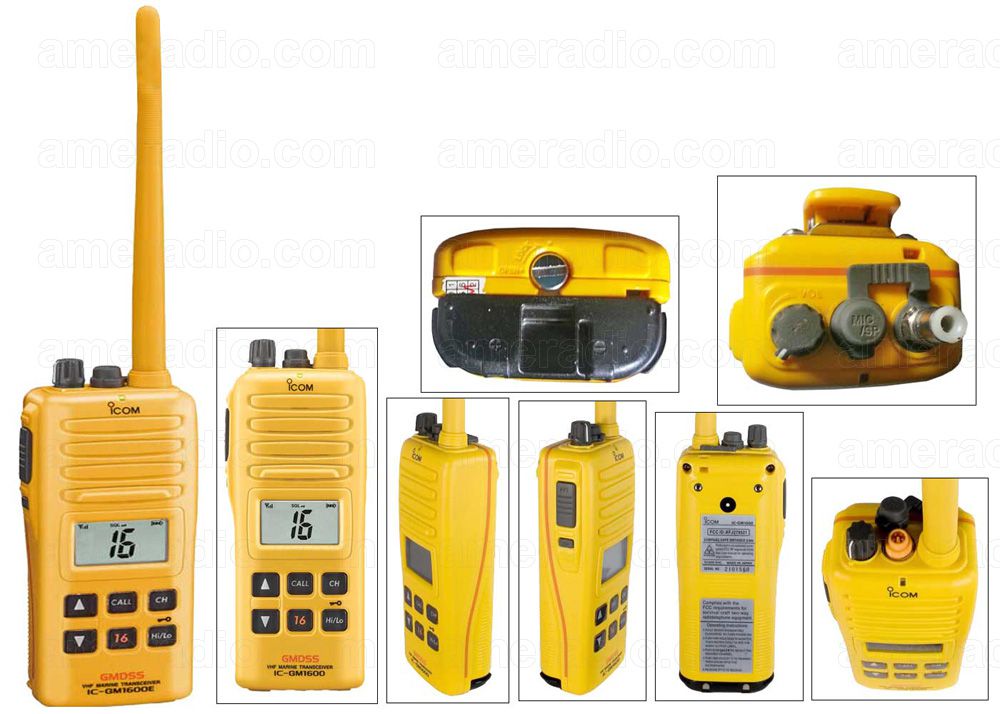

The GM1600 Marine VHF handheld is designed for GMDSS compliant survival craft communications. The radio is engineered to survive and function in the extreme environmental conditions common in marine emergencies and brings the latest Search and Rescue technology to the marketplace. The GM1600’s shock-resistant housing is constructed of a brightly colored dye-injected polymer assuring this essential piece of emergency equipment will always be easy to find in a survival bag, in a life raft, or any other place when you need to find it quickly.
Output Power: |
2W | |
Battery Life: |
3300mAh Lithium battery, up to 8 hours & 750mAh Ni-Cd battery Typical operation; Tx:Rx:Stand-by duty ratio = 5:5:90 |
|
Waterproof Rating: |
IPX7 |
Survival Craft Radio
The GM1600 meets temperature, thermal shock, vibration and drop resistant (from 1 m height) requirements. After passing those environmental tests, the GM1600 sustains 1m depth waterproof construction specified with IMO resolutions A.809(19), A.694(17) and IEC 61097-12. The BP-234 battery can operate even at –4ºF.
Easy Operation
All knobs are sized for quick operation and the large, well-labeled buttons feature a positive action "feel" with a programmable beep tone for sure operation. The front panel includes one touch access to Channel 16 and call channel.
Additional Features
- Operation instructions are printed on the rear panel
- All operation can be made with one hand
- Bright LED indicator on the top of panel
- Optional VOX headset for on-board use
| General | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Frequency Range (Tx/Rx) | 156.300–156.875MHz | |||||||||
| Mode | FM (16K0G3E) | |||||||||
| Power supply requirement | 7.5/7.2V DC nominal | |||||||||
|
Current drain (at 7.5/7.2V DC) |
|
|||||||||
|
Operating temperature range |
-20°C to °60°C; -4°F to +140°F | |||||||||
| Antenna Impedance | 50Ω (SMA fixed type) | |||||||||
|
Dimensions (W×H×D) (Projections not included) |
65 × 145 × 44 mm; 29/16 × 523/32 (H) × 123/32 in |
|||||||||
| Weight (approx.) | 385g; 13.6oz (with BP-234) | |||||||||
| Transmitter | |
|---|---|
| Output power | 2W/1W (Hi/Low) |
| Max. frequency deviation | ±5.0kHz |
|
Frequency Error |
±5.0ppm |
|
Spurious emissions |
-70dBc typical |
| Adjacent channel power | 70dB |
| FM Hum and noise ratio | 40dB |
| Audio harmonic distortion | Less than 10% (at 60% mod.) |
| Receiver | |
|---|---|
|
Sensitivity |
0.25µV (at 12dB SINAD) |
|
Squelch sensitivity |
0.35µV typ. (at threshold) |
|
Adjacent Channel Selectivity |
70dB |
|
Spurious response |
70dB |
|
Intermodulation Rejection |
70dB typ. |
| Hum and noise ratio | 40dB |
|
Audio output power |
0.35W typ. |
To comply with the requirements of GMDSS survival craft radio, the primary battery pack, BP-234, is required.
Measurement made in accordance with TIA/EIA-603 and FCC part 80.271 for USA version. All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- Battery pack, BP-234
- Battery pack, BP-252
- Battery charger, BC-173
- AC adapter, BC-147SA
- Belt clip, MB-103Y
- Antenna, FA-S61V
- Neck strap
Antennas
Battery
3300mAh Lithium
(non recharageable)
750mAh Ni-Cd
Li-ion battery pack
Belt Clips
Standard belt clip
Swivel belt clip
Swivel belt hanger
Chargers
Trickle charger
Battery charger
AC adapter for charger
12V cigarette lighter cable
DC power cable for
rapid charger
Headsets
Earpiece with boom mic
(use w/OPC-1392)
Behind-the-head headset with
boom mic (use w/OPC-1392)
Earphone with throat mic
headset (use w/OPC-1392)
Headset adapter

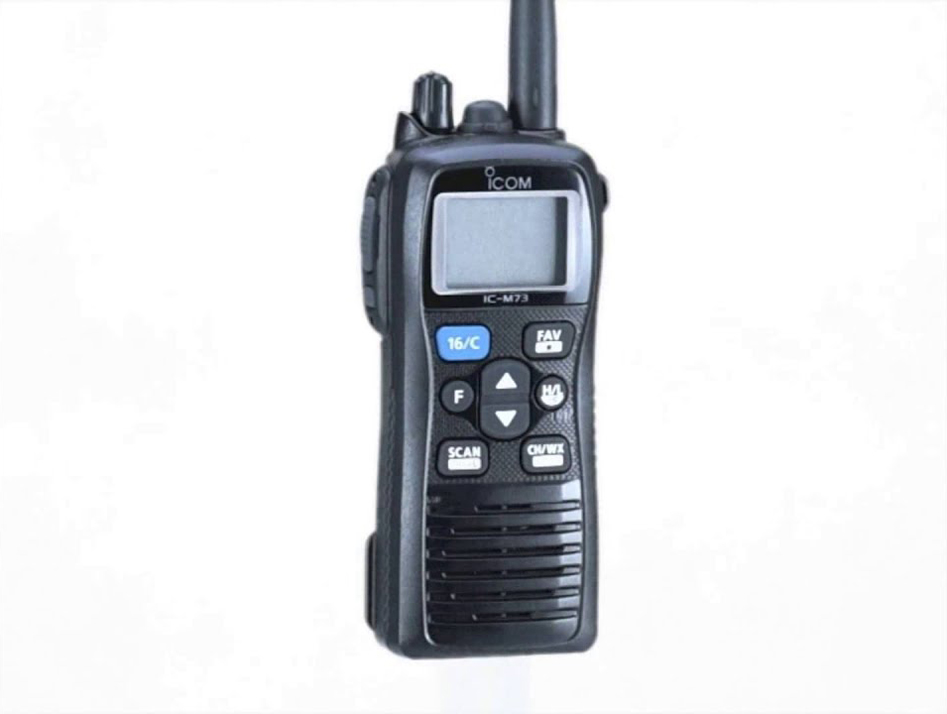

The M73’s ergonomic design fits easily in the user’s hand and is a rugged, durable radio. The large screen and high intensity LCD offers bright, easy to read characters. Yacht customers benefit from the optional VOX headset and adapter option that allows someone handling dock lines to use both hands, while docking the boat, simultaneously communicating with the captain.
Output Power: |
6W | |
Battery Life: |
2000mAh Li-ion battery, up to 16 hours Typical operation; Tx:Rx:Stand-by duty ratio = 5:5:90 |
|
Waterproof Rating: |
IPX8 |
Loud Audio
The M73 uses a BTL (bridge-tied load) amplifier that doubles the audio output. Its internal speaker delivers a loud 700mW audio output with clear sound.
M73 PLUS
The M73 PLUS includes these additional features:
- Active noise cancelling to reduce background noise to hear conversations better.
- Bass boost function provides a rich bass sound for both transmit and receive signals.
- Last call voice recording automatically saves the last incoming call for one minute. You can also start recording manually.
Additional Features
- AquaQuake™ water draining function
- Dual/Tri-Watch function for monitoring Channel 16 and/or call channel
- 4 level battery indicator
- Favorite channel and tag scan functions
- Auto power save function
| General | |
|---|---|
| Frequency Range Tx Rx |
156.025–157.425MHz 156.050–163.275MHz |
| Usable channel groups | INT, USA, CAN, WX channels |
| Type of emission | 16K0G3E (FM) |
| Current drain (at 7.4V DC) Tx (at 6W output) Rx (Max. audio (Int SP/Ext SP) |
1.5A typical 450mA/250mA |
|
Operating temperature range |
–20°C to +60°C; –4°F to +140°F |
| Antenna Impedance | 50Ω (STUD) |
| Dimensions (W×H×D) (Projections not included) |
52.5×125×30 mm 2.07×4.92×1.18 in |
| Weight (approx.) | 320g; 11.3oz (With BP-245N, FA-S64V, MB-103) |
| Transmitter | |
|---|---|
| Output power (Hi/Low) |
6W/3W/1W |
| Max. frequency deviation | ± 5.0 kHz |
| Frequency error | ±10ppm |
| Audio harmonic distortion | Less than 10% (at 60% dev.) |
| Spurious emissions | –68dBc |
| Adjacent channel power | 70dB |
| Audio harmonic distortion | Less than 10% (at 60% dev.) |
| Residual modulation | 40dB |
| Receiver | |
|---|---|
| Sensitivity | 0.22μV typ. (at 12dB SINAD) |
| Squelch sensitivity | 0.35µV typ. (at threshold) |
| Adjacent Channel Selectivity | 70dB typical |
| Spurious response | 70dB typical |
| Intermodulation | 70dB typical |
| Hum and noise ratio | 40dB typical |
| Audio output power Internal speaker |
700mW typ. (at 10% distortion, 8Ω load) |
Applicable U.S. Military Standards
| Standard | MIL 810 F | |
| Method | Proc | |
| Low Pressure | 500.5 | I, II |
| High Temp. | 501.5 | I,II |
| Low Temp. | 502.5 | I, II |
| Temperature Shock | 503.5 | I - C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | — |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Applicable IP Rating
| Ingress Protection Standard | |
| Water | IPX8 (Waterproof protection) |
Also meets equivalent MIL-STD-810-C, -D, -E and -F
Measurement made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- Cigarette lighter cable, CP-25H
- Rapid charger, BC-210
- Handheld strap
- Belt clip, MB-103
- AC adapter, BC-123SA
- Battery pack, BP-245N
- Antenna, FA-S59V
Antennas
150mm
115mm
Battery
Belt Clips
Standard belt clip
Swivel belt clip
Swivel belt hanger
Chargers
Rapid charger
100-240V AC adapter
for charger
12V cigarette lighter cable
DC power cable for
rapid charger
Six unit gang charger
100-240V AC adapter
for gang charger
Gang charger adapter cup
DC power cable
for gang charger
Headsets
Earpiece with boom mic
(use w/OPC-1392)
Behind-the-head headset with
boom mic (use w/OPC-1392)
Earphone with throat mic
headset (use w/OPC-1392)
Headset adapter
Microphones
Waterproof speaker mic
