Industrial Wireless Product
NEXCOM offers versatile Industrial Wireless Solutions which fit the needs of communication redundancy, stability, manageability, and mobility. The Industrial Wireless Solution includes Wireless LAN Controller, Industrial Wi-Fi, Outdoor Wi-Fi, Hotspot Wi-Fi, and Security Wi-Fi. For the requirements of hospitality, NEXCOM provides Hotspot Wi-Fi with easy installation, multiple policies and on-demand roaming capabilities. To ease the concern of Internet security, NEXCOM Security Wi-Fi features with high throughput, high virus detection-rate, and flexible surfing management.

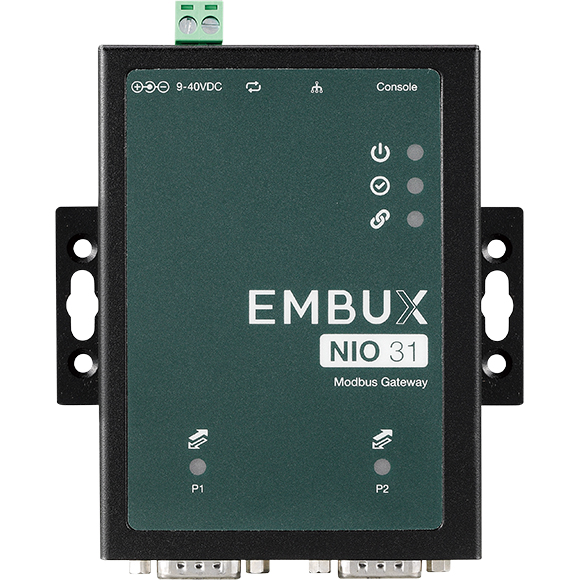

Industrial Gateway > NIO 31
NIO 31
Modbus Gateway- Main Feature
- Serial to Ethernet
- Modbus/TCP to Modbus RTU/ASCII
- 2 Serial ports
- Supports up to 16 x Modbus/TCP masters or 32 x Modbus/TCP slaves
- 1 x 10/100Mbps Ethernet port
- Supports telnet, web and serial console configuration
- Windows configuration utility included
- Firmware upgradable by Ethernet
- 9~40VDC power jack or terminal block
CPU/Memory | CPU: 32-bit ARM |
Network Interface | Type: 1 x 10/100Mbps Ethernet, RJ45 connectorProtection: 1.5KV magnetic isolation |
Serial Ports | Port 1: RS-232/422/485Port 2: RS-232 |
Serial Port Parameters | Baud rate: 1.2~460.8KbpsData bits: 5, 6, 7, 8Stop bits: 1, 2Parity: none, even, oddFlow control: none/hardwareProtection: 15KV ESD |
Serial Console Port | RS-232: 115.2Kbps baud rate, no flow control, 8-bit data, 1 stop bit |
Operation Mode | Modbus gateway: Slave RTU, Slave ASCII, Master RTU, Master ASCIIS2E gateway: TCP server, TCP client |
Power Requirement | Power input: 9~40VDC power jack or terminal block |
Net Weight | 310 g |
Dimension | 78 x 108 x 25mm (W x H x D) |
Environment | Operating temperature: 0~60ºCStorage temperature: -20~85ºCRelative humidity: RH 10%~95% non-Condensing |
Certificate | CE/FCC Class A (EMC/EMI) |
Industrial Access Point > IWF 310
IWF 310
Rugged Industrial EZ Mesh Access Point Dual RF, 1x 802.11an+1x 802.11 b/g/n 2x2 MIMO- Main Feature
- Dual radios and compliant with 1x 802.11an+1x 802.11 b/g/n 2x2 MIMO
- 1+4 port GbE RJ45 ports
- Up to 27dBm High RF power
- Multiple functions: AP/Router/EZ MESH
- Support 12V DC input
- Support -40 ~ 80°C extended operating temperature
Wireless Radio | 1x IEEE 802.11an 2x2 MIMO1x IEEE 802.11 b/g/n 2x2 MIMO |
Frequency Ranges | USA: 2.400~2.483 GHz, 5.15~5.35 GHz, 5.5~5.7 GHz, 5.725~5.825 GHzEurope: 2.400~2.483 GHz, 5.15~5.35 GHz, 5.47~5.725 GHz * Note: The available frequency range may be different according to different certification. |
RF Output Power : IEEE 802.11an(±2dBm) | IEEE802.11a - 27dBm@54MIEEE802.11a/n HT20 - 25dBm@MCS7IEEE802.11a/n HT40 - 24dBm@MCS7 |
RF Output Power : IEEE 802.11 b/g/n(±2dBm) | IEEE802.11b - 27dBm@1M - 24dBm@11MIEEE802.11g - 27dBm@6M - 24dBm@54MIEEE802.11g/n HT20 - 23dBm@MCS0/8 - 19dBm@MCS7/15IEEE802.11g/n HT40 - 22dBm@MCS0/8 - 18dBm@MCS7/15 |
Receive Sensitivity : IEEE 802.11an | IEEE802.11a -76dBm@54MIEEE802.11a/n HT20 -74dBm@MCS7IEEE802.11a/n HT40 -71dBm@MCS7 |
Receive Sensitivity : IEEE 802.11 b/g/n | IEEE802.11b - 93dBm@1M - 91dBm@11MIEEE802.11g - 94dBm@6M - 80dBm@54MIEEE802.11g/n HT20 - 94dBm@MCS0/8 - 77dBm@MCS7/15IEEE802.11g/n HT40 - 89dBm@MCS0/8 - 73dBm@MCS7/15 |
Hardware | WAN: 10/100/1000 Base-TX MDI/MDIX RJ-45 x 1LAN: 10/100/1000 Base-TX MDI/MDIX RJ-45 x 4Compliant with : - IEEE802.3 / 802.3u - Hardware based 10/100/1000, full/half, flow control auto negotiationPush buttons: 1x ResetLED: 1x power& status; 5x EthernetAntenna connectors: 2x with RP-SMA |
Operating Mode | APAP routerClient routerEZ mesh |
Security | WEP(64/128)WPA/WPA2 MixedWPA2-personal (PSK+CCMP/AES)Hidden ESSID supportMAC address filtering (MAC ACL) |
System Management | Web-based administrationSNMP V1/V2c (Coming Soon)SYSLOG information supportStatisticsConfiguration backup and restoreOne-button-click to restore factory default settingFirmware upgrade |
Built-in Servers & Client Interfaces to Other Services | DHCP clientSNMP v1/v2c client(coming soon) |
Physical and Power | 12VDC power input with DC jackWall mountableDimension: 185 x 108 x 43 mm |
Environment Protection | Operating temperature: -40~80°CStorage temperature: -45~85°CHumidity: 0% to 95% maximum (Non-condensing)Vibration: Random 0.3g |
Certification | FCCCERoHS compliant |
Package Contents | IWF310 unit x 1Dual band antenna x 2Wall-mount kit x 1AC-DC power adaptor x 1 |

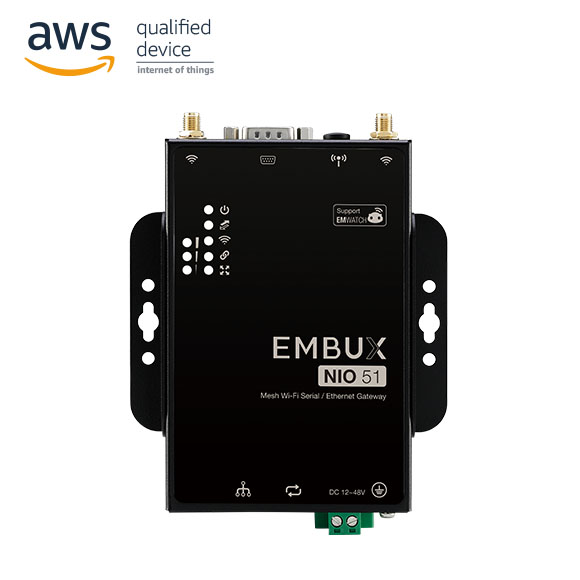

Industrial Gateway > NIO 51
NIO 51 brings the wireless connectivity from serial devices or Ethernet devices perfectly to Wi-Fi Mesh backbone in smart factories. Thanks for the Wi-Fi Mesh technology, every device connecting to NIO 51 can easily keep multiple Wi-Fi connecting paths to either IWF310 EZ Mesh backbone or neighbor NIO51 devices to communicate with the control center even the devices are in moving status such as AGV application in factories.
NIO 51 provides flexible conversion between Modbus RTU to Modbus TCP protocols as well as serial to Ethernet/Wi-Fi interfaces within one box. It’s also equipped with high immunity to EMC high level protection in Surge, ESD and EFT, wide operation temperature and redundant power so people do not need to concern about impact from harsh environment. Optional mPCIe port can be used as 3G/LTE WAN connection in the mobility applications or the environments where no Wi-Fi coverage is possible.
NIO 51
Industrial Mesh Wi-Fi Serial/Ethernet Device Gateway- Main Feature
- Support EZ Mesh and Wi-Fi client router operation mode
- Selectable 2.4GHz/5GHz, 2x2 MIMO
- Support serial to Ethernet' serial to Wi-Fi and Ethernet to Wi-Fi
- Support Modbus/RTU to Modbus/TCP
- Built-in offline port buffer with 20MB of storage
- High immunity to Surge, ESD & EFT protection
- Up to 921.6Kbps baud rate for RS-232/422/485 transmissions
- Web-based configuration
- Support serial data log
- Support nCare remote configuration
- Wide DC input range with 12V-48V
- Wide operation temperature from -40°C~70°C
Wi-Fi Radio | IEEE802.11a/b/g/n , MIMO 2 x 2 |
Serial Interface | RS232/422/485 with isolation - Data bits: 8 - Stop bits: 1 - Parity: none, even, odd - Baud rate: 300bps~921.6Kbps |
Ethernet Interface | 10/100 Mbps |
Power Requirements | Input voltage: 12~48VDC, 2-pin removable terminal blockInput current: 1.67A@12VDC |
LED Indicator | 1 x Power/status1 x Serial status3 x RSSI indicator1 x Wi-Fi 2.4/5GHz indicator1 x Link/Act indicator1 x Extension module |
Factory Default/Reset Button | Press reset button 10 seconds for factory default |
Connector type | DC input: Phoenix contact terminal blockEthernet: RJ-45 connectorSerial signal: DB9 |
Wi-Fi Operating Mode | EZ MeshClient router |
Wi-Fi Security (Client Mode) | WEP (64/128)WPA/WPA2 mixedWPA2-personal (PSK+CCMP/AES), WPA2-enterprise |
Protocol | Modbus TCPModbus RTUTransparent mode for Serial to Wi-Fi/Ethernet |
Serial Port Characteristics | Flow control: XON/XOFF, RTS/CTSSerial data log: 64KBOffline port buffering: 20MBMin. concurrent TCP client number: 10 |
Software Watchdog | Yes |
Dimension | 81.4 mm x 122.6 mm x 35 mm |
Weight | 450g |
Mounting | Wall mountingDIN mounting |
Construction | SGCC chassis with fanless design |
Certification | EMI: FCC, CE Class ARF - FCC: Part 15C - CE: EN300328, EN301893Safety - EN 62368-1EMC - EN301 489-1/17, FCC Part 15 subpart B, EN55032/55024 - IEC61000-4-2: level 4 - EC61000-4-4: level 4 - EC61000-4-5 Surge: level 3 |
Environment | Operating temp: -40°C to 70°CStorage temp: -40°C to 85°CRelative humidity: operating: 5%~95%, non-condensingRoHS compliantVibration - Random: 2Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6Shock: 50G, half sine, 11ms, IEC60068-27 |
