VMS
• Support for mobile clients (iOS & Android) access
• Up to 1000 device/2000 channels connections
• Unified management of NVR, IPC, decoder, network keyboard and cloud devices
• 16 SATA HDDs，Up to 14TB each HDD
• 16×1080P decoding outputs in 3 screens

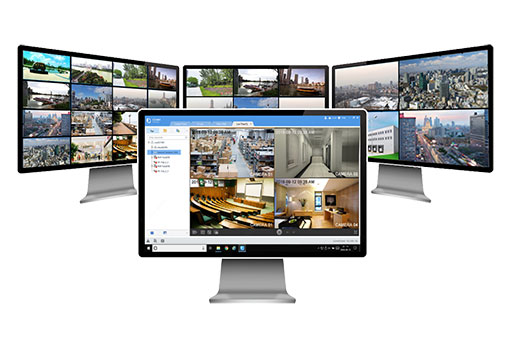

• Support for live view, playback, sequence, video wall, E-map, two-way audio, alarm plan
• Support of network fault tolerance, multi-IP configuration and load balancing
Stability: Linux OS, dual-BIOS, redundant power, two-server hot standby
Compatibility: Third-party IP Cameras supported with standard ONVIF and RTSP

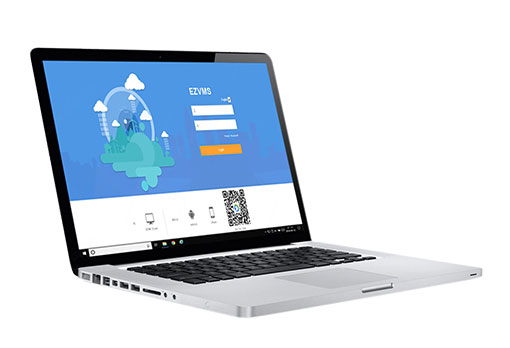

Access: Browser/Server, Client/Server and mobile clients (both iOS and Android)
Connection: 1000 device connections, up to 2000 channels of high-definition network videos
Management: Unified management of IPC, NVR, face recognition terminal, decoder, network keyboard, cloud devices, alarm control panel and door access control, support devices’ configuration import/export
Storage: Max 16 hard disks and 2 disk enclosures; expandable up to 48 disks with 672TB storage, recording backup, IPSAN storage
Decoding: Max 16×1080P decoding outputs in three screens, expandable up to 112×1080P in 15 screens with 2 decoding cards inserted
Service: Live view, playback, sequence, video wall, GIS map, two-way audio, and alarm plan
Reliability: Support of HTTPS, 802.1x authentication, ARP protection, Telnet enabling/disabling, network fault tolerance, multi-IP configuration, load balancing, secure password and IP address filtering
Operation and maintenance: Provide a comprehensive management dashboard, server status, device/channel online/offline status, HDD status, online users, bandwidth usage, packet loss rate, log query

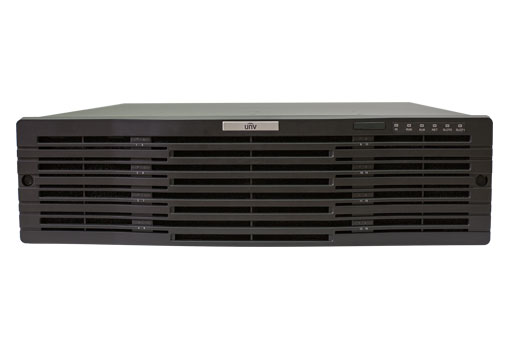

| Item | Unicorn | |
| Video management | Number of connected cameras per server |
1000 devices or 2000 channels 1000 devices connected via Onvif |
| Number of connected face recognition terminals | 128 | |
| Image processing performance | Receive vehicle or face images: 100 images per second Note: For example, if each device uploads 1 image per second, then 100 devices can be connected; if each device uploads 5 images per second, then 20 devices can be connected |
|
| Device management | IPC, NVR, face recognition terminal, decoder(standard/expanded), network keyboard, cloud devices, alarm control panel and door access control | |
| Number of 3rd-party alarm control panels/access control devices | 30 | |
| Numbers of users | 1000 | |
| Numbers of online users | 300 | |
| Numbers of roles per user | 16 | |
| Bandwidth of video input per server |
512Mbps | |
| Bandwidth of video output per server |
384Mbps | |
| Decoding | Video compression | Ultra265, H.265, H.264 |
| Decoding | 4×4K@30, 16×1080p@30, 36×720p@30, 64×D1 | |
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF | |
| Display on video wall | HDMI(×2) and VGA(×1) output; HDMI output supports 4K resolution | |
| Audio compression | G.711A, G.711μ | |
| Decoding card (optional) |
Max 2 cards supported; models: HDMI4-C and HDMI6-C | |
| HDMI4-C decoding card | 4-ch HDMI outputs, with decoding of 4*4K@60 or 8*4K@30 or 32*1080P@30 or 64*720P@30 | |
| HDMI6-C decoding card | 6-ch HDMI outputs, with decoding of 6*4K@60 or 12*4K@30 or 48*1080P@30 or 96*720P@30 | |
| Storage | HDD installation | Hot-swappable HDDs Support 16HDDs (3.5", up to 14TB for each ) |
| RAID mode | RAID0, RAID1, RAID5,RAID6,RAID10,RAID50,RAID60 | |
| Performance of video storage per server | 512Mbps/ 256 channels | |
| Disk enclosure (optional) |
Max 2 disk enclosures supported; models: DEU1008 and DEU1016 | |
| DEU1008 disk enclosure | 8xSATA interfaces, up to 14TB storage per interface | |
| DEU1016 disk enclosure | 16xSATA interfaces, up to 14TB storage per interface | |
| Play control | 1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 16 / 17 / 25 / 32 / 36 / 64 window display Corridor format Up to 3 auxiliary monitors |
|
| Playback | Play NVR recordings Up to 24 channels for multiple clients; synchronous playback up to 16 channels for single client |
|
| Data Info | Alarm Records | 200,000 |
| Operation logs | 200,000 | |
| Face capture records | 3 million | |
| Face alarm records | 3 million | |
| Vehicle pass-through records | 3 million | |
| Structured motor vehicle, non-motor vehicle and pedestrian records | 3 million | |
| Access control entry/exit records | 3 million | |
| Alarm processing capacity | 100/s | |
| System | Main Processor | Intel(R) CPU |
| Memory | 4GB DDR3L | |
| Power supply | 100-240 VAC (with power on/off switch) Dual-power redundancy |
|
| Interface | Network | 4×10M/100M/1000M Base-T adaptive Ethernet interfaces 2×1000M SFP optical interfaces |
| USB | 4×USB3.0 | |
| HDMI | 2×HDMI | |
| VGA | 1×VGA | |
| Serial | 1×RS-232 (RJ45), 1×RS-485 (RJ45) | |
| Alarm input/output | 24×alarm inputs, 8×alarm outputs | |
| Power output | 12 V DC | |
| Audio alarm | Buzzer | |
| Expansion | 1×eSATA interface 2×miniSAS interfaces 2×decoding cards |
|
| Others | Power consumption | ≤ 50W (not including HDD) ≤ 165W (including HDD) |
| Operating temperature | -10°C to 55°C (14°F to 131°F) | |
| Operating humidity | 10% to 90% (noncondensing) | |
| Weight | ≤ 10.0 Kg | |
| Dimensions (D×W×H) |
Height: 3U, support mounting in standard 19" cabinet 477.1 mm × 481.6 mm × 130.5 mm (18.8''×19''×5.1'') (including front panel) |
|
Connection: Connect and manage 250 devices, 500 video channels.
Management: Unified management of IPC, NVR, face recognition terminal, decoder, network keyboard, alarm controller, access controller, cloud devices.
Bandwidth: 512Mbps input bandwidth, 384Mbps output bandwidth.
Compatibility: Support standard Onvif and RTSP.
Service: Live view, playback, sequence, video wall, GIS map, two-way audio, alarm-triggered actions, access control management.
Access: Browser/Server, Client/Server and mobile clients (both iOS and Android).
Smart: Multiple smart functions including cross line detection, intrusion detection, face detection, LPR, face recognition, mixed traffic detection, people counting, behavior search, and alarms and reports.
Stability and reliability: Linux OS, 802.1x authentication, ARP protection, HTTPS, Telnet enabling/disabling, network fault tolerance, load balancing, multi-IP configuration, secure password, and IP address filtering.
Operation and maintenance: Provide a comprehensive management dashboard, server status, device/channel online/offline status, HDD status, online users, bandwidth usage, packet loss rate, log query.
Interfaces: 4 x 1000Mbps Ethernet interfaces, 24 alarm inputs, 8 alarm outputs, 4 x USB 3.0, 1 HDMI and 1 VGA.

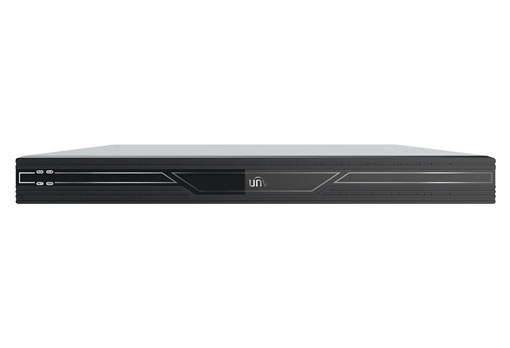

| Item | VMS-B180-A | |
| Management | Video | 250 devices, 500 channels |
| Face recognition terminal | 128 | |
| Human/vehicle | Can receive 100 vehicle or face images per second. Note: The number of devices supported depends on the number of images sent from the devices per second. For example, if each device sends 1 image per second, then the server can connect 100 devices. If each device sends 5 images per second, then the server can connect 20 devices. |
|
| Decoding | Video | H.265, H.264 |
| Resolution | 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 960P/ 720P/ 960H/ D1/ 2CIF/ CIF/ QCIF | |
| Output (local client) | Independent output to HDMI and VGA HDMI supports 4K resolution |
|
| Audio | G.711A, G.711μ | |
| Input Bandwidth | 512Mbps | |
| Output Bandwidth | 384Mbps | |
| User Management | 50 online users | |
| Device Management | IPC, NVR, face recognition terminal, decoder, network keyboard, smart devices, alarm controller, access controller, and cloud devices. | |
| Play Control | 1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 16 / 17 / 25 / 32 / 36 / 64 window display Corridor format Up to 3 auxiliary monitors |
|
| Playback | Play NVR recordings 16-ch synchronous playback Speed: -256, -128, -64, -32, -16, -8, -4, -2, -1, 1/4, 1/2, 1, 2, 4, 8, 16, 32, 64, 128, 256 |
|
| Data Info | Alarm Records | 200,000 |
| Operation logs | 200,000 | |
| Face capture records | 3 million | |
| Face alarm records | 3 million | |
| Vehicle pass-through records | 3 million | |
| Structured motor vehicle, non-motor vehicle and pedestrian records | 3 million | |
| Access control entry/exit records | 3 million | |
| External Interface |
Network | 4 × 10M/100M/1000M Base-T adaptive Ethernet interfaces |
| USB | 4 × USB3.0 | |
| Serial | 1 × RS232 (RJ45), 1 × RS485 (RJ45) | |
| Alarm input/output | 24 alarm inputs, 8 alarm outputs | |
| Power output | 12V DC | |
| Power | 100-240V AC, with power switch | |
| Others | Power consumption | ≤ 40W |
| Operating temperature | -10°C to 55°C (14°F to 131°F) | |
| Operating humidity | 10%-90% (noncondensing) | |
| Weight | ≤ 4.1 Kg (without HDD) | |
| Dimensions (D×W×H) |
Height: 1U 440 mm × 399.50 mm × 48 mm (17.2"×15.7"×1.8") |
|
Stability: Linux OS, 1+1 hot standby for master server, and N+M protection for storage server
Flexible deployment: support distributed and hierarchical network structure
Compatible and open: connection of third-party IP cameras with standard ONVIF and RTSP, integration with alarm control and access control; SDK for integration with other systems
Powerful connection: up to 2,000 devices or 10,000 channels by single server, up to 30,000 channels in distributed or hierarchical network structure
Unified management: IPC, NVR, decoder, network keyboard, cloud device, alarm control panel and door access controller
Reliable and cost-effective storage with IP SAN
Multiple ways to access: Web client for configuration and management, Software client for daily monitoring, mobile client (iOS and Android) for access anytime, anywhere
Rich functionality: live view, playback, sequence, video wall, GIS map, two-way audio and broadcast, people counting, real-time alarm and alarm management, user and permission management
VCA support: receive VCA alarms, configure alarm-triggered actions, and real-time people counting and statistics report
Secure protection: HTTPS, 802.1x authentication, ARP protection, secure password policy, and IP address filtering
Reliability: network fault tolerance, multi-IP configuration, load balancing, Automatic Network Replenishment (ANR)
Operation and maintenance: Provide a comprehensive management dashboard, server status, device/channel online/offline status, HDD status, online users, bandwidth usage, packet loss rate, log query

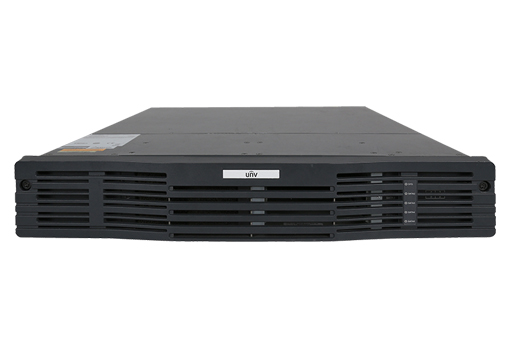

| Model | VMS-B800-A |
| Video management | |
| Number of connected cameras per server |
Up to 2,000 devices or 10,000 channels by single server Up to 30,000 channels in distributed or hierarchical network structure |
| Device management | IPC, NVR, decoder, network keyboard, cloud devices, alarm control panel and door access controller |
| Bandwidth of video input per server |
1024Mbps |
| Bandwidth of video output per server |
1536Mbps |
| User management | |
| Number of online users | 1000 |
| Numbers of roles per user | 16 |
| Play control | |
| 1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 16 / 17 / 25 / 32 / 36 / 64 window display Corridor format Up to 3 auxiliary monitors |
|
| Playback | |
| Play NVR recordings Synchronous playback up to 16 channels on single client Instant playback (five minutes and thirty seconds ago) |
|
| Data Info | |
| Alarm Records | 200,000 |
| Operation logs | 200,000 |
| Alarm | |
| Alarm trigger | System alarm, device alarm, video channel alarm, VCA alarm, alarm control panel, door access controller, external alarm |
| Alarm reaction | Recording, email, live view, PTZ preset, alarm output, video wall |
| Interface | |
| Network | 3 RJ-45 ports (10/100/1000Mbps) |
| USB | 4×USB |
| HDMI | 1×HDMI |
| VGA | 1×VGA |
| Serial | 1×RS232 (RJ45), 1xRS-485 (RJ45) |
| Expansion | 1×power module 1×NIC card |
| Others | |
| Main processor | Intel(R) CPU |
| Hard disk | 1×2T |
| Memory | 16GB DDR4 |
| Power supply | 100-240V AC, with power button |
| Power consumption | ≤ 150 W |
| Operating temperature | 0°C to 40°C (32°F to 104°F) Recommended: 10°C to 35°C (50°F to 95°F) |
| Operating humidity | 20%-80% RH (non-condensing) |
| Weight | ≤ 14.0 Kg |
| Dimensions (D×W×H) | 482 mm × 551 mm × 87 mm (19"x21.7"x3.4") 2U height, mountable in a standard 19" rack |
