POS
NexPOS, NEXCOM Point-of-Sales (POS) solution, features high performance, green technology and OEM/ODM reliability that ensure the success of customer's investment. The features of NexPOS POS terminals include IP 65 front panel projection, PCT touch, removable HDD, 2nd display deployment, bezel free, or fanless design to meet diverse demands. Furthermore, some NEXPOS POS terminals also provide VESA or wall mounting based on installation requirements.

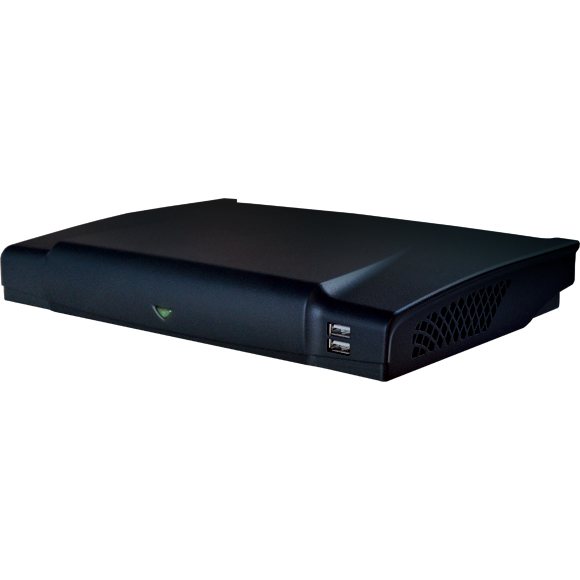

POS Box PC NPB-3550
The NEXCOM NPB 3550 is a high value rugged die-cast aluminum POS box PC that is designed with high flexibility and scalability. The Rich I/O interface make the POS system easily work with various peripherals. It is perfect for the retail, Kiosk, and restaurant industries application.
Unique Sleek and Noise Free Fanless Design driven by an Intel® Atom™ Cedarview D2550 Dual Core Processor makes it a become cost effective and high value terminal. Additional features like easy-open Latch design for tool-free access and removable HDD for cold swapping make repair so easy, lowering terminal downtime to almost zero thus saving on maintenance cost. Hardware platform can be easily upgraded by swapping out mother board but not swapping out I/O board.
NPB 3550
High Value Fanless Point-of-Sales Box System- Main Feature
- Fanless POS box system
- Slim and compact enclosure design
- I ntel® Atom™ processor D2550, 1.86GHz
- Support DDR3 1066 SO-DIMM memory
- 2.5” removable SATA HDD
- Powered COM(4), USB(6), printer port (1), VGA(1), DVI(1), GbE LAN(1), cash drawer(1), PS/2(1)
- Optional wall-mount kit for compact space accommodation
| System | CPU: Intel® Atom™ processor 2550, 1.86 GHzBIOS: AMI BIOSSystem chipset: Intel® NM10System memory: 1x 204-pin DDR3 SO-DIMM socket, 2GB DDR3 1066(default), optional support up to 4GB DDR3 1066, non-ECC and unbufferedSystem Graphic: Integrated Graphics controller ,Intel® HD Graphics 3600Hard disk drive: One 2.5” 320GB SATA HDD, removable type, optional one 2.5” SATA HDD 320GB 5,400rpm for 2nd HDD (by SATA backplane)Expansion: 1x Full size Mini-card socket for Mini-PCIe and USB interface1x half size Mini-card socket for Mini-PCIe and USB interface1x SIM Card Socket support for 3G USB Mini-Card, Select by BIOS setting. |
| System Control Indicator | Power Switch: 1 x Power ON/OFF swichPower LED: 1 x Power ON LED(Green) |
| Front I/O | USB: 2 x USB 2.0 port (USB 6~7) |
| Rear I/O | USB: 4 x USB 2.0 port (USB 1~4)COM: 4x DB-9 powered RS-232 port, adjust RI/ 5V/ 12V by BIOS, optional: 1 xDB-9 Powered RS-232, 5V by BIOS SettingPowered USB port: 1 x +12VDC Powered USB2.0 (USB5)Ethernet: 1x RJ-45, 10/100/1000 Mbps, optional 1 x RJ-45 for 2nd LANVGA: 1x DB-15 VGA port, optional: 1 x DB-15 2nd VGA share D-Shape hole with COM5DVI: 1x DVI-D portCash drawer: 1x RJ-11 port, support two cash drawers(24V, Max 1.1A)PS/2: 1x KB/MS Combo PS/2 portParallel: 1x DB-25 printer portAudio: 1 x Headset Jack (Speak-out & MIC)DC-IN: 1x +12VDC input, Mini-DIN 4 pin lock typeWireless Antenna: Optional Main/ Aux. wireless Antenna |
| Audio | High Definition audio codec: Realtek ALC886-GRExternal audio: 1x Headset Jack (Speak-out & MIC)Ethernet LAN chip: LAN1, Realtek RTL8111E Gigabit LAN, optional:LAN 2, Intel® WG82574LEthernet interface: 10/100/1000 Based-TX Ethernet compatible |
| Mechanical & Environment | Color: blackMounting: desktop type, optional wall-mount KitPower input: +12VDCPower adapter: AC to DC power brick (+12VDC/ 8.33A, 100W)Operating temperature: 0°C to 40°CStorage temperature: -20°C to 60°COperating humidity: 20%~80% relative humidity, non-condensingDimension: 297 (W)* 228 (D)* 50 (H) mmWeight: 4.5kg(8.81lbs) |
| Certifications | CE approvalFCC Class ALVD |

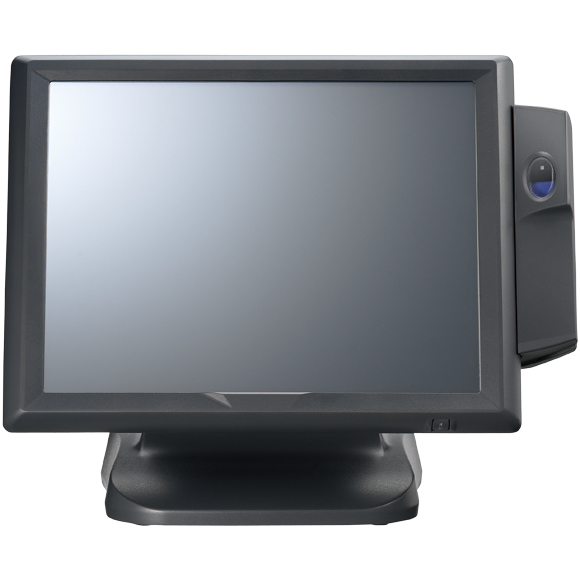

Touch POS Monitor NPD-1050
The NPD 1050 is a reliable and flexibility touch monitor that can support an integrated magnetic stripe reader (MSR) and also supports an integrated 2x20 rear customer display. The display has touchscreen with five-wire resistive and also with projected capacitive (PCAP) for a multi-touch experience and zero-bezel. The front bezel with frame and borderless (True Flat Surface) types design combined with its Solid IP65 Water and Dust proofing.
The NPD 1050 offers a stable base touch screen and a hidden cable management system, all in an elegant and simple-to-use design. The display can function as a desktop or wall-mounted unit and includes a VESA mounting option. The 15” touch monitor provides an affordable product in a convenient, space-saving design that both first-time and experienced users can deploy more easily, reliably, and more cost-effectively.NPD-1050 is the best solution for NEXPOS box PC fanless computer.
NPD 1050
15” POS Touch Monitor
- Main Feature
- Front Bezel IP-65 Stand Compliant
- Slim and compact enclosure design
- Stand accommodate Power Brick
- Zero Bezel Touch(P Cap/ Resistive Option)
- Modular MSR/FingerPrint(Option)
- Optional wall-mount kit for compact space accommodation
| Panel | 15” 4:3 XGA (1024 x 768) TFT LCD panel15” 5-wire resistive touch screen15” projected capacitive true flat touch screen(optional)Front bezel complies with IP-65 protection standardOption kits for MSR/ Fingerprint/ VFDOptional wall-mount kit for compact space accommodation |
| Rear I/O | Touch interface port: 1 x USB 2.0 Type B connector for Upstreaming; 1x USB 2.0 Type A for Downstreaming.Video port: 1 x DB15 VGA / 1x DVI-I connector/1 x DP (Display Port)OSD: 1 x AUTO button for auto adjust setting; optional 4 buttons (MENU, SELECT, ▲/+, ▼/-), on optional OSD switch board.COM: Optional: 2 x DB-9F for RS-232 Upstream.DC-IN Jack : 1 x +12VDC Input |
| System Control/ Indicator | Power Switch: 1 x Power ON/ OFF switchPower LED: 1 x Power ON LED (Green) |
| Mechanical & Environment | Color: blackMounting: desktop type, optional VESA 100 x 100mm wall-mount when detaching standIP protection: front bezel complies with IP-65 protection standardPower input: +12VDCPower adapter: Default: Power source from NPB 3550 PoweredUSB 12V; Optional: External AC DC 12V/ 5.0A 60W Power BrickOperating temperature: 0°C to 40°CStorage temperature: -20°C to 60°COperating humidity: 20%~80% relative humidity, non-condensingDimension: 368mm (W) x 331mm (H) x 210mm (D) (no MSR)410mm (W) x 331mm (H) x 210mm (D) (with MSR)Weight: 7.3kgTilt angle: 0° ~ 80° |
| Certifications | CE approvalFCC Class A |

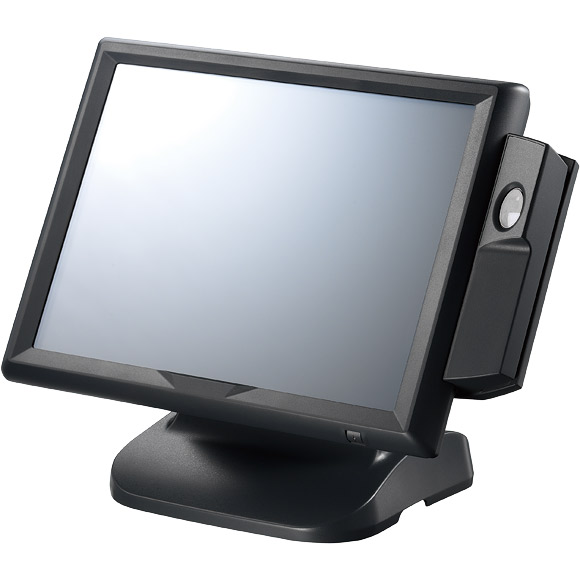

High Performance POS Terminal
The NPT 5850 is a high performance Point-of-Sale (POS) hardware solution to fulfill your POS hardware requirement. The 2nd generation Intel® Core™ i3/i5/i7 mobile processor platform is a best choice for high-end POS hardware solution.
Removable HDD, MSR, fingerprint and VFD kit design provides an easy maintenance method and saving your service cost. The DC-12V output provides sufficient power for your 2nd display from POS terminal and offers better cable routing and high-integration for the 2nd display. Small footprint is ideal for installations where space is compact in stores. The VESA mounting design of display head, only 100x 100mm, provides another option for wall-mounting application when detaching the stand of terminal. The design offers a spill resistant and high integration for POS peripherals, which provides restaurant and retail conditions with continuous operation.
NPT 5850
High Performance Point-of-Sales 15" TFT LCD POS Terminal- Main Feature
- 15" 4:3 XGA (1024 x 768) TFT LCD panel
- 15" 5-wire resistive touch screen
- 2nd/3rd generation Intel® Core™ i3/i5/i7 processor
- Support DDR3 1333 SO-DIMM memory
- 2.5" removable SATA HDD
- Powered COM(4), USB(4), printer port(1), VGA(1), GbE LAN(1), cash drawer(1)
- Front bezel complies with IP-65 protection standard
- Option kits for MSR/ Fingerprint/ VFD
- Optional VESA 100 x 100mm mounting for wall-mount application
| Panel | LCD Size: 15" , 4:3Resolution: XGA 1024 x 768Luminance: 250cd/m2Contrast ratio: 700LCD color: 16.2MViewing angle: 80 (upper), 80 (lower), 85 (left), 85 (right)Backlight: CCFL/LEDTouch screen: 5-wire ResistiveTouch light transmission: 80%Touch interface: USB |
| System | CPU: - Default: Intel® Pentium® processor B950, 2C/2T, 2.10 GHz, 2MB Cache - Upgrade Optional: 2nd generation Intel® Core™ mobile processor: i7-2710QE, 4C/8T, 2.1GHz, 6MB Cache; i5-2510E, 2C/4T, 2.5GHz, 3MB Cache; i3-2330E, 2C/4T, 2.2GHz, 3MB Cache - Optional: Intel® Celeron® processor B810, 2C/2T, 1.60 GHz, 2M CacheBIOS: AMI BIOSSystem chipset: Intel® HM65System memory: 1x 204-pin DDR3 1333 SO-DIMM socket, 2GB DDR3 (default), optional two sockets support up to 8GB DDR3 1333, non-ECC and un-bufferedHard disk drive: One 2.5" 320GB SATA HDD, removable typeExpansion: 1x mini-card socket for mini-PCIe and USB interface |
| Rear I/O | USB: 4x USB2.0 portCOM: 4x DB-9 powered RS-232 port, adjust RI/ 5V/ 12V by BIOS settingEthernet: 1x RJ-45, 10/100/1000 MbpsVGA: 1x DB-15 2nd VGA portCash drawer: 1x RJ-11 port, support two cash drawers (24V, Max 1.1A)Parallel: 1x DB-25 printer portAudio: 1x Line-out jackDC-IN: 1x DC-19V input, mini-DIN 4Pin lock typeDC-OUT: 1x DC-12V output for 2nd display power (12V, Max 3.0A) |
| Audio | High Definition audio codec: Realtek ALC886-GRInternal audio: One 3W speakerExternal audio: Line-out audio jack |
| Ethernet | LAN chip: Intel® PHY WG82579LM Gigabit LANEthernet interface: 10/100/1000 Based-TX Ethernet compatible |
| Mechanical & Environment | Color: Iron gray/blackMounting: desktop type, optional VESA 100 x 100mm wall-mount when detaching standIP protection: front bezel complies with IP-65 protection standardPower input: DC-19VPower adapter: AC to DC power brick (DC-19V/ 6.315A, 120W)Operating temperature: 0°C to 40°CStorage temperature: -20°C to 60°COperating humidity: 20%~80% relative humidity, non-condensingDimension: 368mm (W) x 331mm (H) x 210mm(D) (No MSR), 410mm (W) x 331mm (H) x 210mm (D) (with MSR)Weight: 9.5kgTilt angle: 0° ~ 80° |
| Certifications | CE approvalFCC Class A |
