AI Edge Telematics Solution
NEXCOM offers a series of in-vehicle computers to gain real-time information access in remote, mobile environments. Users can obtain real-time information, entertainment and network computing services and creating new business opportunities through advanced computer and vehicle terminal systems. Another product line, rugged tablet PC, has specifically designed to enhance filed workers' productivity and efficiency. With robust and intelligent design, the tablet PC can be connected to corporate systems to improve real-time communication and empower field-based decision making.
Intel Movidius Solution ATC 8010-7B
MVS 2623-GCIoT 8-CH PoE Mobile NVR increases safety and security for bus passenger transportation with high video resolution and 2 removable extensive storage HDD/SSD capacity. It connects up to 8 IP cameras + PoE function providing reliable and high quality video coverage around the bus.
MVS 2623-GCIoT is a modular design, it is flexible to use other kinds of expansion boards to extend different I/O functions for different applications.
MVS 2623-GCIoT leverages wireless networks to simplify fleet management with capabilities such as remote, real-time video monitoring. This remote capability keeps transit fleets in service around the clock.
Vehicle data integration and diagnostics are also carried out via CAN Bus and OBDII. MIL-STD-810G for shock and vibration is designed to operate in harsh environments. Optional internal back-up battery guards against any unexpected vehicle power failure or unstable vehicle power.
ATC 8010-7B
Intel® Core™ 8th Gen. CPU + Intel® Movidius™ Myriad™ X MA2485 VPU Powerful Intelligent Platform for AGU and ANPR/AFR- Main Feature
- Intel® Core™ 8th Gen. i7-8700T, 2.4GHz, 6 Core
- Intel® Myriad X MA2485 MXM VPU module supported
- 8 x Independent I210-IT 10/100/1000 PoE 802.3af/at
- ultraONE+ for 10-Meter video + audio output
- 2 x External SSD and 2 x mSATA for RAID 0, 1, 5, 10
- 2 x WWAN module and 3 x SIM socket with eSIM option
- Fanless design
- 3 x mini-PCIe and 1 x M.2
- CE/FCC/E mark
CPU | Intel® Core™ 8th Gen. i7-8700T processors, 2.4GHz, 35W, 6 core |
Chipset | Intel® Q370 platform controller hub |
Memory | 2-Channel 260-pin DDR4 SO-DMIM sockets up to 32GB/channel(64GB for two channels), default 4GB + 4GB industrial grade memory |
VPU (AIBooster-X8-MXM MXM Module) | Eight Intel® Movidius™ Myriad™ X MA2485 VPUPer MA2485 VPU - Up to 1 TOPS - 16 programmable 128-bit VLIW vector processors - CPUs 2 x LEON 4 cores (RISC; SPARC V8) - On-chip accelerators 20+ image/vision processing accelerator - Neural compute engine (DNN accelerator) - Neural network capability neural compute engine |
Storage | 2 x 2.5” SATA 3.0 external SSD2 x mSATA |
Expansion | 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0)1 x Full size mini-PCIe socket (USB 2.0), optional M.2 key B (3042)1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0 (option))1 x M.2 key B 3042, (USB 2.0, USB 3.1) |
GNSS and On-board Sensor | 1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou. Optional modules with dead reckoning availableBuilt-in G SensorTPM 2.0 (Option)Watchdog timer: Programmable 1~255 sec |
Power over Ethernet | 8-Port LAN, independent I210-IT 10/100/1000 Mbps, PoE 802.3af/at, max. 60W |
I/O Interface-Front | 24 x LED indicators (including 4 x programmable LED)1 x HDMI 1.4b from Intel CPU (max resolution: 4096 x 2160 at 30Hz)1 x VGA (max resolution: 1920 x 1200@60Hz)1 x ultraONE+ for 10M video + audio output + 24VDC output2 x USB 3.1 type A (5V/1A)2 x Externally accessible SIM sockets, 1 x internal SIM socket2 x 2.5” removable SSD tray1 x Reset button1 x Power button5 x SMA antenna |
I/O Interface-Rear | 8 x PoE 802.3af/at (max. 60W)1 x LAN, I210-IT 10/100/1000 Mbps1 x 5-pin terminal block for 9V~36VDC1 x Mic-in, 1 x Line-out4 x 2 connector for 12VDC/2A output, power button, 2 x MDI2 x DB9 for full RS2321 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A)1 x DB15 - 1 x Isolated CANBus 2.0B - 1 x GPS DR - 4 x DI and 4 x DO4 x SMA antenna4 x USB 3.1 type A (5V/1A) |
Power Management | Selectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by softwareSupport S3/S4 suspend mode |
Operating System | Windows 10/Linux/YOCTO (by request) |
Dimensions | 260 x 256 x 90.1 (W x D x H) (mm) |
Weight | 6.3kg |
Environment | Operating temperatures: -30°C~60°C (w/ industrail SSD) with air flowStorage temperatures: -40°C~80°CRelative humidity: 90% (non-condensing)Vibration (random) - 2g@5~500 Hz (in operation, SSD)Vibration (SSD) - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD) - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
Certifications | CE approval, FCC Class A, E13 mark |
Google Coral Solution MVS 2623-GCIoT
MVS 2623-GCIoT 8-CH PoE Mobile NVR increases safety and security for bus passenger transportation with high video resolution and 2 removable extensive storage HDD/SSD capacity. It connects up to 8 IP cameras + PoE function providing reliable and high quality video coverage around the bus.
MVS 2623-GCIoT is a modular design, it is flexible to use other kinds of expansion boards to extend different I/O functions for different applications.
MVS 2623-GCIoT leverages wireless networks to simplify fleet management with capabilities such as remote, real-time video monitoring. This remote capability keeps transit fleets in service around the clock.
Vehicle data integration and diagnostics are also carried out via CAN Bus and OBDII. MIL-STD-810G for shock and vibration is designed to operate in harsh environments. Optional internal back-up battery guards against any unexpected vehicle power failure or unstable vehicle power.

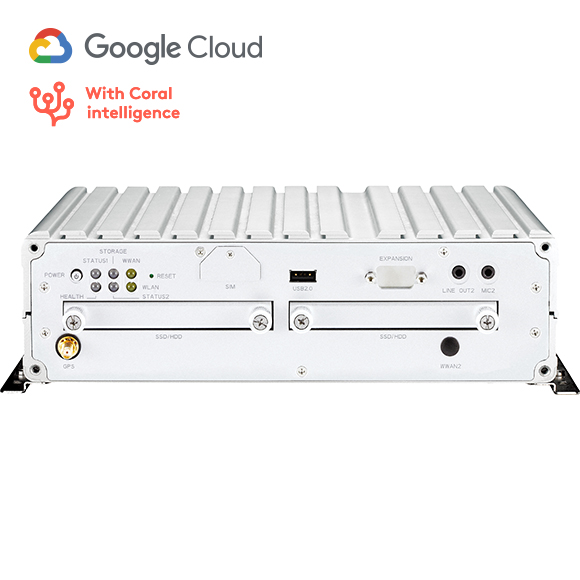

MVS 2623-GCIoT
Google Cloud AI Edge Telematics Solution
- Main Feature
- Built-in Google Edge TPU ML accelerator coprocessor
- Modular design for flexible I/O expansion
- Three SIM cards + dual WWAN modules support
- 8 x 10/100/1000 Mbps 802.3af PoE ports
- Built-in u-blox NEO-M8N module, optional dead reckoning support
- Intel Atom® x7, 4c, 2.0GHz E3950
- Dual removable SATA 3.0 2.5” SSD/HDD
- iButton for driver ID identification
- Built-in CAN 2.0B optional OBDII function (SAE J1939/J1708)
- Pattern number M531607 registered, an easy way to expand diverse I/O cards
CPU | Intel Atom® x7, 4C, 2.0GHz E3950 (Apollo Lake) |
Memory | 204-Pin DDR3L SO-DMIM socket support 1600MHz up to 8GB, default 4GB industrial grade memory |
Google Edge TPU (Coral ML Accelerator Card) | Hardware interface: mini-PCIe (half size)Serial interface: PCIe Gen2 x1Performance: 4TOPS @2WattOperating voltage: 3.3V +/- 10 %Dimensions: 30mm x 26.8mm x 2.5 mm |
Storage | 2 x 2.5” SATA 3.0 SSD/HDD, removable & hot swappable (optional lockable storage available) |
Expansion | 1 x Full size mini-PCIe socket (USB 2.0)1 x Full size mini-PCIe socket (USB 2.0 + PCIe)1 x Half size mini-PCIe socket (USB 2.0 + PCIe) |
GNSS and On Board Sensor | 1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/BeidouOptional modules with Dead Reckoning availableBuilt-in G-sensor |
Power over Ethernet | 8-Port RJ45 for 10/100/1000 Mbps PoE IEEE 802.3af conformity, total 60W |
Security | TPM 2.0 |
I/O Interface-Front | 6 x LED indicators for power/storage/WLAN/WWAN/status/health1 x Reset button1 x USB type A USB 2.0 port2 x Phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out1 x Externally accessible SIM card sockets2 x Antenna holes for WWAN/WLAN/BT/GPS |
I/O Interface-Rear | 8 x RJ45 10/100/1000 Mbps PoE ports with LED2 x RJ45 10/100/1000 Intel® Fast Ethernet with LED1x 5-pin terminal block 9~36VDC-IN & 1x 3-pin terminal block for power cascade2 x USB type A USB 3.0 port2 x Phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz1 x HDMI port, resolution up to 2560 x 1600 @60Hz2 x DB-9 RS-2321 x DB-9 RS-232/422/485 (RI/5V/12V selectable)1 x 12VDC output (2A) + SM Bus + 2 x MDI + power button1 x DB9 connector for optional DR signal input, 2 x MDO and iButton - 1 x 16-Pin terminal block connector - 1 x CAN Bus 2.0B (on board) - 1 x OBDII from optional VIOB-CAN-03 module (SAE J1939) - 1 x CAN Bus 2.0B from optional VIOB-CAN-03 module - 8 x Programmable GPIO (4 x Digital inputs in default) Input voltage (source type): 5VDC TTL (default) Input voltage (external type): 3~12VDC (4 x Digital outputs in default) Digital output (source type): 5VDC TTL (default), max current: 20mA Digital output (external type): 3~24VDC, max current: 150mA1 x Externally acessible SIM card socket and 1x internal SIM card socket selectable |
Power Management | 9~36VDC-IN with ignition control (100W in max.)Selectable boot-up & shut-down voltage for low power protection by software. Setting 8-level power on/ off delay time by software. Support S3/S4 suspend mode |
Rechargeable Battery (option) | Lithium-ion polymerNominal capacity 1100mAhMaximum charge current 1.0CmA |
Operating System | Debian Linux and other variants |
Dimensions | 260mm (W) x 196mm (D) x 79.6mm (H) (10.24” x 7.72” x 3.13”)4kg |
Environment | Operating temperatures - -30°C~60°C (w/ Google Edge TPU & industrial SSD) with air flowStorage temperatures: -40°C~80°CRelative humidity: 10% to 90% (non-condensing)Vibration (random) - 1.2g@5~500 Hz (in operation, HDD), 2.5g@5~500 Hz (in operation, SSD)Vibration (SSD/HDD) - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD/HDD) - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
Certifications | CE approval, FCC Class A, E13 mark |
NVIDIA Solution ATC 8110/8110-F
AI has become an essential component of automated vehicle technology. With built-in high-performance Intel® Coffee-Lake S/Refresh processing power and the powerful NVIDIA® GeForce® RTX 2080 Ti graphics engine with 4,352 CUDA® cores, ATC 8110 can satisfy a wide variety of applications for Autonomous Vehicle, law enforcement and factory automation fields, like the ANPR, facial recognition, machine vision and self-driving, etc.
Extreme speed of data-storage has become more and more important as a rapid growth of high-speed multi-cameras with a high frame rates has taken place. For that, ATC 8110 is designed with up to 5 USB 3.1 and up to 8 GbE w/ PoE GigE ports for high-end insdustrial cameras access to achieve a wire-speed performance. Also, the latest ultra-fast u.2/M.2 NVMe media and up to three 2.5” high-density SSD/HDD are carried out for customers to meet the requests of huge data streaming, secure and the integrity for multi-cameras installed.
ATC 8110 also provides an excellent expanding capability for users to install up to three add-on PCIe cards like the frame grabber in GigE and/or USB3 Vision interface, or a discrete graphics engine to enhance the graphics power. To position where you are and to keep connection with the remote central management while the system is on edge computing, ATC 8110 is the best choice for you to provide a telematics functionality, like up to two LTE/WLAN modems, GNSS w/ DR function and eMTC collaborated with other communicartion ports, RS232/422/485 and CAN 2.0B/OBD module, etc.
ATC 8110 can be configured to be a fanless or fan scheme in option, so that it’s a more elastic design for users to choose which CPU they want to operate. Also, it can support up to station-grade Xeon® w/ up to 80W TDP to work at a operating environment temperature of -30°C~60°C collaborate with the most 250W RTX 2080 Ti discrete graphics card.
In-vehicle mandatory regulation, ATC 8110 supports 9~36VDC power range with an ignition control that can comply with E-mark , CE/FCC Class A certification. In addition, based on a rugged design, ATC 8110 can meet US military MIL-STD-810G standard for sustaining vibration and shock even with a heavy graphics card installed in harsh environments.

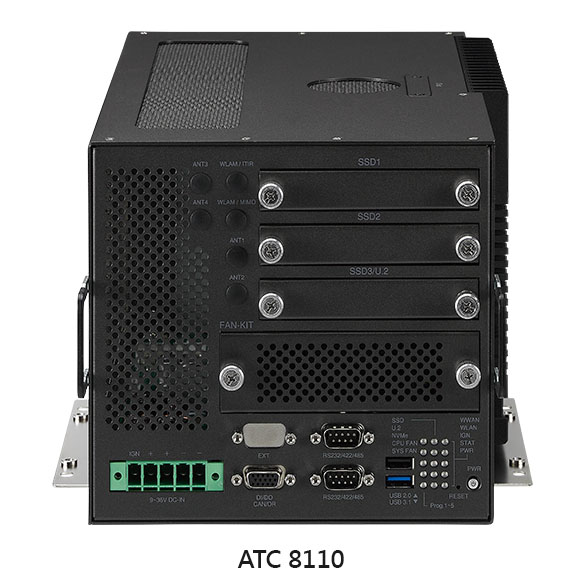

ATC 8110/8110-F
Intel® Coffee Lake S/Refresh + Inference Accelerator AI Powered for Autonomous and Machine Vision
- Main Feature
- In-vehicle AI recognition and machine vision applications
- Fanless/fan flexbility design
- Up to 8-core Intel® Coffee-Lake S/Refresh processing power
- 3 x PCIe 3.0 slots for Discrete Graphics/Inference/Frame Grabber cards
- Ultra-fast u.2/M.2 NVMe media for high-speed multi-cameras image capture
- RAID 0/1/5/10 configurable for data secure and integrity
- Wide-range 9~36VDC input with Ignition management
- Rich communication ports, 5 x USB 3.1, 2 x GbE, 4/8 GigE (PoE) and 4 x RS232/422/485
- Telematrics functinality of WWAN/5G NR, WLAN and GNSS with up to 4 x 4 MIMO and 4 SIM slots
- Compliant with E-mark, CE/FCC ClassA and MIL-STD-810G for anti-vibration/shock w/ graphics card installed
- Realize M-2-M through CAT-M (NB-IoT & eMTC)
CPU | Intel® Coffee-Lake S/Refresh Core™/Xeon® i7/i5/i3/Pentium®/Celeron® processor (LGA1151) |
PCH | Intel® chipset C246 |
Memory | Two 260-pin DDR4 SO-DMIM socketsUp to 32GB+32GB in size, 2400/2666 MHz |
Storage | 3 x 2.5” SATA 3.0 SSD/HDD (15mm height) or 2 x 2.5” SATA 3.0 SSD/HDD+ 1 x u.2 NVMe SSD1 x CFast (externally accessible) |
Expansion | 1 x Full size mPCIe socket (PCIe 2.0 + USB 2.0)1 x Full size mPCIe socket (USB 2.0 + PCM signal)1 x Key-B 3042/3052 M.2 socket (USB 3.0 + PCM signal) for LTE/5G NR modemOptional 2 x Key-M 2280 M.2 socket (PCIe 3.0 x2) for NVMe (GE74 card pre-installed)1 x PCIe 3.0 x16 slot for discrete graphics card, up to 321mm in length2 x PCIe 3.0 x4 slot, up to 190mm in length |
GigE/Frame Grabber (option) | GE64/GE74: 4-port independent GbE PoE+ (IEEE 802.3 af/at), RJ45 |
Discrete Graphics Card (option) | Up to NVIDIA® RTX 2080Ti, 250W or more advanced in the future |
GPS and Sensor | 1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/BeidouOptional modules with dead reckoning availableBuilt-in G-sensor |
Ethernet | 2-Port independent GbE LAN, RJ459K byte jumbo framePTP (IEEE 1588) supportController: Intel® I210-IT, PHY: Intel® I219LMvPro (iAMT) & WOL supportAdditional 4/8-port independent GbE/PoE PCIe card for option |
Security | TPM 2.0: Infineon SLB9665TT2.0FW5.62 (option) |
I/O Ports, Front-Plate | 5-Pin terminal block for 9~36VDC-INATX power buttonReset button5 x LED indicators for power/IGN/WLAN/WWAN/status5 x LED indicators for storage/fan control5 x LED indicators for user to program1 x USB 3.1 + 1 x USB 2.0, type A1 x DB15 ((DI/DO + CAN 2.0B + DR signal))1 x DB15, reserved for expansion6 x SMA antenna holes2 x DB9 (RS232/RS422/RS485 selectable) |
I/O Ports, Rear-Plate | 4 x USB 3.1, type A2 x GbE (RJ45)1x VGA + 1 x HDMI2x DB9 (RS232/RS422/RS485 selectable)12V/2A output2 x SIM slots1 x Antenna for GPS1 x PCIe x16 lane slot2 x PCIe x4 lane slots |
Display | 1 x VGA port, up to 2560 x 1600@60Hz1 x HDMI v1.4, up to 4096 x 2304@24Hz |
DI/DO (isolation) | 4-bit input - Source: 9~36V-IN (12V@1.1mA/24V@2.2mA) - External: 0~33VDC pull-high, high-level, 3.3 - 33 VDC; low-level, 0 - 2 VDC4-bit output - Source: 9~36V-IN (nominal 35mA@24V): - External: 5~27VDC pull-high, sink current w/ 220mA for each bit, 500mA max (@25C)Source or external can be selected by software (default: source type) |
Audio | Line-out (green-color): unbalance stereo, left & right channelMIC-in (pink-color) |
CAN 2.0B (isolation) | CAN 2.0B (isolation)Controller: SJA1000Bit rate up to 1Mbit/sSocket CAN supported11-bit & 29-bit identifiers, ISO 11898- 1, ISO 11898-2ESD: ± 8KV/15KV (contact/air)2.5KV isolated |
In-Vehicle Power Management | Dual 9~36VDC-IN (each for 12V/30A in max.)Cranking voltage: 6V~9V (< 30 seconds)Reverse protection, OCP & UVPIgnition on/off control/programmable on/off delay timerExtra 12V@2A for DC-out |
Dimensions & Weight | ATC 8110 (fanless): 191.2 x 176 x 350 (W x D x H) (mm)ATC 8110-F (fan-kit installed): 207.4 x 176 x 350 (W x D x H) (mm)ATC 8110/ATC 8110-F: 8KG/8.2KG (w/ o graphics/PCIe card) |
Environment | Operating temperatures (ATC 8110 & ATC 8110-F) -30°C~60°C (fanless design w/ 35W TDP CPU, 60°C for industrial SSD, 45°C for hard drive)Storage temperatures: -40°C~85°CRelative humidity: 10%~95% (non-condensing) |
Vibration (random) | IEC 60068-2-64 - 1.0g@5~500Hz (in operating, HDD), 1.6g for HDD w/ damping brackets - 2.0g@5~500Hz (in operating, SSD + graphics card)MIL-STD-810G (SSD + graphics card) - Operating: MIL-STD-810G, 514.6C, Procedure 3, Category 4Shock (SSD + graphics card) - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g |
Certifications | CE approval, FCC Class A, E13 |
