Affordable, High Performance Analog Portables
Entry and Mid Level Portables VHF/UHF

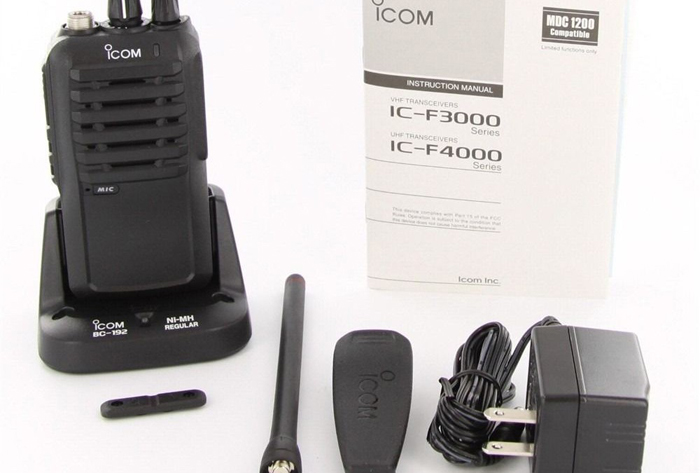

The F3001/F4001 Series is easy to use entry level portable with no special training required. The few knobs and buttons are generously sized for easy operation. This simple interface makes it ideal for high turnover environments and shift work where the radio is constantly passed from person to person. The radio series is ideal to meet the needs of schools, retail, golf courses, community centers and others with similar basic radio needs.
Channels: |
16 | |
Output Power: |
5W (VHF) / 4W (UHF) | |
Frequencies: |
136-174, 400-470 or 450-512MHz | |
Waterproof Rating: |
IP54 | |
Programmable Keys: |
3 |
Hands Free Operation
The radio has the internal VOX capability for hands-free operation. Optional compatible headset with plug adapter cable OPC-2004 can be used with the radio. Also, the VOX gain and VOX delay time are adjustable.
Built-in Signaling
The F3001 series comes all the popular signaling including 2-Tone, 5-Tone, CTCSS, DTCS and MDC1200 PTT ID & emergency. The radio’s 2-Tone and 5-Tone signaling gives you selective calling, quiet stand-by and other convenient functions with programming. The radio "stun" function disables a radio over the air and the "revive" function restores the stunned radio.
Additional Features
- Priority scan
- DTMF autodial
- Low battery alert
- Talk around function
- Enhanced emergency
- Surveillance function
- 2-step power save
- Time out timer
- Lone worker function
- 3-color LED
Icom Taking it to the Extreme - Rugged Radios for Rugged Terrain
A South American resort implements an Icom repeater and radios for their HeliSkiing operation. Radios featured include the F4001, F50 and F5021.
Specification
General | ||||
---|---|---|---|---|
Frequency coverage (Rx and Tx) |
F3001
136–174MHz F4001
400-470MHz 450-512MHz |
|||
Number of channels | Total 16 | |||
Type of emissions | 16K0F3E/11K0F3E | |||
Channel spacing | F3001 12.5 kHz, 15/30 kHz F4001 12.5 kHz |
|||
PLL channel step | F3001 2.5 kHz, 3.125 kHz (VHF) F4001 5 kHz, 6.25 kHz (UHF) |
|||
Power supply requirement | 7.2V DC nominal | |||
Current drain |
|
|||
Antenna impedance | 50Ω | |||
Operating temperature range | -30°C to 60°C; –22°F to +140°F | |||
Dimensions (W×H×D) | 2.28 x 4.38 x 1.41 in (with BP-265) | |||
Weight | 9.5 oz (with BP-265) | |||
Transmitter | ||||
Spurious emissions | 70dB typ. | |||
Max. frequency deviation | ±5.0 kHz/±2.5 kHz (wide/narrow) | |||
Frequency stability | ±2.5ppm | |||
FM hum and noise | 46/40dB typ. (wide/narrow) | |||
Output power | 5 W, 2W or 1W (Hi, L2, L1) 4 W, 2W or 1W (Hi, L2, L1) |
|||
Audio harmonic distortion (AF 1kHz 40% deviation) |
1.0/1.5% typ. (wide/narrow) | |||
Ext. microphone connector | 3-conductor 2.5 (d) mm (1/10")/2.2kΩ | |||
Receiver | ||||
Sensitivity | 0.25 µV (typ.) at 12 dB SINAD | |||
Adjacent channel selectivity | 73/65dB typ. (wide/narrow) | |||
Spurious response rejection | 70 dB (typ.) | |||
Intermodulation rejection | 74dB typ. | |||
Hum and noise | 52/47dB typ. (wide/narrow) | |||
Ext. speaker connector | 2-conductor 3.5 (d) mm (1/8") | |||
Audio output power (at 5% distortion) Internal SP (w/12Ω load) External SP (w/8Ω load) |
800mW typ. 400mW typ. |
Measurements made in accordance with EAIA-152-C/204D or TIA-603.
Applicable U.S. Military Specifications
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
Standard | MIL 810 F | |
Method | Proc | |
Low Pressure | 500.4 | I, II |
High Temp. | 501.4 | I, II |
Low Temp. | 502.4-3 | I, II |
Temp. Shock | 503.4 | I |
Solar Radiation | 505.4 | I |
Rain Blowing/Drip | 506.4 | I, III |
Humidity | 507.4 | – |
Salt Fog | 509.4 | – |
Dust Blowing | 510.4 | I |
Vibration | 514.5 | I |
Shock | 516.5 | I, IV |
Also meets equivalent MIL-STD-810-C, -D and -E.
Supplied Accessories
- Battery Pack: BP-265
- Antenna
- Belt Clip: MB-124
- Charger: BC-193
Specification
Antennas
400-430MHz
430-470MHz
470-512MHz
450-470MHz stubby
136–150MHz
150–174MHz
150-160MHz stubby
160-174MHz stubby
380-520MHz cut
136-174MHz cut
150-160MHz high gain
155-165MHz high gain
Batteries
Battery case (6 x AA batteries)
Ni-MH 7.2V 1400mAh
Li-ion 7.4V 2000mAh (typical), 1900mAh (minimum)
Belt Clips
Carrying Cases
Leather case with a swivel loop
Nylon case with a metal clip
Chargers
Trickle charger for Ni-MH battery
Trickle charger AC adapter
Rapid charger for Li-ion battery
Rapid charger AC adapter
12V cigarette lighter cable for rapid chargers
DC power cable for rapid charger
Vehicle charger bracket holds rapid charger and requires CP-23L
Six unit
gang charger
Adapter cup for BC-197 for BP-264
Adapter cup for BC-197 for BP-265
Gang charger AC adapter
DC power cable for gang charger
Headsets
Earpiece with boom mic
(use w/OPC-2004)
Behind-the-head headset with
boom mic (use w/OPC-2004)
Earphone with throat mic
headset (use w/OPC-2004)
Adapter plug to use with headset
Microphones
Compact microphone w/ earphone jack
Large microphone w/earphone jack
Waterproof mic w/3.5mm jack
Heavy duty mic w/3.5mm jack
Legacy speaker mic
Evolution heavy duty mic hi/lo volume switch, 2.5mm jack
3.5mm earphone for speaker mics
Wire Kits
Earphone microphone
Microphone with earphone combo
Lightweight earphone microphone
2-wire palm mic kit

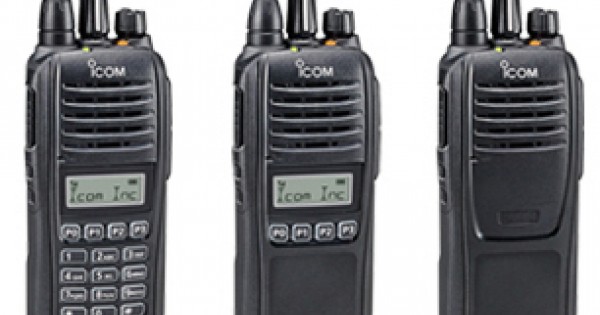

F1000 / F2000 Entry & Mid Level Analog Portables VHF/UHF
The F1100D/F2100D Series is a sleek portable radio that fits nicely in your hand and designed to be the go to entry to mid level digital radio. Three model choices, basic – no display, simple – display with simple keypad, and full – display and fully DTMF keypad, include an array of features such as IDAS digital mode operation in IDAS conventional and multi-site conventional, intelligent emergency functions, and a rugged waterproof & dustproof chassis. A high-power handling capacity speaker and acoustic improvements provide class-leading (1500 mW) loud and clear audio. This radio is ideal to meet the needs of a wide range of businesses including education, hospitality, and retail.
Channels: |
16 or 128 channels | |
Output Power: |
5W (VHF & 400-470) / 4W (450-512) | |
Frequencies: |
136-174 MHz 400-470 or 450-512 MHz |
|
Waterproof rating: |
IP67 | |
Programmable Keys: |
3 or 7 | |
Versions: |
No display Display with simple keypad Display with full DTMF keypad |
IDAS™ Features
The F1100D series provides NXDN™ CAI-based IDAS digital model operation in IDAS conventional and multi-site conventional. The following IDAS features are available:
- IDAS™ Type-D single-site trunking
- Analog/digital conventional mixed mode operation
- AMBE+2™ vocoder
- Over-the-Air updates the Alias list (call list) without programming (LCD versions)
- Individual, group and all call
- Status all and polling
- Short data messages (LCD versions)
- Call alert
- Radio check (RX only)
- The call list can save up to 500 ID numbers for IDAS or MDC1200 signaling system to show in the alias name
Safety & Security Features
For emergency situations the F1100D series includes an emergency key and four emergency functions: man down, motion & stationary detection, lone worker, and surveillance function.
The F1100D Series also includes low-level, 16 bit Digital Voice Encryption.
Built-in Analog Signaling
The F1100 series comes all the popular analog signaling including 2-Tone, 5-Tone, CTCSS and DTCS for group communication and selective calling. MDC features include PTT ID, Emergency (TX/RX), Radio Check (RX), Stun (RX), and Revive (RX).
Additional Features
- Channel announcement
- Siren sound for security alarm
- AquaQuake™ to clear water away from the speaker grill
- DTMF auto dial memories
- "Shift key" function increase the number of programmable key assignments
- Three color LED
Specification
General | ||||||||
---|---|---|---|---|---|---|---|---|
Frequency coverage (MHz) |
|
|||||||
Number of channels |
|
|||||||
Type of Emission Analog: Digital (IDAS): |
11K0F3E 4K0F1D, 4F0F1E |
|||||||
Power supply requirement | 7.5V DC nominal | |||||||
Current drain TX High RX Max. auidio/ Sandby |
|
|||||||
Antenna impedance | 50Ω | |||||||
Operating temperature range | –30°C to +60°C; –22°F to +140°F (Radio specification) | |||||||
Dimensions (W×H×D) (Projections not included) |
F1100DS/D, F2100DS/D: 52.2 × 111.8 × 29.4 mm; 2.1 × 4.4 × 1.2 in (With BP-280) F1100DT, F2100DT: 52.2 × 111.8 × 34.1 mm; 2.1 × 4.4 × 1.3 in (With BP-280) |
|||||||
Weight (With BP-280 & MB-133) | F1100D, F2100D: 260 g; 9.2 oz F1100DS, F2100DS: 270 g; 9.5 oz F1100DT, F2100DT: 280 g; 9.9 oz |
|||||||
Transmitter | ||||||||
Output power (Hi, L2, L1) |
|
|||||||
Max. frequency deviation | ± 5.0 kHz (25 kHz), ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz) | |||||||
Spurious emissions | 70dB minimum | |||||||
Frequency stability | ±1.0ppm | |||||||
Audio harmonic distortion | 0.7% typ. (25 kHz), 0.9% typical (20 kHz) 1.0% typical (12.5 kHz) (at AF 1 kHz 40% deviation) |
|||||||
FM Hum and Noise (without CCITT filter) |
|
|||||||
Residual modulations (with CCITT filter) |
|
|||||||
FSK error | 5.0% max. | |||||||
Ext. microphone connector | 3-conductor 2.5 (d) mm (1⁄10")⁄2.2kΩ | |||||||
Receiver | ||||||||
Sensitivity (at 12dB SINAD) (at 20 dB SINAD) (at 5% BER) |
|
|||||||
Adjacent channel selectivity |
|
|||||||
Spurious response | 80dB typical | |||||||
Intermodulation rejection |
|
|||||||
Hum and noise (With CCITT filter) (Without CCITT filter) |
|
|||||||
AF output power (at 5% distortion) Internal SP External SP |
1500 mW typical (With an 8 Ω load) 800 mW typical (With an 8 Ω load) |
|||||||
Ext. speaker connector | 2-conductor 3.5 (d) mm (1⁄8″)/8Ω |
All stated specifications are subject to change without notice or obligation. Measurements made in accordance with TIA-603 (USA/EXP) or EN 300-086, EN 301-166 (EUR). The IC-F1100DT/DS/D VHF versions are under evaluation as of May 2018.
Applicable U.S. Military Specifications & IP Rating
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
Standard | MIL 810 G | |
Method | Proc | |
Low Pressure | 500.5 | I, II |
High Temp. | 501.5 | I, II |
Low Temp. | 502.5 | I, II |
Temp. Shock | 503.5 | I-C |
Solar Radiation | 505.5 | I |
Rain Blowing/Drip | 506.5 | I, III |
Humidity | 507.5 | II |
Salt Fog | 509.5 | – |
Dust Blowing | 510.5 | I |
Immersion | 512.5 | I |
Vibration | 514.6 | I |
Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Ingress Protection Standard | |
Dust & Water | IP67/55/54 |
Supplied Accessories
- Battery pack, BP-280
- Belt clip, MB-133
- Antenna
- Desktop charger, BC-213*
- AC adapter, BC242*
Options and Accessories
Antennas
400-430MHz
440-470MHz
470-512MHz
400-450MHz
stubby
450-570MHz
stubby
136–150MHz
148-162MHz
160-174MHz
150–174MHz
150-160MHz
high gain (10")
155-165MHz
high gain
136-144MHz
stubby
142-150MHz
stubby
150-160MHz
stubby
160-174MHz
stubby
380-520MHz
cut
136-174MHz
cut
Batteries
Li-ion 7.2V 2280mAh (minimum),
2400mAh (typical)
Belt Clips
Cases
eather case with a swivel look
for the non display version
leather case with a swivel look
for the display, partial keypad version
leather case with a swivel look
for the display, full keypad version
Photo comig soon.
Nylon case with a metal clip
for the non display version
Nylon case with a metal clip
for the display, partial keypad version
Nylon case with a metal clip
for the display, full keypad version
Photo coming soon.
Chargers
Rapid charger
AC adapter for rapid charger
12V cigarette lighter cable
Vehicle charger bracket; requires BC213 & CP-23L
Six unit gang charger
Adapter cup for BC-214
AC adapter for gang charger
DC power cable for
gang charger
Headsets
Earpiece with
boom mic*
Behind-the-head headset with boom mic*
Earphone with
throat micheadset*
PTT switch cable
to use with headset
Adapter for VOX use
Earpiece headset with boom mic and 2-pin screw down connector
Behind-the-head headset with boom mic
and 2-pin screw down connector
Microphones
Compact microphone
w/earphone jack
Large microphone w/earphone jack
Waterproof mic w/3.5mm jack
Earphone for speaker mics
Wire Kits
Microphone with earphone combo
Lightweight earphone microphone

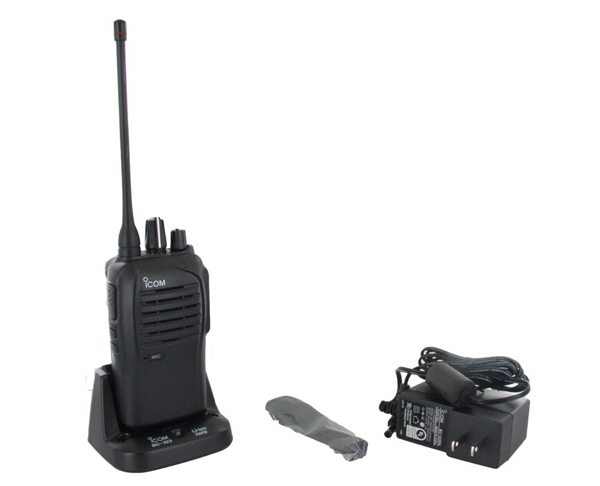

F3210D / F4210D Entry Level IDAS™ Trunking Portables VHF/UHF
IDAS™ Digital Mode Operation
Whether its construction, education, or hotels, the F3210D series is ready to withstand any operation. Features such as the loud 45mm speakers and channel announcement prove that the radio can operate in the noisiest of conditions. Paired with the IDAS network for single and multisite trunking, the F3210D is ready for operations on the largest communications scale.
Channels: |
16 | |
Output Power: |
5W VHF/4W UHF | |
Frequencies: |
136-174, 400-470, 450-512 | |
Digital Conventional: |
IDAS built-in | |
Digital Trunking: |
Built-in Type D single-site and multi-site | |
Waterproof Rating: |
IP54 |
IDAS™ Digital Mode Features
- PTT ID (TX)
- Block decode
- Radio check (RX)
- Call alert
- Emergency
- Individual/Group call
- RAN (Radio Access Number)
- Stun/kill/revive (RX)
- Remote monitor (RX)
- Digital voice scrambler
- ATB (All Trunks Busy) ring back
*TX: Transmit, RX: Receive
Easy to Hear in Noisy Areas
The built-in bridge-tied load (BTL) amplifier delivers a powerful 800mW* audio output from the large 45mm speaker. In addition, the digital modulation provides distinct clarity even at the fringes of the communication range.
*Typical with internal speaker.
Channel Announcement
When you rotate the channel knob, the radio announces the channel number, convenient for making radio adjustments without having to look at the radio.
Internal VOX Capability
The radio has the internal VOX capability for hands-free operation. Optional compatible headset with plug adapter cable OPC-2004 can be used with the radio. Also, the VOX gain and VOX delay time are adjustable.
Roaming Scan
In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.
Other Features
- CTCSS/DTCS encode/decoder (analog only)*
- Low battery alert
- 3-color LED
- Time out timer
- Lone worker function
- 2-step power save
- PC programmable
- Voting Scan
- Talk around function
- Surveillance function
Extend your Communication Reach with IDAS™ Multi-Site trunking
General | |||
---|---|---|---|
Frequency coverage |
F3210D
136–174MHz F4210D
400-470MHz 450-512MHz |
||
Number of channels | 16 channels | ||
Type of emission | 16K0F3E* / 11K0F3E/8K50F3E / 4K00F1E / F1D | ||
Channel spacing | 25* / 15 / 12.5 / 6.25 kHz | ||
Power supply requirement | 7.5V DC nominal | ||
Current drain Tx High (VHF) Rx Max. audio Standby |
|
||
Antenna impedance | 5OΩ | ||
Operating temperature range |
|
||
Dimensions (proj. not included) | 58(cW) × 111.5(H) × 36.5(D) mm; 2.28×4.39×1.44in (with BP-265) | ||
Weight | 320g; 11.3oz (With MB-124, BP-265 & antenna) | ||
Transmitter | |||
Output power (at 7.5V DC) | F3210D: 5W, 2W, 1W (hi, L2, L1) F4210D: 4W, 2W, 1W (Hi, L2, L1) |
||
Max. frequency deviation | ±5.0 kHz (wide) ±2.5 kHz (narrow) |
||
Frequency stability |
|
||
Spurious emissions | F3210D: 75/71dB typ. (W/N) F4210D: 75dB typ. |
||
FM Hum and noise | F3210D: 52/46dB typ. (W/N) F4210D: 50/44dB typ. (W/N) |
||
Audio harmonic distortion | 0.5/0.8% typ. (AF 1kHz 40% deviation, W/N) | ||
FSK Error | 2% typ. | ||
External microphone connector | 3-conductor 2.5 (d) mm (1⁄10")⁄2.2Ω | ||
Receiver | |||
Sensitivity (at 12dB SINAD) (at 5% BER) |
|
||
Adjacent channel selectivity | F3210D: 77/71/58dB typ. (W/N/D) F4210D: 74/67/58dB typ. (W/N/D) |
||
Spurious response rejection | F3210D: 91dB typ. F4210D: 80dB typ. |
||
Intermodulation rejection | 75/75/70dB typ. (W/N/D) | ||
Hum and noise | 48/42dB typ. (W/N) | ||
Audio output power (at 5% distortion) Internal SP (with 12Ω load) External SP (With 8Ω load) |
800mW typ. (Internal SP, 12Ω load) 400mW typ. (External SP, 8Ω load) |
||
External speaker connector | 2-conductor 3.5 (d) mm (1⁄8")⁄8Ω |
Measurements made in accordance with EAIA-152-C/204D or TIA-603.
*25kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions. Ask your dealer if you need 25kHz bandwidth.
Applicable U.S. Military Specifications and IP Rating
Standard | MIL 810 F | |
Method | Proc | |
Low Pressure | 500.5 | I, II |
High Temp. | 501.5 | I, II |
Low Temp. | 502.5 | I, II |
Temp. Shock | 503.5 | I-C |
Solar Radiation | 505.5 | I |
Rain | 506.5 | I, III |
Humidity | 507.5 | II |
Salt Fog | 509.5 | – |
Dust Blowing | 510.5 | I |
Vibration | 514.6 | I |
Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D -E and -F.
Ingress Protection Standard (F3210D, F4210D with BP-265)
Dust and water – IP54 (dust-protection and water resistant)
All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- Battery pack, BP-265
- Antenna
- Belt clip, MB-124
- Charger, BC-193
Options and Accessories
Antennas
400-430MHz
430-470MHz
470-512MHz
380-520MHz cut
400-450MHz stubby
450-470MHz stubby
136–150MHz
148-162MHz
160-174MHz
150–174MHz
136-144MHz
142-150MHz
150-160MHz stubby
160-174MHz stubby
150-160MHz high gain
155-165MHz high gain
136-174MHz cut
Batteries
Battery case
(6 x AA batteries)
Li-ion 7.4V 2000mAh (typical), 1900mAh (minimum)
Belt Clips
Carrying Cases
Leather case with a swivel loop
Nylon case with a metal clip
Chargers
Rapid charger for Li-ion battery
Rapid charger AC adapter
12V cigarette lighter cable for rapid chargers
DC power cable for rapid charger
Vehicle charger bracket holds rapid charger and requires CP-23L
Six unit gang charger
Adapter cup
Gang charger AC adapter
DC power cable for gang charger
Headsets
Earpiece with boom mic
(use w/OPC-2004)
Behind-the-head headset with
boom mic (use w/OPC-2004)
Earphone with throat mic
headset (use w/OPC-2004)
Adapter plug to use with headset
Microphone
Compact microphone w/ earphone jack
Large microphone w/earphone jack
Waterproof mic w/3.5mm jack
Heavy duty mic w/3.5mm jack
3.5mm tube earphone
3.5mm earhook earphone
3.5mm earphone
3.5mm earphone for speaker mics
Wire Kits
Earphone microphone
Microphone with earphone combo
Lightweight earphone microphone
