LTE/PoC Portables
Utilising three of the biggest UK 4G/3G LTE networks*, the Icom PoC (Push-to-Talk Over Cellular) radio system provides licence free nationwide communication and instantaneous high-quality full duplex operation. The PoC system uses the mobile phone network thus reducing the cost of building and maintaining a wide area radio network
* Network coverage provided by custom ICOM SIM card. System will fall back to a 3G network if 4G is unavailable..
Nationwide Coverage Over 4G/LTE Closed Private Network
Icom’s PoC radio system allows you to communicate with your two-way radio system over a 4G / LTE closed private network. Now you can benefit from nationwide coverage for your business without the use of repeaters thus reducing the cost of building and maintaining a wide area radio network. The closed system will operate from a private LTE mobile data network providing an extra level of security.
Full-Duplex Communication
The IP503H/IP501M enables the use of full-duplex communication which provides smooth telephone style conversation with PTT operation. The LTE/PoC Radio System uses 4G / LTE and multiple users can initiate calls respectively, without interfering with each other. There is no requirement to check or wait for channel availability.
Group Call
The LTE/PoC Radio System supports group call with three or more people. In case of emergency, you can break into an on-going call to transmit an important message.
Interconnect between IDAS and IP100H Systems
With the help of a VE-PG4 Gateway Device, the IP503H/IP501M PoC system will provide interoperability with an IP phone, analogue transceiver, IDAS digital transceiver and IP100H wireless LAN network systems.
RMS-IP
Our RMS-IP Online Management Portal will allow you to monitor and keep in touch with your team from a PC. It will also log and store a recording of all radio traffic as well as GPS history and provide a variety of security features, such as emergency alarm and emergency SMS and email. RMS-IP also benefits from no licensing keys, so you can access the portal on any PC.
Other Features
• High quality, clear audio.
• Built-in Bluetooth and GPS.
• Individual, Group and All Calls.
• The IP503H/IP501M PoC radios are equipped with an emergency button and emergency related features including Man Down function and lone worker function.
• Vibration alert function notifies of incoming calls. (IP503H only)
• Text message reception and pre-programmed message transmission.
• Up to 500 memory address book (including Group, Individual, Talk group and Telephone lists.)
• Voice message recording.
- Nationwide Coverage Over 4G / LTE Closed
- Private Network
- Emergency button and emergency related features
- including Man Down function and lone worker
- function.
- Flexible monthly budgeting available
- Full-Duplex Communication
- Licence free solution
- High quality, clear audio
- Built-in Bluetooth and GPS
- Individual, Group and All Calls
- Voice message recording
- Vibration alert function notifies of incoming calls
- Compact and Lightweight Body
- IP67 Dustproof and Waterproof
- Interconnect between IDAS and IP100H Systems with VE-PG4
- RMS-IP Online Management Portal

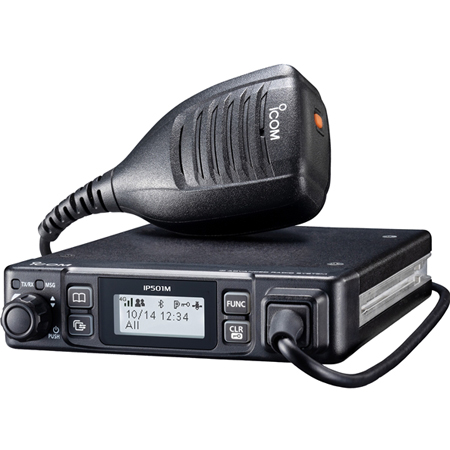

The IP501M is a new LTE/PoC mobile radio to complement Icom's IP501H/IP503H LTE radio handheld counterpart. Designed to be installed in a vehicle, the IP501M will provide a straight forward, easy to use communication tool allowing drivers* with nationwide and European** PTT radio coverage using the LTE/4G and 3G network.

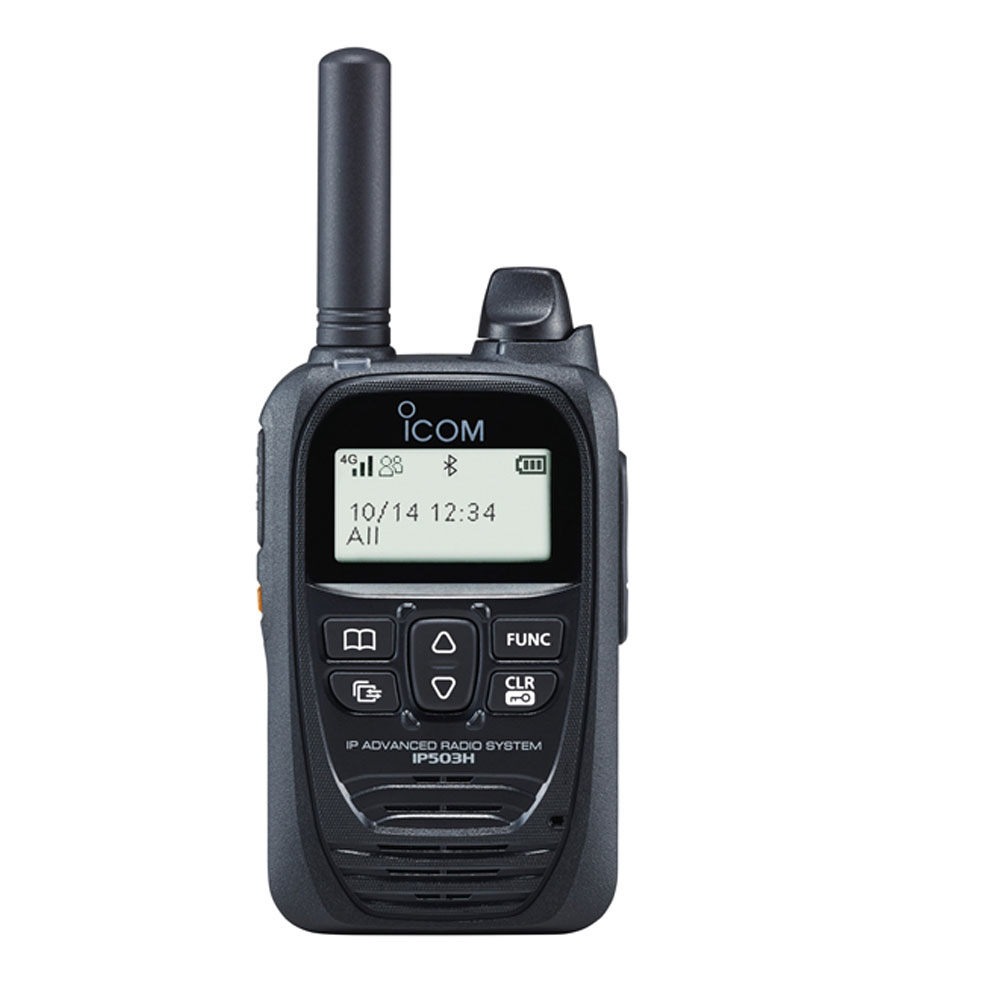

IP503H LTE/PoC Radio/Handset
The IP503H is a small, lightweight LTE/PoC radio handset that offers licence free nationwide coverage over the 4G/LTE network. The IP503H is ideal for transmitting over long and short distances or areas where conventional radio is not feasible or is too costly.
VE-PG4
The VE-PG4 is a versatile RoIP (Radio over IP network) gateway unit, which seamlessly interconnects LMR radios, LTE radios*, IP communication terminals, IP phone systems and external devices. In addition to the IP Network (LAN/WAN), the built-in LTE module (network coverage provided by a custom SIM card) provides virtually nationwide communication coverage.
*Icom custom SIM card required for LTE systems/use.
The IP503H is a small, lightweight LTE/PoC radio handset that offers licence free nationwide coverage over the 4G/LTE network. The IP503H is ideal for transmitting over long and short distances or areas where conventional radio is not feasible or is too costly.
Coverage Provided By Main Leading Networks
With the Icom custom SIM card, the IP503H has access to the three leading networks within the UK. So wherever you are, you will always be connected to the strongest signal in your area. The SIM card is capable of roaming throughout Europe as standard at no extra charge.
No Licence Required, Fully Secure System
The IP503H does not use the conventional radio spectrum. Coverage is provided by the 4G/LTE and 3G network so no licence application forms and no licence fees. The system is hosted on a fully secure server located in the UK.
Full-Duplex Communication
The IP503H enables use of full-duplex communication which provides smooth telephone style conversations. The IP503H users can talk and receive at the same time.
Multiple User Communication
Multiple users in the system can initiate calls respectively. There are no requirements to check or wait for channel availability.
Priority Interrupt Calling
The IP503H supports group calls with three or more people. In case of an emergency, you can break into an on-going call to transmit an important message.
Industry Leading Compact and Lightweight Body
Compact 59 × 95 × 32 mm and 240 g lightweight body* allows non-intrusive mobility and use.
*With BP-272 battery pack and antenna. Projections are not included.
IP67 Dust-Tight and Waterproof
The IP503H has waterproof performance to endure 1 m depth water for 30 minutes. It can be used for outdoor work or places prone to getting wet.
Powerful and Clear Audio
The IP503H provides an impressive 900mW of loud audio output. This provides crisp, clear audio allowing you to be heard in eveen the nosiest of environments.
Optional Charger Cradle with Bluetooth® Function
When the optional BC-218, charger cradle and HM-215, speaker-microphone ware used, calls can be made with the microphone, while charging the IP503H. Even when the IP503H is not dropped into the BC-218, the Bluetooth® function enables you to wirelessly use the speaker-microphone.
*Service availability depends on the country. Network coverage provided by custom ICOM SIM card.
*May not be available in some countries. Please confirm the regulations in your country before you use.
Other Features:
• High quality, clear audio using G.726 Vocoder
• Individual, Group, Talkgroup, Multiplex Talkgroup and All calls
• Emergency button, Lone Worker and Man Down functions
• Vibration alert function notifies of incoming call
• Text message reception and preprogramed message transmission
• Up to 500 memory address book (including Group, Individual, Talkgroup and Telephone lists)
• Voice message recording
• Built-in Bluetooth® and GPS for monitoring/tracking purposes
Standard Accessories Include:
• BC202IP2 with power supply.
• BP-272 Li-ion battery pack.
• MB-135 belt clip.
• Hand Strap.
• Antenna.
- Nationwide Coverage Over 4G/LTE Network
- Compact (95mm (H) x 59mm (W) x 26mm (D)) and lightweight (240g)
- IP67 dustproof & waterproof + MIL STD 810 G
- Vibration alert
- Full duplex communication
- Licence-Free solution
- Bluetooth functionality
- Built in GPS
- Individual and group calls in full duplex…even without the use of accessories
- Flexible monthly budgeting
- Priority interrupt
- Emergency button and emergency related features including Man Down function and lone worker function.
- 500 item address book
Power supply for the BC-213 fast charger
BC-157S
AC Adapter for BC-197, BC-121N and BC-214 multi-chargers.
BC-202IP3L
The BC-202IP3L is a new multi-connectable rapid charger for Icom’s range of IP/LTE radios and selected Amateur radio products.
BC-207S
AC Adapter (120V/230V & UK 3-pin version available)
BC-211
6 Way Multi-Charger for the Icom IP100H IP two way radio.
BC-218
Charger cradle with Bluetooth® function.
BP-271
Li-Ion battery pack. 7.4V/1150mAh (min.), 1200mAh (typ). Operating time: 4.5 hours in FM and DV mode (Typical operation in 1:1:8 duty cycle). Same as supplied.
BP-272
Li-ion battery pack 7.4V/1880mAh (min.), 2000mAh (typ.) Li-ion battery. Operating 8 hours in FM mode and 7.5 hours in DV mode. (Typical operation in 1:1:8 duty cycle)
CASE.066
Leather case for IP501H/IP503H with Klik Fast system.
CASE.072
Klick Fast stud for IP501H/IP503H/IP100H - attaches to the battery pack.
CASE.073
Hi-Viz leather case for IP501H/IP503H for use with Klick Fast system.
CP-22
Cigarette lighter cable with DC-DC converter for use with BC-179
HM-153LS
Durable type earphone microphone with slim L-type connector
HM-166LS
Light type earphone microphone with slim L-type connector
HM-183LS
The HM-183LS is a waterproof speaker microphone for selected Icom IP, LTE and D-STAR handsets.
HM-186LS
Compact type speaker microphone with slim L-type connector.
HM-215
Speaker-microphone for use with BC-218 charger cradle (with Bluetooth Function)
HS-102
Earphone type headset for use with the Icom IP100H, IP501H & IP503H. The OPC-2359 connector is required to use this device.
HS-94
Headset (Ear-piece type)
HS-95
Hands-free operation. Requires VS-1/1L/1SL VOX unit for use.
HS-97
Earphone with Throat-mic
LC-183
Carrying case (for use with BP-271)
LC-185
The LC-185 is a carry case for use with the Icom BP-272.
MB-135
Alligator style belt clip.
MBA-7
Vehicle Bracket Adapter for BC-218 Rapid Charger
MBF-1
Suction cup mounting base for a variety of Icom mobile Amateur radios.
MB-IP501H
Active holder with cigar-plug for the IP501H/ IP503H/ IP100H
OPC-2006LS
Plug adapter cable. OPC-2006LS is required when using the HS-94, HS-95 and HS-97
OPC-2328
OPC-2328 Add Push-To-Talk (PTT) functionality to the headsets on your IP100H WLAN handset with the OPC-2328 headset adapter cable.
OPC-2359
PTT switch cable (OPC-2359 is required when using HS-102)
Pro Equip BT550
Bluetooth headset with PTT and dual connectivity capability.
Pro Equip BT560
Bluetooth PTT microphone with volume control and 3.5mm connector for headset.
Pro Equip P220LP
Acoustic earphone with mini PTT with lock function.
VE-PG4
The VE-PG4 is a versatile RoIP (Radio over IP network) gateway unit, which seamlessly interconnects LMR radios, LTE radios*, IP communication terminals, IP phone systems and external devices. In addition to the IP Network (LAN/WAN), the built-in LTE module (network coverage provided by a custom SIM card) provides virtually nationwide communication coverage.
*Icom custom SIM card required for LTE systems/use.
VE-SP1
Icom has introduced a new desktop conference speaker microphone for its growing range of LTE/PoC radios. The VE-SP1 desktop speaker microphone is easy to activate… just place the IP501H in the slot and start a voice conference with your team…wherever they are!
VS-3
Bluetooth headset with earpiece and microphone (comes with PTT switch).
VS-5MC
PTT switch cable with VOX function. VS-5MC is required when using HS-94, HS-95 or HS-97.
The IP501M is a new LTE/PoC mobile radio to complement Icom's IP501H/IP503H LTE radio handheld counterpart. Designed to be installed in a vehicle, the IP501M will provide a straight forward, easy to use communication tool allowing drivers* with nationwide and European** PTT radio coverage using the LTE/4G and 3G network.
* Guidance about the use of radio equipment in vehicles can be found on our website: The Use of Two Way Radio Equipment in a Vehicle
** Network roaming charges may apply, check with Icom UK first.
Nationwide Coverage Over 3G & 4G / LTE Closed Private Network
With the custom Icom SIM card, the IP501M operates over 4G / LTE in a closed private network. Businesses can benefit from nationwide, European or even global coverage* without the need for repeaters thus reducing the cost of building and maintaining a wide area network. Users also operate on a closed, private LTE mobile data network providing an extra level of security.
*Network roaming charges may apply, check with Icom UK first.
Interconnect between IDAS and IP100H Systems
With the VE-PG4 RoIP Gateway Module, the Icom LTE radio solution will provide interoperability with a whole host of radio systems and operating aids such as IP phones, analogue transceivers, IDAS digital transceivers and IP100H wireless LAN network systems. In addition, GPS positional data can be displayed on a dispatcher.
Optional HM-230HB Remote Speaker Microphone with External Display & User Keypad
The optional HM-230HB Remmote Speaker Microphone offers an external user interface featuring a full keypad. The screen of the IP501M is replicated onto the HM-230HB giving the user a handheld-like interface.
Custom Roaming Tri-Band Icom SIM Card
The custom tri-band Icom SIM card allows the IP501M to roam between the 3 leading UK network providers as well as providing roaming throughout Europe at no extra charge.
Licence Free Solution
No licencing is required to use the IP501M, as the 4G/LTE radio solution does not use the conventional radio spectrum, making it suitable for those companies that have vehicles that cover a larger distance.
Flexible Monthly Budgeting Available
Attractive and affordable options are available to suit an organisations requirement.
Same Operation as IP501H/IP503H
Just like the IP501H/IP503H, the IP501M utilises the same intuitive menu layout. This allows organisations to have a mixture of handhelds (IP501H/IP503H for individual use) and mobiles (IP501M for vehicle use) recognisable to all with the same operating system and key layout.
The IP501M also offer full-duplex communication, users can talk and receive at the same time during ‘Individual’ and ‘Group Calls’.
- Nationwide Coverage Over 4G / LTE Closed Private Network
- Emergency Button and Emergency Related Features
- Built-in Bluetooth & GPS Receiver
- Optional HM-230HB with External Display and User Keypad
- Flexible Monthly Budgeting Available
- License Free Solution
- Custom Roaming Tri-Band Icom SIM Card
- High Quality, Clear Audio
The HM-230HB is a remote speaker microphone for use with the Icom IP501M mobile radio.
HM-241
Speaker microphone with emergency button (IP54) for IP501M
OPC-1122U
The Icom OPC-1122U is a USB programming cable for many Icom mobile vehicle two way radios.
OPC-2355
Microphone extension cable 2.5 m; 8.2 ft for Icom IP501M mobile LTE radio.
OPC-2407
D-SUB 25-pin accessory for IP501M
Pro Equip BT550
Bluetooth headset with PTT and dual connectivity capability.
Pro Equip BT560
Bluetooth PTT microphone with volume control and 3.5mm connector for headset.
SM-28
Desktop microphone for use with the Icom IP501M LTE/PoC mobile radio.
SP-30
20W rated input power (30W max. input) external speaker
SP-35L
External Speaker with 6m cable
VE-PG4
The VE-PG4 is a versatile RoIP (Radio over IP network) gateway unit, which seamlessly interconnects LMR radios, LTE radios*, IP communication terminals, IP phone systems and external devices. In addition to the IP Network (LAN/WAN), the built-in LTE module (network coverage provided by a custom SIM card) provides virtually nationwide communication coverage.
*Icom custom SIM card required for LTE systems/use.
VS-3
Bluetooth headset with earpiece and microphone (comes with PTT switch).
