Panel Mount Aviation Radio
Our airband/aviation panel mount radios provide rugged and reliable ground crew communications in the most demanding of environments.
IC-A120E
IC-A120B
IC-A210E

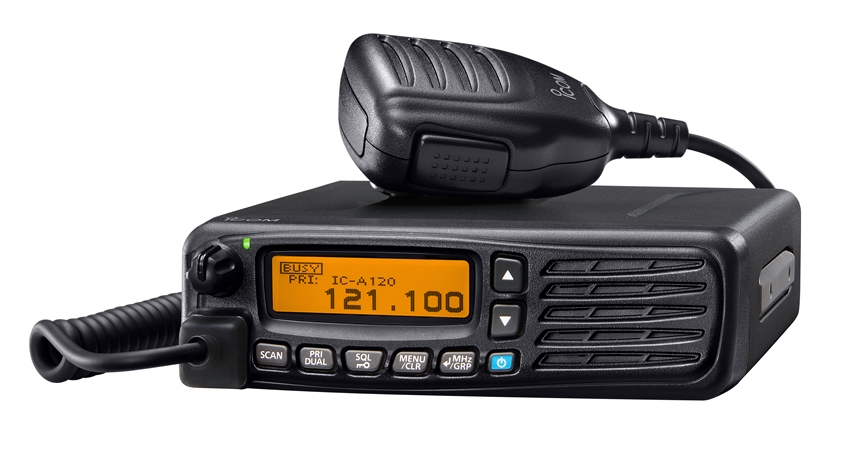

Icom’s IC-A120E ground-based panel-mount vehicle airband radio is the successor to the best selling IC-A110EURO airband transceiver. Aimed at airport ground crew vehicles, this model features both 8.33kHz and 25kHz channel spacing, plus the latest noise cancelling and Bluetooth technology.
200 Memory Channels with Channel Name
The IC-A120E has 200 memory channels to store often used frequencies with 12-character channel name. With a high contrast dot matrix display, operating channels can be selected quickly and recognized easily. You can instantly program memory channels without requiring PC programming.
Active Noise Cancelling
Built-in active noise cancelling reduces background noise to up to 90% of the received signal and 30% in the transmitted signal. In addition, The ANL (Automatic Noise Limiter) reduces pulse-type noise such as an engine ignition. These functions are effective in extremely noisy airport environments full of aircraft noise.
Optional Bluetooth Unit
When the optional UT-133 Bluetooth unit is installed, the IC-A120E can be used with a third-party wireless Bluetooth headset. When used the optional VS-3 Bluetooth headset, the side tone function is available for monitoring own transmitted voice.
Side Tone Function
When using a third-party headset with the optional OPC-871A headset adapter, the side tone function allows you to monitor your own transmitted voice via the connected headset. Even when using a hand microphone, your voice can be monitored from the headset.
IP54 Dust-Protection and Water Resistance
The IC-A120 has IP54 dust-protection and water resistance, allowing it to be used in wet and dusty conditions.
Optional Speaker-Microphone, HM-217
You can pull the speaker-microphone close to your ear to listen to received voice in noisy environments. The programmable buttons (P1/P2) on the front panel can be used as a shortcut to activate frequently used functions.
Convenient ON-Hook Scan Functions
The ON-Hook scan function automatically starts scanning when the hand microphone is hooked on the microphone hanger. The ON-Hook dualwatch function checks the priority and operating channels alternatively while ON-Hook. When you take the microphone OFF-Hook, the scanning stops at the priority channel or displayed channel, according to the pre-programming.
Other Features
• 12- and 24-volt system compatible
• 8.33 kHz and 25 kHz channel spacing
• Side tone function with optional OPC-871A
• Priority scan and Dualwatch function
• Power on Password protection
• CI-V command for external control
• VE-PG4 RoIP gateway for interconnect with other radio systems and/or other audio devices
- 200 Memory Channels with Channel Name
- Active Noise Cancelling
- Optional Bluetooth Unit
- Side Tone Function
- IP54 Dust-Protection and Water Resistance
- Optional Speaker-Microphone, HM-217
- Convenient ON-Hook Scan Functions
- 12- and 24-volt system compatible
- 8.33 kHz and 25 kHz channel spacing
- Side tone function with optional OPC-871A
- Priority scan and Dualwatch function
- Power on Password protection
- CI-V command for external control
- VE-PG3 RoIP gateway for interconnect with other radio systems and/or other audio devices
Speaker microphone with programmable buttons.
OPC-2275
5m audio connection cable for the IC-A110E, IC-A120E and IC-F5062 series. RJ-45 modular plug connector with speaker plug.
OPC-871A
Headset adapter to interconnect with a third-party aviation headset.
Pro Equip BT550
Bluetooth headset with PTT and dual connectivity capability.
Pro Equip BT560
Bluetooth PTT microphone with volume control and 3.5mm connector for headset.
PS-1508
The PS1508 power supply allows a range of Icom mobiles to be used as fixed units by converting 240V AC voltage to the 13.5Vdc required.
UT-133A
The new UT-133A is basically identical to the UT-133 but has the added capability of handling PTT function of Bluetooth enabled headsets.
VE-PG4
The VE-PG4 is a versatile RoIP (Radio over IP network) gateway unit, which seamlessly interconnects LMR radios, LTE radios, IP communication terminals, IP phone systems and external devices. In addition to the IP Network (LAN/WAN), the built-in LTE module (network coverage provided by a custom SIM card) provides virtually nationwide communication coverage.
VS-3
Bluetooth headset with earpiece and microphone (comes with PTT switch).

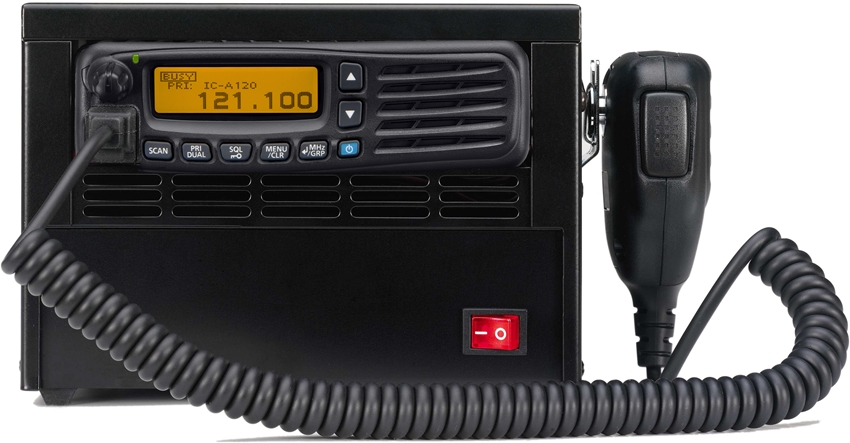

The Icom IC-A120B VHF Airband Ground to Air Base Station radio provides quality ground to air communications from an office or air traffic control room tower. Housed in a smart, compact enclosure (133 mm x 185 mm x 200 mm, H x W x D) with its’ own power supply, this base station is an ideal solution for airfields and local airports to keep in communication with ingoing/outgoing aircraft.
Capable of free tuning across 8.33kHz/25kHz frequencies
The IC-A120B is already pre-tuned with 8.33kHz/25kHz channel spacing, meaning you are able to free tune across the frequencies.
Compact, smart enclosure (133 mm x 185 mm x 200 mm, H x W x D)
Due to the compact enclosure, this base station can be tucked away on a desk in a control room or be placed anywhere that a mains supply point is available.
Includes own power supply unit – converting 240V AC to 13.5V DC.
No extra room needed as the power supply unit is built into the enclosure with the radio.
Easy-to-use interface.
Simple arrow buttons to the side of the user screen for channel selection/frequency and function buttons underneath allow for an easy to use interface.
Dealer programmable single channel operation if required.
The IC-A120B can be programmed by an authorised Icom dealer to allow single channel operation if an airfield/local airport only use one frequency.
200 memory channels with channel name
The IC-A120B has 200 memory channels to store often used frequencies with 12-character channel name. With a high contrast dot matrix display, operating channels can be selected quickly and recognised easily. You can instantly program memory channels without requiring PC programming.
Other Features
• Priority scan and dualwatch function
• Power on password protection
• CI-V command for external control
• VE-PG4 RoIP gateway for interconnect with other radio systems and/or other audio devices (contact Icom UK Systems for more details)
- Capable of free tuning across 8.33kHz/25kHz frequencies
- Compact, smart enclosure (133 mm x 185 mm x 200 mm, H x W x D)
- Includes own power supply unit – converting 240V AC to 13.5V DC
- Easy-to-use interface
- Dealer Programmable Single Channel Operation If Required
- 200 memory channels with channel name
Hand microphone for IC-A120E
HM-217
Speaker microphone with programmable buttons.
UT-133
Bluetooth® Unit
VE-PG4
The VE-PG4 is a versatile RoIP (Radio over IP network) gateway unit, which seamlessly interconnects LMR radios, LTE radios, IP communication terminals, IP phone systems and external devices. In addition to the IP Network (LAN/WAN), the built-in LTE module (network coverage provided by a custom SIM card) provides virtually nationwide communication coverage.
VS-3
Bluetooth headset with earpiece and microphone (comes with PTT switch).

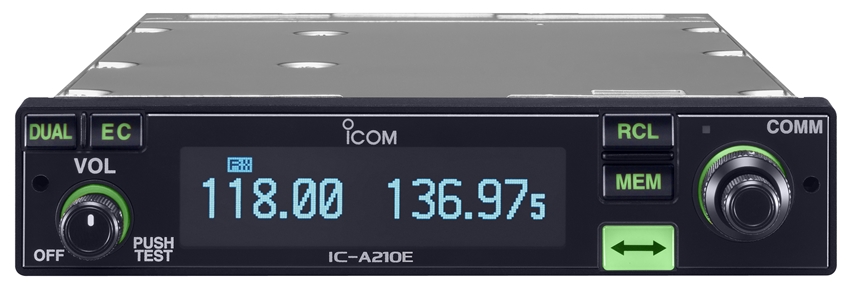

The IC-A210E is a panel mount radio that succeeds the IC-A200 which was a popular fit in ground support vehicles in the aviation industry. This ground to air transceiver has the capability to work on both 8.33 kHz and 25 kHz channel spacing frequencies. It features a modern OLED (Organic Light Emitting Diode) display offering many advantages in brightness, vividness, high contrast, wide viewing angle and response time compared to a conventional display. In addition, the auto dimmer function adjusts the display for optimum brightness either during the day or night.
25 kHz/8.33 kHz Dual Channel Spacing
In addition to the widely used 25 kHz channel spacing, IC-A210E is also compatible with 8.33 kHz channel spacing. With this dual compatibility there is an increase in the number of channels available.
Large, Bright OLED display
The IC-A210E has an organic light emitting diode (OLED) display. The OLED display emits light by itself and the display offers many advantages in brightness, vividness, high contrast, wide viewing angle and response time compared to a conventional display. In addition, the auto dimmer function adjusts the display for optimum brightness at day or night.
Easy Channel Selection
Selecting memory channels in the IC-A210E is fast, easy and efficient. The “flip-flop” arrow button switches between main and stand-by channels. The dualwatch function allows you to monitor two channels simultaneously. In addition, the history memory stores the last 10 channels used and allows you to recall those channels easily.
12V/24V DC Power Source
The built-in DC-DC converter accepts a 12/24V DC power source. The IC-A210E can be easily installed and adapted to most vehicles.
Easy Installation
The IC-A210E is the same size as Icom’s previous panel mount, IC-A200. This means it can be interchanged with most predecessor radios now ending their life. Two types of rear-panel adapters are included, allowing you to replace it without soldering.
Other Features
• 10 regular memory channels with a 6-character channel name
• 200 group memory channels (20 Channel banks) with a channel tag
• ANL (Automatic noise limiter) function reduces pulse type noise
• Remote control capability
• Time-out-timer
• VFO scan
• PC programming capability
• Dial lock and panel lock
• Squelch test function
- Compact Ground to Air Panel Mount
- 25 kHz/8.33 kHz dual channel spacing
- Large bright OLED display
- Easy channel selection
- 12/24V DC power source
- Easy installation
Hand microphone for the IC-A210E airband transceiver
MB-53
For mounting the IC-A210E.
OPC-1529R
Data communication cable (RS-232C type)
