Fanless Edge Computing System
Powered by the 8th generation Intel® Core™ processor, the Neu-X300 Series fanless embedded player can handle powerful multimedia content and offer stunning visuals for striking 4K entertaining content creation, media playback, and image processing. The Neu-X300 Series manages in-store traffic analytics, simultaneously engaging “calls to action” with virtual interactions in order to increase product interest. Neu-X300 Series, supporting up to triple HDMI
2.0 displays, USB 3.0 ports, and a RS232 interface, is an ideal high-end embedded player to optimize information visualization, convey brand messages, customer engagement, and smart retail management efficiencies to increase in-store traffic and sales. The slim fanless design with extended durability further covers usages like endless aisles, QSRs, drive-thru kiosks, bus stops, digital transit information signs, and information stands.

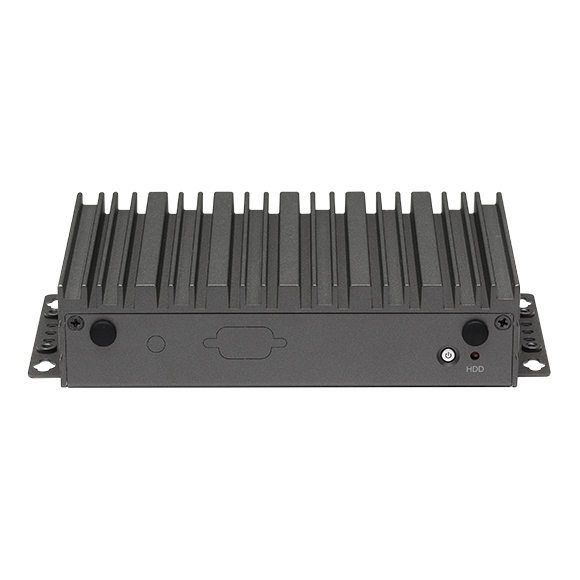

Neu-X100
Neu-X100
Overview
Powered by Intel® Apollo Lake processor, the Neu-X100 fanless embedded player can handle 2 independence display output. The Neu-X100 supports HDMI display, USB 3.0 ports, and a RS232/RS422/RS485 interface, is an ideal embedded player to optimize information visualization, convey brand messages, customer engagement, and smart retail management efficiencies to increase in-store traffic and sales. Also could be applicate as gateway for smart city. The slim fanless design with extended durability further covers usages like endless aisles, QSRs, drive-thru kiosks, bus stops, digital transit information signs, and information stands.
Features
Neu-X100
Edge Computing System Powered by Intel® Apollo Lake N3350/N4200/J3455 Processor- Main Feature
- Intel® Apollo Lake N3350/N4200/J3455 processor
- 3.5” MB size as slim chassis design
- Support HDMI2.0 output
- Fanless design
- mini-PCIe slot support Wi-Fi and LTE module
Specifications
| CPU Support | Intel® Apollo Lake N3350 processor (2.40GHz,6W)Intel® Apollo Lake N4200 processor (2.50GHz,6W)Intel® Apollo Lake J3455 processor (2.30GHz,10W) |
| Graphic | Intel® HD Graphics 500 (with N3350/J3455)Intel® HD Graphics 505 (with N4200) |
| Main Memory | 1x 204-pin SO-DIMM socket, support up to DDR3L 1866MHz, non-ECC, un-buffered memory up to 8GB |
| I/O Interface-Front | 2 x RJ45 with LEDs for Gigabit LAN2 x HDMI 2.0, resolution 4096 x 2160 60Hz1 x COM port (RS232/RS422/RS485)1 x DC-in Jack with lock2 x USB 3.0 |
| I/O Interface-Rear | 2 x Antenna hole1 x Power button with LED1 x Storage active LED |
| Internal I/O | 1 x COM port connector (RS232)1 x Power connector1 x TPM module connector1 x Line out audio connector |
| Expansion | 1 x mini-PCIe full-size connector, support Wi-Fi/ LTE module1 x SIM slot on board (full-size ) |
| Storage | 1x M.2 M key 2242 SSD |
| Power Supply | 1 x External 45W AC/DC power adapter with lockInput: 100VAC to 240VACOutput: DC+19VDC |
| Environment | Operating temperature: -5°C to 50°CStorage temperature: -20°C to 80°CHumidity: 95% (non-condensing) |
| Certification | CE (EMC EN55032 +EN55035)FCC Class A (EMI Part 15B) |
| Dimensions | 155mm (W) x 106mm (D) x 37mm (H) |
| Operating System | Win10 64-bit |

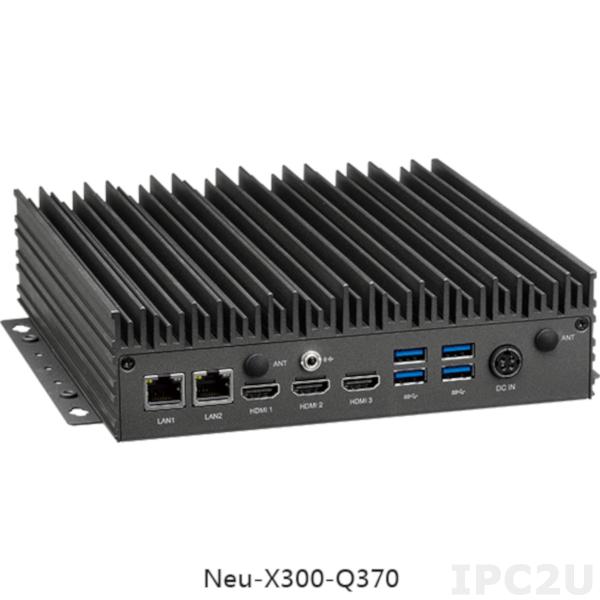

Neu-X Core Neu-X300
Neu-X Core Neu-X300
Overview
Powered by the 8th generation Intel® Core™ processor, the Neu-X300 Series fanless embedded player can handle powerful multimedia content and offer stunning visuals for striking 4K entertaining content creation, media playback, and image processing. The Neu-X300 Series manages in-store traffic analytics, simultaneously engaging “calls to action” with virtual interactions in order to increase product interest. Neu-X300 Series, supporting up to triple HDMI 2.0 displays, USB 3.0 ports, and a RS232 interface, is an ideal high-end embedded player to optimize information visualization, convey brand messages, customer engagement, and smart retail management efficiencies to increase in-store traffic and sales. The slim fanless design with extended durability further covers usages like endless aisles, QSRs, drive-thru kiosks, bus stops, digital transit information signs, and information stands.
Features
Neu-X300
Edge Computing System Powered by 8th Generation Intel® Core™ Processor- Main Feature
- 8th gen. Intel® Core™ socket type processor
- HDMI 2.0 resolution 4K@60Hz
- Storage M.2 M Key 2280
- Support Vpro technology
- Dual DDR4 SO-DIMM
- TPM 2.0 IC on board
- Fanless design
Specifications
| CPU Support | 8th Gen Intel® Core™ socket type processor up to 35W - i3-8100T Quad cord, 3.10 GHz, TDP 35W - i5-8500T 6 cord, 2.10 GHz, TDP 35W - i7-8700T 6 cord, 2.40 GHz, TDP 35W |
| Chipset | Intel® PCH Q370Intel® PCH H310 |
| Graphics | Intel® UHD Graphics 630 |
| Main Memory | 2 x 260pin SO-DIMM socket, support up to DDR4 2400/2666MHz, non ECC, un-buffered memory up to 32G (single 16G) |
| I/O Interface-Front | 1 x Storage active LED1 x Power LED1 x Power button |
| I/O Interface-Rear | 2 x Antenna hole4 x USB 3.03 x HDMI 2.0 (only 2 x HDMI 2.0 for H310), support EDID (only Q370)1 x RS232/422/485 COM port2 x RJ45 with LEDs for Gigabit LAN1 x 12V DC input, 4 pin DC Jack1 x Audio out |
| Internal I/O | 2 x RS232 COM port connector4 x USB 2.0 pin header1 x PCIe x16 slot (no support for H310)1 x SATA connector1 X GPIO |
| Expansion | 1 x M.2 2230 connector, support Wi-Fi module |
| Storage | 1 x M.2 M Key 2280 SSD with SATA/PCIe x4 (no support for H310) signal1 x Onboard TPM 2.0 (no support for H310) |
| Power Supply | 1 x External 96W AC/DC power adapter with lockInput: 100VAC to 240VACOutput: DC+12VDC |
| Environment | Operating temperature: -5°C to 45°CStorage temperature: -20°C to 80°CHumidity: 95% (non-condensing) |
| Certification | CE (EMC EN55032 +EN55035)FCC Class A (EMI part 15B) |
| Dimensions | 190mm (L) x 200mm (W) x 54.4mm (H) |
| Operating System | Win10 64bit/Linux |
Neu-X Core Neu-X300
Neu-X Core Neu-X300
Overview
Powered by the 8th generation Intel® Core™ processor, the Neu-X300 Series fanless embedded player can handle powerful multimedia content and offer stunning visuals for striking 4K entertaining content creation, media playback, and image processing. The Neu-X300 Series manages in-store traffic analytics, simultaneously engaging “calls to action” with virtual interactions in order to increase product interest. Neu-X300 Series, supporting up to triple HDMI 2.0 displays, USB 3.0 ports, and a RS232 interface, is an ideal high-end embedded player to optimize information visualization, convey brand messages, customer engagement, and smart retail management efficiencies to increase in-store traffic and sales. The slim fanless design with extended durability further covers usages like endless aisles, QSRs, drive-thru kiosks, bus stops, digital transit information signs, and information stands.
Features
Neu-X300
Edge Computing System Powered by 8th Generation Intel® Core™ Processor- Main Feature
- 8th gen. Intel® Core™ socket type processor
- HDMI 2.0 resolution 4K@60Hz
- Storage M.2 M Key 2280
- Support Vpro technology
- Dual DDR4 SO-DIMM
- TPM 2.0 IC on board
- Fanless design
Specifications
| CPU Support | 8th Gen Intel® Core™ socket type processor up to 35W - i3-8100T Quad cord, 3.10 GHz, TDP 35W - i5-8500T 6 cord, 2.10 GHz, TDP 35W - i7-8700T 6 cord, 2.40 GHz, TDP 35W |
| Chipset | Intel® PCH Q370Intel® PCH H310 |
| Graphics | Intel® UHD Graphics 630 |
| Main Memory | 2 x 260pin SO-DIMM socket, support up to DDR4 2400/2666MHz, non ECC, un-buffered memory up to 32G (single 16G) |
| I/O Interface-Front | 1 x Storage active LED1 x Power LED1 x Power button |
| I/O Interface-Rear | 2 x Antenna hole4 x USB 3.03 x HDMI 2.0 (only 2 x HDMI 2.0 for H310), support EDID (only Q370)1 x RS232/422/485 COM port2 x RJ45 with LEDs for Gigabit LAN1 x 12V DC input, 4 pin DC Jack1 x Audio out |
| Internal I/O | 2 x RS232 COM port connector4 x USB 2.0 pin header1 x PCIe x16 slot (no support for H310)1 x SATA connector1 X GPIO |
| Expansion | 1 x M.2 2230 connector, support Wi-Fi module |
| Storage | 1 x M.2 M Key 2280 SSD with SATA/PCIe x4 (no support for H310) signal1 x Onboard TPM 2.0 (no support for H310) |
| Power Supply | 1 x External 96W AC/DC power adapter with lockInput: 100VAC to 240VACOutput: DC+12VDC |
| Environment | Operating temperature: -5°C to 45°CStorage temperature: -20°C to 80°CHumidity: 95% (non-condensing) |
| Certification | CE (EMC EN55032 +EN55035)FCC Class A (EMI part 15B) |
| Dimensions | 190mm (L) x 200mm (W) x 54.4mm (H) |
| Operating System | Win10 64bit/Linux |
