Marine and offshore communication
Marine and offshore communication equipment must meet international standard. Our award-winning onshore and offshore communication solution include:
- VHF/UHF/HF SSB Radios
- VSAT Internet
- GMDSS Systems
- Port Safety Systems
- Port Security Systems
- Complete suite of Helideck Communication systems
- Coastal surveillance and Ship communication solutions

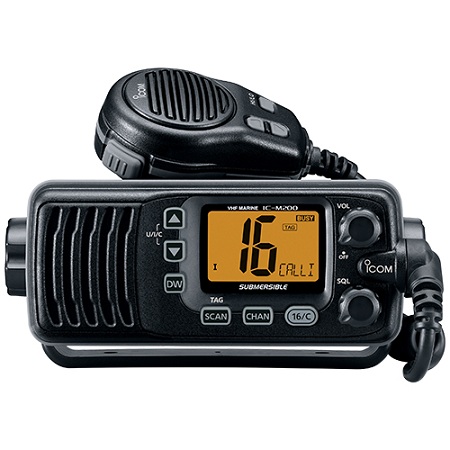

The M200 gives you the same Icom performance and reliability boaters expect in a fixed mount but at a great value. This small compact unit includes a large easy to read LCD plus is IPX7 rated and comes with the AquaQuake draining function for optimal audio. This is a perfect radio for boats that need a basic radio or boats with limited space.
Output Power: |
25W | |
Waterproof Rating: |
IPX7 |
Features
- Dualwatch and tri-watch function
- Favorite channel function
- Built-in ultra-stable TCXO for reliable frequency stability
- Channel operation with the hand microphone, HM-164B, in your hand
- Instant-access button for Channel 16 and call channel
- Priority scan and normal scan
- Built-in low voltage indicator
- Keypad backlighting
General | |
---|---|
Frequency Range Tx Rx |
156.025–162?000MHz 156.025–162.025MHz |
Usable channels | INT, USA, CAN channels |
Type of emission | 16K0G3E (FM) |
Power supply voltage | 13.8V DC nominal 1.5A (Maximum) |
Current drain Tx (at 25W output) Rx (Maximum audio) |
5.5A (Maximum) 200mA |
Operating temperature range | –20°C to +60°C; –4°F to +140°F |
Antenna Impedance | 50Ω |
Dimensions (W×H×D) (Projections not included) |
153×67×133 mm; 6.0×2.6×5.2 inch |
Weight (approximately) | 790g; 1.7lb |
Transmitter | |
---|---|
Output power (Hi/Mid/Low) | 25W (High power) 1W (Low power) |
Modulation | Variable reactance frequency modulation |
Max. frequency deviation | ±5kHz |
Frequency stability | ±5ppm |
Spurious emissions | Less than –70dBc (High power) Less than –56dBc (Low power) |
Adjacent channel power | More than 70dB |
Audio harmonic distortion | Less than 10% (at 60% dev.) |
Residual modulation | More than 40dB |
Receiver | |
---|---|
Intermediate frequency
1st 2nd |
21.7MHz 450kHz |
Sensitivity | –14dBμ typ. (at 12dB SINAD) |
Squelch sensitivity | Less than –10dBμ |
Adjacent Channel Selectivity | 75dB typical |
Spurious response | 75dB typical |
Intermodulation | 75dB typical |
Hum and noise ratio | More than 40dB |
Audio output power | 4.5W typical (at 10% distortion with a 4Ω load) |
Applicable U.S. Military Standards
Standard | MIL 810 G | |
Method | Proc | |
Temp Shock | 503.5 | I |
Rain Blowing/Drip | 506.5 | I, III |
Humidity | 507.5 | – |
Salt Fog | 509.5 | – |
Vibration | 514.6 | I |
Shock | 516.6 | II |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Applicable IP Rating
Ingress Protection Standard | |
Water | IPX7 (Waterproof protection) |
ust Cover

Flush Mount Kit

Microphone

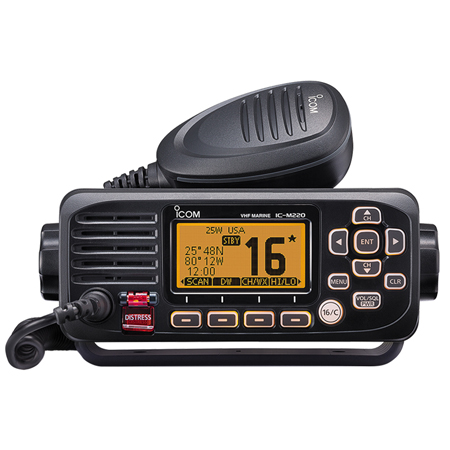

The M220 gives boaters an entry level VHF fixed mount with DSC Class D at a great value. This small compact unit includes a large easy to read LCD with a dot-matrix display, plus is IPX7 rated and comes with the AquaQuake draining function for optimal audio. This is a perfect radio for boats that need a basic radio or boats with limited space.
Output Power: |
25W | |
Waterproof Rating: |
IPX7 |
Features
- Dualwatch and tri-watch function
- Priority scan
- Display & keypad backlighting
- Common NMEA interface for external GPS/NAV connection
- Tag scan and favorite channel functions
- External speaker connection
- Weather channel with weather alert
General | |
---|---|
Frequency Range Tx Rx CH70 |
156.025–157.425 MHz 156.050–163.275 MHz 156.525 MHz |
Usable channels | USA, CAN, INT, WX channels |
Type of emission | 16K0G3E (FM), 16K0G2B (DSC) |
Power supply requirement | 13.8 V DC nominal (11.7–15.9 V DC) |
Current drain Tx (at 25W output) Rx AF max. |
5.0 A 1.2 A |
Operating temperature range | –20°C to +60°C; –4°F to +140°F |
Antenna Impedance | 50 Ω (SO-239) |
Dimensions (W×H×D) (Projections not included) |
156.5 × 66.5 × 110.1 mm; 6.2 × 2.6 × 4.3 in |
Weight (approximately) | 700 g; 1.5 lb (with HM-237B) |
NMEA formats Input Output |
RMC, GGA, GNS, GLL, VTG DSC, DSE, RMC, GSA, GSV |
Transmitter | |
---|---|
Output power (at 13.8 V DC) | 25 W, 1 W |
Max. frequency deviation | ±5kHz |
Frequency tolerance | ±5ppm |
Spurious emissions | Less than –60 dBc |
Receiver | |
---|---|
Sensitivity Main DSC |
–13 dBμ typ. (12 dB SINAD) –5 dBμ emf typ. (1% BER) |
Squelch sensitivity | Less than –10dBμ |
Adjacent Channel Selectivity Main DSC |
More than 68 dB More than 68 dBμ emf (1% BER) |
Intermodulation Main DSC |
More than 63 dB More than 55 dBμ emf (1% BER) |
Hum and noise | More than 40dB |
Audio output power | 4.5W typical (at 10% distortion with a 4Ω load) |
Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Applicable IP Rating
Ingress Protection Standard | |
Water | IPX7 (Waterproof protection) |
Supplied Accessories
- Hand microphone, HM-237
- DC power cable
- Mounting bracket kit
Flush Mount Kit

Hailer

Microphone

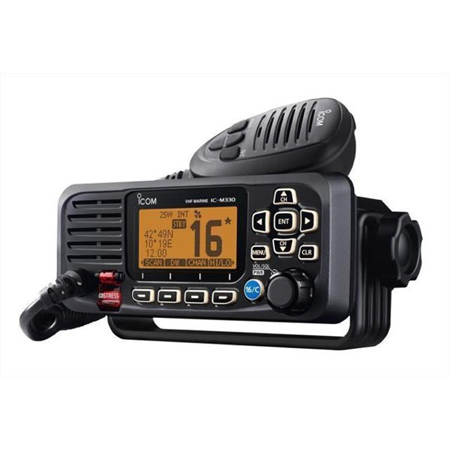

The M330 series gives you the same performance and feature set as the M324 series, but now within a smaller package to fit in tight spaces. Priced at a great value the M330 series still includes the exclusive AquaQuake™ draining feature, 25 watts of power, IPX7 Waterproof rating, scan/select scan and Icom’s exclusive user interface for ease of use.
Output Power: |
25W | |
GPS: |
Supplied external GPS antenna (G version) | |
Waterproof Rating: |
IPX7 | |
Versions: |
Black or Super White With or without GPS |
GPS Capability
The M330G includes a GPS receiver and an easy to install external GPS puck antenna for better accuracy and performance. The small compact GPS puck antenna provides your location, bearing and speed by using information from GPS, GLONASS and SBAS. This information is used for DSC (Digital Selective Calling) calls. Hook up the GPS puck antenna for the most accurate GPS and DSC functionality to work.
Compact and Easy to Use
The M330’s small size makes it easy to install into vessels with limited space. The dot-matrix display is clear and easy to read. A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one push function access.
Additional Features
- AquaQuake™ draining function
- Built-in Class D DSC with a CH70 dedicated receiver
- Common NMEA interface for external GPS/NAV connection
- Tag scan and favorite channel functions
- Dual/tri-watch function for monitoring CH16 and/or call channel
- Priority scan function
- Display and keypad backlighting
- Weather channel with weather alert
- 3-digit or 4-digit channel display selectable
General | |
---|---|
Frequency Range Tx Rx Ch. 70 |
156.025–161.600MHz 156.050–163.275MHz 156.525MHz |
Usable channels | USA, CAN, INT, WX channels |
Type of emission | 16K0G3E (FM) 16KOG2B (DSC) |
Power supply requirement | 13.8V DC nominal (11.7–15.9V DC) |
Current drain (at 13.8V DC) Tx 25W output Rx AF max. |
5A 1A |
Operating temperature range |
-20°C to +60°C; -4°F to +140°F |
Antenna Impedance | 50Ω (SO-239) |
Dimensions (W×H×D) (Projections not included) |
156.5 × 66.5 × 110.1 mm; 6.2 × 2.6 × 4.3 in |
Weight (approx.) | 730g; 1.6lb |
NMEA formats In Out |
RMC, GGA, GNS, GLL, VTG DSC, DSE, RMC, GSA, GSV |
Transmitter | |
---|---|
Output power (at 13.8V DC) |
25W, 1W |
Max. frequency deviation | ± 5 KHz |
Frequency tolerance | ±5 ppm |
Spurious emissions | Less than –70dBc (High) Less than –56dBc (Low) |
Receiver | |
---|---|
Sensitivity Main DSC |
–13dBμ typ. (12dB SINAD) –5dBμ emf typ. (1% BER) |
Squelch sensitivity | Less than –10dBμ |
Adjacent channel selectivity Main DSC |
More than 70dB More than 73dBμ emf (1% BER) |
Spurious response Main DSC |
More than 70dB More than 73dBμ emf (1% BER) |
Intermodulation Main DSC |
More than 70dB More than 68dBμ emf (1% BER) |
Hum and noise | More than 40dB |
Audio output power (at 10% distortion, 4Ω load) |
4.5W typical |
Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Applicable IP Rating | |
---|---|
Ingress Protection Standard | |
Water | IPX7 (Waterproof protection) |
Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- Hand microphone, HM-235B/SW
- DC power cable
- Mounting bracket kit
- GPS antenna (5 m; 16.4 ft cable)*
*Only for the IC-M330G.
AIS Receiver
AIS transponder & GPS receiver

Flush Mount Kit

Microphones

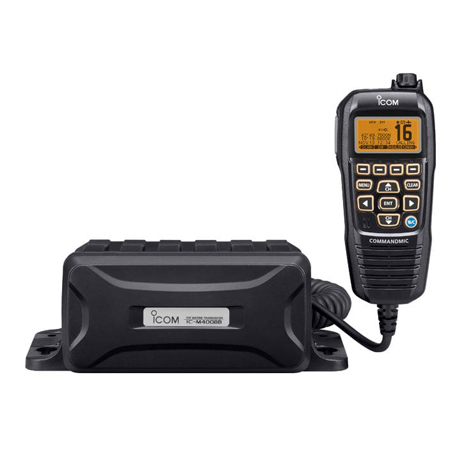

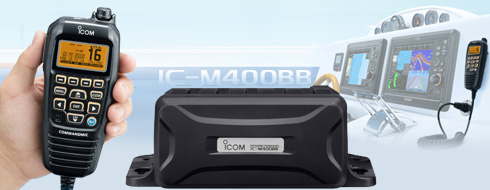

Icom’s M400BB is perfect for boats that need a radio but don’t have room on the helm. The M400BB consist of a two-piece, black box configuration. Install the full RF black box unit in an out-of-sight place and connect the COMMANDMICIV™, HM-195 to the cockpit or fly bridge. The HM-195 allows operation of all radio functions including DSC, radio and hailer horn. HM-195 also utilizes the same user soft key interface used on Icom’s latest range of marine radios for easy operation.
Output Power: |
25W | |
Hailer/PA: |
10W PA | |
Horn: |
Built-in | |
Waterproof Fating: |
IPX7 (Radio and microphone) | |
Versions: |
Radio with HM195B Radio with HM195SW |
Active Noise Cancelling
The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. Hear and be heard more clearly.
10W Amplifier
The M400BB has a built-in 10W amplifier that increases the audio output from an additional external speaker. The public address function allows you to make an announcement from the microphone like a loud speaker.
NMEA Interface
When connected to an external GPS receiver, current position and time are shown on the COMMANDMIC™ display. When receiving DSC information from another vessel, the radio can transfer it to a navigational device via NMEA 0183 connectivity.
Additional Features
- AquaQuake™ water draining function
- Dual/tri-watch function for monitoring Ch.16 and/or call channel
- Priority and normal scan
- Class D DSC
- Connect to the optional MA-500TR and the AIS target call function allows you to set up an individual DSC all from the MA-500TR.
General | |
---|---|
Frequency Range Tx Rx Ch. 70 |
156.025–157.425MHz 156.050–163.275MHz 156.525MHz |
Usable channel groups | INT, USA, CAN and WX channels |
Type of emission | 16K0G3E (FM), 16K0G2B (DSC) |
Power supply requirement | 13.8V DC nominal (11.7–15.9V DC) |
Current drain (at 7.4V DC) Tx (at 25W output) Rx (Max. audio) |
5.5A Max. 3.5A Max. |
Operating temperature range |
–20°C to +60°C; –4°F to +140°F |
Antenna Impedance | 50Ω (SO-239) |
Dimensions (W×H×D) IC-M400BB HM-195B/SW |
216×79×125mm; 8.5×3.11×4.92 in 67.5×144.5×37mm; 2.66×5.69×1.46 in |
Weight (approx.) IC-M400BB HM-195B/SW |
830g; 1.83 lb 400g; 14.1 oz |
NMEA in/out formats |
RMC, GGA, GNS, GLL, DSC, DSE |
Transmitter | |
---|---|
Output power (Hi/Low) |
25W, 1W (High, low) |
Max. frequency deviation | ± 5.0 kHz |
Frequency tolerance | ±10ppm |
Spurious emissions | Less than –70dBc (at 25W) |
Receiver | |
---|---|
Sensitivity Main Ch. 70 |
0.22μV typical (at 12dB SINAD) –5dBμ emf typ. (1% BER) |
Squelch sensitivity | Less than 0.32μV |
Adjacent Channel Selectivity Main Ch. 70 |
More than 70dB More than 73dBμ emf (1% BER) |
Spurious response Main Ch. 70 |
More than 70dB More than 73dBμ emf (1% BER) |
Intermodulation Main Ch. 70 |
More than 70dB More than 68dBμ emf (1% BER) |
Hum and noise ratio | More than 40dB |
Audio output power Internal speaker |
More than 2W (HM-195B/SW) More than 10W (RX Speaker) |
Measurements made in accordance with TIA/EIA 603 and IEC 62238 (Ch. 70 receiver specifications).
Applicable IP Rating
Ingress Protection Standard (IC-M400BB and HM-195B/SW) | |
Water | IPX7 (Waterproof protection) |
Supplied Accessories
- COMMANDMIC, either HM-195B or HM-195SW
- DC power cable
Product Diagrams
AIS Receiver
AIS transponder & GPS receiver

COMMANDMICIV™
Black mic;
yellow backlit LCD

Super white mic;
yellow backlit LCD

Black mic;
white backlit LCD

Super white mic;
white backlit LCD

20ft connection cable

20ft extension cable

Dual COMMANDMIC adapter

Hailer
40W, 4 ohm
