Software Solution
NEXCOM provides a wide range of industrial computing solutions for increasing demands of industrial environments, including high performance fanless computers, medical computers, various sizes of multi-media Panel PC and applied Panel PC, full-size single board computers, COM Express with competence center services, versatile embedded boards, embedded computers, machinery computers, innovative POS solutions and intelligent security surveillance systems
.RTX 2012
The RTX hard real-time software transforms Microsoft Windows into real-time operating system and delivers real-time symmetric multiprocessing on x86 multicore processors.
Soft-control architecture is an integrated real-time development platform composed of Microsoft Windows Embedded, multiprocessor x86 architectures, and IntervalZero's RTX. It provides real-time extension to Windows and enables SMP. OEMs can use it to design complex Human-Machine Interfaces which require the precise coordination of multiple tasks and the deterministic hard real-time performance capabilities.
RTX 2012
Transform Microsoft Windows Into a Real-Time Operating System (RTO)- Provides a Real-Time Subsystem (RTSS) that runs on Windows
- Provides precise control of IRQs, I/O, and memory
- Dedicated Cores for Performance and Partitioning
- RTX implements deterministic scheduling of real-time threads
- RTX-based applications survive Windows crashes
| Application Determinism | Guaranteed precision – set timer periods down to 1 microsecond; IST latencies of less the 10 microseconds.Separation from Windows – Windows processes cannot interfere with your real-time applications.Scalability – one scheduler is used across all real-time processors. SMP-aware scheduler utilizes both priority-driven and pre-emptive algorithms to ensure critical thread context switches. Yields to threads of high priority occur in the sub-microsecond range. |
| Control of Real-Time Applications and Environment | Flexibility – configure how much or how little of your processing capability is used for real-time processes (1 to 31 processors).Full control of our real-time processes – load balancing as needed. RTX provides the ability to set thread and interrupt affinities.Peace of mind if Windows issues a STOP message or shutdown – real-time applications have the ability to continue running to a safe shutdown. |
| Target Industry | CNC and Industrial Automation ManufacturersMotion Control VendorsMedical SystemsDigital Audio and Video EditingTest and Measurement |

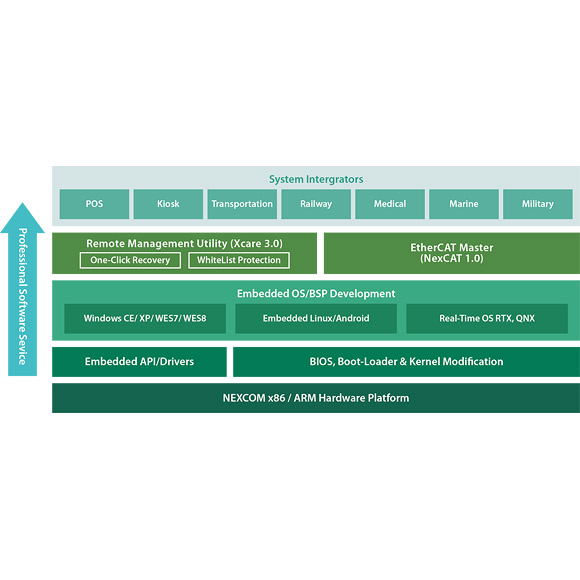

Pro Software Service
Professional Software Service
BIOS, Bootloader, Kernel, eAPI, Driver & Embedded OS/BSP- BIOS, Boot-loader & Kernel Modification Service
- Embedded API/Drivers for Programmer
- Embedded OS/BSP Development
- One Click Recovery
- White List Protection
Remote Management Tools - Xcare™ 3.0
Xcare™ 3.0, a remote management utility, helps system integrators (SIs) develop a remote management tool with less time and effort. The Xcare™ 3.0 integrates Embedded Application Programming Interface (EAPI), Device Client and Remote Console. The Xcare™ 3.0 provides a unified platform to monitor and control up to 36 NEXCOM embedded computers. Based on the Xcare™, SIs can easily come up with a remote management tool to help the client carry out proactive maintenance; therefore, ensure optimal operation of NEXCOM computers all the time.
"Device Client" is real-time hardware system monitoring and controlling tool which is designed based on NEXCOM platforms. Users can use it to monitor the temperature, voltage and storages…etc. An optional pop-up or beep warning can be activated when any monitored item is out of the pre-defined range.
"Remote Console" is a remote monitoring, control utility running on administrator side, user can use it to monitor up to 36 devices.
"Embedded API" offering control library on: Watchdog timer, I2C/SMBus Bus, Panel brightness, GPIO, NVRAM, DRAM & Storage (Hard disk/selected SSD).
Xcare™ 3.0
Remote Management Utility- Main Feature
- Real-time hardware system monitoring and controlling
- Remote monitor and control 36 embedded computers simultaneously
- User friendly control library
| Support OS | Windows XP Professional SP3Windows Embedded Standard 2009Windows 7 Professional SP1 x86 / x64*Windows Embedded Standard 7 SP1 x86 / x64* Note: Need .Net Framework 2.0 or above version, X64 will by project base. |
| Support Hardware | NISE105NISE2400NISE 3600NISE 3500NISE 104NISE 2110NIFE100 seriesNIFE200 seriesAPPC 1235TAPPC 1930T Note: Products and models are listed but not limited, please contact your sales representatives for updates. |
