Sangoma Phones Designed Exclusively for PBXact
Extend your PBXact system to your desk phone with S-Series IP phones.
Customize your complete communications experience whether you’re in the office or on the road.

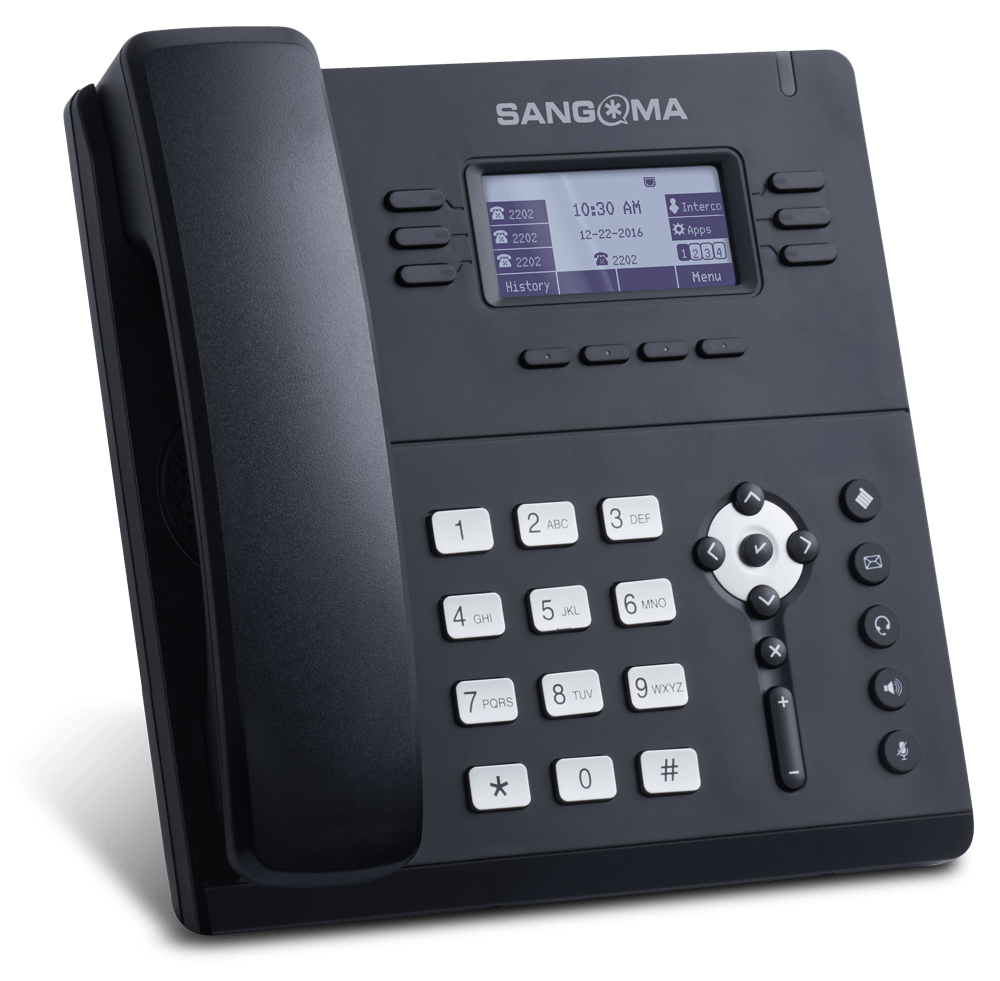

The S406 is an entry-level IP phone designed for growing businesses with PBXact phone systems needing a fully-featured IP phone with advanced features at a near entry-level price point. It supports three (3) Session Initiation Protocol (SIP) accounts, full duplex speakerphone and has a 2.7 inch LCD with backlight display. Zero-Touch auto-provisioning makes it so easy to setup, all you need to do is plug the phone into an internet connection, in or out of the corporate office location.
Built-in PhoneApps enables users to control complex features directly from the phone’s display and programmable buttons. This allows users to have full control of their phone system right from their fingertips. Other features such as built-in VPN and and hot desking makes the S406 great value.
Start Ups and SMBs
Offices
Office workers can benefit from the PhoneApps advanced features and increase their productivity.
Retail
Store managers can leverage advanced features to help them improve productivity as they are busy in and out of store locations.
Customer Service
Service representatives and Managers can leverage call Queue information directly from the phone’s display for their daily operation.
PBXact Phone Systems
Plug in the phone into any internet connection, local or remote and it will find the phone system and autoprovisioning, using Sangoma’s redirection service.
PhoneApps
PhoneApps are a bundle of advanced applications, which install directly onto your IP phone, converting all your complicated features into easy-to-use visual applications, which you control, directly from the phone’s display!
Included EndPoint Manager
Built-in VPN
Connect remote phones to the corporate office securely using built-in VPN. Perfect for remote workers to be able to access all their tools from the office without compromising security.
Hot Desking
For users without a permanent work desk, log in to any phone with your extension and password, and all your settings follow you instantly. Perfect for call-center agents, and other roaming workers. It’s as if you never left your desk at all!
All Sangoma IP phones can be powered by the same ethernet cable plugged into it, without requiring the power adaptor. This allows you to place the phone wherever you want without searching for a power socket.
Localization
All S-Series phones support global language support.
GigaBit Ethernet
Use a single cable to provide an internet connection to your phone and workstation. This eliminates wiring and limitations of the available connections in the immediate area.
General Features
- 2x SIP Accounts
- Call hold, mute, DND
- Call forward, call waiting, call transfer
- Busy Lamp Field (BLF)
- Call park / pickup
- Music on hold
- Voicemail
- Anonymous call / rejection
- Message waiting indicator
- Intercom paging
PhoneApps
- Time conditions
- Queues / Queue Agents
- Presence
- Queue agents
- Hot-desking
- Call flow
- Contacts
- Call Forwarding
- Conference Rooms
- Do-Not-Disturb
- Follow Me
- Visual Voicemail
Display & Indicator
- 2.7 inch 192 x 364 pixel graphical LCD with backlight
- LED for call and message waiting indication
- Caller ID with name and number
- Dual-color illuminated LEDs for line status
Physical Dimensions
- Shipping dimensions: 229mm (W) x 211mm (D) x 102mm (H)
- Shipping weight: 1.27kgs (2.8 lbs)
- Wall mountable
- Stand with 3 adjustable angles
Interface
- Dual-port Gigabit Ethernet
- 1x RJ9 (4P4C) handset port
- Power over Ethernet (IEEE 802.3af) (PoE), class 2
- Electronic Hook Switch (EHS) support for wireless headsets
Optional Accessories
- External universal AC adapter (US, UK, EUR)
- AC 100~240V input
- DC 5V/1.2A output
- EHS headset adapter
- Wall mount bracket
- H10/H20 Cordless DECT Headset
The S505 is a mid-level IP phone designed for users who are frequently on the phone and require access to advanced features, line support and usability options. Designed to work exclusively with PBXact phone systems, the S505 supports four (4) Session Initiation Protocol (SIP) accounts, full duplex speakerphone and has a rich 3.5 inch full color display. Zero-Touch auto-provisioning makes it so easy to setup, all you need to do is plug the phone into an internet connection, in or out of the corporate office location.
Built-in PhoneApps enables users to control complex features directly from the phone’s display and programmable buttons. This allows users to have full control of their phone system right from their fingertips. Other features such as built-in VPN and and hot desking makes the S505 great value.
Receptionist
Process calls quickly through the use of programmable buttons to feature line extensions and busy lamp field (BLF). Available side-car expands this capability for larger organizations
Executive
High quality finish creates a beautiful display on an executive’s desktop as well as the full color display. Quick access to paging, speakerphone wireless headset support provides the best user experience
Call Center
Call Center managers have access to queue statistics directly on display and can move agents around by using the programmable buttons.
Real Estate
Dozens of programmable busy-lamp-field (BLF) keys help staff locate agents and transfer calls rapidly. The Optional Side-car expands this functionality for larger organization
Zero-Touch Auto-Provisioning with
PBXact Phone Systems
Plug in the phone into any internet connection, local or remote and it will find the phone system and autoprovisioning, using Sangoma’s redirection service.
Phone Apps
PhoneApps are a bundle of advanced applications, which install directly onto your IP phone, converting all your complicated features into easy-to-use visual applications, which you control, directly from the phone’s display!
Included EndPoint Manager
Built-in VPN
Connect remote phones to the corporate office securely using built-in VPN. Perfect for remote workers to be able to access all their tools from the office without compromising security.
Hot Desking
For users without a permanent work desk, log in to any phone with your extension and password, and all your settings follow you instantly. Perfect for call-center agents, and other roaming workers. It’s as if you never left your desk at all!
PoE Support
All Sangoma IP phones can be powered by the same ethernet cable plugged into it, without requiring the power adaptor. This allows you to place the phone wherever you want without searching for a power socket.
Gigabit ethernet
Use a single cable to provide an internet connection to your phone and workstation. This eliminates wiring and limitations of the available connections in the immediate area.
Localization
All S-Series phones support global language support.
General Features
- 4x SIP Accounts
- Call hold, mute, DND
- Call forward, call waiting, call transfer
- Busy Lamp Field (BLF)
- Call park / pickup
- Music on hold
- Voicemail
- Anonymous call / rejection
- Message waiting indicator
- Intercom paging
PhoneApps
- Time conditions
- Queues / Queue Agents
- Presence
- Queue agents
- Hot-desking
- Call flow
- Contacts
- Call Forwarding
- Conference Rooms
- Do-Not-Disturb
- Follow Me
- Visual Voicemail
Display & Indicator
- 3.5 inch (480 x 320 pixel) full color display
- LED for call and message waiting indication
- Illuminated LEDs for line status information
- Caller ID with name, number and photo
- Wall paper
Physical Dimensions
- Shipping dimensions 246mm (W) x 224mm (D) x 102mm (H)
- Shipping weight 1.27kgs (2.8lbs)
- Wall mountable
- Stand with 3 adjustable angles
Interface
- Dual-port Gigabit Ethernet
- 1x RJ9 (4P4C) handset port
- Power over Ethernet (IEEE 802.3af) (PoE), class 2
- 1xRJ12 EXT port supports up to 6 Sangoma EXP100 Expansion Modules
- Electronic Hook Switch (EHS) support for wireless headsets
Optional Accessories
- External universal AC adapter (US, UK, EUR)
- AC 100~240V input
- DC 5V/1.2A output
- EHS headset adapter
- EXP100 expansion module
- Wall mount bracket
- H10/H20 Cordless DECT Headset

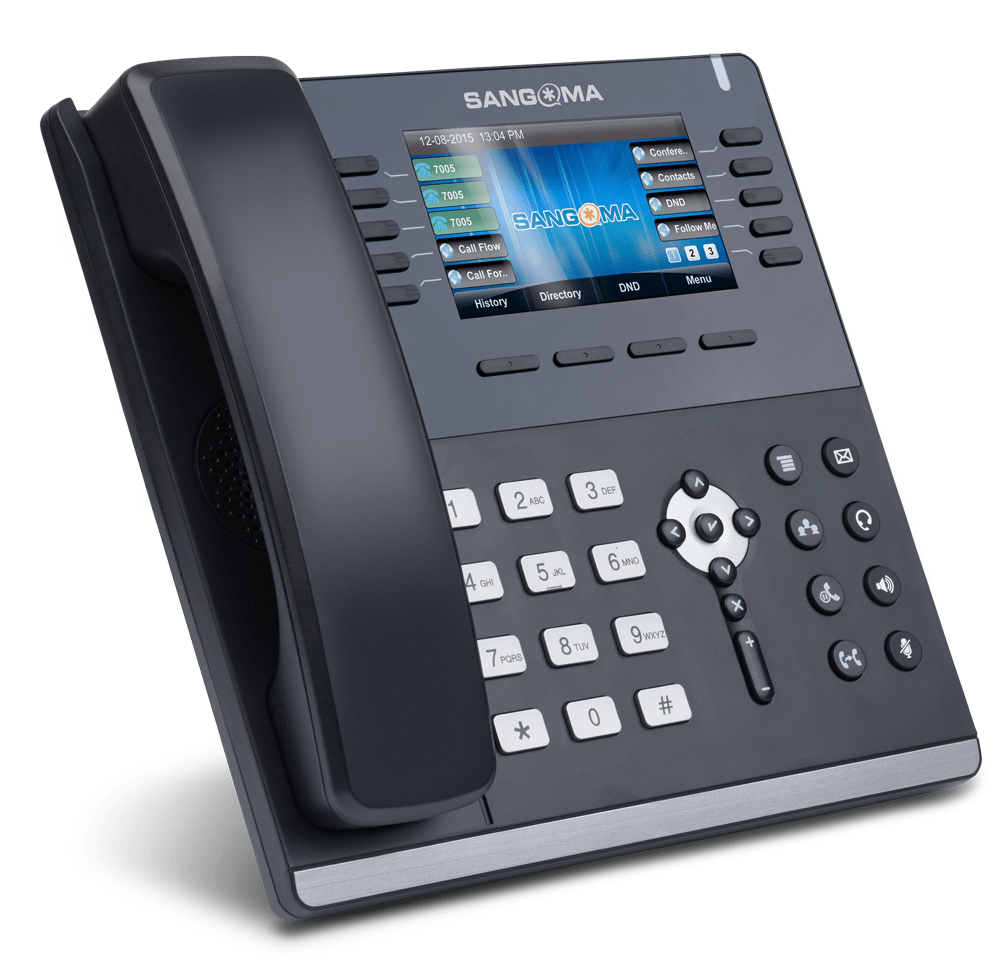

The S705 is our executive-level IP phone designed for users who are frequently on the phone and require access to advanced features, line support and usability options. Designed to work exclusively with PBXact phone systems, the S705 supports 6 Session Initiation Protocol (SIP) accounts, WiFi, full duplex speakerphone and has a rich 4.3 inch full color display. Zero-Touch auto-provisioning makes it so easy to setup, all you need to do is plug the phone into an internet connection, in or out of the corporate office location.
Built-in PhoneApps enables users to control complex features directly from the phone’s display and programmable buttons. This allows users to have full control of their phone system right from their fingertips. Other features such as built-in VPN and and hot desking makes the S705 great value.
Wi-Fi Enabled Phone Network
Setup an entire office wire-free with WiFi support and eliminate cabling costs.
Executive
High quality finish creates a beautiful display on an executive’s desktop as well as the full color display. Quick access to paging, speakerphone and bluetooth enabled wireless headset support provides the best user experience.
Call center
Call Center managers have access to queue statistics directly on display and can move agents around by using the programmable buttons.
Real Estate
Dozens of programmable busy-lamp-field (BLF) keys help staff locate agents and transfer calls rapidly. The Optional Side-car expands this functionality for larger organizations.
Zero-Touch Auto-Provisioning with
PBXact Phone Systems
Plug in the phone into any internet connection, local or remote and it will find the phone system and autoprovisioning, using Sangoma’s redirection service.
Phone Apps
PhoneApps are a bundle of advanced applications, which install directly onto your IP phone, converting all your complicated features into easy-to-use visual applications, which you control, directly from the phone’s display!
Included EndPoint Manager
Built-in VPN
Connect remote phones to the corporate office securely using built-in VPN. Perfect for remote workers to be able to access all their tools from the office without compromising security.
Wifi and Bluetooth
Setup an entire office using WiFi, eliminating the requirement of cabling. Bluetooth support also allows users to connect their bluetooth headsets for a true wire-free experience.
Hot Desking
For users without a permanent work desk, log in to any phone with your extension and password, and all your settings follow you instantly. Perfect for call-center agents, and other roaming workers. It’s as if you never left your desk at all!
PoE Support
All Sangoma IP phones can be powered by the same ethernet cable plugged into it, without requiring the power adaptor. This allows you to place the phone wherever you want without searching for a power socket.
Localization
All S-Series phones support global language support.
General Features
- 6x SIP Accounts
- WiFi and Bluetooth Support
- Call hold, mute, DND
- Call forward, call waiting, call transfer
- Busy Lamp Field (BLF)
- Call park / pickup
- Music on hold
- Voicemail
- Anonymous call / rejection
- Message waiting indicator
- Intercom paging
PhoneApps
- Time conditions
- Queues / Queue Agents
- Presence
- Queue agents
- Hot-desking
- Call flow
- Contacts
- Call Forwarding
- Conference Rooms
- Do-Not-Disturb
- Follow Me
- Visual Voicemail
Display & Indicator
- 4.3 inch (480 x 272 pixel) color display
- LED for call and message waiting indication
- Illuminated LEDs for line status information
- Caller ID with name, number and photo
- Wall paper
Physical Dimensions
- Shipping dimensions 246mm (W) x 224mm (D) x 102mm (H)
- Shipping weight 1.27 kgs (2.8lbs)
- Wall mountable
- Stand with 3 adjustable angles
Interface
- Dual-port Gigabity Ethernet
- 1x RJ9 (4P4C) handset port
- Power over Ethernet (IEEE 802.3af) (PoE), class 2
- 1xRJ12 EXT port supports up to 6 Sangoma EXP100 Expansion Modules
- Electronic Hook Switch (EHS) support for wireless headsets
Optional Accessories
- External universal AC adapter (US, UK, EUR)
- AC 100~240V input
- DC 5V/1.2A output
- EHS headset adapter
- EXP100 expansion module
- Wall mount bracket
- H10/H20 Cordless DECT Headset
D-SERIES, DECT-WIRELESS, HEADSET AND SOFTPHONES

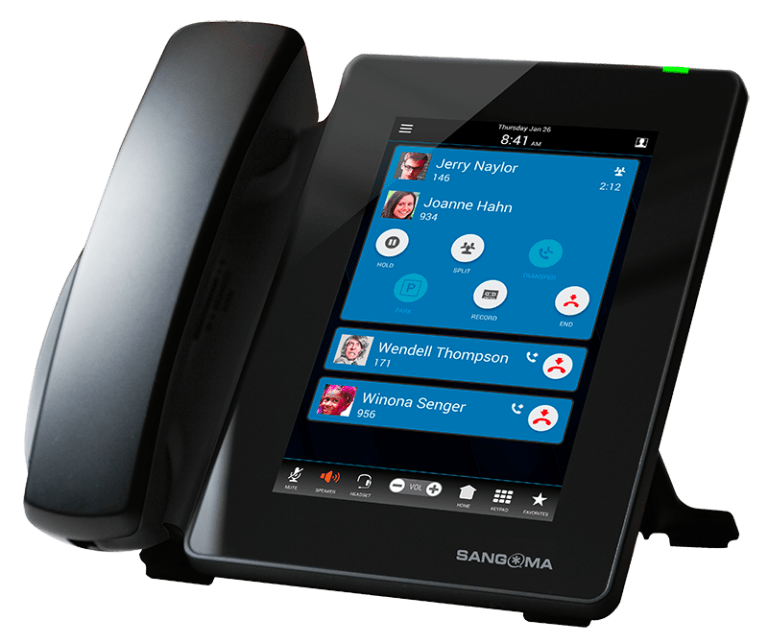

A revolutionary touchscreen IP Phone, the D80 is completely touch-driven with no physical buttons. It utilizes a 7-inch HD display with multi-point capacitive touchscreen, 100 rapid dial/busy lamp field (BLF) entries, dual 10/100/1000 Mbps Gigabit network ports and advanced touch-optimized applications. This model is ideal for all users who want an exceptional and easy-to-use interface with the highest level of quality.
The D80 provides a fully-integrated experience, giving users an unparalleled level of functionality with simple, flexible and robust call handling. Accessing advanced phone applications like visual voicemail, user presence, intelligent contacts and visual call parking is simplified through the optimized touch-centric menu system.
D-Series phones support plug-and-play provisioning. Simply plug the phones in, automatically discover your Switchvox phone system, select the user, and start talking. D-Series phones make it easier to do full office installs with autonomous assignment and configuration through MAC Address batch assignment.
Receptionist
Process calls quickly through the use of touch screen programmable buttons to feature line extensions and busy lamp field (BLF).
Executive
High quality finish creates a beautiful display on an executive’s desktop as well as the full screen color display. Quick access to paging, speakerphone and wireless headset support provides the best user experience.
Call Center
Call Center managers have access to queue statistics directly on display and can move agents around by using the programmable buttons.
Real-estate
Dozens of programmable busy-lamp-field (BLF) keys help staff locate agents and transfer calls rapidly.
Plug-and-play auto-provisioning
Plug in the phone into any internet connection, local or remote and it will find your Switchvox phone system and auto-provisioning.
Advanced on-board Features
D-Series IP phones include easy-to-use visual applications, which you control, directly from the phone’s display!
Large Touch Screen Display
The D80 features a 7inch HD touch screen display. This significantly increases user productivity by providing touch screen access to all applications and intuitively displaying on-screen exactly what the user needs to see.
100 rapid dial/busy lamp field (BLF) entries
Up to 20 rapid dial/BLF entries on screen, scrollable to 100- BLF entries. This is great for users such as receptionists, real-estate and others who need to be able to process inbound calls quickly.
Gigabit ethernet
Use a single cable to provide an internet connection to your phone and workstation. This eliminates wiring and limitations of the available connections in the immediate area.
PoE Support
All D-Series IP phones can be powered by the same ethernet cable plugged into it, without requiring the power adaptor. This allows you to place the phone wherever you want without searching for a power socket.
Bluetooth headset support
Connect your popular bluetooth headset for a great wireless experience to be as productive as possible and not be tied to your desk.
EHS Support
Support for wireless headsets to control off-hook, talk, and on-hook modes from headset (EHS adaptor required).
Localization
All D-Series phones support global language support.
General Features
- 6x SIP Accounts
- Call hold, mute, DND
- Call waiting, call transfer
- Busy Lamp Field (BLF)
- Music on hold
- Voicemail
- Anonymous call / rejection
- Message waiting indicator
- Intercom paging
Applications
- Presence/Status
- Visual Voicemail
- Contacts
- Call Logs
- Parked Calls
- Call Queues Info
- Call Forwarding
- Conference
Display & Indicator
- 7 inch (800 x 1280 pixel) full color LCD display
- LED for call and message waiting indication
- Illuminated LEDs for line status information
- Caller ID with name, number and photo
- Wall paper
Physical Dimensions
- Shipping dimensions 8.2 (W) x 8.9 (D) x 1.5 (H) inches
- Shipping weight 0.98kgs (2lbs)
- Wall mountable
- Stand with 3 adjustable angles
Interface
- Dual-port Gigabit Ethernet
- 1x RJ9 (4P4C) handset port
- Power over Ethernet (IEEE 802.3af) (PoE), class 2
- Electronic Hook Switch (EHS) support for wireless headsets
Optional Accessories
- External North American or International l AC adapter
- AC 100~240V input
- DC 5V/1.2A output
- Wall mount bracket
- H10/H20 Cordless DECT Headset
Designed to work with Sangoma’s Switchvox, PBXact, and FreePBX phone systems, the DC201 DECT phone package provides SMBs with high quality, wireless DECT that integrates into your phone system.

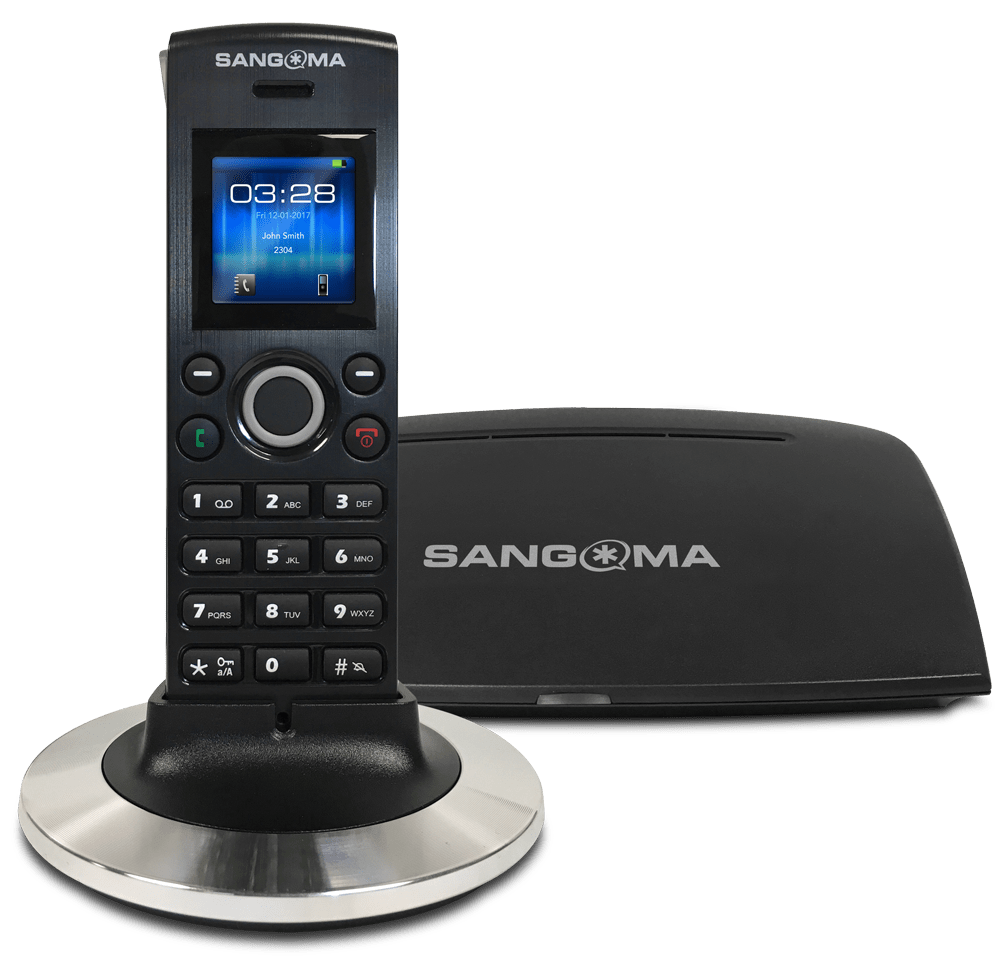

The DC201 DECT Base + Handset package supports up to 20 users, giving your staff and colleagues the freedom and efficiency of wireless.
Manufacturing
Staff can stay in touch with headquarters as they move around the factory floor.
Retail
Co-workers can relay product information or check inventory instantly.
Security
Workers that need to communicate and require the highest level of security in a wireless transmission.
Construction
Workers that need to rely on a strong rugged design of a handset when working in rough landscapes.
Security
Protect your voice communications with TLS and SRTP encryption to guarantee your privacy and security.
Auto Provisioning
Cut installation time with automatic configuration with Switchvox, PBXact, and FreePBX phone system.
Long Range
Increased flexibility with up to 50 meters of indoor range between handset(s) and base station.
Supports Additional Handsets
Supports Up to 20 DECT Cordless Handsets (Additional handsets sold separately).
Multiple Calling
Increased productivity with up to 5 simultaneous phone calls.
Talk/Standby Time
Enjoy long-lasting handset power with up to 8-Hour Talk Time & 75-Hour Standby Time.
D10 Handset
- 1.44’’ TFT display (128 x 128 x 64k) with graphical user interface
- Up to 5 simultaneous calls (Base station)
- Standby time: 75 hours
- Talk time: Up to 8 hours
- Range: Up to 50m indoors
- Headset connector (3.5mm
DB20 Base Station
- Network
- Up to 5 simultaneous calls
- 1x RJ45 10 / 100M Ethernet port
- Audio
- 5 Audio channels using G.726 /G.711Codec
- 4 audio channels using G.729
- 5 CAT-iq wideband audio channelsusing G.722
- RFC3711 SRTP
DECT (Between Base and Handset)
- Frequency band: 1880MHz–1930MHz (DECT)
- 1880 – 1900 MHz (10 carriers) Europe
- 1920 – 1930 MHz (5 carriers) US
- Four power levels (14, 17, 20 and 24 dBm)
- Interoperability, Phase I (CAT-iq1.0)
- Authentication / encryption of base and handset
DC201 Package Contents
- 1x DC20 base station
- US or EU standard
- 1x DC10 handset with cradle
- Rechargeable battery set
- 2x 5V AC power adaptors (For handset and base station)
- US / EU / UK plugs based on region
Physical Specifications
- AC adapter (Handset and base station)
- AC 100-240V Input
- DC 5V/600mA Output
- Handset dimensions
- 118 x 177 x 32mm (HxWxD)
- Base station dimensions
- 130 x 100 x 25.1mm (HxWxD)
Wireless Headsets
Roam throughout the office, continue your conversations, and enjoy the freedom of wireless communications
Enjoy complete flexibility and productivity with Sangoma wireless headsets. Whether you want to stretch your legs, take care of a task away from your desk, or working from home and want to do some housekeeping chores, our H-Series headsets ensure you are always connected.
Our models feature superior sound quality with dedicated DECT technology, superior call handling with up to 325 feet of range as well as all-day battery life. Choose from a dedicated Desktop IP Phone option, or one with added support for the Switchvox Desktop softphone or Zulu softphone for FreePBX/PBXact.
Superior Sound Quality
Voice-dedicated DECT technology eliminates Wi-Fi interference with wideband audio, providing high definition voice.
Noise Cancellation
Filter out background noise so that you and your listeners’ experience great sounding conversations.
Superior Call Handling
One-touch control for call pick up, volume, and mute, up to 325 feet away from your desk for the ultimate flexibility. Optional electronic hook switch (EHS) adaptors allow you to answer calls directly from the headset.
All-Day Battery Life
Users, tasked with answering calls all day, can work comfortably with their headset always on, without worrying about battery.
