Focusing on high-performance computing and the latest network technology, the Network and Communication Solutions (NCS) Group is committed to helping customers build cutting-edge network infrastructure in the digital world. Integrating a wide range of technologies based on x86 and RISC architecture and our software expertise, NCS’ network application platform is widely adopted in CDNs, cyber security, load balancers, uCPEs, routers, SD-WAN, edge computing, storage, NVRs, and other industrial network applications for business of all sizes.
uCPE/Edge Appliance > DTA 1160
Desktop network security appliance DTA 1160 helps small and medium enterprises build a securely connected workplace. Based on the new Intel Atom® processor C3000, the DTA 1160 packs excellent performance per watt, accelerated data cryptography and server-grade LAN functions into a small form factor. This desktop network security appliance can create safe environments for network communication to connect employees and offices.
With dual core SoC Intel Atom® processor C3000 integrated with Intel® QuickAssist Technology, the DTA 1160 is designed to help increase both network responsiveness and security by distributing computing power to core applications, ranging from mail servers to firewalls, while using Intel® QuickAssist Technology for data encryption and decryption, which were processed by software or a discrete hardware accelerator.
DTA 1160
Virtualization Networks and Software-Defined Appliance with Intel Atom® SOC C3758- Main Feature
- Intel Atom® C3758 SoC 8 cores, BGA type
- Support Intel® QAT
- Support SR-IOV
- DDR4-2400 ECC/non-ECC UDIMM/RDIMM, up to 64GB
- 2 x 10GbE SFP+ and 6 x 1GbE LAN ports
- 8GB eMMC
- 1 x 2.5” internal SSD bay (optional)
- 2 x USB 3.0 connector
- TPM 1.2/2.0
| Main Board | DTB1160Intel Atom® C3758, BGA type |
| Main Memory | 4 x DDR4-2400 ECC/non-ECC UDIMM/RDIMM socket; up to 64GB |
| LAN Features | 2 x 10GbE SFP+ ports4 x 1GbE RJ45 ports from Intel® I350-AM42 x 1GbE RJ45 ports from Marvell 88E1543 |
| Expansion | 1 x M.2 2230 slot for Wi-Fi module (E Key) |
| I/O Interface-Front | 2 x USB 3.0 ports (5V/1A)1 x RJ45 type console port2 x SFP+ ports6 x RJ45 ports1 x Power button; 1 x Reset buttonPower/HDD/System/SW LEDsDC jack with lock (12V/5A) |
| I/O Interface-Rear | 3 x SMA holes for Wi-Fi antennas |
| Storage Device | 1 x 2.5” internal SSD bay (optional)1 x SATA connector (for SATA DOM)1 x M.2 2242 SSD socket (SATA & NVMe); M Key |
| Power Input | DC 12V/5A 60W power adaptor |
| Dimensions | Chassis dimension (mm): 240 x 220 x 44Carton dimension (mm): 431 x 301 x 176 |
| Weight | Without packing: 1.9kgWith packing: 3.2kg |
| Environment | Operating temperatures: 0°C~40°CStorage temperature: -20°C~ 80°CRelative humidity: 10%~90% non-condensing |
| Certifications | CE approvalFCC Class BUL |
SD-WAN Appliance > TCA 5170
The 1U rackmount uCPE TCA 5170 helps telecom companies build virtualization environments based on Intel® Xeon® D-2123IT processor (Skylake). Packing excellent multi-core CPU performance and server-grade LAN functions into a small form factor, this 1U rackmount uCPE creates virtualized environments for flexible VNF deployments in enterprises and branch offices.
- SD-WAN Control Plane
- vCPE (Virtualized CPE)
- uCPE (Universal CPE)
- Firewall/IPS/AntiVirus
- VPN and network security appliance
- SMB routers
- Industrial IoT gateway
- Industrial networking appliance
- Vehicle applications

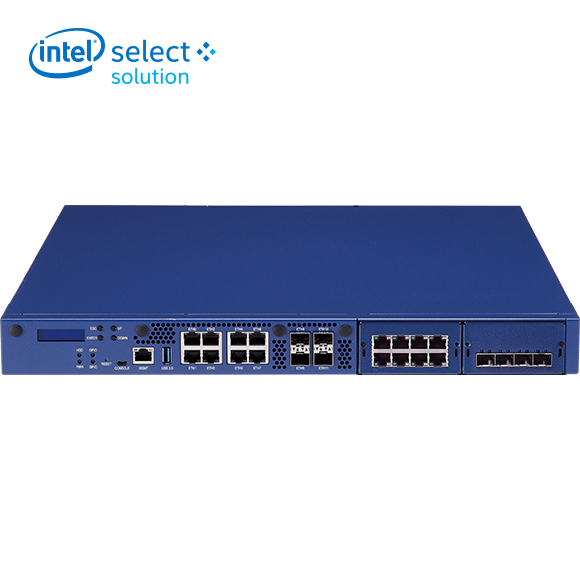

TCA 5170
1U Rackmount uCPE w/ Intel® Xeon® Skylake-D SoC Processor, 8 x GbE RJ45, 4 x 10GbE Fiber and 2 x LAN Modules- Main Feature
- Intel® Xeon® D-2123IT SoC, BGA type
- 8 x DDR4-2400 RDIMM
- 1 x 2.5 SSD, 1 x M.2 2280
- 8 x GbE RJ45 & 4 x 10GbE Fiber
- 2 x LAN modules
- Redundant power supply
- Intel® Select Solution for uCPE (ADVA Ensemble Connector)
| Main Board | Intel® Xeon® Skylake-D SoC, BGA typeD-2123IT, 4 cores w/ o QAT |
| Main Memory | 8 x DDR4 2400 RDIMM sockets, up to 256GB |
| Storage Device | 1 x 2.5” internal SSD/HDD bay1 x M.2 2280 M key, supports SATA and PCIe x4 signal |
| Interface-External | Button: Power & ResetLED: Power/HDD/2 x GPIO1 x USB 3.0 port1 x Micro USB type console8 x GbE RJ45 ports - 2 x LAN bypass pairs4 x 10GbE fiber ports2 x PCIe x8 LAN module slots1 x Management port4 x SMA connectors for Antennas3 x Fixed smart fans2 x Power inletsLCM module (optional) |
| Interface-Internal | 1 x M.2 2230 E key1 x M.2 3042 B key with SIM slot |
| Power | 450W 1+1 redundant power supply |
| Dimensions and Weight | Chassis dimension (mm): 438 x 480 x 44Package dimension (mm): 632 x 567 x 203Without packing: 8kgWith packing: 12kg |
| Environment | Operating temperature: 0°C~40°CStorage temperature: -20°C~80°CRelative humidity: 10%~90%, non-condensing |
| Certifications | CE/FCC Class A |
Datacenter Appliance > NSA 7131

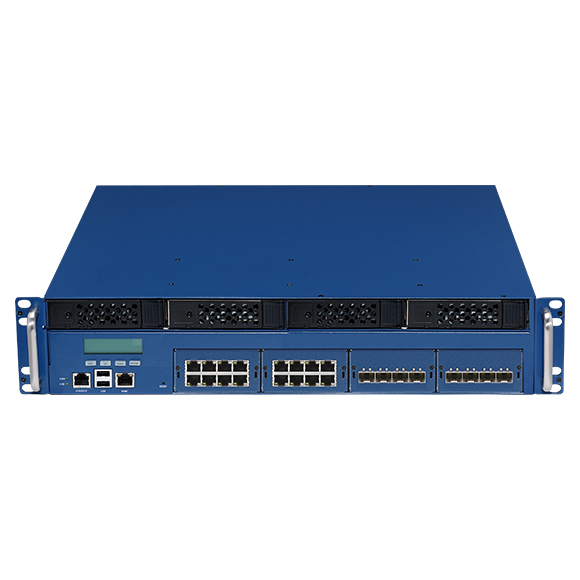

NSA 7131
Intel® Xeon® Processor E5-2600 v3/v4 Product Family for Multi-Thread Network Processing- Main Feature
- Single Intel® Xeon® processor E5-2600 v3/v4 product family
- Support DDR4 DDR4 1333/1600/1866/2133 MTs, up to 256GB ECC & REG
- Support 4 x 3.5” swappable HDD bay
- Support LCD module
- Support CRPS (1+1) redundant power supply
- Four LAN module slots
| Main Board | NSB 7131Intel® Xeon® processor E5-2600 v3/v4 product familyIntel® Wellsburg C612 PCH |
| Main Memory | 8 x 284-pin DDR4 1866/2133/2400/2666 dimm SOCKETS, up to 256GB ECC and REG SDRAM |
| LAN Features | Swappable LAN modulesSupport Intel® i350/Intel® XL710 copper/fiber portsSupport 10/100/1000/10G link speedLAN bypass * Please see LAN module list information |
| I/O Interface-Front | 1 x Management port (LAN chip: Intel® i210)2 x USB 2.0 ports1 x RJ45 type console port4 x PCIe gen.3 LAN module slots (x8, x8, x4, x4) |
| Devices | 1 x on-board CF card socket |
| Power Input | 550W 1+1 CRPS redundant power supply |
| Chassis Dimensions | Chassis dimension: 550mm x 438mm x 88mmCarton dimension: 767mm x 60mm x 242mm |
| Weight | Without packing: 10.045 kgWith packing: 19.04 kg |
| Certifications | CE approvalFCC Class AUL |
