Industrial Fanless Computer
Atom™ Compact: Powered by Intel Atom® processors, Atom® Compact Series fanless computers feature a complete I/O array. Models serve as ideal centerpieces in space-critical, entry-level applications such as data acquisition, digital signage, gate control, self-service systems, kiosks, and points of sale. Atom™ Power: Housed in rugged aluminum chassis, fanless Atom® Power Series computers easily operate in a wide range of temperatures. With industrial-grade components that deliver exception quality and a ruggedized design, fanless Atom® Power Series computers provide reliable and noiseless performance. The Atom® Power Series deploys worry-free in the harsh environments associated with factory automation, industrial automation, and transportation. Core™-i Performance: Featuring high compute power and outstanding graphics capabilities, fanless Core™-i Performance Series models support a variety of external displays. Every Core™-i Performance product offers a superb complement to digital signage, industrial automation, smart machinery, and transportation.

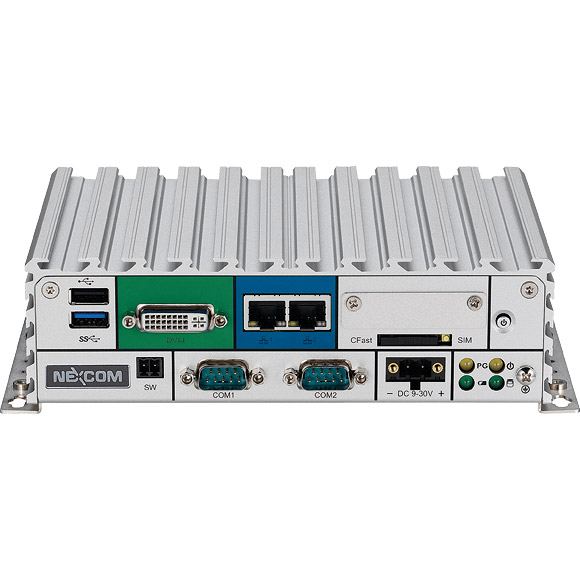

Atom™ Compact NISE 105
- Onboard Intel Atom® processor E3826 dual core, 1.46GHz
- Dual Independent Display from DVI-I and HDMI
- 2 x Intel® I120IT LAN ports support WoL, Teaming and PXE
- 2 x USB2.0 & 1 x USB3.0
- 4 x COM ports (support RS232/422/485, jumper-free setting)
- 1 x Optional Interface for optional Wi-Fi/3.5G modules
- External RTC battery holder for easy replacement
- Support -20 ~ 70 degree C extended operating temperature
- Support 9-30VDC input (nominal DC input: 24V)
| CPU Support | Onboard Intel® Atom™ processor E3826 Dual Core, 1.46GHzSupport Intel® Atom™ E3800 processor family from Single Core E3815, Dual Core E3825/E3826/E3827 and Quad Core E3845 with difference SKUs |
| Main Memory | 1 x DDR3L SO-DIMM Socket, Support DDR3L 1066/1333 8GB RAM max., un-buffered and non-ECC |
| Display Option | Dual Independent Display - HDMI and DVI-D - HDMI and VGA (via DVI-I to VGA converter) |
| I/O Interface-Front | ATX power on/off switch1 x Power Status/1 x HDD Access/1 x Battery Low/1 x Programing LEDs1 x External CFast socket1 x SIM Card holder2 x Intel® I210IT GbE LAN Ports, support Wake on LAN, Teaming and PXE1 x DVI-I Display Output1 x USB3.0 (900mA per each)1 x USB2.0 (500mA per each)2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control - Jumper-free setting on RS232/422/485 - Support 5V/12V/Ring function by jumper setting, Ring as the default (COM2 Only)1 x Remote Power ON/OFF Switch1 x 2-pin DC input, support +9 to 30VDC input (nominal DC input: 24V) |
| I/O Interface - Rear | 1 x USB2.01 x HDMI1 x RTC Battery2 x DB9 for COM3 & COM4, both support RS232/422/485 with auto flow control - Jumper-free setting on RS232/422/4851 x Mic-in & 1 x Line-out2 x Antenna Holes for optional Wi-Fi/3.5G antenna1 x Optional I/F for optional miniPCIe Wi-Fi/3.5G modules |
| I/O Interface - Internal | 4 x GPI and 4 GPO (5V, TTL Type) |
| Storage Device | 1 x CFast (SATA2.0)1 x 2.5" HDD (SATA2.0) |
| Expansion Slot | 1 x Mini-PCIe socket for optional Wi-Fi/ 3.5G modules |
| Power Requirement | Power input: +9VDC to +30VDC (nominal DC input: 24V)1 x Optional 24V, 60W power adapter |
| Support OS | Windows 8, 32bit/64bitWindows Embedded Standard 8, 32-bit/64-bitWindows 7, 32-bit/64-bitWindows Embedded Standard 7, 32-bit/64-bitWindows Embedded Compact 7, 32-bitWindows 10 IoT Enterprise, 64-bitLinux Kernel version 3.8.0 |
| Dimensions | 185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket |
| Construction | Aluminum and Metal Chassis with fanless design |
| Environment | Operating Temperature: Ambient with air flow: -20°C to 70°C with industrial grade device (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)Storage Temperature: -30°C to 85°CRelative Humidity: 10% to 95% (non-Condensing)Shock Protection: - HDD: 20G, half sine, 11ms, IEC60068-2-27 - CFast: 50G, half sine, 11ms, IEC60068-2-27Vibration Protection w/HDD Condition: - Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6Vibration Protection w/CFast & SSD Condition: - Random: 2Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6 |
| Certifications | CEFCC Class AUL/ cUL |

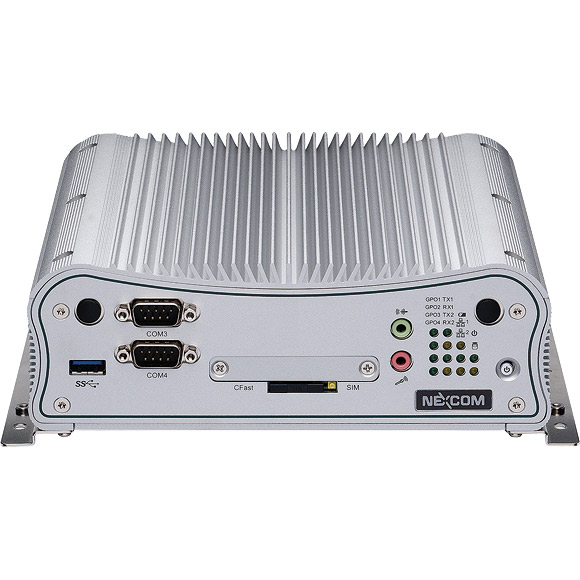

Atom™ Power NISE 2400
Powered by Intel® Atom™ Bay Trail Dual Core processor E3827, 1.75GHz. Driven by the latest Dual Core Intel® Atom™ processor, NISE 2400 can provide excellent computing power and is more power-efficient than the platforms based on the previous generation Intel® Atom™ product family.
NISE 2400 supports up to 8G DDR3L memory and have several options on storage devices like C-Fast, HDD, SSD or mSATA . The NISE2400 comes with 1 x HDMI, 1 x DVI-I, 2 x Gigabit LAN ports, 2x COM port with RS232/422/485 and 5x USB ports including one USB 3.0. NISE 2400 supports 9 ~ 30V DC input, and can be operated in an extended operating temperature range from -20 to 70 degrees Celsius. This Fanless system supports two Mini- PCIe modules, which can be an excellent platform for IOT applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and factory automation applications with optional fieldbus module. Its expansion versatility makes NISE 2400 a perfect platform for factory automation and M2M intelligent computing applications.
- Onboard Intel® Atom™ processor E3827 Dual Core, 1.75GHz
- Dual independent display from DVI-I and HDMI
- 2 x Intel® I210IT GbE LAN ports support WoL, Teaming and PXE
- 4 x USB 2.0 & 1 x USB 3.0
- 2 x RS232 & 2 x RS232/RS422/RS485 with auto flow control
- 2 x Mini-PCIe socket for optional mSATA/Wi-Fi/4G LTE/3.5G/Fieldbus modules
- Support -20 to 70 degree Celus extended operating temperature
- Support 9-30V DC input
| CPU Support | Onboard Intel® Atom™ processor E3827 Dual Core, 1.75GHzSupport Intel® Atom™ E3800 processor family from single core E3815, dual core E3825/E3826/E3827 and quad core E3845 with difference SKUs |
| Main Memory | 2 x DDR3L SO-DIMM socket, support DDR3L 1066/1333 8GB RAM max., un-buffered and non-ECC |
| Display Option | Dual independent display - HDMI and DVI-I - HDMI and VGA (via DVI-I connector) |
| Front I/O Interface | ATX power on/off switch1 x Power Status, 1 x HDD access, 1 x battery low, 4 x programming LEDs, 4 x Tx/Rx LEDs, 2 x LAN LEDs2 x DB9 RS232 for COM3 & COM41 x External CFast socket1 x SIM card holder1 x USB 3.0 (900mA per each)1 x Mic-in & 1 x Line-out2 x antenna holes for optional Wi-Fi/3.5G antenna |
| I/O Interface - Rear | 4 x USB 2.01 x DVI-I display output1 x HDMI display output1 x remote power on/off switch2 x Intel® I210IT GbE LAN ports, support wake on LAN, Teaming and PXE2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control - Jumper-free setting on RS232/422/4851 x 3-pin DC input, support +9 to 30VDC input |
| I/O Interface - Internal | 4 x GPI and 4 GPO (5V, TTL Type) |
| Storage Device | 1 x CFast card socket (SATA 2.0)1 x 2.5" HDD space (SATA 2.0)1 x mSATA from miniPCI socket if SATA HDD is not installed |
| Expansion Slot | 2 x Mini-PCIe socket for optional Wi-Fi/4G LTE/3.5G |
| Power Requirement | Power input: +9Vdc to +30Vdc1 x optional 24V, 60W power adapter |
| Dimensions | 191mm (W) x 200mm (D) x 60mm (H) without wall-mount bracket |
| Construction | Aluminum and metal chassis with fanless design |
| Environment | Operating Temperature: Ambient with air flow: -20°C to 70°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)Storage temperature: -30°C to 85°CRelative humidity: 10% to 95% (non-condensing)Shock Protection: HDD: 20G, half sine, 11ms, IEC60068-2-27 CFast: 50G, half sine, 11ms, IEC60068-2-27Vibration Protection w/ HDD Condition: Random: 0.5Grms @ 5 ~ 500Hz, IEC60068-2-64 Sinusoidal: 0.5Grms @ 5 ~ 500Hz, IEC60068-2-6Vibration protection aw/ CFast & SSD condition: Random: 2Grms @ 5 ~ 500Hz, IEC60068-2-64 Sinusoidal: 2Grms @ 5 ~ 500Hz, IEC60068-2-6 |
| Certifications | CEFCC Class A |
| OS Support Lists | Windows 8, 32-bit/64-bitWindows Embedded Standard 8, 32-bit/64-bitWindows 7, 32-bit/64-bitWindows Embedded Standard 7, 32-bit/64-bitLinux Kernel version 3.8.0 |

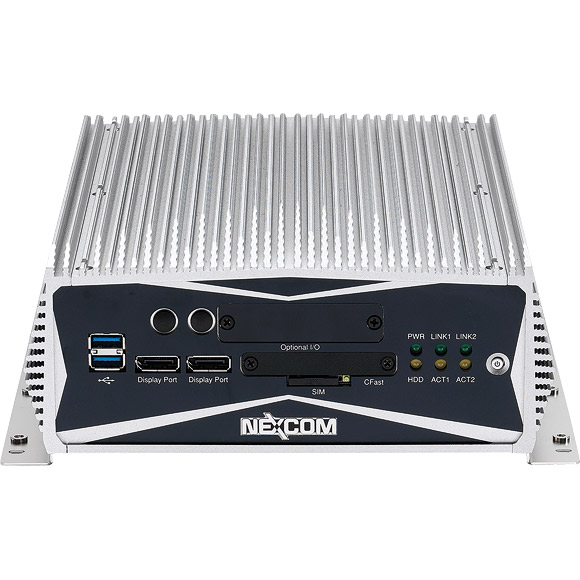

Core™-i Performance
Integrated with 3rd generation Intel® Core™ i7/i5/i3 with QM77 PCH platform, NISE series evolve to a new generation called NISE series. It is not only sustained its good reputation on quality and user friendly features but also innovated its mechanical design.
With computing and graphic performance enhancement, NISE 3600 series supports 2x display port, 1x VGA port and 1x DVI-D port to fulfill the graphicintensive or computing oriented applications, including Auto Optical Inspection, Machinery Automation, ePolice infotainment, Surveillance or Image Processing equipments and Healthcare industry. In addition, NISE 3600series offers 4x USB 3.0 and 2x USB 2.0, greater expansion capability with 2x Intel® GbE LAN ports, 6x COM ports, and 1x external CFast socket for front accessible availability. NISE 3600 series is sufficient to support wide range of DC input from 9~30V, ATX power mode and WoL; it is a new generation to meet most application requirements.
- Support 3rd generation Intel® Core™ i7/i5/i3 rPGA socket type processor
- Mobile Intel® QM77 PCH
- Support 1x 2.5" SATA HDD or 2x SATA DOM
- 1x VGA, 1x DVI-D and 2x Display port with Independent Display support
- Dual Intel® GbE LAN ports; Support WoL, Teaming and PXE
- 4x USB 3.0, 2x USB 2.0, 5x RS232 and 1x RS232/422/485
- 1x internal Mini-PCIe socket support Wifi or 3.5G module
- 1x external CFast socket, 1x SIM card socket, One PCIex4 expansion
- Support +9V to 30VDC input; Support ATX power mode
- One PCIe x4 expansion
| CPU Support | Support 3rd generation Intel® Core i7/i5/i3 rPGA socket type processor - Core™ i7-3632QM, Quad Core, 2.2GHz, 6M Cache, Max Turbo Frequency 3.2 GHz - Core™ i7-3612QM, Quad Core, 2.1GHz, 6M Cache, Max Turbo Frequency 3.1 GHz - Core™ i5-3610ME, Dual Core, 2.7GHz, 3M Cache, Max Turbo Frequency 3.3 GHz - Core™ i3-3120ME, Dual Core, 2.4GHz, 3M Cache - Support three independent display with above processorsTurbo-boost disabled by default |
| Main Memory | 2x DDR3 SO-DIMM socket, supports up to 8GB DDR3/ DDR3L 1333/ 1600 SDRAM, with un-buffered and non-ECC |
| Display Option | Three Independent Display (only support on 3rd Generation Processor) - Two Display Port and 1x VGA - Two Display Port and 1x DVI-DDual Independent Display - VGA and DVI-D - Display Port and VGA - Display Port and DVI-D - Display Port and Display Port |
| I/O Interface-Front | ATX power on/ off switchHDD Access/ Power status LEDs2x USB3.0 ports (Blue Color)2x Display Port (Can be converted to DVI-D or HDMI via cables)2x Antenna holes1x external CFast (optional)1x SIM card socket |
| I/O Interface-Rear | 2x DB9 for COM5 & COM6 (RS232)1x DB44 Serial Port, 4x COM port - - COM1/COM3/COM4: RS232 - - COM2: RS232/422/4852 x Intel® GbE LAN ports (Intel® 82574L and 82579LM); Support WoL,Teaming and PXE2x USB2.0 ports2x USB3.0 ports (Blue Color)1 x DB15 VGA port1 x DVI-D port1 x Line-out and 1x Mic-in2-pin Remote Power on/ off switch9~30V DC input |
| Storage Device | 1x CFast socket1x 2.5” SATA HDD or 2x SATA DOMSATA DOM: support 90 degree horizontal type only |
| Expansion Slot | One PCIex4 Expansion Slot - Add-on card length: 169mm max - Power consumption: 10W/slot max.1x Mini-PCIe socket (support optional WiFi or 3.5G module) |
| Power Requirements | ATX power modeOn-board DC to DC power support from 9V to 30V DCOptional power adapter |
| Dimensions | 215mm (W) x 272mm (D) x 93mm (H) without wall mount bracket |
| Construction | Aluminum Chassis with fanless design |
| Environment | Operating temperature: Ambient with air flow: -5°C ~ 55°C Ambient with air flow: -5°C to 50°C if using Core™ i7-3612QM (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)Storage temperature: -20°C ~ 80°CRelative humidity: 95% at 40 degree CShock protection: 20G, half sine, 11ms, IEC60068-2-27Vibration protection Random: 0.5Grms @5~500 Hz according to IEC68-2-64 Sinusoidal: 0.5Grms @5~500 Hz according to IEC68-2-64 |
| Certifications | CE approvalFCC Class AUL |
| OS Support Lists | Windows XP 32bits and 64bitsWindows 7 32bits and 64bitsWindows 8.1 32 bits and 64 bits |
