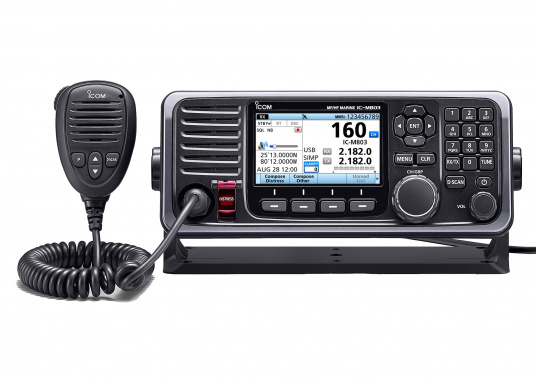

The M803 is the long range digital communication radio for any cruiser. Reach both marine and ham frequencies with the Class E DSC MF/HF certification. It is packed with features to keep users safe such as a distress call button, audio replay, GPS and more. The intuitive interface of the color TFT display and the similarity of the user interface of the M605 allows for easy operation between the two radios. The M803 also includes an advanced RF direct simple sampling system that improves higher receiver sensitivity and higher quality audio.

Large Color Display

Users will like the large 4.3" wide viewing angle color TFT display. Clearly see the high resolution display icons on the LCD screen from numerous positions with the nearly 180 degree wide viewing angle, which provides various installation placement possibilities. The night mode display offers readability in low-light conditions.

Intuitive User Interface

Smoothly operate and sail with the M803’s large main dial and keys to access functions such as accessing MMSI numbers, vessel numbers, and channels with the full alpha-numeric keypad. Assign one of the software key functions to the microphone’s programmable button for quick access. Additionally the head unit offers programmable keys for customizable access.

Emergency Distress Button

The M803’s big and easily identifiable emergency distress button is encased in a spring loaded cover. Once pressed a digital distress signal is sent with GPS coordinates and calls for help to other ships or coast stations. The GPS receiver offers GPS, GLONASS, SBAS, position data, speed and UTC data when using the supplied GPS antenna. Position data may be output from the NMEA 0183 port for use with other devices.

Dedicated DSC Scanning

The dedicated DSC watch-keeping receiver continuously scans the six distress channels in rotation. If you are in process with a DSC call and receive another call, the M803 can switch between calls with the Multiple Task Mode function. 100 MMSI numbers (75 individual/25 group) for DSC calls can be stored with a 10-character name.

Two Minute Memory Instant Replay Memory

The Instant Replay Function allows users to replay up to two minutes of previous conversations or calls. The function constantly loops and records over older audio.

Additional Features

• NMEA 0183 Version 4.10 data input/output (4800-38400 bps)
• HF email operation with frequency, mode and bandwidth memorization*

All stated specifications are subject to change without notice or obligation.

Applicable IP Rating

Supplied Accessories

• Remote controller
• DC power cable
• Mounting bracket kits
• Remote control cable (5 m, 16.4 ft)
• GPS antenna (5m, 16.4 ft cable)
• ACC plugs
• Microphone, HM-214H
• Microphone hanger
• Spare fuses

Antenna

AH-710
Folded dipole (1.9-30MHz)

Antenna Tuner

AT-140

MN-100
Antenna matcher
(26.2ft antenna wires x 2 attached)

MN-100L
Antenna matcher
(49.2ft antenna wire attached)

OPC-1465
Shielded control cable




External Speakers

SP-24

Flush Mount Kit

MB-75

Microphone

HM-214H

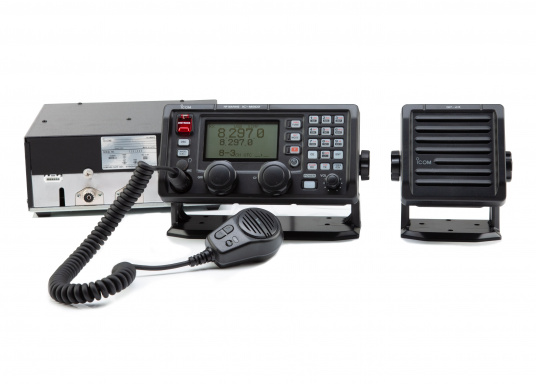

The M802 is full of features any cruiser would not want to be without. Increase your safety at sea with built-in digital selective calling, the latest in one-touch emergency communications technology. Digital communications are also made simple with this SSB radio. When voice communications are difficult, send and receive messages with the one-touch email access frequency, mode and bandwidth settings. The large LCD display allows for easy reading, day or night. At sea email has never been easier.

Easy to Use in All Conditions

Icom’s SSB offers two large dials plus bank and channel for simple channel selection.

For added safety at sea, the M802 offers the latest in one-touch DSC emergency communications technology. (ITU-R M.493-13 Class E standard.) The emergency button is covered by a red, spring loaded hatch to avoid accidental DSC activation.

Learn how to register your DSC radio.

Large LCD

The large LCD display is easy to read at a glance with dot matrix characters. The backlit keypad allows for night time operation with 10 levels (plus OFF) of adjustable backlighting.

Digital Signal Processor Advantage

The speech compressor, utilizing DSP, increases average talk power. Flexible filter settings provide for narrow band signals like e-mail, SITOR, FSK and other operation without an optional filter.

Connect While at Sea

The M802 is great for weather fax, communications to many, and email access (when connected to a PACTOR modem). Send and receive messages with the one-touch email access frequency, mode and bandwidth settings.

Additional Features

• Remote control mic allows user to select channels directly
• Optional automatic antenna tuner, AT-140 available
• Accessory RS-232C port allows connection of modem, etc.
• GPS input, NMEA 0183 version 3.01
• Headphone jack in front of the controller
