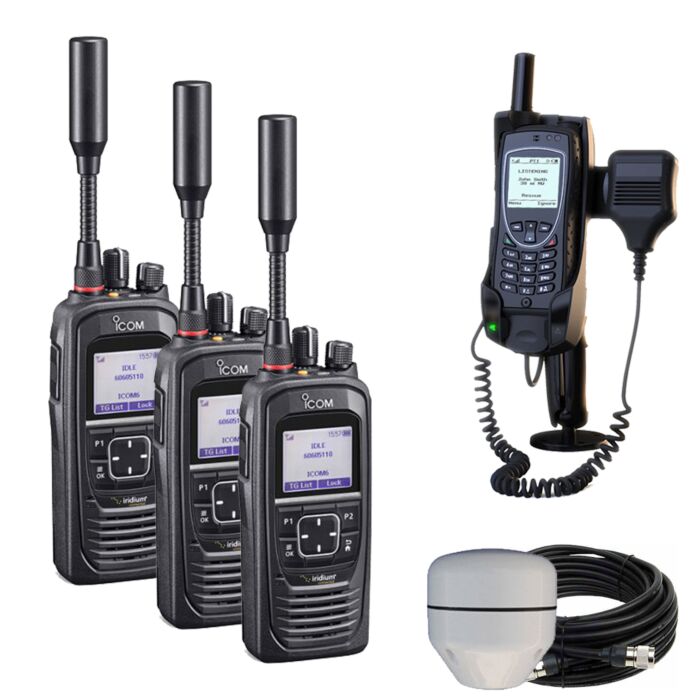

IC-SAT100 Icom & Iridium Satellite PTT Transceiver
The IC-SAT100 utilises SATELLITE PTT (Push-To-Talk) which is a two-way radio system that uses the Iridium® satellite network. It can be used as a communication tool in remote, isolated areas where there are no mobile phones or landline network infrastructure. Even if terrestrial network infrastructure is rendered unusable by human or natural disasters, SATELLITE PTT can provide a stable back-up, independent from other networks.
One-to-Many Communications
Unlike satellite phones, IC-SAT100 users can immediately start talking to all the radios in the same talkgroup, with just a push of the transmit (PTT) button.
Wide Area Global Communication
The Iridium® satellite network covers the entire earth, including both poles, and can provide wide area global communications anywhere on the planet*.
* Depending on the country or region, carrying and/or use of the IC-SAT100 may be prohibited.
Real-Time, Low-Latency Communication
Using 66 Low Earth Orbit (LEO) Iridium® satellites, the IC-SAT100 provides low-latency communication, and broader, more reliable network coverage, compared to Geosynchronous Equatorial Orbit (GEO) satellites.
Emergency Call Function
The ‘Orange’ key on the top of the radio is an emergency button. You can transmit an emergency call via a specific talk group by pushing and holding down the button, just like a PMR/LMR radio system.
Waterproof, Dust-Tight & Durable Body
The IC-SAT100 provides IP67 waterproofing (1 m depth of water for 30 minutes) and dust-tight protection, making it ideal for use in harsh outdoor environments. The radio also meets MIL-STD 810G specifications. The operating temperature range is from –30°C to +60°C (–22 °F to 140 °F).
1500 mW Powerful Audio
1500 mW audio delivered from the internal speaker provides loud and clear communication, even in noisy environments.
Long Lasting Battery Life
The supplied BP-300 Li-ion battery pack provides 14.5 hours of operation.
* Approximate. Operating periods are calculated under the following conditions. TX : RX : standby = 5 : 5 : 90
Conventional Radios & IP Phones Interconnection
With a VE-PG4 RoIP gateway, the IC-SAT100 can interconnect with an IP phone, IP, LTE, IDAS digital* and analog transceivers. (Planned feature)
*Type-D multi-site trunking and conventional systems.
And More
• Secure conversations with AES encryption
• Short Data Message function
• Voice Recording function
• Multiple language display (English, Chinese, French, Japanese, and Spanish)
• Built-in Bluetooth®
• Integrated GNSS receiver
• SMA type antenna connector for an external antenna
• AquaQuake™ function clears any water ingress that may penetrate the speaker grill of the unit
• Compatible with other Iridium® PTT devices, including Iridium Extreme® PTT*
* Some specific functions may not be compatible. Checking with your local supplier before purchasing is highly recommended.
Management of your Talkgroup and the region of your coverage area can be amended via the Iridium website.
- Real-Time Communication with the Iridium® LEO (Low Earth Orbit) Satellite Network
- Total Global Coverage, including the Poles
- One-to-Many Communication (Up to 15 Groups)
- Emergency Button
- 1500 mW of Powerful Audio for Noisy Environments
- IP67 Waterproof, MIL-STD 810G, and a Durable Body
- Long Battery Life: 24 Hours (Standby Time), 7 Hours (Talk Time (Approx.)
- Multiple Language Display: (English, Chinese, French, Japanese, and Spanish)
- Built-in Bluetooth® and GPS Receiver
- Priority Interrupt Calling and Short Data Messages
- SMA Type Antenna Connector for an External Antenna
- Weight: 300 g (with BP-300)
- Compatible with Other Iridium® PTT Models, including Iridium Extreme® PTT
- Interoperability with IDAS™ and Analogue Radios through the Optional VE-PG4, RoIP Gateway
Allows you to use third party accessories with 6-pin Hirose plug.
AD-135
3.5 mm earphone jack adapter for use with any of SP-27, SP-29 or SP-40 earphone.
AH-40
Magnet-mount external antenna supplied with 1.5m cable
BC-214N
Charges up to six batteries (with/without transceivers) at the same time. (BC-157S, AC adapter supplied.)
BC-241
Rapid desktop charger for IC-SAT100 Satellite PTT Radio.
BC-247
Docking station solution for the IC-SAT100 including AH-40 mag-mounted external antenna and HM-222 speaker microphone.
BP-300
7.2 V/2200 mAh (min.) 2350 mAh (typ.)
EH-15B
Earphone with 2.5 mm plug for use with HM-163MC.
FA-S102U
SMA type antenna for IC-SAT100
HM-163MC
Tie-clip microphone with 2.5 mm earphone jack.
HM-222
The HM-222 is a waterproof remote speaker microphone.
HS-94
Headset (Ear-piece type)
HS-95
Hands-free operation. Requires VS-1/1L/1SL VOX unit for use.
HS-97
Earphone with Throat-mic
MBB-5
Alligator style belt clip for the IC-SAT100 Satellite PTT radio
OPC-2412
Connection cable for VE-PG4. 5 m, 16.4ft length.
OPC-656
DC Power Cable (for use with BC-121)
SP-26
Tube earphone with 2.5 mm plug for use with HM-163MC.
SP-27
The SP-27 features a clear acoustic tube that is designed to be hidden behind the ear making it hard to see. This makes it an ideal earphone for security, hotels, restaurants, retail and airports.
SP-28
Earhook type earphone with 2.5 mm plug for use with HM-163MC.
SP-29
Earhook type earphone with 3.5 mm plug. For use with HM-222 or AD-135.
SP-40
Earphone with 3.5 mm plug. For use with HM-222 or AD-135.
VS-3
Bluetooth headset with earpiece and microphone (comes with PTT switch).
VS-5MC
PTT switch cable with VOX function. VS-5MC is required when using HS-94, HS-95 or HS-97.

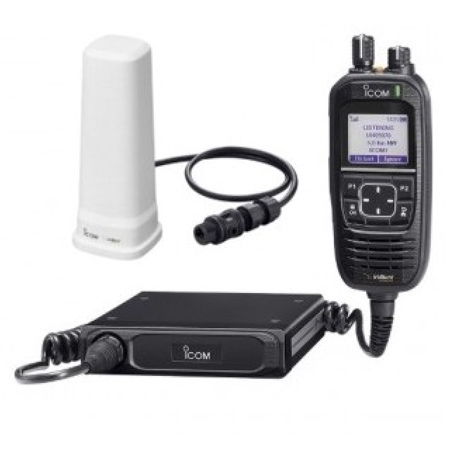

IC-SAT100M Features
Dedicated satellite push-to-talk (PTT) mobile radio
The Icom IC-SAT100M is a dedicated satellite push-to-talk (PTT) mobile radio and is the only PTT mobile radio offering real-time communications at the push of a button between a group of individuals, each of whom can be anywhere on the planet*. The IC-SAT100M uses the Iridium® satellite communication network, which covers the entire globe, including both poles. .
Together with its handheld counterpart, the IC-SAT100M can be used as part of a powerful global communication system operating in remote, isolated areas where there are no mobile phones or landline network infrastructure. Even if terrestrial network infrastructure is rendered unusable by human or natural disasters, SATELLITE PTT can provide a stable back-up, independent from other networks.
* Subscription contracts are required for using the IC-SAT100M. Depending on the country or region, carrying and/or use of the IC-SAT100/M may be prohibited.
One-to-Many Communication
IC-SAT100M users can immediately start talking to all the radios in the same talkgroup, with just a push of the transmit (PTT) button. .
Real-Time, Low-Latency Global Communication
Using 66 Low Earth Orbit (LEO) Iridium® satellites, the IC-SAT100M provides low-latency communication, and broader, more reliable network coverage, compared to Geosynchronous Equatorial Orbit (GEO) satellites. .
Interoperability with Conventional Radios using the VE-PG4
With a VE-PG4 RoIP gateway, the IC-SAT100M can interconnect with an IP phone, WLAN, LTE, digital* and analogue radios and other communication systems.
* Type-D multi-site trunking and conventional systems.
Other Features
• Power supply capability over Ethernet from main unit to antenna (with RF unit)
• LAN cable (CAT5e) accepts up to 100 m cable connection (from main unit to antenna with RF unit) without any sensitivity loss and thin cable allows easy wiring work
• Supplied multi-functional speaker-microphone
• IP67 waterproofing and dust-tight protection*1
• Voice Recording function
• Built-in Bluetooth® capability
• Multiple language display (English, Chinese, French, Japanese, and Spanish)
• Integrated GPS receiver shows received signal position information on the display
• 1500 mW powerful audio output
• Short Data Message facility
• AES 256-bit encryption*2
*1 Main unit: IP54, Mic: IP55. *2 Communication data is scrambled in the Ethernet section to prevent casual eavesdropping.
IC-SAT100M - Installation Examples
In-Building Use
You can install the IC-SAT100M and the antenna with just a LAN cable (Maximum 100 m, 328 ft). .
Mobile Use
By attaching the antenna on the roof, you can use the radio in a vehicle. The IC-SAT100M has Bluetooth® capability and allows hands-free operation* while driving.
*A third party accessory required. * Guidance about the use of radio equipment in vehicles can be found on our website: The Use of Two Way Radio Equipment in a Vehicle
IC-SAT100M - Advanced System Examples
Flexible Installation with a PoE Switch and IP Network
By using a PoE (Power over Ethernet) switch (for power supply to the antenna) and IP network, you can install the IC-SAT100M with little disruption. This solution allow a maximum extension of 400 metres. .
Low Visibility Installation for Mobile Use
The optional AH-40 antenna provides flexible antenna installation. You can replace the antenna with the AH-40 and mount it on the roof instead of the RF unit. When you use a third-party antenna cover, you can cover the AH-40 making it look more covert. .
Advanced System Example with VE-PG4
The VE-PG4 is a versatile RoIP (Radio over IP network) gateway unit, which seamlessly interconnects satellite PTT radios, PMR radios, LTE radios, WLAN radios, IP phone systems, and external devices. In addition to the IP Network (LAN/WAN), the built-in LTE module* provides virtually nationwide communication coverage.
*Service availability depends on the country. Network coverage provided by a custom SIM card.
- World’s first satellite PTT mobile radio that uses the Iridium satellite communication network
- Dedicated satellite push-to-talk (PTT) mobile radio
- Provides One-to-Many Communication
- Real-Time, Low-Latency, Global Communication
- Interoperability with other devices including conventional radios using VE-PG4
- Supplied multi-functional remote speaker-microphone
- IP67 waterproofing and dust-tight protection (Main unit: IP54, Mic: IP55)
- Voice Recording function
- Built-in Bluetooth® capability
- Integrated GPS receiver shows received signal position information on the display
- Short Data Messaging Facility
Magnet-mount external antenna supplied with 1.5m cable
OPC-2357
Firmware Update Cable for IC-SAT100M
OPC-2422
Coaxial Cable for AH-40 (5m/16.4ft in length)
OPC-2429
Extension cable for use with IC-SAT100M speaker-microphone (2 m, 6.5 ft)
SP-30
20W rated input power (30W max. input) external speaker
SP-35
The SP-35 external speaker replaces the SP-22 or SP-25 external speakers currently supplied with some of our mobile radios. The SP-35 is very similar to the SP-22 or SP-25 but features a more stylish, modern design.
SP-35L
External Speaker with 6m cable
VS-3
Bluetooth headset with earpiece and microphone (comes with PTT switch).
