Marine and offshore communication
Marine AIS/Radar
Marine and offshore communication equipment must meet international standard. Our award-winning onshore and offshore communication solution include:
- VHF/UHF/HF SSB Radios
- VSAT Internet
- GMDSS Systems
- Port Safety Systems
- Port Security Systems
- Complete suite of Helideck Communication systems
- Coastal surveillance and Ship communication solutions
AIS/ RADAR
Fully Capable Class B AIS Transponder for Pleasure Craft and Fishing Boats
What is an AIS Transponder
An AIS transponder on your boat automatically receives information broadcast by other AIS-equipped vessels and base stations, all while your own vessel's static and dynamic information is being transmitted. AIS signals may reach where radar cannot, showing AIS-equpped vessels that might otherwise be hidden, such as on the other side of an island or behind a larger vessel. SOLAS commercial vessels are already required to carry a Class A AIS transponder, so your position will be known by nearby large vessels. The MA-500TR increases your safety at sea.

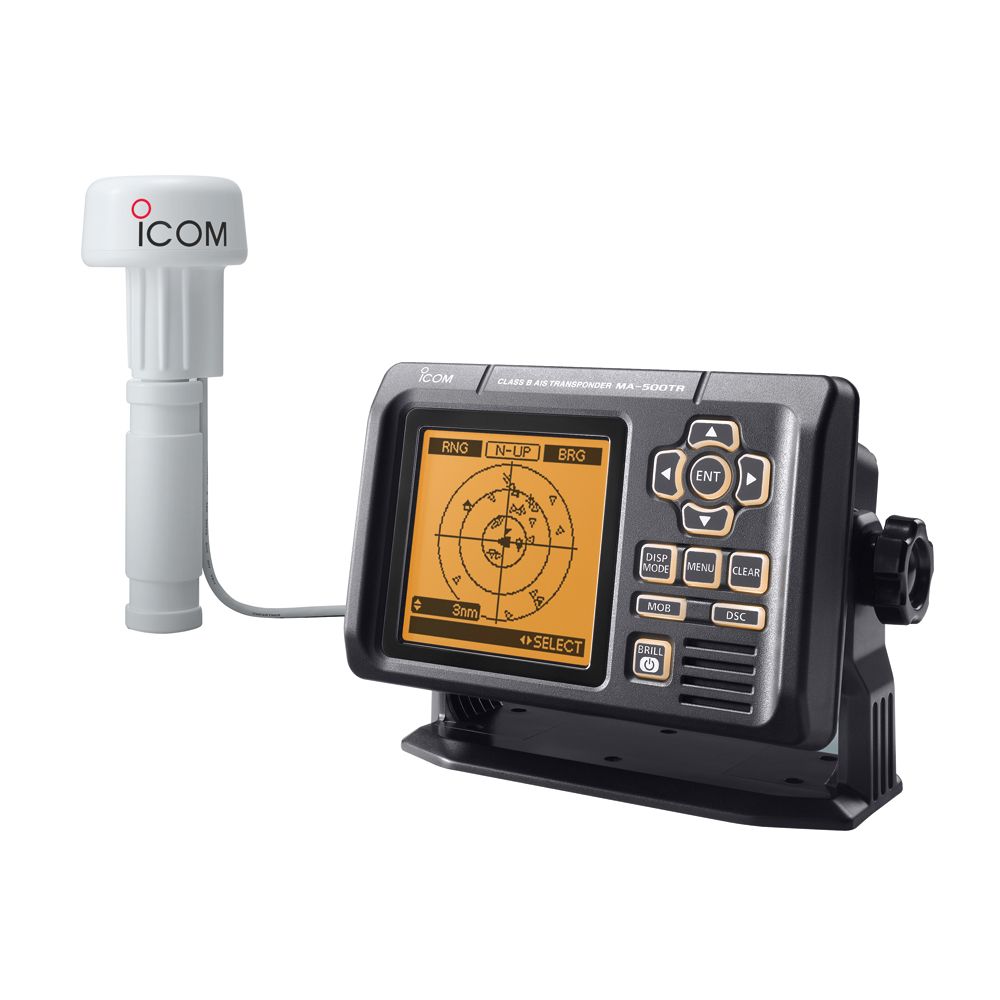

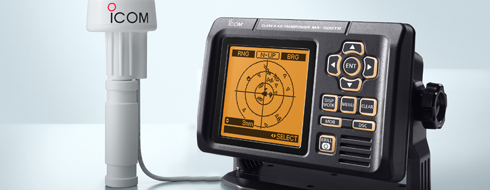

Class B AIS Transponder
The MA-500TR is a Class B AIS transponder for Non-SOLAS vessels such as pleasure craft, work-boat and small vessels. Your vessels information will automatically be transmitted at fixed intervals or under base station control. The MA-500TR receives dual AIS channels (Ch. 87B and Ch. 88B) simultaneously and receives both Class A and Class B AIS information. Transmitted information by MA-500TR is:
- MMSI code
- Vessel name
- Call sign
- Type of ship
- GPS antenna position
- Ship's position
- SOG (Speed over ground)
- COG (Course over ground)
- UTC date and time
- GPS antenna type
- PA (Position Accuracy)
Simple Operation
The Plotter display looks like a marine radar display. North-up, course-up and range zoom from 0.125 NM to 24 NM are supported. The Target list display shows all detected AIS equipped vessels and targets. The Danger list display shows a list of vessels that are within 6 NM CPA and 60 minutes TCPA from your vessel. The Danger list can be sorted by CPA or TCPA order. In addition to these display types, the Detail screen shows various information about the selected AIS target.
CPA and TCPA for Collision-Risk Management
When a vessel comes into the CPA and TCPA range, the vessel icon blinks on the Plotter display and emits a beep sound. When connected to external audio equipment installed on the deck tower, the collision alarm function will alert you even when you are away from the AIS transponder.
Individual DSC Call*
When connected to a compatible Icom VHF radio. It's easy to make an individual DSC call. Select a vessel using the MA-500TR's cursor keys and then push the "DSC" button on the MA-500TR. It is not required to input an MMSI number manually.
100 Waypoints Memory
Up to 100 waypoints can be stored on the waypoint list. The "MOB" button allows you to set a waypoint on your current position instantly.
Safety-Related Message
When the MA-500TR receives a safety-related message from a Class A AIS transponder, the message icon appears on the Plotter display. Up to 20 received DSC messages are automatically stored in the log memory.
3-line NMEA Input/Output
The MA-500TR has 15-pin D-SUB connector providing 3-lines of NMEA input/output on the rear panel. The supplied NMEA connector cable simplifies the installation and connection to the VHF radio and other navigation equipment.
GPS Receiver Comes with MA-500TR
The MXG-5000S GPS receiver is a 12 channel parallel GPS receiver with SBAS function.
Other Features
- Full dot-matrix display with adjustable backlight and contrast
- IPX7 waterproof protection (up to 1m depth of water for 30 minutes, except connections)
- Self diagnosis function
- Flush mount installation with optional MB-75
- Slow warn function
| General | |
|---|---|
| Frequency coverage | 161.975 MHz 162.025 MHz 156.025-162.025 MHz |
| Type of emission | 16KOGXW (GMSK) |
| Antenna impedence | 50Ω |
| Useable temperature range | -20°C to +60°C; -4°F to +140°F |
|
Power supply requirement |
12.0V DC (9.6 - 15.6V) |
| Current drain Tx: Rx: |
1.5A 0.7A |
|
Weight (approx.) |
1.0kg; 2.2lb |
| Dimensions | 165 × 110 × 123mm; 6 1⁄2 × 4 11⁄32 × 4 27⁄32in. |
| Receiver | |
|---|---|
| Sensitivity (20% error rate) |
- 110dBm (AIS/DSC) |
| Adjacent Ch selectivity | More than 70dB (AIS/DSC) |
|
Spurious response |
More than 74dB (AIS) |
| Intermodulation | More than 65dB (AIS/DSC) |
|
Conducted spurious emissions |
Less than -57dBm (AIS) |
| Transmitter | |
|---|---|
| Output power |
2W |
| Modulation |
GMSK |
| Conducted spurious emission | less than -36dBm |
| Data Interface | |
|---|---|
|
Data input interface Sentence format Input level at 2V applied |
IEC 61162-1:2000 (4,800bps), IEC 61162-2 (38,400bps) RMC, GGA, GSA, GSV, DTM, GNS, GLL, GBS and VTG Less than 2mA |
|
Data output interface NMEA1, NMEA3 NMEA2 Sentence format NMEA1 NMEA2 NMEA3 Output level Rating of alert terminal |
IEC 61162-1:2000 (4,800bps), IEC 61162-2 (38,4000bps) IEC 61162-2 (38,000bps) DSC, RMC, GGA, VTG, GSA, GSV, GBS, DTM, DSE, GNS and GLL VDM, VDO, ALR, ACA, ACS, TXT, RMC, GGA, GNS, GLL, VTG, GSA, GSV, GBS, and DTM RMC, GGA, VTG, GSA, GSV, GBS, DTM, GNS and GLL 5V, 40mA Max. DC24V 500mA max. |
MA-500TR Contents:
- AIS transponder
- GPS receiver with 10m cable
- NMEA connector cable
- Mounting bracket kits
- DC power cable
All stated specifications are subject to change without notice or obligation. Measurements are made in accordance with IEC 62287-1.
Maximum Range: |
36NM with 4kW output | |
Scanner Type: |
2’ radome scanner | |
Display Type: |
10.4" color TFT LCD |

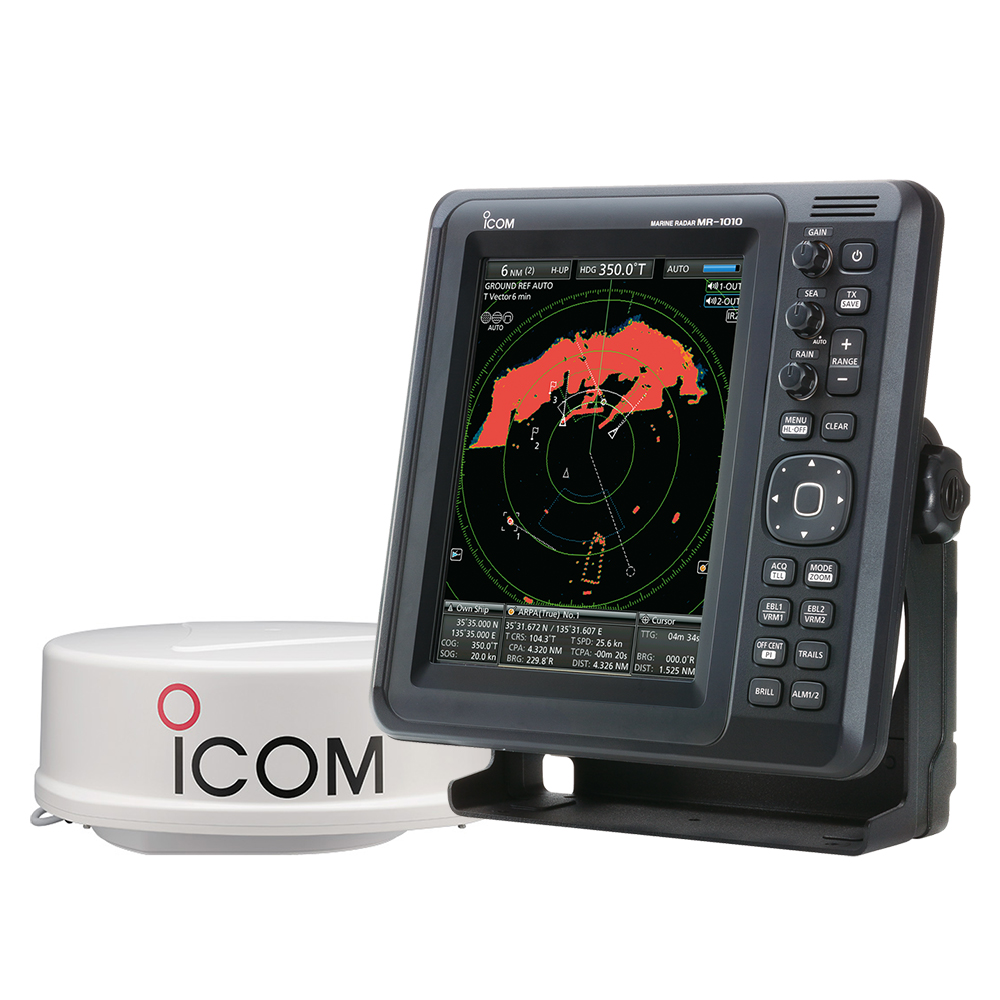

Safety Features
Connect the MR-1010RII to a DSC radio to use the DSC information function. When connected to a DSC radio and a DSC call is received, the received message is transferred to the MR-1010RII. Plot up to 20 DSC messages on the radar echo. If Man Overboard (MOB) position information is transmitted from a DSC handheld transceiver (i.e. M93D), the MR-1010RII can show the MOB waypoint on the radar echo to assist in search and rescue operation.
Connect the MR-1010RII to an external AIS device to use the AIS overlay function. When connected (i.e. M506 & M605), up to 100 AIS target icons are overlaid on the radar echo. By selecting an AIS icon, vessel information such as AIS class, MMSI number, vessel name, course, speed, CPA, TCPA, bearing and distance are shown on the lower side of the display.
Received DSC example
Other vessel AIS information
Large Color Display
The MR-1010RII gives approximately a 176° viewing angle. The color RFT LCD (480x640 dots) display offers bright vivid echos with 16 steps gradient intensity. Easily adjust the screen color (day, night and user settings) with the "BRILL" button. In addition, the auto hide information function enlarges radar echoes to size.
Night setting
Day setting
Configure various settings through the MR-1010RII’s visually intuitive operation. The language setting is selectable from English, Indonesian, Korean, Spanish, Thai and Vietnamese. The large eight-direction cursor key provides smooth operation even when wearing gloves.
User color setting menu
Initial menu
Additional Features
- Simplified ARPA function helps prevent collision risk with other vessels or objects
- TLL (Target Latitude Longitude) function
- True trail function
- 10.2-42V wide DC input to prevent over voltage damage
- Two user programmable alarm zones
- Optional video output unit
| Display Unit | |
|---|---|
| Display type | 10.4-inch Color TFT LCD |
| Resolution | 480 × 640 dots |
| Type of emission | 16K0G3E (FM) |
| Minimum range | 25 m; 82 ft (at 1⁄8 NM range) |
| Maximum range | 36 NM |
| Range scales NM km |
1/8, 1/4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36 1/4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36, 48 |
| Preheat time | 90 seconds |
| Power supply | 10.2–42 V DC |
| Power consumption (at zero wind velocity ) |
55 W (approximately) |
| Usable temperature range | –15°C to +55°C; +5°F to +131°F |
| Input data format | NMEA 0183, N+1, AUX, IEC61162-2 |
| Output data format | NMEA 0183 |
| Scanner Unit | |
|---|---|
| Type | 60 cm; 2 ft radome scanner |
| Rotation speed | 24, 36 rpm typ. |
| Horizontal beamwidth | 4° typ. |
| Vertical beamwidth | 22° typ. |
| Sidelobe | –22 dB typ. |
| Usable temperature range | –25°C to +70°C; –13°F to +158°F |
| Usable humidity range | Less than 95% (at 40°C; +104°F) |
| Frequency | 9410 MHz ±30 MHz |
| Modulation | P0N |
| Peak output power | 4 kW |
| Pulse-width/repetition rate | 80 ns/2160 Hz, 80 ns/1440 Hz, 250 ns/1440 Hz, 350 ns/1440 Hz, 350 ns/720 Hz, 900 ns/720 Hz |
| Modulator | FET switching |
| Intermediate frequency | 60 MHz |
| IF bandwidth | 10 MHz, 3 MHz |
| Tuning | Auto/manual selectable |
| Supplied system cable | 15 m; 49.2 ft; OPC-2341 |
All stated specifications are subject to change without notice or obligation.
Applicable IP Rating
| Ingress Protection Standard | |||
| Display unit | IPX4 (Water resistance) | Scanner unit | IPX6 (Powerful jet water protection) |
Cables
20m (65.6ft)
30m (98.4ft)
Video Output
To keep users safe from collisions with other vessels and objects, the MR-1220 is packed with safety features and functions. The large screen provides users with intuitive mapping options and features, paired with powerful scanners users can take advantage of the wide range.
Maximum Range: |
72 NM with a 6 kW output | |
Scanner Type: |
6.5’ open array scanner | |
Display Type: |
12.1" color TFT LCD |
Safety Features
Connect the MR-1010RII to a DSC radio to use the DSC information function. When connected to a DSC radio and a DSC call is received, the received message is transferred to the MR-1010RII. Plot up to 20 DSC messages on the radar echo. If Man Overboard (MOB) position information is transmitted from a DSC handheld transceiver (i.e. M93D), the MR-1010RII can show the MOB waypoint on the radar echo to assist in search and rescue operation.
Connect the MR-1010RII to an external AIS device to use the AIS overlay function. When connected (i.e. M506 & M605), up to 100 AIS target icons are overlaid on the radar echo. By selecting an AIS icon, vessel information such as AIS class, MMSI number, vessel name, course, speed, CPA, TCPA, bearing and distance are shown on the lower side of the display.
When connected to a Digital Selective Calling (DSC) radio and a call is received, users can see and plot up to 20 locations of where the call is transmitted. A Man Overboard waypoint can be plotted as well.
Intuitive Large Color Display
The 12.1-inch color radar provides users with a bird’s-eye view, change the display angle to preference with the 3D Display function. Display the 2D view at the same time.
The Plot function records a vessel’s longitude and latitude at the set time interval. The radar echo displays the tracks.
Powerful Scanner Units
With a 6kW output, reach up to 72 NM from the 6.5 ft SC-T60L open array scanner. For a smaller option the 2 ft SC-R40 radome scanner provides plenty of power at 4 kW and a reach of 36 NM.
Other Features
- Target Latitude Longitude (TLL) function
- True Trail function
- Two user programmable alarm zones
- Waypoint indication
- Power Save function
- Multi-lingual User Interface
| Display Unit | |||||
|---|---|---|---|---|---|
| Display | 12.1-inch color TFT LCD | ||||
| Resolution | 600 x 800 dots | ||||
| Minimum Range | 25 m; 82 ft (at 1/8 NM range) | ||||
| Maximum Range |
|
||||
| Power Supply Requirement | 12/24 V DC | ||||
| Dimensions (W x H x D) | 301 x 323.5 x 119.2 mm 11.8504" x 12.73622" x 4.6929" in. |
||||
| Weight | 4.8 kg 10.5822 lbs |
||||
| Usable temperature range | -15 °C to +55 °C +5 °F to +131 °F |
||||
| Power Consumption (w/ display unit) |
|
||||
Scanner Unit
| SC-R40 | SC-T40 | SC-T60 | SC-T60L | |
| Type | 2 ft (60 cm) radome |
4 ft (120 cm) open array |
4 ft (120 cm) open array |
6.5 ft (200 cm) open array |
| Peak output power | 4 kW | 4 kW | 6 kW | 6 kW |
| Rotation speed | 24, 36 rpm typical |
24, 36 rpm typical |
22, 24, 36 rpm typical |
22, 24, 36 rpm typical |
| Beamwidth Horizontal Vertical |
4° typical 22° typical |
2° typical 23° typical |
2° typical 23° typical |
1.2° typical 23° typical |
| Sidelobe | -22 dB typical | -24 dB typical | -24 dB typical | -27 dB typical |
| Transmission frequency | 9410 MHz ±30 MHz | 9410 MHz ±30 MHz | 9410 MHz ±30 MHz | 9410 MHz ±30 MHz |
| Dimensions (W x H x D) |
640 x 256 x 640 mm, 25.2 x 10.1 x 25.2 in |
1217 (dia.) x 395 (H) mm, 47.9 x 15.6 in |
1995 (dia.) x 395 (H) mm, 78.5 x 15.6 in |
|
| Weight (approx.) | 8 kg | 18 kg | 18 kg | 20 kg |
| Usable temperature range | –25 °C to +70 °C, –13 °F to +158 °F |
–25 °C to +70 °C, –13 °F to +158 °F |
–25 °C to +70 °C, –13 °F to +158 °F |
–25 °C to +70 °C, –13 °F to +158 °F |
| Connection cable | 15 m (OPC-2341) | 20 m (OPC-2342) | 20 m (OPC-2342) | 20 m (OPC-2342) |
All stated specifications are subject to change without notice or obligation.
Applicable IP Rating
| Ingress Protection Standard | |||
| Display unit | IPX4 (Water resistance) | Scanner unit | IPX6 (Powerful jet water protection) |
Cables
20m (65.6ft)
30m (98.4ft)
Scanner
Video Output
Analog RGB output
for external monitor
