Digital Signage Player
With small form factor and secure cabling design, the NDiS Series digital signage player boasts all features required to build digital signage display networks that ensure right information is delivered to the right target at the right time. The fanless design greatly lowers total cost of ownership by removing maintenance cost. Moreover, flexible display output options ensure multiple screens support to optimize economic efficiency.

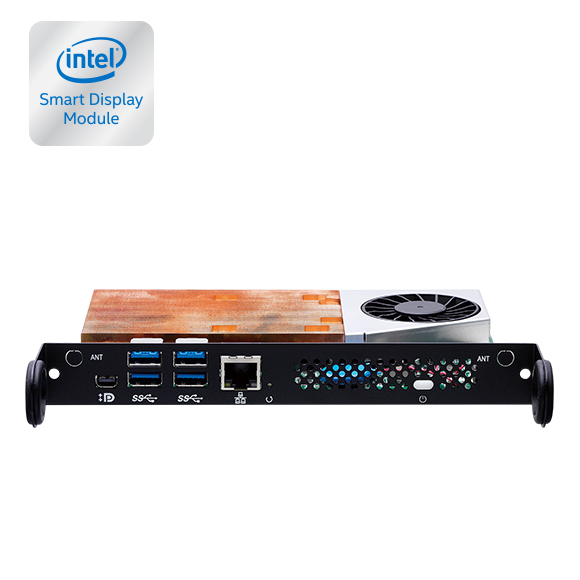

SDM Player NDiS S538
SDM Player NDiS S538
Overview
NDiS S538 is designed for thinner and power efficiency display. There is no housing to limit display size and also easyly integrate in signage player.
NDiS S538 can be spanned from Celeron to Core™ processor and support All-in-One signage, interactive media player, and video wall. Also, allowing for easy storage capacity expansion through pluggable M.2 storage unit.
In addition, NDiS S538 leverages the 6th gen. Intel® Core™ processors to deliver outstanding graphics support 3 independent 4K2K video output. The superb but power-efficient can therefore maximize visual impacts for digital signage applications.
Features
NDiS S538
Embedded Computer Powered by 6th Gen. Intel® Core™ Processor. Intel® SDM-L Based Digital Signage Platform, Support 4K Resolution- Main Feature
- Intel® Smart Display Module Large (Intel® SDM-L) design in
- 6th generation Intel® Core™ Skylake processor
- Intel® integrated HD 530 graphic engine
- Support 3 independent 4K2K video out
- Dual DDR4 SO-DIMM support
- Support Wi-Fi module
Specifications
| CPU Support | 6th generation Intel® Core™ processor (LGA1151), 35W |
| Chipset | Intel® Q170 PCH |
| Graphic | Intel® integrated HD 530 graphics |
| Main Memory | 2 x 260-pin SO-DIMM Sockets, Supports DDR4 2133/2400 MHz non- ECC, un-buffered memory up to 32G (single socket max. 16GB) |
| I/O Interface-Front | 1 x Power button with LED1 x Reset button1 x RJ45 with LEDs for Gigabit LAN1 x Mini DP ++4 x USB 3.02 x Antenna hole |
| I/O Interface-Rear (PCIe x8) | 1 x HDMI1.4 signal1 x DP1.2 signal2 x I2C, master and slave ports signal1 x GSPI signal1 x PCIe by 1 signalSystem management |
| Storage Device | 1 x M.2 2280, PCIe x4 + SATA |
| Expansion | 1 x M.2 2230 for optional Wi-Fi module |
| Dimensions | 175mm (W) x 100mm (D) x 20mm (H) |
| Power Power Supply | DC power input +12V |
| Environment | Operating temperature: ambient with air flow from 0°C to 55°CStorage temperature: -10°C to 70°CHumidity: 95% (non-condensing) |
| Certification | CE/FCC Class A |
| Operating System | Win10 64-bit/Linux |
OPS Player NDiS-M324
OPS Player NDiS-M324
Overview
NDiS M324 is based on Intel® Celeron® Processor J1900 (formerly codenamed "Bay Trail") and follows the electrical and mechanical specifications of the Open Pluggable Specification. NDiS M324 can be plugged into any OPS-complaint display devices to render rich multimedia contents. Thanks to the modular and cable-less, NDiS M324 satisfies the need for quick deployment and hassle-free maintenance of large digital signage network dispersed in different geographical locations. NDiS M324 is powered by the Intel® Celeron® Processor J1900. The digital signage player has an integrated Intel® Gen.7 graphic engine and supports Microsoft DirectX 11. Taking advantage of the latest Intel® technology, NDiS M324 can accelerate, 3D rendering, image processing and video decoding to provide highly personalized information base on the result of audience measurement to deliver accurate marketing message to target audience.
Features
NDiS M324
Embedded Computer Powered by Intel® Celeron® Processor J1900 OPS Digital Signage Platform, Support Remote Management- Main Feature
- Intel® Celeron™ processor J1900
- Integrated Intel® Gen. 7 graphics
- Dual SO-DIMM slots for up to 8GB of DDR3L 1333 memory
- WWAN/WLAN/TV tuner support
- Remote management
- Comply with Open Pluggable Specification
- Fanless design
Specifications
| CPU Support | Intel® Celeron® Processor J1900 Quad Core 2.0GHz SoC processor |
| Graphic | Integrated Intel® Gen. 7 graphics |
| Main Memory | 2 x 204-pin SO-DIMM socket, support DDR3L 1333 MHz with un-buffered and non-ECC SDRAM up to 8GB |
| I/O Interface-Front | 1 x Power button1 x reset button1 x HDD LED3 x USB 3.01 x USB 2.01 x HDMI1 x Mic-in1 x Line-out1 x 2.5" HDD slot1 x RJ45 with LEDs for Gigabit LAN2 x Antenna hole |
| I/O Interface-Rear | 1 x TMDS1 x UART1 x Audio out L/R2 x USB 2.01 x USB 3.0DC input 12V ~ 19VControl signals (PWR_STATUS, PS_ON#, PB_DET, CEC, SYS_FAN) |
| Storage Device | 1 x 2.5" SATA Storage Bay for HDD/SSD |
| Expansion | 1 x mini-PCI for optional WLAN/TV tuner module1 x SIM slot |
| Dimensions | 200mm (W) x 119mm (D) x 30mm (H) (7.8" x 4.7" x 1.1") |
| Power Power Supply | DC power input +12V ~ +19V |
| Environment | Operating temperature: Ambient with air flow from 0°C to 45°C (with HDD) Ambient with air flow from 0°C to 45°C (with SSD)Storage temperature: -20°C to 80°CHumidity: 10 to 90% (non-condensing) |
| Certification | CE approvalFCC Class A |
| Operating System | Win7/Win8/WES7/WE8S/Linux |
Multi-displayer B842
Multi-display Player NDiS B842
Overview
NDiS B842 is specifically designed to address the need for application to present high quality contents on multiple displays. NDiS N842 provides six independent HDMI and dual USB 3.0 and dual GbE Ethernet with optional WLAN. Powered by AMD Embedded R-Series APU and AMD E6760 GPU, NDiS B842 can smoothly playback multiple Full HD videos. NDiS B842 is an advanced media player for any applications to demonstrate high quality and high impact contents over multiple displays.
Features
NDiS B842 (EOL)
Multi-Display Embedded Computer Powered by AMD R-series Dual/ Quad Processors, Support 4 Independent HDMI Displays- Main Feature
- AMD R-series Platform
- AMD Radeon™ E6760 GPU
- Slim and compact design
- 4 x HDMI
- 2 x USB 3.0 support
- WLAN and TV tuner support
- DirectX 11 support
- Removable Fan Module
Specifications
| CPU Support | AMD R-series Dual/ Quad processors |
| Chipset | AMD Hudson-M3 A70M Fusion Controller HubAMD Radeon™ E6760 GPU |
| Main Memory | 2 x 204-pin SO-DIMM sockets, Supports DDR3 1600/1333MHz non-ECC, un-buffered memory up to 16GB (Single socket max. 8GB) |
| I/O Interface-Front | 1 x HDD LED1 x Power LED |
| I/O Interface-Rear | +12V DC-in2 x RJ45 for RS-2322 x USB 3.02 x USB 2.02 x RJ45 with LEDs for 10/100/1000Mbps Ethernet1 x Line-in, 1 x Line-out1 x SPDIF4 x HDMI3 x antenna hole for Wi-Fi and TV tuner1 x Power switch with LED1 x Reset switch |
| Storage | 1 x SATA 2.5" HDD1 x SATA DOM |
| Expansion | 1 x Mini-PCIe for optional WLAN module1 x Mini-PCIe for optional TV tuner module |
| Dimensions | 280mm (W) x 230mm (D) x 44mm (H) (11.0" x9.0" x 1.7") w/o mounting bracket |
| Power Supply | External 120W AC/ DC adapter Input: 100~240VAC Output: +12VDC |
| Environment | Operating temperature: ambient with air flow from 0°C to 40°CStroage temperature: -20°C to 80°CHumidity: 10 to 90% (non-condensing) |
| Certification | CE approvalFCC Class A |
| Operating System | Win7/WES7/Win8/WE8S/Linux |
