Vehicle Mount Computer
NEXCOM’s VMC series is all-in-one vehicle mount computer which integrates system and monitor simultaneously. NEXCOM’s feature-rich VMC Series moves mobile computing into a wide array of rugged environments. The VMC vehicle mount computer is an ideal solution for transportation computers, such as vehicle terminals and truck computers.
Fleet Management > VMC 110/111
VMC 110/111
Overview
VMC 110/111, a 7-inch all in one mobile data terminal , targets the fleet management, transportation and logistic applications. Its compact and rugged design with flexible expansion capability is perfect to the limited space on the driver cabinet and strog requirement on the wireless communication. For wireless communication, VMC110/111 is capable of supporting GPS, Dead Reckoning, Wifi, 3G and LTE. Besides, VMC 110/111 works on the both of Android and Linux operating systems, which are the main stream of operating system in the future. 7" 1024 x 600 resolution with 500nits brightness and resistive touch is suitable on the driver cabinet. Abundant I/O support, such as 2 x CAN bus 2.0B, OBDII/J1939, RS232, RS485, USB, GPIO, LAN… can help to get real-time vehicle information and connect with different sensors or equipment, such as ticketing machine, RFID scanner..... VMC 110/111 with Android and Linux platform is no doubt suitable to implement into various truck, forklift, crane... in port, transportation and logistic application.
Features
VMC 110/111
7" Mobile Data Terminal with ARM® Cortex®-A9 platform- Main Feature
- 7" 1024 x 600 TFT LCD monitor with resistor touch screen
- ARM® Cortex®-A9 Dual Core Processor with 1GHz frequency
- Compact and fanless design
- On screen F1 ~ F5 programmable function keys
- Linux and Android operating system
- GPS/Wi-Fi/3G/LTE supported (Dead Reckoning included)
- iButton & RFID for ID identification
- Dual CAN Bus 2.0B
- OBDII (ISO15765-4)/SAE J1939 protocol
- Wide Range DC input from 9 ~ 36V
- SW Utility for function demonstration on Android platform
- CE/FCC/Emark
Specifications
| LCD Panel | 7-inch TFT LCD Panel with LED Backlight1024 x 600 pixelsBrightness: 500 cd/m² (typical)Contrast ratio: 800:1 (typical)Viewing angle: 150(H), 145(V) |
| Touch Screen | 4-wire resistant touchAnti-glare coating surfaceTransmission rate: 80% ± 3% |
| CPU & Chipset | ARM® Cortex®-A9 Processor with 1GHz frequencyFreescale Dual Core |
| Memory | On-board DDR3L 2GB |
| Storage | 1 x Micro SDHC SlotEMMC: 8G on board |
| Expansion | 1 x half-size mini-PCIe (PCIe + USB) for WLAN1 x full-size mini-PCIe (USB + UART) for WWANOBDII: ISO15765-4 & SAE J1939 (Default: None, BOM optional)RFID (optional) |
| I/O Interface-Front | F1 ~ F5 programmable function keysLight SensorInternal Mic-in2 x Built-in 2W speakers3 x LED indicators (Power, Storage and WWAN) |
| I/O Interface-Lateral | Right side - 1 x SIM card slot - 1 x Micro SD card slot - 1 x USB 2.0 type A - 1 x micro USB OTG for maintenanceLeft side - 1 x Power button - 1 x Volume up/down - 1 x Brightness up/down - 1 x System reset button |
| I/O Interface-Rear/Bottom | 1 x lockable power input with ignition1 x RJ45 for LAN2 x USB 2.0 Type A - DB-15 connector - Full RS-232 - RS-232/485 - CAN1 2.0BDB-15 connector - GPI x 3 Sink type: 5VDC TTL (default) Source type: 3 ~ 28VDC - GPO x 3 Sink type: 5VDC TTL (default), max current: 20mA Source type: 3 ~28VDC, max. current: 150mA - GPS DR (Speed, direction, GND) - CAN2 2.0B (Default) & (BOM optonal for OBD II (ISO 15765-4 & J1939)) - iButton1 x Mic-in1 x Line-out3 x Antenna on I/O - Rear: 1 x GPS, 1 x WWAN - Bottom: 1 x GPS, 2 x WWAN2 x Antenna on housing for Wi-Fi |
| Mechanical | Cooling System: FanlessEnclosure: Plastic PC/ABS + Metal heat-sinkMounting: VESA 75/100 & Desktop mountingIngress Protection: Front panel IP54Dimension: 212.9mm (W) x 144.97mm (H) x 40mm (D)(8.4" x 5.7" x 1.6")Weight: 1.3kg |
| Power Management | 9V~36V DC inputSelectable boot-up & shut-down voltageIgnition: 8-level delay time on/offReverse protection/over-voltage protection/low-voltage protectionWake up by SMS/RTC/ignition |
| Operating System | Linux YOCTO 2.0 by RequestAndroid 5.1 |
| Environment | Operating temperatures: Ambient with air -20°C to 70°CStorage temperatures: -30°C to 80°CRelative humidity: 10% to 90% (non-condensing)Vibration Vibration test: IEC 60068-2-64, 2.5G Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4 Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24Shock MIL-STD-810G, 516.6 Procedure 1, trucks and semi-trailers=40g Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment=75g |
| Certification | CE/FCC class B/E-Mark |
Port Management > VMC 4020

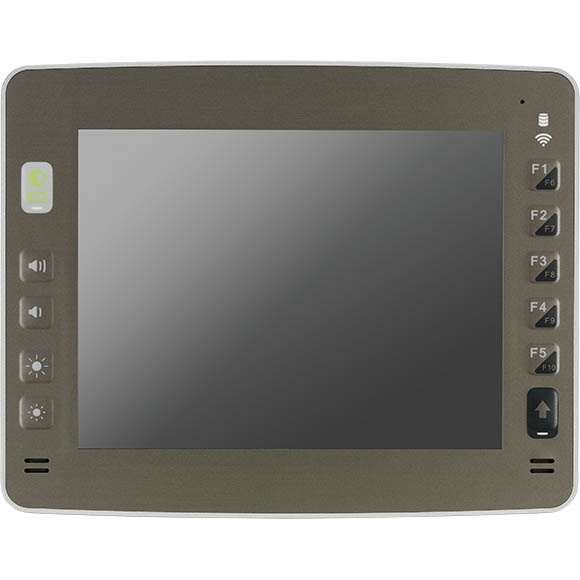

VMC 4020
Overview
VMC 4020, 12.1-inch all in one robust vehicle mount computer, is designed for the warehouses, port, logistic and material handling markets. It implements the latest Intel Atom® x7-E3950 processor (codename Apollo Lake) on both of Windows and Linux platforms, and offers optional to complete IP or non-completer IP solution. VMC4020 is able to support analog camera x 3 for security purpose and takes less than 1 second to see video content. PoE 802.3af/at for IP camera is another choice. Back-up battery can help to back up data when car power battery stops supplying. LCD panel: 1,200nits typ. guarantees to reach sunlight-readable. Wide-range power input (9V~60V) can let VMC4020 to be capable of setting up in various facilities and vehicles. The design of mini PCIe slots x 4 and one expansion slot can solve the potential request from the market when needed.
Features
VMC 4020
12.1" Rugged Vehicle Mount Computer with Intel Atom® x7-E3950 processor, Touchscreen and IP65- Main Feature
- 12.1" XGA TFT LCD monitor with 5-wire resistive touch
- Built-in Intel Atom® x7-E3950 processor, 1.6GHz
- Aluminum die-casting and fanless design
- Analog camera x 3 (CVBS)
- Ether of completer IP65 housing, or IP65 housing without I/O part
- Automatic/manual brightness control
- Isolated CANBus 2.0 x 2
- 10/100/1000Mhz for independent ethernet x 2
- On screen F1 ~ F10 programmable function keys
- Military standard for vibration and shock
- UPS Battery & PoE 802.3af/at (optional)
- iButton and RFID for ID identification
- Micro SIM x 2
- Wide range DC input from 9V ~ 60V DC in
- Sunlight readable capability: 1,200nits LCD brightness
- One expansion port reserved
- Operating system: Windows and Linux
- CE/FCC/EMark
Specifications
| LCD Panel | 12.1-inch TFT LCD panel with LED backlight1024 x 768 pixels (XGA)Brightness: 1200 cd/m² (typical)Viewing angle: 170° (H):170°(V)Contrast ratio: 750:1 (typical) |
| Touch Screen Sensor | 5-wire resistant touchAnti-glare coating surfaceTransmission rate: 81 ± 3% |
| CPU & Chipset | Intel Atom® x7-E3950 processor dual core 1.6GHz memoryOne 204-pin DDR3L 1600MHz SO-DIMM slot (default: 4GB) |
| Expandable Storage | 1 x CFast1 x 2.5" SATA SSD bay |
| Expansion | 3 x Full-size mini-PCIe socket (PCIe + USB)1 x Full-size mini-PCIe socket (USB)1 x CFast2 x Micro SIM slot |
| I/O Interface-Front | LCD back light on/offVolume control (+/-)Brightness control (+/-)Light sensor4 x LED indicators (power/battery charging, WLAN, shift, storage)F1 ~ F10 programmable function2 x Built-in 2W speakers |
| I/O Interface-Lateral | Right Side: 1 x CFast card slot 1 x System reset button 1 x USB 2.0 host type A connectorLeft Side: 1 x Antenna for WWAN |
| I/O Interface-Bottom (VMC 4020-4A1, IP65) | 1 x M12 (22 pins) -1 x 10/100/1000, LAN1 (wake up on LAN) -1 x RS232 (Tx/Rx)/RS422/RS485 (RI, 5V/0.5A, 12V/0.5A) -1 x DR (Odometer + Speed ) -2 x GPI Source: 9V ~ 60V-in (default) Sink: external 0V ~ 60VDC pull-high selected by software settings Input High "1" Voltage: 3.3 ~ 60 VDC Input Low "0" Voltage: 0 ~ 2 VDC -2 x GPO Source: 9V ~ 60V-in (default) 12V/6mA, 24V/12mA, 36V/18mA, 48V/24mA, 60V/30mA Sink: external max. 0.5A pull high1 x M12 (21-pin) -1 x Mic-in -1 x Line-out -1 x Full RS232/422/485 (RI, 5V/0.5A, 12V/05A) -2 x Isolated CANBus 2.0B When installing CAN06, CAN2 becomes J1939/ISO15675-4 When installing CAN05, CAN2 becomes J1708 -1 x iButton1 x M12 (5-pin) -9V ~ 60V DC in (UPS battery: 12V, 24V, 36V and 48V)1 x M12 (8-pin) -Either of DC output or RFID 1 x DC output (12V/2A ) 1 x RFID (Tx/Rx, 12V/2A)1 x M12 (8-pin) -1 x 10/100/1000, LAN2 (optional for 802.3af/at)1 x M12 (8-pin) -2 x USB Type A1 x M12 (18-pin) -Expansion port1 x GPS Antenna SMA connector (On housing) |
| I/O Interface-Bottom (VMC 4020-4A0, Front IP65) | 1 x Mic in and Line out2 x RJ45 10/100/1000 -LAN1, wake up on LAN -LAN2, optional for 802.3at1 x USB type A1 x DB9 full RS232/422/485 (RI, 5V/0.5A, 12V/05A)1 x 26 pins connector: -1 x Full RS232/422/485 (RI, 5V/0.5A, 12V/05A) -1 x RFID ( Tx/Rx ) -2 x Isolated CAN 2.0B -1 x J1939/ISO15765-4 or J1708 (CAN05 or CAN06) When installing CAN06, CAN2 becomes J1939/ISO15675-4 When installing CAN05, CAN2 becomes J1708 -1 x DR (Odometer + Speed) -1 x iButton -1 x GPI Source: 9V ~ 60V-in (default) Sink: external 0V ~ 60DC pull-high selected by software settings Input High "1" Voltage: 3.3 ~ 60 VDC Input Low "0" Voltage: 0 ~ 2 VDC -2 x GPO Source: 9V ~ 60V-in (default) 12V/6mA, 24V/12mA, 36V/18mA, 48V/24mA, 60V/30mA Sink:external external max. 0.5A pull high1 x DB15 for expansion port1 x 3-pin terminal block -9V ~ 60V DC in (UPS battery: 12V, 24V, 36V and 48V) |
| I/O Interface-Top | 2 x Antenna for Wi-Fi |
| Mechanical | Cooling system: FanlessEnclosure: Aluminum die castig Mounting: VESA 75Ingress protection: Complete IP65, or IP65 without covering the bottomDimension: 339.97mm(W) x 261.97mm(H) x 75.10mm(D)Weight: 5kg |
| Power Management | 9V ~ 60V DC in (UPS: 12V, 24V, 36V and 48V)Reverse protection/over voltage protection/under voltage protectionIgnition On/O control & programmable On/O delay timingWake up by LAN1, SMS, RTC and ignition |
| Environment | Operating temperatures: Ambient with air -30°C to 60°CStorage temperatures: -30°C to 70°CRelative humidity: 10% to 90% (non-condensing)Vibration Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4 Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24Shock Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-trailers = 40gCrash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment = 75g |
| Operating System | Windows 10, Linux |
| Standards/Certifications | CE/FCC class B/E13 |
Warehouse Management > VMC 3021
VMC 3021
Overview
VMC 3021, 10.4-inch all in one robust vehicle mount computer, is designed for the warehouses, port, logistic and material handling markets. It implements the latest Intel Atom® x7-E3950 processor (codename Apollo Lake) on both of Windows and Linux platforms, and offers complete IP65. VMC 3021 is able to support analog camera x 3 for security purpose and takes less than 1 second to see video content. PoE 802.3af/at for IP camera is another choice. Back-up battery can help to back up data when car power battery stops supplying. LCD panel: 1,200nits typ. guarantees to reach sunlight-readable. Wide-range power input (9V~60V) can let VMC3021 to be capable of setting up in various facilities and vehicles. The design of mini-PCIe slots x 4 and one expansion slot can solve the potential request from the market when needed.
Features
VMC 3021
10.4" Rugged Vehicle Mount Computer with Intel Atom® x7-E3950 processor, Touchscreen and IP65- Main Feature
- 10.4" XGA TFT LCD monitor with 5-wire resistive touch
- Built-in Intel Atom® x7-E3950 processor, 1.6GHz
- Aluminum die-casting and fanless design
- Analog camera x 3 (CVBS)
- Complete IP65 housing
- Automatic/manual brightness control
- Isolated CANBus 2.0 x 2
- 10/100/1000Mhz for independent ethernet x 2
- On screen F1 ~ F10 programmable function keys
- Military standard for vibration and shock
- UPS Battery & PoE 802.3af/at (optional)
- iButton and RFID for ID identification
- Micro SIM x 2
- Wide range DC input from 9V ~ 60V DC in
- Sunlight readable capability: 1,200nits LCD brightness
- One expansion port reserved
- Operating system: Windows and Linux
- CE/FCC/EMark
Specifications
| LCD Panel | 10.4-inch TFT LCD panel with LED backlight1024 x 768 pixels (XGA)Brightness: 1200 cd/m² (typical)Viewing angle: 140° (H):120°(V)Contrast ratio: 500:1 (typical) |
| Touch Screen Sensor | 5-wire resistant touchAnti-glare coating surfaceTransmission rate: 81 ± 3% |
| CPU & Chipset | Intel Atom® x7-3950 processor dual core 1.6GHz memoryOne 204-pin DDR3L 1600MHz SO-DIMM slot (default: 4GB) |
| Expandable Storage | 1 x CFast1 x 2.5" SATA SSD bay |
| Expansion | 3 x Full-size mini-PCIe socket (PCIe + USB)1 x Full-size mini-PCIe socket (USB)1 x CFast2 x Micro SIM slot |
| I/O Interface-Front | LCD back light on/offVolume control (+/-)Brightness control (+/-)Light sensor4 x LED indicators (power/battery charging, WLAN, shift, storage)F1 ~ F10 programmable function2 x Built-in 2W speakers |
| I/O Interface-Lateral | Right Side - 1 x CFast card slot - 1 x System reset button - 1 x USB 2.0 host type A connectorrLeft Side - 1 x antenna for WWAN |
| I/O Interface-Bottom | 1 x M12 (22-pin) - 1 x 10/100/1000, LAN1 (wake up on LAN) - 1 x RS232 (Tx/Rx)/RS422/RS485 (RI, 5V/0.5A, 12V/0.5A) - 1 x DR (odometer + speed ) - 2 x GPI Source: 9V ~ 60V-in (default) Sink: external 0V ~ 60VDC pull-high selected by software settings Input High "1" Voltage: 3.3 ~ 60 VDC Input Low "0" Voltage: 0 ~ 2 VDC - 2 x GPO Source: 9V ~ 60V-in (default) 12V/6mA, 24V/12mA, 36V/18mA, 48V/24mA, 60V/30mA Sink: external max. 0.5A pull high1 x M12 (21-pin) - 1 x Mic-in - 1 x Line-out - 1 x full RS232/422/485 (RI, 5V/0.5A, 12V/05A) - 2 x Isolated CANBus 2.0B When installing CAN06, CAN2 becomes J1939/ISO15675-4 When installing CAN05, CAN2 becomes J1708 1 x iButton1 x M12 (5-pin) - 9V ~ 60V DC in (UPS battery: 12V, 24V, 36V and 48V)1 x M12 (8-pin) - Either of DC output or RFID 1 x DC output (12V/2A ) 1 x RFID (Tx/Rx, 12V/2A)1 x M12 (8-pin) - 1 x 10/100/1000, LAN2 (optional for PoE 802.3af/at)1 x M12 (8-pin) - 2 x USB type A1 x M12 (18-pin) - Expansion port1 x GPS antenna SMA connector (on housing) |
| I/O Interface-Top | 2 x Antenna for Wi-Fi |
| Mechanical | Cooling system: FanlessEnclosure: Aluminum die castig Mounting: VESA 75Ingress protection: Complete IP65Dimension: 289.98mm(W) x 229.97mm(H) x 68.70mm(D)Weight: 3.5kg, 7.7lb |
| Power Management | 9V ~ 60V DC in (UPS: 12V, 24V, 36V and 48V)Reverse protection/over voltage protection/under voltage protectionIgnition On/O control & programmable On/O delay timingWake up by LAN1, SMS, RTC and ignition |
| Environment | Operating temperatures: Ambient with air -30°C to 60°CStorage temperatures: -30°C to 70°CRelative humidity: 10% to 90% (non-condensing)Vibration Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4 Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24Shock Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-trailers = 40gCrash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment = 75g |
| Operating System | Windows 10, Linux |
| Standards/Certifications | CE/FCC class B/E13 |
