PC-based Factory Automation
NEXCOM provides a wide range of industrial computing solutions for increasing demands of industrial environments, including high performance fanless computers, medical computers, various sizes of multi-media Panel PC and applied Panel PC, full-size single board computers,

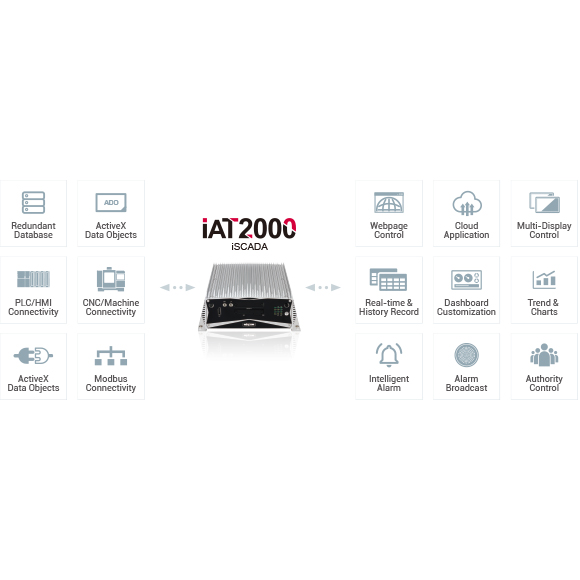

NISE3800E-iSCADA
NISE3800E-iSCADA
Overview
iSCADA is a webpage accessible, flexible, and user friendly system that drastically enhances facility transparency and allows enterprise to have complete control of its production line. As a part of iAT2000 Total Solution family, iSCADA has been pre-defined to connect with NEXCOM and 3rd party devices with minimum setup steps. Powerful dashboard display and customization capability gives developers tool to fulfill all kinds of need in designing the most suitable interface. This iSCADA solution is the key toward a successful automation project.
Features
- An easy access and webpage control IIoT SCADA solution
- Support OPC driver, ModbusTCP, and major PLC communication
- Support distributed and redundant database function for applications including real-time, history, and ADO Recordsets
- Various trend charts available and able to replay history records
- Easy alarm setup and history functions to trigger and track all alarms
- Ready to use template project installed and powerful customization tools
- Provide user account control for operator, engineer, and developers
- Seamless browser connectivity and multi-monitor display
- Infinite number of max. points connected
NISE3800E-iSCADA
| Fulfilling Connectivity | Support general purpose ModbusTCP, OPC UA, TXT file driver, General TCP driver, and etc.Drivers ready for PLCs such as Omron Serial, Mitsubishi, Schneider, Siemens, and etc. |
| Database & Recordsets | Support distributed real-time database with over 300,000 inputs for display purposeThe space-saving History Recordset provides fast data searching (<50ms) and history replay function.Can store history record in a local or cloud database |
| Trends & Charts | Support standard time-base trend, XY trend, pie chart, and rose chartCompatible with TeeChartPro Active X component for over 600 chart expansionCan update charts while SCADA is running |
| Intelligent Alarms | Provide 16 levels of Alarm priorityDefine alarm display filter for more convenienceSupport pop-up and multi-language vocal alarm messages |
| Template and Customization | Always start with a functional template projectPowerful widgets for various control and display purposesAll ActiveX components are supported for expansion functionsProvide C script for custom defined functions such as database searching, analysis, and software interfacing |
| Account & Encryption | Define account accessibility for operators, engineers, or developersAllow developer to encrypt project for IP protection |
| Browser & Multi-Display | Support web browser control from another device in the networkMulti-display mode allows operation on multiple sets of keyboard & mouse simultaneously |
| Points Connection | 6 licenses for different number of connections300, 600, 1600, 6000, 16000, and Infinite points |
| Communication Protocols | OPC UAModbusTCPSQL form databaseExpandable fieldbus |
| System Configuration | Intel® Core™ i5 6500TE Quad Core 2.3GHz CPU8 GB DDR4 system memory500 GB SATA3 2.5 HDD storageWindows Embedded Standard 7iAT2000 SCADA software package |
| I/O Interface | 2 x DB9 for RS232/422/485 auto flow control4 x USB 3.0 ports (900mA per each), 2 x USB 2.0 ports (500mA)1 x HDMI, 1 x DP, 1 x DVI-D3 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE |
| Certification | CE approval- EN61000-6-2- EN61000-6-4FCC Class A |
| Power & Dimension | Power input: +9VDC to 30VD, optional AC to DC power adapter (24V DC, 120W)Dimension: 215 mm(W) x 272mm (D) x 93mm (H) without wall mount bracket (8.5” x 10.7” x 3.7”) |

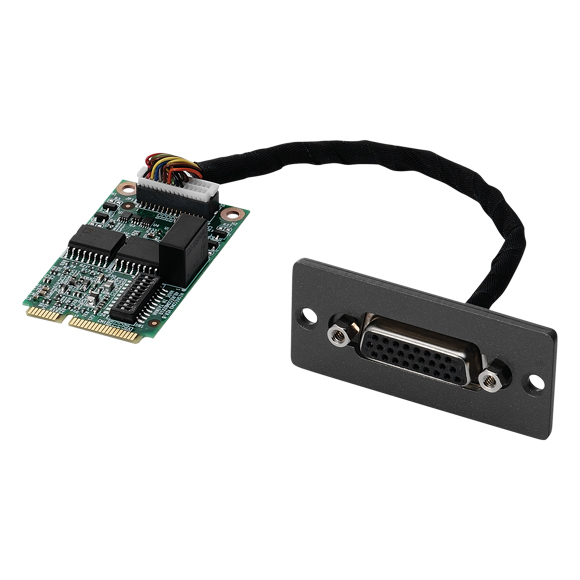

NISKECOM3
NISKECOM3
Overview
NISKECOM3 with universal I/O bracket is specifically designed with NISE/NIFE models for serial port expansions. Based on four independent UART channel, NISKECOM3 can support four independent RS232/RS422/RS485 auto ports via cables with DB26 connector type, with 2.5KV Galvanic Isolation protection. NISKECOM3 only supports Tx/Rx/CTS/RTS signals.
Features
- Mini-PCIe Form Factor
- Easy and User-Friendly Configurations
- 2.5KV Galvanic Isolation for four ports
- DB26 Connector Interface
Specifications
| Form Factor | Mini-PCIe Form Factor |
| Dimensions | 30mm (W) x 51mm (L) x 10mm (H)At least 20mm height for installation |
| Interface and Operation | PCIe 2.0 Gen 1 compliantData read/write 32-bit operation |
| Isolation Protection | 2.5KV Galvanic Isolation for four ports |
| UART and Register | Support four independent UART channels controlled with - 16550 compatible register Set - 256-byte TX and RX FIFOs - Programmable TX and RX Trigger Levels - TX/RX FIFO Level Counters - Fractional baud rate generato - flow control with programmable hysteresis with programmable turn-around delay |
| Environment | Environment Operating Temperature: 0°C to 70°CStorage Temperature: -20°C to 75°C |
| OS Support | Windows XP 32bits and 64bitsWindows 7 32bits and 64bits |

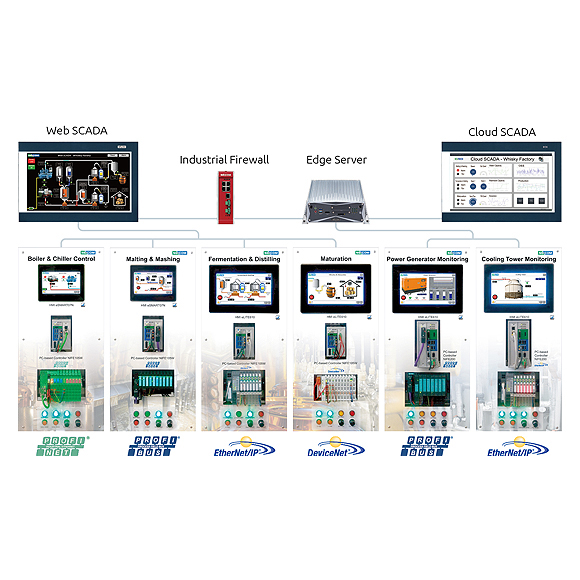

iAT2000 Starter Kit
iAT2000 Starter Kit
Overview
Are you looking for a system which integrates different brands of PLC or I/O devices and different protocols into SCADA, even to Cloud SCADA? Or are you looking for a solution that gives you flexible control schemes to factory process, and also meets the Industry 4.0 needs?
The iAT2000 starter kit is the cloud-based automation control system which provides a visible, all-in-one solution to make factory process more efficient and productive. The architecture of iAT2000 is open but highly integrated. Each system components are utilized with NEXCOM technologies to achieve OT/IT convergence. With the comprehensive support lists of device I/O, PC-based controller, HMI, web SCADA to cloud SCADA, iAT2000 starter kit truly helps to users to save time and cost for OT/IT integration. Each independent pack installs one PC-based controller for controlling one particular factory process, and support interlocking mechanism for managing process flow. The process flow and status can be closely monitored or adjusted via web SCADA and cloud SCADA.
Features
- Independent box: all-in-one design
- Multiple fieldbus communication
- Flexible interlocking process
- Local monitoring : web SCADA
- Cloud data analysis: cloud SCADA & edge server w/ IIoT studio
Specifications
| Independent Pack 1 Configuration Scenario: Boiler & Chiller |
Main Features Multi-fieldbus communication PC-based controller with CODESYS RTE HMI with JMobile runtime included Scenario for facility simulation with 4 indicators, 2 push button and 2 knobsProduct Highlight NIFE 105W - Support various fieldbus - Support discrete I/O module or standard fieldbus module - Palm size form-factor eSMART07N - Extremely cost efficient HMI - Slim design. Mounting depth less than 30mm |
| Independent Pack 2 Configuration Scenario: Malting & Mashing |
Main Features Multi-fieldbus communication PC-based controller with CODESYS RTE HMI with JMobile runtime included Scenario for whisky process simulation with 4 indicators, 2 push button and 2 knobsProduct Highlight NIFE 105W - Support various fieldbus - Support discrete I/O module or standard fieldbus module - Palm size form-factoreSMART07N - Extremely cost efficient HMI - Slim design. Mounting depth less than 30mm than 30mm |
| Independent Pack 3 Configuration Scenario: Fermenting & Distilling |
Main Features Multi-fieldbus communication PC-based controller with CODESYS RTE HMI with JMobile runtime included Scenario for whisky process simulation with 4 indicators, 2 push button and 2 knobsProduct Highlight NIFE 105W - Support various fieldbus - Support discrete I/O module or standard fieldbus module - Palm size form-factor eLITE610 - Extremely cost efficient HMI - Slim design. Mounting depth less than 30mm |
| Independent Pack 4 Configuration Scenario: Filtration & Maturation |
Main Features Multi-fieldbus communication PC-based controller with CODESYS RTE HMI with JMobile runtime included Scenario for whisky process simulation with 4 indicators, 2 push button and 2 knobsProduct Highlight NIFE 105W - Support various field bus. - Support Discrete I/O module or standard fieldbus module - Palm size form-factor eLITE610 - Extremely cost efficient HMI - Slim design. Mounting depth less than 30mm |
| Independent Pack 5 Configuration Scenario: Power Generator |
Main Features Multi-fieldbus communication PC-based controller with CODESYS RTE HMI with JMobile runtime included Scenario for power generator simulation with 4 indicators, 2 push button and 2 knobsProduct Highlight NIFE 200 - Support various fieldbus - Support discrete I/O module or standard fieldbus module - Support 2.5” SSD/HDD eLITE610 - Extremely cost efficient HMI - Slim design. Mounting depth less than 30mm |
| Independent Pack 6 Configuration Scenario: Cooling Tower |
Main Features Multi-fieldbus communication PC-based controller with CODESYS RTE HMI with JMobile runtime included Scenario for cooling tower simulation with 4 indicators, 2 push button and 2 knobsProduct Highlight NIFE 200 - Support various fieldbus - Support discrete I/O module or standard fieldbus module - Support 2.5” SSD/ HDD eLITE610 - Extremely cost efficient HMI - Slim design. Mounting depth less than 30mm |
| Web SCADA Configuration Scenario: Local Factory Process Monitoring |
Main Features Modbus TCP communication Panel PC with SCADA software runtime includedProduct Highlight IPPC 2160P - Metal housing with robust aluminum front zero bezel for harsh environment - 10 points P-Cap multi-touch with zero bezel flush front design - Dual GbE/2nd display-VGA/Line-out/PS2 KB/MS - Mounting support: panel/wall/stand/VESA 100mm x 100mm |
| Cloud SCADA with Edge Server Configuration Scenario: Cloud Dashboard for Factory Productivity and OEE Rate |
Main Features Modbus TCP communication Custom-made cloud SCADA service to design your decision-making applications in cloudProduct Highlight NISE 3700 - Modbus TCP communication - Support 4th generation Intel® Core™ i7/i5/i3 LGA socket CPU - PC system with cloud IoT dashboard included APPD 2100P - 10 points P-Cap multi-touch with zero bezel flush front design - 3 display input interface: analog VGA/DVI-D/DisplayPort |
