Vehicle Mount Display
NEXCOM offers a series of vehicle mount display monitors that are fully compatible to be connected with VTC Series in-vehicle computer. Featuring automatic and manual brightness control, NEXCOM's vehicle mount display offers daylight readability to assist users to obtain real-time information or data without troubles. Moreover, with IP54 certificate, NEXCOM's vehicle mount display differentiates itself with other consumer monitors.
Vehicle Mount Display > 10" > VMD 3002

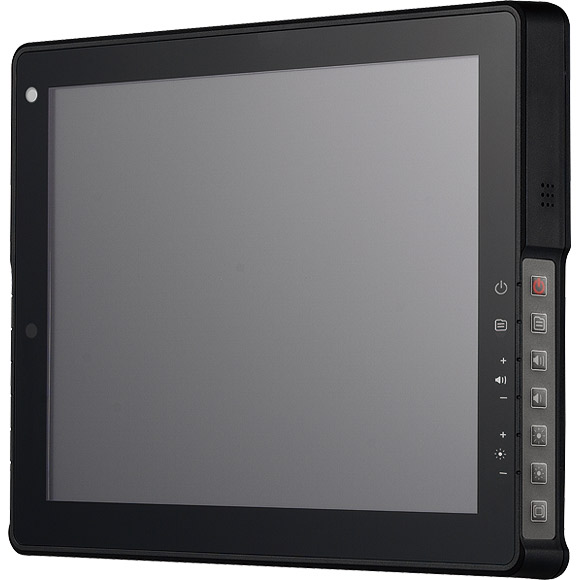

VMD 3002
Overview
VMD 3002 is a robust 10.4-inch TFT LCD monitor with enhanced brightness, projected capacitive touchscreen, and high performance loud speaker. It is designed with a single cable to consolidate power, display, and other control signal to ease the installation and secure the connection. It also features four analog video inputs to feed the real time video from the rear view cameras to the display. VMD 3002 mechanical design is compliant with IP65. With the 1000nits ultra high brightness display and adaptive brightness control, it is an ideal solution for in-vehicle and outdoor applications.
Features
VMD 3002
10.4" XGA Vehicle Mounted Display with Projected Capacitive Touch Screen, VGA and CVBS Interfaces- Main Feature
- 10.4" XGA TFT LCD panel
- Slim bezel and compact design
- Automatic/manual brightness control
- Wide range power input from 9~36VDC
- Projected capacitive touch screen with multi-touch
- Support four CVBS inputs to connect rear view camera
- High brightness display for outdoor applications
- Compliant with IP65
Specifications
| LCD Panel | 7-inch TFT LCD Panel with LED Backlight1024 x 600 pixelsBrightness: 500 cd/m² (typical)Contrast ratio: 800:1 (typical)Viewing angle: 150(H), 145(V) |
| Touch Screen | 4-wire resistant touchAnti-glare coating surfaceTransmission rate: 80% ± 3% |
| CPU & Chipset | ARM® Cortex®-A9 Processor with 1GHz frequencyFreescale Dual Core |
| Memory | On-board DDR3L 2GB |
| Storage | 1 x Micro SDHC SlotEMMC: 8G on board |
| Expansion | 1 x half-size mini-PCIe (PCIe + USB) for WLAN1 x full-size mini-PCIe (USB + UART) for WWANOBDII: ISO15765-4 & SAE J1939 (Default: None, BOM optional)RFID (optional) |
| I/O Interface-Front | F1 ~ F5 programmable function keysLight SensorInternal Mic-in2 x Built-in 2W speakers3 x LED indicators (Power, Storage and WWAN) |
| I/O Interface-Lateral | Right side - 1 x SIM card slot - 1 x Micro SD card slot - 1 x USB 2.0 type A - 1 x micro USB OTG for maintenanceLeft side - 1 x Power button - 1 x Volume up/down - 1 x Brightness up/down - 1 x System reset button |
| I/O Interface-Rear/Bottom | 1 x lockable power input with ignition1 x RJ45 for LAN2 x USB 2.0 Type A - DB-15 connector - Full RS-232 - RS-232/485 - CAN1 2.0BDB-15 connector - GPI x 3 Sink type: 5VDC TTL (default) Source type: 3 ~ 28VDC - GPO x 3 Sink type: 5VDC TTL (default), max current: 20mA Source type: 3 ~28VDC, max. current: 150mA - GPS DR (Speed, direction, GND) - CAN2 2.0B (Default) & (BOM optonal for OBD II (ISO 15765-4 & J1939)) - iButton1 x Mic-in1 x Line-out3 x Antenna on I/O - Rear: 1 x GPS, 1 x WWAN - Bottom: 1 x GPS, 2 x WWAN2 x Antenna on housing for Wi-Fi |
| Mechanical | Cooling System: FanlessEnclosure: Plastic PC/ABS + Metal heat-sinkMounting: VESA 75/100 & Desktop mountingIngress Protection: Front panel IP54Dimension: 212.9mm (W) x 144.97mm (H) x 40mm (D)(8.4" x 5.7" x 1.6")Weight: 1.3kg |
| Power Management | 9V~36V DC inputSelectable boot-up & shut-down voltageIgnition: 8-level delay time on/offReverse protection/over-voltage protection/low-voltage protectionWake up by SMS/RTC/ignition |
| Operating System | Linux YOCTO 2.0 by RequestAndroid 5.1 |
| Environment | Operating temperatures: Ambient with air -20°C to 70°CStorage temperatures: -30°C to 80°CRelative humidity: 10% to 90% (non-condensing)Vibration Vibration test: IEC 60068-2-64, 2.5G Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4 Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24Shock MIL-STD-810G, 516.6 Procedure 1, trucks and semi-trailers=40g Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment=75g |
| Certification | CE/FCC class B/E-Mark |
Vehicle Mount Display > 7" > VMD 1000

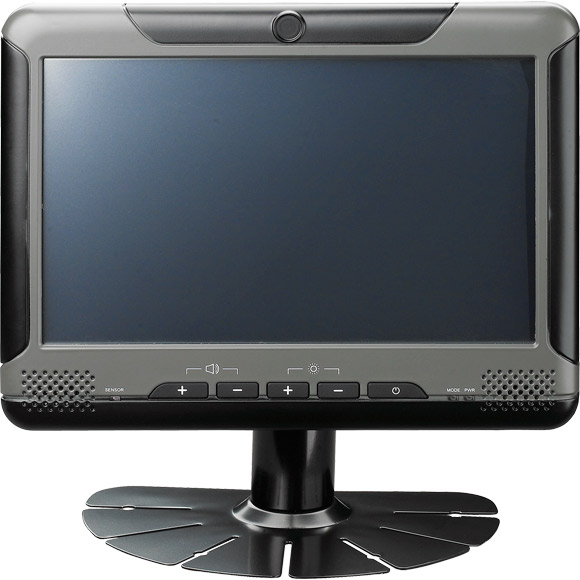

VMD 1000
Overview
VMD 1000 is a 7-inch TFT LCD monitor with 4 wire resistant touch screen sensor. With the high brightness display and automatically brightness control, it is designed for in-vehicle application. It also provides USB and card reader features. Those friendly interfaces benefit the technicians during maintenances. Its front panel is compliant to IP54 to meet with industrial application. VMD 1000 can perfectly match with any VTC series devices via the 26-pin LVDS cable.
Features
VMD 1000
7" WVGA Vehicle Mount Display with Touch Screen and LVDS Interface- Main Feature
- 7" WVGA TFT LCD monitor
- Automatic/ manual brightness control
- Remote system power control
- On screen control buttons
- Support USB 2.0 and card reader
- Optional sunlight readable touch support
- Front panel compliant with IP54
Specifications
| General | Enclosure: Plastic PC + ABSMounting: Support VESA 75, panel and wall mountingPower Input: 12VDCPower Consumption: 12WIngress Protection: Front panel IP54Dimension: 182mm (W) x 138mm (H) x 36.3mm (D) (7.17" x 5.43" x 1.43")Weight (Net): 0.45Kg, 0.99Lb |
| LCD Panel | 7-inch TFT LCD panel with LED backlight800 x 480 pixels (WVGA)Brightness: 500 cd/m² (typical)Contrast ratio: 600:1 (typical) |
| Touch Screen Sensor | 4-wire resistant touchAnti-glare coating surfaceTransmission rate: 82 ± 3% |
| I/O Interface-Front | 5 x Control buttons Power on/off Volume control (+/-) Brightness control (+/-)Light sensor2 x LED indicators2 x Built-in speakers (1W) |
| I/O Interface-Lateral | 1 x SD/ MMC/ MS Card Reader1 x USB type A for Storage1 x Line-out (switch to external speaker by auto detection)1 x Mic-in (from external microphone) |
| I/O Interface-Bottom | Remote System Power On/ Off Button1 x Mic-out1 x Line-in1 x LVDS Connector (integrating LVDS, USB x 1 and 12Vdc x 1) |
| Optional Features | Sunlight-readable touch screen (4 wires resistive w/ anti-glare coating)Support VESA mount kit |
| Environment | Operating temperature: -20°C to 70°CStorage temperature: -30°C to 80°CVibration (random): 5g@5~500 HzVibration Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity TestShock Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks andsemi-trailers= 20g Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment= 75g |
| Standards/ Certifications | CE approvalFCC Class B |
Vehicle Mount Display > 8" > VMD 2003

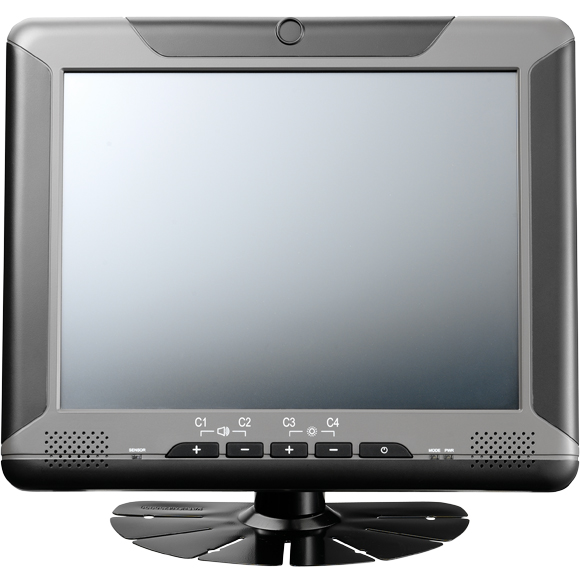

VMD 2003
Overview
VMD 2003 is a 8-inch high-brightness TFT LCD monitor with 4 wire resistive touch, analog cameras x 4 supported and ultraONE+ technology. ultraONE+ technology can help to transmit video and audio content up to 10 meters, which offers the best advantage to solve the cabling issue when implemented into the vehicle with limited space. Unique design to connect with analog cameras x 4 can guarantee drivers to see the video content within 1 second, beneficial for the safety a lot. Besides, there is only one cable between VMD 2003 and Nexcom telematics computer, contributing to solving the cabling issue, saving the implementation cost, and increasing the reliability. VMD 2003 also provides friendly user interface to driver with the advantage of hot keys x 5, IP54 protection and 1,000nits brightness (typ.)
Features
VMD 2003
8" SVGA Vehicle Mount Touch Display with Analog Camera and ultraONE+ Technology- Main Feature
- 8" SVGA TFT LCD monitor
- ultraONE+ technology
- 10M transmission distance for video input
- Analog camera x 4 supported
- One cable only to connect with the system
- Automatic/Manual brightness control
- Remote power on/off to system
- On screen control buttons
- Display powered from system
- On screen control buttons
- Support USB 2.0 type A
- Sunlight readable solution: 1,000cd/m² (typ.)
- Front panel compliant with IP54
- Line-out and Mic-in
Specifications
| General | Enclosure: plastic PC + ABSMounting: support VESA mount: 75mm x 75mmPower input: 24VDCPower consumption: 14WIngress protection: front panel IP54Dimension: 207mm (W) x 173mm (H) x 36.7mm (D) (8.15" x 6.81" x 1.44")Weight (net): around 0.8Kg, 1.76Lb |
| LCD Panel | 8-inch TFT LCD panel with LED backlight800 x 600 pixels (SVGA)Brightness: 1,000 cd/m² (typical)Contrast ratio: 500: 1 (typical) |
| Touch Screen Sensor | 4-wire resistant touchAnti-glare coating surface |
| I/O Interface-Front | On screen display buttons x 5 - Power on/off - Brightness control (+/-) - Volume control (+/-)Light sensor2 x LED indicators2 x Built-in speakers (1.2W) |
| I/O Interface-Lateral | 1 x USB type A for storage1 x Line-out (automatic detection/switch to external speaker)1 x Mic-in |
| I/O Interface-Bottom | 1 x Remote button to power on/off the system1 x DB9 (male, integrating USB, power, video, audio and DO) to connect with the system1 x DB9 (female) for analog camera x 4 (CVBS) |
| Environment | Operating temperature: -20°C to 60°CStorage temperature: -30°C to 70°CVibration (random): 2.5g@5 ~ 500 HzVibration Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4, Ground Vehicle – Highway Truck Storage: MIL-STD-810G, 514.6 Procedure 1, Category 4, Integrity TestShock Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=40g Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, Ground equipment=75g |
| Standards/Certifications | CE approvalFCC Class B |
