Marine and offshore communication
Marine GMDSS
Marine and offshore communication equipment must meet international standard. Our award-winning onshore and offshore communication solution include:
- VHF/UHF/HF SSB Radios
- VSAT Internet
- GMDSS Systems
- Port Safety Systems
- Port Security Systems
- Complete suite of Helideck Communication systems
- Coastal surveillance and Ship communication solutions
Global Maritime Distress Safety System (GMDSS)
Solutions that never miss the aim with our range of

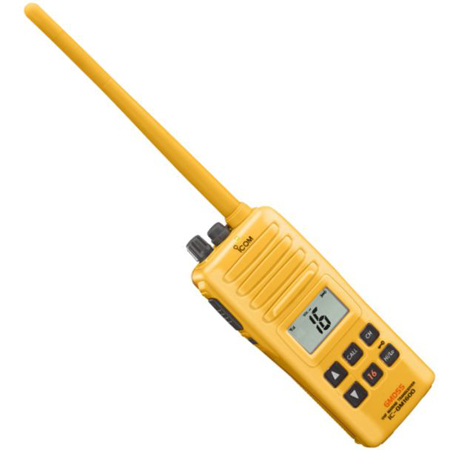

The GM1600 Marine VHF handheld is designed for GMDSS compliant survival craft communications. The radio is engineered to survive and function in the extreme environmental conditions common in marine emergencies and brings the latest Search and Rescue technology to the marketplace. The GM1600’s shock-resistant housing is constructed of a brightly colored dye-injected polymer assuring this essential piece of emergency equipment will always be easy to find in a survival bag, in a life raft, or any other place when you need to find it quickly.
Output Power: |
2W | |
Battery Life: |
3300mAh Lithium battery, up to 8 hours & 750mAh Ni-Cd battery Typical operation; Tx:Rx:Stand-by duty ratio = 5:5:90 |
|
Waterproof Rating: |
IPX7 |
Survival Craft Radio
The GM1600 meets temperature, thermal shock, vibration and drop resistant (from 1 m height) requirements. After passing those environmental tests, the GM1600 sustains 1m depth waterproof construction specified with IMO resolutions A.809(19), A.694(17) and IEC 61097-12. The BP-234 battery can operate even at –4ºF.
Easy Operation
All knobs are sized for quick operation and the large, well-labeled buttons feature a positive action "feel" with a programmable beep tone for sure operation. The front panel includes one touch access to Channel 16 and call channel.
Additional Features
- Operation instructions are printed on the rear panel
- All operation can be made with one hand
- Bright LED indicator on the top of panel
- Optional VOX headset for on-board use
| General | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Frequency Range (Tx/Rx) | 156.300–156.875MHz | |||||||||
| Mode | FM (16K0G3E) | |||||||||
| Power supply requirement | 7.5/7.2V DC nominal | |||||||||
|
Current drain (at 7.5/7.2V DC) |
|
|||||||||
|
Operating temperature range |
-20°C to °60°C; -4°F to +140°F | |||||||||
| Antenna Impedance | 50Ω (SMA fixed type) | |||||||||
|
Dimensions (W×H×D) (Projections not included) |
65 × 145 × 44 mm; 29/16 × 523/32 (H) × 123/32 in |
|||||||||
| Weight (approx.) | 385g; 13.6oz (with BP-234) | |||||||||
| Transmitter | |
|---|---|
| Output power | 2W/1W (Hi/Low) |
| Max. frequency deviation | ±5.0kHz |
|
Frequency Error |
±5.0ppm |
|
Spurious emissions |
-70dBc typical |
| Adjacent channel power | 70dB |
| FM Hum and noise ratio | 40dB |
| Audio harmonic distortion | Less than 10% (at 60% mod.) |
| Receiver | |
|---|---|
|
Sensitivity |
0.25µV (at 12dB SINAD) |
|
Squelch sensitivity |
0.35µV typ. (at threshold) |
|
Adjacent Channel Selectivity |
70dB |
|
Spurious response |
70dB |
|
Intermodulation Rejection |
70dB typ. |
| Hum and noise ratio | 40dB |
|
Audio output power |
0.35W typ. |
To comply with the requirements of GMDSS survival craft radio, the primary battery pack, BP-234, is required.
Measurement made in accordance with TIA/EIA-603 and FCC part 80.271 for USA version. All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- Battery pack, BP-234
- Battery pack, BP-252
- Battery charger, BC-173
- AC adapter, BC-147SA
- Belt clip, MB-103Y
- Antenna, FA-S61V
- Neck strap
Antennas
Battery
3300mAh Lithium
(non recharageable)
750mAh Ni-Cd
Li-ion battery pack
Belt Clips
Standard belt clip
Swivel belt clip
Swivel belt hanger
Chargers
Trickle charger
Battery charger
AC adapter for charger
12V cigarette lighter cable
DC power cable for
rapid charger
Headsets
Earpiece with boom mic
(use w/OPC-1392)
Behind-the-head headset with
boom mic (use w/OPC-1392)
Earphone with throat mic
headset (use w/OPC-1392)
Headset adapter

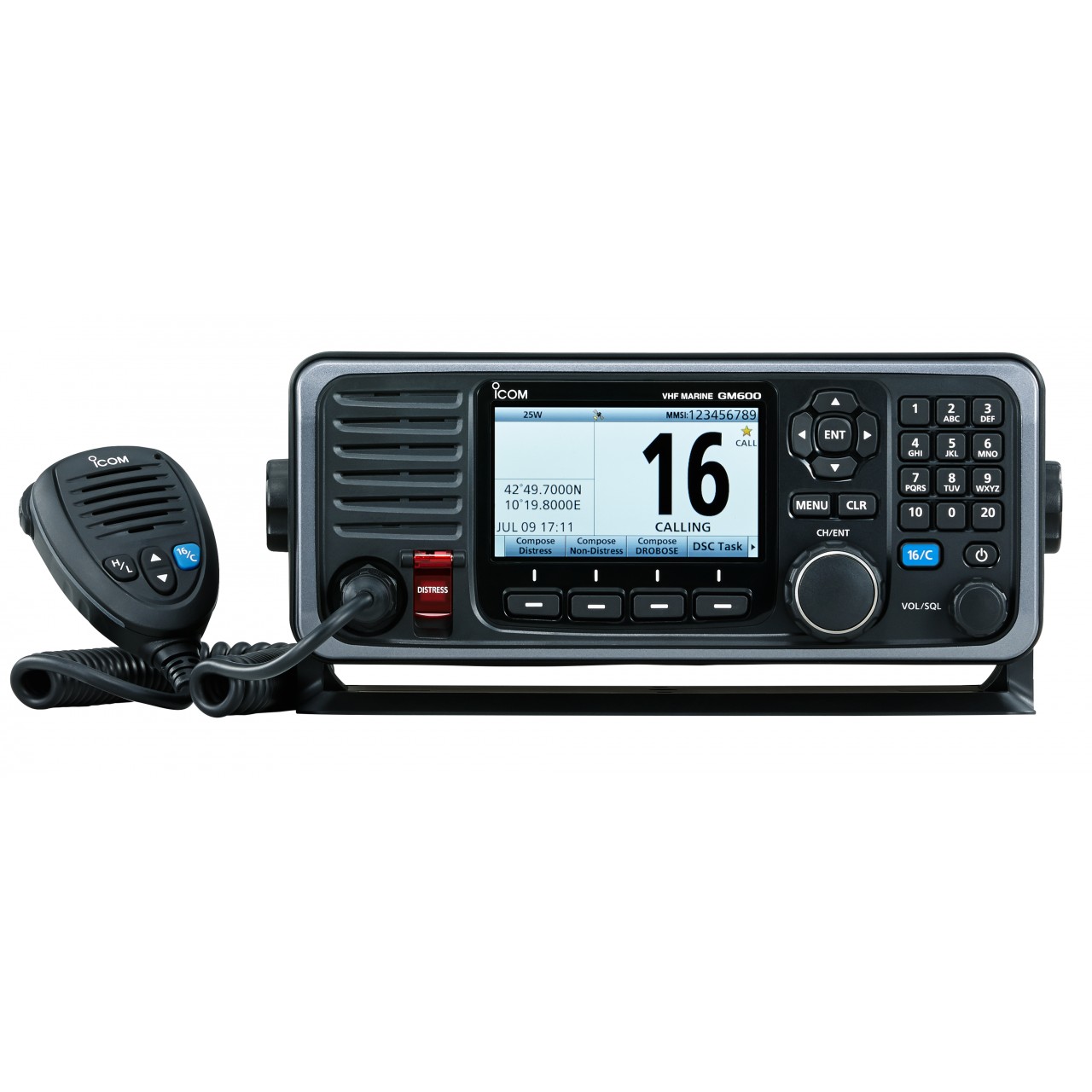

The GM600 meets the GMDSS requirements as required for SOLAS regulated commercial vessels engaging in international voyage. With the optional PS- 310 DC-DC converter, the GM600 meets the MED, "wheel mark" requirements for European merchant ships.
Output Power: |
25W | |
DSC Rating: |
Class A | |
NMEA: |
NMEA 0183 interface for GPS connection | |
Waterproof Rating: |
IPX7 (front panel only) |
Dedicated Distress Button
The GM600 meets ITU class A DSC. The radio includes a dedicated DSC receiver which continuously monitors CH 70 and is independent of the main receiver and other operation. The DSC Multi-task function allows you to show up to 7 received and transmitted DSC messages. While using the DSC Multi-task screen, the operating channel is shown at the right side of the screen.
Large User Rriendly Display
The GM600 comes with a 4.3" color TFT LCD with user-friendly icons. Navigate the menu via the main dial knob or the up and down keys. The most used functions are lined up at the bottom of the display and users can toggle with the left and right keys. The display also allows you to select the day and night modes according to how light it is outside.
Additional Features
- Large speaker for clear audio
- 10W audio output when plugged into external speaker
- DC-DC power supply option for floating ground connection
- Printer connector (D-sub 25-pin)
- VDR (voyage data recorder)/external SP connector
- Dual watch & tri watch functions
- Instant access to CH 16 and call channel
- Tag scan and favorite channel functions
- Auto scan function
| General | |
|---|---|
| Frequency Range Tx Rx CH70 |
156.025–161.600 MHz 156.025–162.000 MHz 156.525 MHz |
| Usable channels | INT channels |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC) |
| Power supply requirement Tx (at 25W output) Rx (Maximum audio) |
13.8 V DC (GM600) 24 V DC (21.6–31.2 V) 12 V DC (10.8–15.6 V) |
| Current drain (with PS-310 #01) Tx (at 25W output) Rx (Maximum audio) |
(approximately) 3.3A (with PS-310 #01) 2.0A (with PS-310 #01) |
| Operating temperature range | –15°C to +55°C |
| Antenna Impedance | 50Ω (SO-239) |
| Weight (approximately) | 1600g |
| IEC 61162-1 in/out format Input Output |
RMC, GGA, GNS, GLL, VTG DSC, DSE |
| Transmitter | |
|---|---|
| Output power | 25W, 1W |
| Max. frequency deviation | ±5 kHz |
| Frequency error | Less than ±0.5kHz |
| Spurious emissions | Less than 0.25μW |
| Adjacent channel power | More than 70dB |
| Residual modulation | More than 40dB |
| Audio harmonic distortion | Less than 10% (at 1 kHz, 60% deviation) |
| Receiver | |
|---|---|
| Intermediate frequency
DSC receiver |
30.15MHz, 450kHz (1st/2nd) 46.35MHz, 450kHz (1st/2nd) |
| Sensitivity 20dB SINAD
DSC (1% BER) |
Less than –7dBμ emf. typ. Less than –7dBμ emf. typ. |
| Adjacent channel selectivity
DSC receiver |
More than 75dB More than 73dBμ emf |
| Spurious response
DSC receiver |
More than 75dB More than 73dBμ emf |
| Intermodulation
DSC receiver |
More than 75dB More than 73dBμ emf |
| Hum and noise ratio | More than 40dB |
| Audio output power
External speaker Internal speaker |
(at 10% distortion) 10 W (4 Ω load) 2 W |
Measurements made in accordance with EN 301 925. These specifications are described when the GM600 is used with the PS-310. All stated specifications are subject to change without notice or obligation.
Applicable IP Rating
| Ingress Protection Standard | |
| Water | IPX7 (1m depth of water for 30 minutes - front panel only) |
Supplied Accessories
- Hand microphone, HM-214V
- Mounting bracket kit
- DC power cable
DC-DC Converter
Handset
Microphone

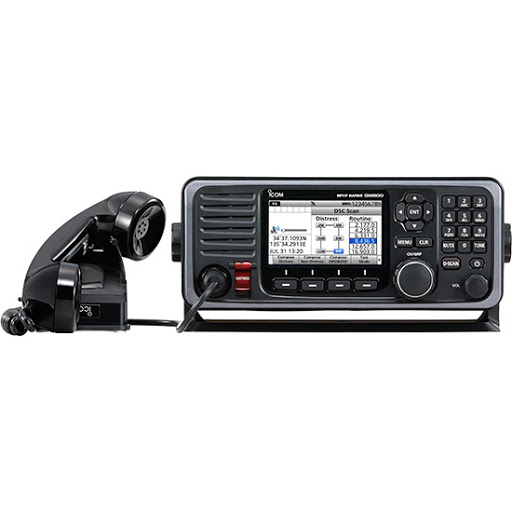

The GM800 meets the GMDSS requirements as required for SOLAS regulated commercial vessels engaging in international voyage. The radio also meets the MED, "wheel mark" requirements for European merchant ships.
Output Power: |
125W (4.0-27.5MHz) 85W (1.6-3.999MHz) |
|
DSC Rating: |
Class A | |
NMEA: |
NMEA 0183 interface for GPS connection | |
Waterproof Rating: |
IPX7 (controller only) |
Dedicated Distress Button
The GM800 meets ITU-R M.493-13 DSC. The dedicated DSC watch-keeping receiver continuously scans the six distress channels in rotation. A total of 100 MMSI members for DSC calls can stored with a 10-character ID name. The DSC Multitask function shows up to seven DSC procedures. The GM800 is also capable of sending a distress relay call.
Large User Fiendly Display
The 4.3 inch color TFT LCD provides almost 180 degree wide viewing angle and displays high resolution characters and function icons. Even when the radio is installed to the instrument panel, the operator can clearly recognize the display information from various viewing angles. The night mode display ensures good readability in low light conditions.
A combination of the directional keypad and soft keys provide simple operation. Most used functions are assigned to soft keys (at the bottom of the display) for quick one push function access. The large ten-key pad enables you to smoothly enter channel numbers, MMSI numbers with ID names and so on.
Additional Features
- Large speaker for loud, clear audio
- Built-in DC-DC converter
- Printer connector (D-sub 25-pin)
- Remote distress alarm
| General | |
|---|---|
| Frequency Range Tx Rx DSC |
1.6–27.5000MHz (ITU marine channels) 0.5–29.9999MHz (continuously) 2.1875, 4.2075, 6.3120, 8.4145, 12.5770, 16.8045MHz |
| Type of emission Tx/Rx DSC |
J3E (USB/LSB*), J2B (AFSK), F1B (FSK), A1A* (CW), H3E* (AM) F1B * Receive only |
| Number of channels | 1237 channels (maximum) (160 user-programmable; 249 ITU SSB duplex; 72 ITU SSB simplex; 21 C1; 31 C2; 704 ITU FSK duplex) |
| Power supply requirement | 21.6–31.2V DC (24V DC) (floating ground) |
| Current drain (with PS-310 #01) Tx Maximum power Rx Maximum audio |
Less than 20A (at 1.1kHz and 1.7kHz two tones) Less than 3A |
| Operating temperature range | –15°C to +55°C |
| Antenna Impedance | 50Ω (SO-239×2) |
| Frequency stability Tx/Rx DSC |
±10Hz (0.5–29.9999MHz) ±10Hz |
| NMEA Interface | GGA, GNS, GLL, RMC |
| Transmitter | |
|---|---|
| Rated output power (at AT-141 output power) |
85W PEP (1.6–3.999MHz) 125W PEP (4.0–27.500MHz) |
| Spurious emissions | 43dB below peak output power (Maximum power) |
| Carrier suppression | 40dB below peak output power (Maximum power) |
| Unwanted sideband suppression | 55dB below peak output power (Max. power) (With 1000Hz AF input) |
| Receiver | |||||
|---|---|---|---|---|---|
|
Sensitivity J3E, A1A (20dB SINAD) |
|
||||
| Squelch sensitivity (at signal strength meter) J3E H3E |
Less than +20dBμV/Less than +90dBμV (at 12.230MHz) (Threshold/Tight) Less than +30dBμV/Less than +110dBμV (at 1.000MHz) (Threshold/Tight) |
||||
| Spurious response rejection
J3E J2B |
More than 60dB (0.5–29.999MHz) More than 90dBμV emf. |
||||
| Audio output power Internal SP External SP |
2W with 8Ω load (at 10% distortion) 4W with 4Ω load (at 10% distortion) |
||||
| Clarity variable range | ±150Hz | ||||
All stated specifications are subject to change without notice or obligation.
Applicable IP Rating
| Ingress Protection Standard | |
| Water | IPX7 (1m depth of water for 30 minutes -controller only) |
Supplied Accessories
- Handset, HS-98
- Mounting brackets
- DC power cable
Antenna Tuner
Shielded control cable (32.8ft)
Handset
Microphone
