Embedded Board > EBC3A1-1G Y0

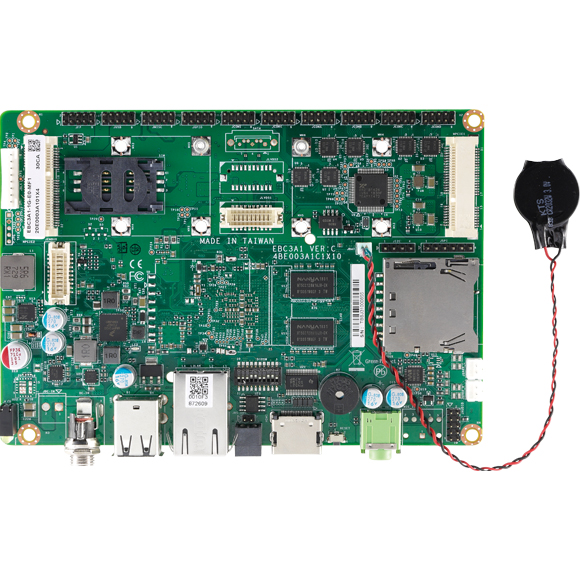

EBC3A1-1G Y0
Overview N/A
Features
EBC3A1-1G Y0
3.5” NXP i.MX6 CPU Board NXP i.MX6 Solution- Main Feature
- NXP ARM Cortex-A9 i.MX6 DualLite 1.0 GHz
- Onboard DDR3 1GB, 4GB eMMC Flash
- HDMI, 18/24-bit LVDS output
- 6 x RS-232, 2 x RS-485, 2 x CAN, 4 x USB 2.0
- Dual mini-PCIe for Wi-Fi/3G support
- 10.8 ~ 26.4 VDC wide power input
- Diversified OS support in Linux/WEC7(OEM)
Specifications
| CPU | NXP i.MX6 DualLite 1.0 GHz Cortex-A9 |
| System Memory | Onboard 1GB DDR3-800 SDRAM |
| Flash | 4GB eMMC NAND Flash8MB NOR Flash |
| HDMI | 1 x HDMI 1920x1080 * * HDMI has no audio support |
| LVDS | 1 x 18/24-bit LVDS |
| Watchdog Timer | 1~256 level (0.5 second/level) |
| LAN | 1 x 10/100/1000 Mbps (RJ45 with LED x 2) |
| USB | 1 x 2 ports USB 2.0 (header), 1 x 2 ports USB 2.0 (double-deck connector) |
| USB OTG | 1 x micro USB |
| Serial Port | 4 x RS-232 (8-wire) header2 x RS-232 (4-wire) header1 x RS-485 (3.5mm terminal block) |
| CAN | 2 x CAN (miscellaneous header) |
| GPIO | 8 x GPIO |
| Audio | 1 x Line-out (phone jack)1 x Line-in (header)2 x 1W Speaker Out (Wafer) |
| SD Card | 1 x SD card slot |
| Expansion | PCIe - 1 x Half/full size mini PCIe (PCIe & USB signal) - 1 x Half/full size mini PCIe (USB signal)SIM - 1 x SIM card socket |
| Software | Yocto: Daisy 1.6.2WEC: Windows Embedded Compact 7 (customization) |
| Power | DC-input: 10.8V ~ 26.4VControl: power on by DC attached or reset buttonConsumption: ~3.5W |
| Mechanical & Environmental | Operating temp: -20~65°C -20~55°C with 3D play applicationOperating humidity: 5%~95% relative humidity, non-condensingDimension: 3.5" SBC (146mm X 102mm) |
Industrial Access Point > IWF 310

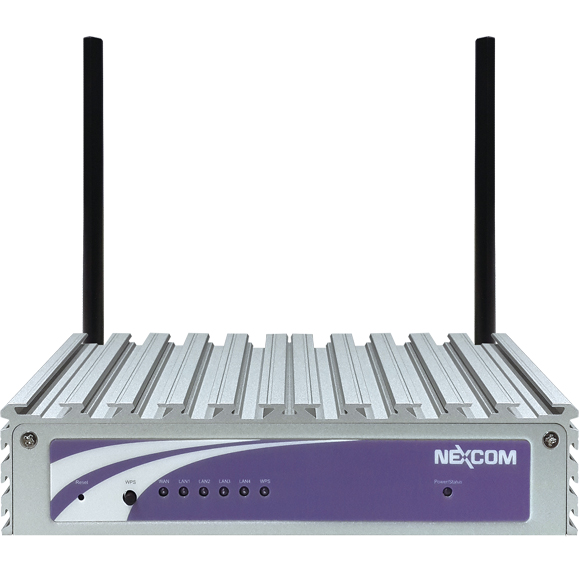

IWF 310
Overview
IWF 310 is QCA9344-based rugged industrial-grade AP/Router/EZ MESH AP designed with Aluminum and Metal Chassis, and IEEE802.11b/g/n 2x2 MIMO and IEEE802.11an/a 2x2 MIMO technology. IWF 310 can deliver data rate up to 300Mbps/each radio. In addition, the Radio power can be up to 27dBm for wide range coverage and service. IWF 310 also functions as EZ MESH network Wi-Fi access with cost-effective option.
Features
IWF 310
Rugged Industrial EZ Mesh Access Point Dual RF, 1x 802.11an+1x 802.11 b/g/n 2x2 MIMO- Main Feature
- Dual radios and compliant with 1x 802.11an+1x 802.11 b/g/n 2x2 MIMO
- 1+4 port GbE RJ45 ports
- Up to 27dBm High RF power
- Multiple functions: AP/Router/EZ MESH
- Support 12V DC input
- Support -40 ~ 80°C extended operating temperature
Specifications
| Wireless Radio | 1x IEEE 802.11an 2x2 MIMO1x IEEE 802.11 b/g/n 2x2 MIMO |
| Frequency Ranges | USA: 2.400~2.483 GHz, 5.15~5.35 GHz, 5.5~5.7 GHz, 5.725~5.825 GHzEurope: 2.400~2.483 GHz, 5.15~5.35 GHz, 5.47~5.725 GHz * Note: The available frequency range may be different according to different certification. |
| RF Output Power : IEEE 802.11an(±2dBm) | IEEE802.11a - 27dBm@54MIEEE802.11a/n HT20 - 25dBm@MCS7IEEE802.11a/n HT40 - 24dBm@MCS7 |
| RF Output Power : IEEE 802.11 b/g/n(±2dBm) | IEEE802.11b - 27dBm@1M - 24dBm@11MIEEE802.11g - 27dBm@6M - 24dBm@54MIEEE802.11g/n HT20 - 23dBm@MCS0/8 - 19dBm@MCS7/15IEEE802.11g/n HT40 - 22dBm@MCS0/8 - 18dBm@MCS7/15 |
| Receive Sensitivity : IEEE 802.11an | IEEE802.11a -76dBm@54MIEEE802.11a/n HT20 -74dBm@MCS7IEEE802.11a/n HT40 -71dBm@MCS7 |
| Receive Sensitivity : IEEE 802.11 b/g/n | IEEE802.11b - 93dBm@1M - 91dBm@11MIEEE802.11g - 94dBm@6M - 80dBm@54MIEEE802.11g/n HT20 - 94dBm@MCS0/8 - 77dBm@MCS7/15IEEE802.11g/n HT40 - 89dBm@MCS0/8 - 73dBm@MCS7/15 |
| Hardware | WAN: 10/100/1000 Base-TX MDI/MDIX RJ-45 x 1LAN: 10/100/1000 Base-TX MDI/MDIX RJ-45 x 4Compliant with : - IEEE802.3 / 802.3u - Hardware based 10/100/1000, full/half, flow control auto negotiationPush buttons: 1x ResetLED: 1x power& status; 5x EthernetAntenna connectors: 2x with RP-SMA |
| Operating Mode | APAP routerClient routerEZ mesh |
| Security | WEP(64/128)WPA/WPA2 MixedWPA2-personal (PSK+CCMP/AES)Hidden ESSID supportMAC address filtering (MAC ACL) |
| System Management | Web-based administrationSNMP V1/V2c (Coming Soon)SYSLOG information supportStatisticsConfiguration backup and restoreOne-button-click to restore factory default settingFirmware upgrade |
| Built-in Servers & Client Interfaces to Other Services | DHCP clientSNMP v1/v2c client(coming soon) |
| Physical and Power | 12VDC power input with DC jackWall mountableDimension: 185 x 108 x 43 mm |
| Environment Protection | Operating temperature: -40~80°CStorage temperature: -45~85°CHumidity: 0% to 95% maximum (Non-condensing)Vibration: Random 0.3g |
| Certification | FCCCERoHS compliant |
| Package Contents | IWF310 unit x 1Dual band antenna x 2Wall-mount kit x 1AC-DC power adaptor x 1 |
HazLoc Product > NIO 200 HAG

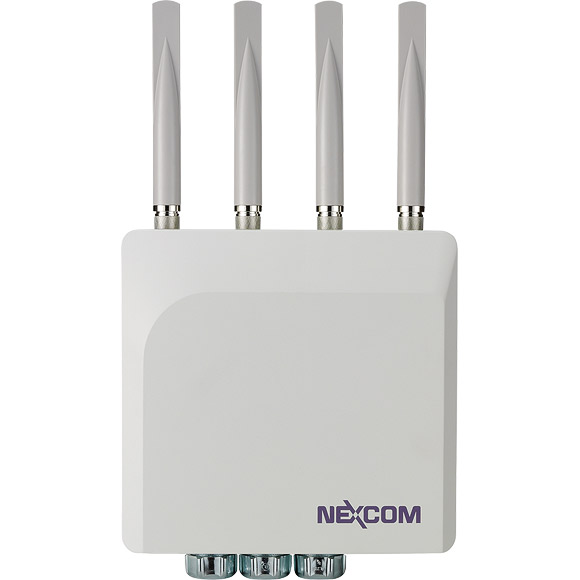

NIO 200 HAG
Overview
NEXCOM NIO 200 is a powerful distributed network topology ISA100.11a access point integrating 802.11n Mesh technology. With ISA100.11a/WirelessHART technology, NIO 200 can establish fully Mesh network to ensure robust and reliable communication for mission-critical industrial wireless applications. The integration of both 802.11n Mesh & ISA100.11a/WirelessHART technology gives a full Mesh infrastructure from field devices to Wi-Fi backbone, thus a concrete wireless connectivity can be assured. It’s designed to meet CID2 and ATEX certified requirement and is perfect solution to critical data monitoring and sensing in oil & gas, chemical plant, etc…
Features
NIO 200 HAG
ISA100/WirelessHART Process Automation Wireless Gateway- Main Feature
- Full Mesh topology: robust wireless connectivity from ISA100/WirelessHART field device coverage to Wi-Fi backbone
- Perfect triple play infrastructure: video surveillance via high throughput Wi-Fi backbone ensures video transmission without compromising video performance
- Dual Wi-Fi Mesh path establishes better stability in backbone transmission
- Wide temperature range, high EMC immunity to Surge, ESD and EFT
- Suitable for deployment in hazardous environments
- Incorporates power redundancy (DC and PoE)
- Distributed network topology provides scalable infrastructure: easy integration and cost saving
Specifications
| Wireless Radio | IEEE802.11a/n x 2, MIMO 2 x 2IEEE802.15.4, 1 Tx, 1 Rx |
| Wi-Fi Frequency Ranges | USA: 5.15~5.25 GHz, 5.725~5.825 GHzEurope: 5.47~5.725 GHz |
| RF Output Power: IEEE 802.11a | 802.11a - 28 dBm with 2 antennas802.11n (HT20) - 27 dBm with 2 antennas802.11n (HT40) - 27 dBm with 2 antennas * Note: The available RF output power will be given by certified power in different region |
| Hardware | WAN: 10/100/1000 Base-TX MDI/MDIXLAN: 10/100/1000 Base-TX MDI/MDIXEthernet compliant with - IEEE802.3/802.3u - Hardware based 10/100/1000, full/half, flow control auto negotiationPush buttons: 1 x reset/restore to defaultLED: - 2 x Ethernet - 2 x 11an radio - 1 x IWSN radio - 1 x Power/StatusN-Type: - 5 x N-type connector for NIO 200IDR/IAG/HAG - 4 x N-type connector for NIO 200IDG |
| Safety Compliance | UL 60950-1; 60950-22IEC 60950, 2nd editionEN 60950, 2nd editionIEC 61000-4-2 level 4 ESD immunityIEC 61000-4-5 level 4 AC surge immunityIEC 61000-4-4 level 4 electrical fast transient burst immunity |
| Wi-Fi Security (AP Mode) | WEP (64/128/152)WAP/WPA2 mixedWPA2-personal (PSK+CCMP/AES)Hidden ESSID supportMAC address filtering (MAC ACL)Station isolation |
| System Management | nCare, web GUI managementSNMP V1/V2c/V3Event logSyslog information supportConfiguration backup and restoreOne-button-click to restore factory default settingFirmware upgradeSNMP V1/V2c/V3 client |
| Physical and Power | 12~48 VDC PoE (standard PoE 802.3at)Wall/pole mountableDimension: 256mm x 226mm x 91mmWeight: 2.5Kg |
| Environment Protection | Operating temperature: -40~75°C (altitude : up to 3000m)Storage temperature: -40~80°CHumidity: 0% to 95% maximum (non-condensing)Vibration: random 0.3g |
| Certification | UL 60950-1; 60950-22Radio approvals - FCC Part 15.247, 15.407 - EN 300 328 - EN 301 893EMI and susceptibility - FCC Part 15.107, 15.109 - EN 301 489-1, -17 |
| Anti-Explosive Certification | UL: Class I, Division 2, Groups A, B, C and D, T4ATEX: Class I, Zone 2; Ex nA II, T4 |
| ISA100 Capabilities | Wireless Communication Interface Specifications Standard IEEE: 802.15.4 Data Rate: 250 kbps Modulation: Q-PSK Spread Spectrum: DSSS RF Output Power: Max +15 dBm Sensitivity: -95 dBm Connector: N type Antenna: 2 dBi@ 2.4GHzPerformance Parameters Scalability: NIO 200IAG: 100 field instruments NIO 200IDG: 200 field instruments, 20 subnets NIO 200IDR: 50 field instruments NIO 200HAG: 250 field instruments Mesh Network Depth: 3 hops Field Device Join Time: As low as 20 seconds Reporting Rate: ISA100: 1, 5, 10, 20, 30 and 60 seconds; 10 devices publishing/second WirelessHART: 8,16,32 secs and 1-60 minutes; 10 devices publishing/second |
| High-Side Communication Interfaces | Monitoring and Control System (MCS)MODBUS/ CPGateway Services Access Point (GSAP) (only for NIO200IAG/ IDG)HART-IP (only for NIO200HAG) |
