Icom Aviation Mobile
| General | |
|---|---|
| Frequency range (Tx/Rx) | 118.000–136.992MHz |
|
Channel spacing |
25kHz/8.33kHz |
| Type of emission | A3E (AM) |
| Number of memory channels | 200 channels |
| Antenna connector | SO-239 (50Ω) |
|
Power supply requirement |
13.75V/27.5V DC |
|
Current drain (at 13.75 V DC) |
5.0A (maximum) 4.0A (at AF max.), 0.5A (at stand-by) |
| Operating temperature range |
-30°C to +60°C; |
| Frequency stability | ±5ppm (–30˚C to +60˚C) |
|
Dimensions (W×H×D, |
161×45×193 (mm); 6.34×1.77×7.6 (in) (approximately) |
| Weight (approx.) | 1.5kg; 3.3lb |
| Transmitter | |
|---|---|
| Output power (at 13.75V) (Carrier Power) |
9.0W typ. |
| Modulation | 70% to 100% |
| Spurious emissions (* Harmonics/Non-harmonics, 30MHz–1GHz) |
Less than -60dBc |
| Microphone impedance | 600Ω |
| Receiver | |
|---|---|
| Intermediate freq. | 38.85MHz/450kHz (1st/2nd) |
| Sensitivity (pd) | 1 μV (6dB S/N) |
|
Selectivity 8.33kHz 25kHz |
2.778/7.37kHz (6dB/60dB) 8/25kHz (6dB/60dB) |
| Spurious response | More than 74dBμ |
|
Audio output power Internal SP (8Ω load) External SP (8Ω load) Headphone (500Ω load) |
10% distortion, 60% modulation) 1.5W typical More than 10W More than 100mW |
Measurements made in accordance with FCC Part 87 for USA version or EN 300 676-1 for Europe version. All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows:
| Standard | MIL 810G | |
| Method | Procedure | |
| Low Pressure | 500.5 | I, II |
| High Temp. | 501.5 | I, II |
| Low Temp. | 502.5 | I, II |
| Temp. Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Humidity | 507.5 | II |
| Vibration | 514.6 | I |
| Shock | 516.6 | I |
Applicable IP Rating
| Ingress Protection Standard | |
| Dust & Water | IP54 (Dust-protection and water resistance) |
Supplied Accessories
- Hand microphone, HM-216
- DC power cable
- Microphone hanger kit
- Mounting bracket kit
- Fuses
Icom’s A120 air band mobile introduces two new features: Active Noise Cancelling (ANC) and Bluetooth® capabilities. The newly added built-in ANC reduces background noise and is effective in extremely noisy airport environments. The automatic noise limiter (ANL) reduces pulse-type noise such as engine ignition. Insert the optional UT-133A Bluetooth® unit and connect a third-party wireless Bluetooth® headset.
This unit is great for any mobile application and it’s available in a base station. Both are built to mil spec for superb reliability!
Output Power: |
36W (P.E.P) | |
Frequencies: |
118.000-136.992MHz | |
Channel Spacing: |
8.33/25kHz | |
Channels: |
200 with 12 character channel names | |
LCD Display: |
Dot-matrix with alphanumeric characters & icons | |
Waterproof Rating: |
IP54 dust protection & water resistant | |
Mount Option: |
Mounting bracket included |
ON-hook Scan and Dualwatch Functions
The ON-Hook scan function automatically starts scanning when the hand microphone is hooked on the microphone hanger. When you take the microphone OFF hook, the scanning stops at the priority channel or displayed channel. The Dualwatch function checks the priority and operating channels alternatively.
Side Tone Function
When using a third-party headset with the optional OPC-871A headset adapter, the side tone function allows you to monitor your own transmitted voice via the connected headset. Even when using a hand microphone, your voice can be monitored from the headset.
Additional Features
- Compatible with both 12V and 24V systems
- Dualwatch and priority scan functions
- Power on password protection
- CI-V commands for external control
- Connect with other radio devices with the VE-PG3 RoIP gateway
Antennas
Antenna switchbox
118.8-126.8MHz base
station antenna with 50'4" cable
Aviation mobile antenna
with magnetic mount
Aviation mobile antenna
with rooftop hole mount
Cables
Mic Extension cable
(16.4ft)
Mic Extension cable
(8.2ft)
External Speakers
20W large speaker
5W speaker with 3.5mm speaker jack & 2m cable
Headsets
Headset adapter
Avionic PTT switch that plugs into headset
Bluetooth earpiece microphone w/PTT
Internal Modules
Bluetooth® unit
Microphones
Desktop microphone
Microphone
Microphone with built-in speaker and front panel includes up/down
buttons and two programmable buttons (P1/P2)
Power Supplies
120V power supply & cabinet
220V power supply & cabinet
RoIP
RoIP Gateway
5m cable between VE-PG3 & A120
VE-PG3 wall mounting bracket
| General | |
|---|---|
|
Frequency coverage |
|
| Number of channels AIR: VHF/UHF: |
200 channels 128 channels/8 zones |
| Channel spacing AIR: VHF/UHF: |
25kHz/8.33kHz 12.5/25kHz / 15/30kHz* |
| PLL channel step VHF/UHF: |
2.5, 3.125kHz |
| Frequency stability AIR: VHF/UHF: |
±2.5 ppm |
| Operating temp. range |
-30°C to +60°C; -22°F to +140°F |
| Power supply voltage | 13.6 V DC |
| Current drain (approx.) AIR TX: RX: VHF TX: RX: UHF TX: RX: |
5.0A (maximum) 4.0A (at AF max.), 0.5A (at standy-by) 10A (at 50W/45W approx.) 0.7 A/250mA (Max. audio/stand-by) 11A (at 50W/45W approx.) 0.7 A/250mA (Max. audio/stand-by) |
| Antenna impedance | 50Ω (SO-239) |
| Dimensions (W×H×D) |
482.6 × 127 × 393.7mm 19” × 5” × 15.5” |
| Weight ** | 8.6kg; 19 lbs |
**Depends on configuration
| Transmitter | |
|---|---|
|
Output power (at 13.6V DC) |
9W (Carrier power) typical 50W 45W |
| Max. frequency deviation VHF/UHF: |
±5.0/±2.5 kHz (wide/narrow) |
| Spurious emission AIR: VHF/UHF: |
Less than -60 dBc 70 dB typ. |
| Adjacent Ch. power | 70/60dB (wide/narrow) |
| Mic. impedence | 600Ω (8-pin modular) |
| Receiver | |
|---|---|
| Sensitivity AIR: VHF/UHF: |
<1 μV typ. (6db S/N) 0.25 μV typ. (at 12dB SINAD) |
| Squelch sensitivity AIR: VHF/UHF: |
< 0.35 μV (pd) 0.25 μV typ. |
| Adjacent ch. selectivity AIR: VHF/UHF: |
6dB/60dB 75/65dB typ. (wide/narrow) |
| Spurious response AIR: VHF/UHF: |
> 74dBμ 80dB |
| Intermodulation (typical) VHF/UHF: |
75dB typ. |
| Audio output power AIR: VHF/UHF: |
1.5W typical at 10% distortion with an internal SP (8Ω load) 4W typical at 10% distortion with an internal SP (4Ω load) |
| External SP connector | 2-conductor 3.5 (d) mm (1⁄8″))/4Ω |
Supplied Accessories
- AC Power Cord
- DC Power Cord

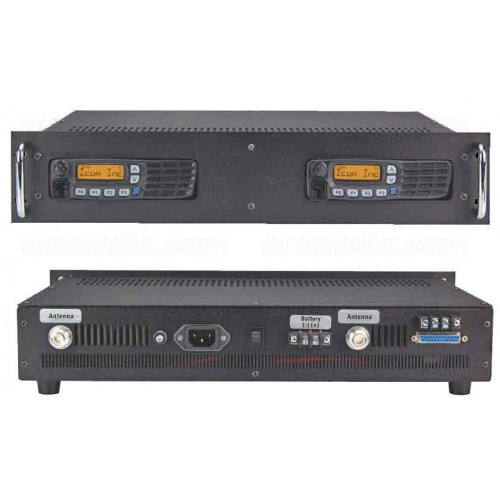

Communication just got easier with Icom’s X-Band Air repeater. The X-Band Air provides seamless inter-band communications between VHF or UHF frequencies and air band frequencies. This provides interoperability between ground crew and air crew for forestry, hospitals and oil rigs. The repeater provides full VFO capability in one box.
Output Power: |
50W (VHF); 45W (UHF); 36W (air band) | |
Frequencies:
|
136-174MHz (VHF) 400-470 or 450-512MHz (UHF) 118.00-136.992MHz (air band) |
|
Versions:
|
Air band + VHF Air band + UHF 400-470MHz Air band + UHF 450-512MHz |
AC to DC Auto Select, 220/110/12V Capable
No need to worry if there is a power failure. The X-Band Air is configured to auto switch from AC to DC and is 220/110/12V capable.
Batteries not included
Frequency Flexibility/Alpha Tag Channels
- VHF & UHF
- 128 channels with 8 memory banks
- 8 character alphanumeric display
- Air Band
- 200 channels with 12 character channel names
- Alphanumeric characters and icons
Other Features
- 19" industry standard rack
- Automatic battery backup charging system
- Internal controller with programmable hang timer
- Use as a dual base unit
- DB-25 accessory connector with EPTT, COR, DISC, EMOD and SFO for each radio
- Built-in AC EMI filter
Microphones
Standard land mobile
microphone
Land mobile microphone
wiht DTMF keypad
Standard air band
microphone
Air band microphone
with speaker
Desktop microphone
