Network Surveillance Solutions
PC CLIENT SOFTWARE
EZAccess Access Control and Attendance Management Software
Efficient device management: unified management of multiple Uniview access control devices.
Efficient device configuration: add devices on LAN by IP address, add persons in batches, and configure permissions by clicking a button.
Rich attendance functionality:
Set attendance rules, including daily attendance time, rules for late arrivals and early departures.
Manage schedules by time period and shifts
Handle abnormal attendance, including resign-in and resign-out, leaves and business travels
Attendance statistics, including original attendance data, attendance summary and details.
| Function | Description |
| Note: Functionality may vary with software version. | |
| Device management | |
| Add device | Search and add devices by IP address. Up to 32 access control devices. |
| Device list | View detailed device information such as device name, IP address, device model, network status. |
| Personnel management | |
| Department management | Supports multi-level department management. |
| Personnel management | Configure basic personal information such as ID, name, gender, mobile phone number, and photos. Import and export personal information in batches. |
| Access control | |
| Permission management | Assign access permissions, configure permissions in batches. Sync configurations to devices. |
| Holiday setup | Add holidays, set the start and end time of holiday. Repeat holidays by year. |
| Attendance management | |
| Attendance regulations | Set daily attendance schedules. Set rules for behaviors such as “early departure”, “not sign in” and “not sign out”. |
| Staff schedule | Set working time period. Set shifts by time period. Arrange shifts. |
| Attendance handling | Shows abnormal attendance records and allows resign-in and resign-out. Handling of leaves and business travels. |
| Attendance statistics | Shows original attendance data, attendance summary and attendance details. Supports data export. |
| Installation environment | |
| EZAccess | Operating system: Microsoft Windows 7/10, 64-bit CPU: Intel® Core™i5-3470 CPU @3.2GHz (4 CPUs)~3.2GHz or higher Memory: 8GB or more Hard disk: A minimum of 20GB free space required Monitor: 1440*900 or higher |
Unified management for Uniview’s IP cameras, NVRs, hybrid NVRs, network keyboards, decoding devices, and etc.
Efficient device management: Automatic device discovery (or search by network segment); add devices by IP address/domain name; add devices by EZDDNS; add devices and adjust time in batch.
Diverse functions:
Live view: scene, custom layout, split screen, auxiliary screen display, corridor mode, sequence display, audio, two-way audio
Recording: local recording, alarm-triggered recording, scheduled recording, recording download
Playback: synchronous/asynchronous playback, instant playback, recording search by time/event, and play recordings on SD card
PTZ control: preset, preset patrol, recorded patrol, patrol plan
Alarm: Service alarm (event alarm), device alarm (online/offline, etc.), alarm triggering (live view, etc.), real-time/history alarm management
E-Map: hot spot, hot zone, eagle eye, and map alarm
Video wall: live view, sequence display and playback on video wall, alarm to video wall, open window(s) by one click, auto bind decoding channel, multi-window for one decoding channel, save and switch scene, small pixel pitch LED, virtual LED
| Function | Description |
| Note: Functions and system requirements may vary with software version. | |
| Device Management | |
| Features | Device discovery (auto discovery, specify network segment) Add devices by IP address/domain name/ EZDDNS Cloud device management(add, edit, delete and share) Group devices, view device status, restart device Remote configuration(image parameters, encoding parameters, OSD) Fisheye camera supported |
| Live View | |
| Screen Layout | 1/ 4/ 5 /6 /8 /9 /10 /13 /16 /17 /25 /32 /36 /64 split view 1 / 4 / 9 / 16 / 25 default view and custom view 3 auxiliary screens |
| PTZ Control | Pan, tilt, zoom, shortcut PTZ, focus, preset, patrol, 3D positioning, IR control, wiper control, heat control, snow removing Note: Actual functionality may vary depending on device capability. |
| Features | Group display, sequence display, snapshot, digital zoom, scene, instant playback, local recording, default and custom view, custom stream, corridor mode, audio, two-way audio, and manual alarm |
| Playback | |
| Recording | Play back recording from NVR and SD card 16-ch (Async)/16-ch (Sync) playback Display recording status on a calendar Recording in .ts, .mp4 format |
| Features | Local recording, scheduled recording, alarm triggered recording, search recording by time/recording type, recording download, snapshot, digital zoom, -16x~16x speed for forward and backward, audio, instant playback, play back local recordings, playback by image, playback by frame, playback in default/custom view |
| Alarm | |
| Type | Multiple alarm types. |
| Alarm Triggering | Live view, recording, email, preset, sound and etc. Trigger other IPCs |
| Alarm Records | Real-time alarm info display and acknowledge History alarm display/acknowledge/query |
| E-Map | |
| Format | PNG/JPEG/BMP |
| Map Alarm | Alarm flash, search and acknowledge |
| Features | Hot spot, hot zone, map zoom in/out, eagle eye |
| User Management | |
| User Management | Add, edit and delete user, query user |
| User Level | Super administrator, administrator, operator |
| User Info | User name, password, user level, permissions Different default permissions for different user levels Assignable permission(s) of each IPC |
| System Configuration | |
| Audio & Video | Configure video processing mode, display mode, stream transmission protocol Enable shortcut PTZ control, GPU mode Configure snapshot mode, image save path Configure format and save path for local and downloaded recordings |
| System | Enable auto login to EZStation/ Windows Set retention period for operation/alarm log Import and export configuration |
| Operation | Set alarm duration, alarm recording start and end time Enable auto time sync, set synchronization interval Configure SMTP server and email address used to send/receive emails |
| System Requirement | |
| EZStation 3.0 64-bit | Operating System: Microsoft Windows 7/Windows 8/Windows 10 (64-bit) CPU: Intel Core i5 3.1 GHz or higher Memory: 4GB or higher |
| EZStation 3.0 32-bit | Operating System: Microsoft Windows 7/Windows 8/Windows 10 (32-bit or 64-bit) CPU: Intel Pentium IV 3.0 GHz or higher (4Cores, 3.0 GHz recommended) Memory: 4GB or higher |
| EZStation 3.0 Mac | Operating System: Mac OS 10.11 or higher CPU: Intel Core i5 3.1 GHz or higher Memory: 4GB or higher |

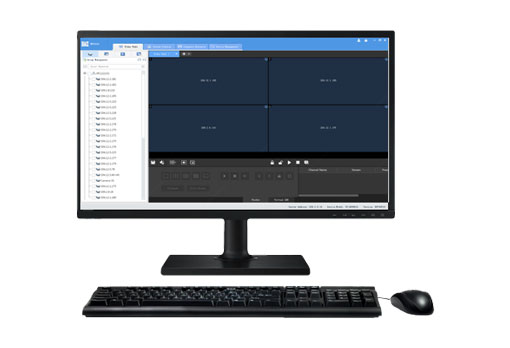

Supports multiple device models including ADU8606, ADU8609, ADU8612, ADU8615, ADU8618, ADU8612-E, DC-B204, DC-B206, and DC-B209.
Supports Uniview and other manufacturers' IPC and NVR.
Live view, sequence display, and play signal source on video wall, open windows by one click, split window, window roaming, virtual LED, scenes and scene plans.
Supports small pixel pitch LED, turn on/off Uniview screens automatically at a set time, turn on/off manually or with a delay.
| Function | Description | |
| Note: Functions available may vary with the server. | ||
| Device management | Add, edit, and delete devices on LAN Supports automatic search, and allows user to add devices manually |
|
| Open device's Web interface from the client | ||
| View device status, including status of NVR-connected IPCs | ||
| Supports Onvif | ||
| Video wall | Add, edit, and delete video walls; supports small pixel pitch LED | |
| Bind decoding channels automatically, bind decoding channels by one-click, splice screens, custom screen layout | ||
| Scene and scene plan (execute by set time interval or 24-hour schedule) | ||
| Multiple ways to open windows: one click (1/3/4/5/6/7/8/9/10/13/16/17/25/32/36/64 and M*N custom layout), right mouse button, or coordinates Window roaming and overlay, double-click window to view in full screen mode, renumber windows, window lock/unlock, display on top/bottom, and view window/split window info |
||
| Start videos in batches on one or multiple screens | ||
| Sequence display videos in one or multiple windows | ||
| Play PC's video signals through server's DVI or VGA interface to the video wall. | ||
| Device group, including default group and custom group | ||
| Virtual LED: LED coordinates, custom LED content, font style, font size, font color, character spacing and alignment, background color and transparency, moving speed and mode; enable/disable virtual LEDs | ||
| Supports audio output and volume adjustment | ||
| Sequence resource | Add, edit, and delete sequence resource | |
| Screen control | Turn on/off screen automatically at a set time Turn on/off screen manually Turn on/off screen with delay |
|
| Client configuration | Automatic login to EZWall Automatic login to Windows Automatically display selected window on top Play video with set or adaptive stream type |
|
| Help | User manual | |
| Language | Chinese and English | |
| Environment | ||
| OS and min. requirements | OS: 32-bit or 64-bit Microsoft Windows 7, 8, 10 CPU: Intel Core i5 2.3GHz or higher RAM: 4GB or higher |
|
MOBILE CLIENT SOFTWARE
Manage UNV decoder and Video Wall Controller .
Support UNV and third-party IPC and NVR.
Sync video wall information of connected devices, including window layout and live view services.
Manage multiple video walls.
Save and switch scene.
Window operations: open window in batches, split window, window roaming, resize window.
Sync live view services of connected devices.
Play live view and local signal resource on video wall.
PTZ control: rotation, speed control, zoom and focus.
Sync and play sequence resource of connected devices.
Turn on/off UNV’s screen.
| Function | Description |
| Note: Actual functionality may vary with the decoding device connected. | |
| Device management | Sync the signal sources of connected decoding devices |
| View device status, including video channels under an NVR | |
| Support Onvif protocol | |
| Video wall | Sync video wall information of connected devices, including window layout and live view services |
| Switch video wall | |
| Scene | Sync scene of connected devices |
| Save and switch scene | |
| Window | Open a single window, open window in batches(1/4/9/16/25/36/Custom) Window roaming, resize, and overlay |
| Selected window displays on top automatically | |
| Switch window layout (1/2/3/4/5/6/7/8/9/10/13/16) | |
| Stream type: specify default stream, or adapt to screen layout | |
| Live view | Play live video on video wall: drag to intended window, or double tap video channel |
| Stop live view of selected window Stop all live videos |
|
| Play signal source on video wall: play local signal source connected to the decoder’s video input on video wall. | |
| PTZ control | Control PTZ rotation with direction buttons |
| Set rotation speed | |
| Zoom and focus | |
| Sequence resource | Sync sequence resources of connected devices |
| Play sequence resource in one window or in all windows | |
| Screen control | Turn on/off screen |
| Client configuration | The IP, port, and username of the latest successful login are remembered by default. |
| Help | Online help |
| Language | English, Chinese |
| Requirements | |
| Operating system | Android 4.4 or later |
| Memory | 1 GB or higher |
| Display resolution | 480 x 800 or higher |
| Recommended device | Android tablet |
Add a device by QR code scanning
Share a device to multiple users, and allow multiple users to log in to the same account from multiple clients simultaneously.
Live view: live video in split view on multiple screens, resume live view, PTZ control, two-way audio, image quality, snapshot and record.
Playback: recording search, synchronous playback, 4/9-split, SD card recording playback.
Alarm: Real-time motion detection alarm, alarm video, batch handling of alarm messages.
Sharing: Share device/channel, set sharing period and permissions, view/edit sharing history, cancel sharing.
Cloud account management: sign up with an email address, edit account info, retrieve password, use demo device without login
File management: sort image/video by type, export files, share files via third-party apps.
| Function | Description |
| Device Management | |
| Device management | Max. 6 devices or 100 channels Demo devices Add a device by scanning QR code or entering serial number Edit/delete devices Upgrade and share device/channel |
| Live View | |
| Play control | 1/4/9/16 split view Live view on multiple screens Image quality: HD/SD/Smooth (main/sub/third stream) Drag video to play in another window Play/pause video in selected window Resume live video in the previous split view Tap to playback in the selected window Snapshot and record; tap to view saved snapshots/videos |
| PTZ control | 8 directions Focus, zoom Note: Actual functionality may vary depending on device capability. |
| Two-way audio | Two-way audio with NVR and camera (including NVR-connected camera) Note: Actual functionality may vary depending on device capability. |
| Recording and Playback | |
| Search | Search by date and device Display recording status on the calendar Custom video start time Image quality: clear/smooth (sub/third stream) Drag the timeline to search, pinch the timeline to zoom in/out (5/10/30/60m timeline scale) |
| Playback | Up to 4-ch playback synchronous playback Split video into small segments by 4-split or 9-split to pinpoint an event Play recordings saved on an SD card Digital zoom Snapshot and record, tap to view saved snapshots/videos. 1/4x, 1/2x, 1x, 2x and 4x playback speed Resume playback in the previous split view |
| Cloud Account Management | |
| Sign up and login | Sign up by an e-mail address Use demo device without login Remember accounts that you have successfully logged in |
| Management | Share EZView account Change password and edit personal info Change registered e-mail address |
| Share | |
| Configuration | Share device/channel |
| Set sharing period and permissions | |
| Sharing list | Display sharing history |
| Edit/cancel sharing | |
| Alarm message | |
| Message list | Motion detection alarm |
| Push alarm messages in real time | |
| View alarm recording (only when alarm recording exists) | |
| Batch message operation | |
| File Management | |
| File list | Sort by type (image/video) |
| Delete files | |
| Export files to mobile phone | |
| Share files via third-party apps | |
| Press and hold to select multiple files | |
| Batch file operation | |
| Common | |
| PTZ speed | 1-9 levels |
| Do Not Disturb | When enabled, the mobile phone does not alert you when an alarm is received. |
| Data usage | Cellular/Wi-Fi data usage |
| Tool | |
| Temporary device password | Obtain a temporary device password by QR code scanning or entering device serial number |
| About | |
| Version upgrade | Check for update automatically |
| Help | FAQ |
| Customer service | Customer service info |
| Requirements | |
| Operating system | iOS 8.0 or later Android 4.0 or later |
| Memory | 1 GB or higher |
| Display resolution | 480 x 800 or higher |
| Compatibility | Android and iOS mobile phone and pad |
Mobility: live view, playback, and device management anytime, anywhere
Remote control: cloud device management by a cloud account; two-way audio, PTZ control
Security: data encryption, pin/pattern password protection, each device can bind with only one cloud account
Alarm notification: alarm notifications on mobile device; view live video, alarm video and snapshots
Sharing: share devices; share videos/images through third-party apps
Stability: P2P networking technology, elastic and scalable architecture
Easy to use: add a device by QR code scanning, tap to switch live view/playback, cellular/Wi-Fi data usage
| Function | Description |
| Device Management | |
| Device management | Max. 64 local devices and 64 cloud devices Max. 10000 channels (local and cloud) IPC, NVR and Unicorn Demo devices Add device by QR code scanning, automatic search (LAN), or add manually (IP/domain and EZDDNS) Edit/delete devices Sync cloud devices automatically when logged in Device upgrade, speed test, device sharing Tap a button to start live video |
| Live View | |
| Play control | 1/4/9/16 split view Live view on multiple screens Image quality: HD/SD/Smooth (main/sub/third stream) Drag video to play in another window Resume live video in the previous split view Tap to playback video in the selected window Snapshot and record; tap to view saved snapshots/videos |
| PTZ control | PTZ control by gestures Focus, zoom and preset Note: Actual functionality may vary depending on device capability. |
| Two-way audio | Two-way audio with NVR and camera (including NVR-connected camera) Touch and hold to select device Note: Actual functionality may vary depending on device capability. |
| Recording and Playback | |
| Search | Search by date, custom video start time Image quality: clear/smooth (sub/third stream) Drag the timeline to search, pinch the timeline to zoom in/out Tap to play live video in the selected window |
| Playback | Up to 4-ch playback Split video into small segments by 4-split or 9-split to pinpoint an event Play recordings saved on an SD card Digital zoom Snapshot and record, tap to view saved snapshots/videos. 1/4x, 1/2x, 1x, 2x and 4x playback speed Resume playback in the previous split view |
| Alarm Notifications | |
| Alarm list | Live view and playback when a device alarm occurs Push alarms in real time for cloud devices Multiple alarm types Share, delete and acknowledge alarms |
| Allow notifications | Set the mobile phone to receive or not receive alarms from a specified device |
| Advanced settings | Custom alarm notification by channel, time, alarm type Save configurations locally to keep custom configurations on different clients |
| Favorites | |
| Favorites | Save split view and cameras as Favorites during live view Add, edit, rename, delete Favorites Tap a button to start live video |
| Picture & Video | |
| File list | Sort files by time and type Delete files Export files to the mobile phone Share files through third-party apps |
| Files | View local videos and pictures |
| Cloud Account Management | |
| Sign up and login | Sign up by an e-mail address Select region for optimal experience (region cannot change when signed up) Remember accounts that you have successfully logged in Allows users to use the app without a cloud account |
| Management | Change password and edit personal info |
| Device sharing | Share devices View your sharing history Generate a QR code for a device to share View the QR codes that you have generated |
| Temporary password | Obtain temporary password for cloud device |
| Configuration | |
| Snapshot | 1x, 3x and 5x snapshot modes |
| PTZ speed | 1-9 (slow to fast) |
| Password protection | PIN or pattern |
| Do Not Disturb | When enabled, the mobile phone does not alert you when receiving an alarm. |
| Auto Discover New Devices | Automatically discover NVR (PoE kit only) |
| Device Wi-Fi Configuration | Connect your devices to Wi-Fi |
| Forget Device Password | Get a temporary password for your cloud device |
| Data usage | Cellular/Wi-Fi data usage |
| Help | |
| Update | Check for update automatically |
| EZCloud announcement | Support |
| Help | Online help Tutorial video User feedback Contact email addresses |
| Language | Multiple languages |
| Requirements | |
| Operating system | iOS 7.1 or later Android 4.0 or later |
| Memory | 1 GB or higher |
| Display resolution | 480 x 800 or higher |
| Compatibility | Mobile phone (Android and iOS) and iPad |
