Passenger Information Panel PC
All-in-one Panel PC (TPPC)
NEXCOM all-in-one Panel PC acts as a useful tool to enrich passenger's transportation experience. Catering to fast growing demand for reliable, market-proven all-in-one Panel PCs for passenger information applications, NEXCOM runs dedicated teams from mechanical design, software programming to technical support to serve the industry seamlessly. Not to speak of ruggedized, fanless industrial design for improved durability to fit into indoor and outdoor environments, rich I/O ports are equipped for smooth integration with LCD displays as well as external devices.

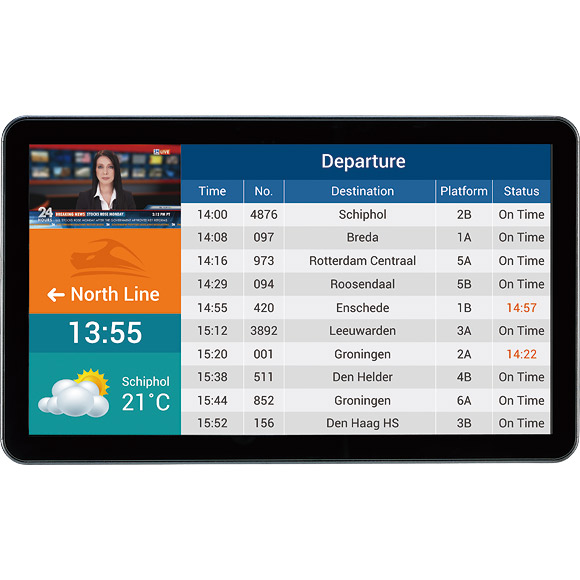

TPPC 2210
TPPC 2210 is 21.5” 16:9 LCD with resolutions to 1920 x 1080 (Full HD) and industrial motherboard making it the perfect “AIO” In transit panel PC solution. VESA mount Kit (optional) design for easy installation almost any location, including retail outlets, supermarkets, train station, airports and Bus. It is compliant to in-vehicle industrial standard, like E/e-Mark.
Support Daisy Chain HDMI over Ethernet of HDBaseT technology, it allows multimedia signal easily to use Cat5e/Cat6 cable to extend TV display UP to 60M or longer distance It can connect to maximum eight displays, making the whole system more flexible on applications.
TPPC 2210
Passenger Information Panel PC Powered by Intel® Celeron® Processor N2807 1.58GHz- Main Feature
- Intel® Celeron® N2807
- Wide range DC input from 12~36V
- Front bezel compliant with IP54
- Tempered glass
- Fan Less
- Video over Ethernet extender (HDBaseT)
- Supports W-Fi, GPS
| LCD Panel | LCD size: 21.5", 16:9Resolution: full HD, 1920 x 1080Luminance: 500 cd/m²Contrast ratio: 3000LCD color: 16.7MViewing angle: 89 (U), 89 (D), 89 (L), 89 (R)Backlight: LED |
| CPU Support | Intel® Celeron® processor N2807 1.58GHz |
| Chipset | Intel® Baytrail-M |
| Graphics | Intel® HD Graphics |
| Main Memory | 1 x 204-pin SO-DIMM socket, Supports DDR3L 1333MHz non-ECC, un-buffered memory up to 4GB |
| I/O Interface | 1 x 12~36V, 6-pin (Power, Ignition, Ground)2 x USB2.02 x LAN1 x COM port1 x Power button1 x Video over Ethernet extender (Optional, TPPC 2210T) |
| Audio | AC97 codec: Realtek ALC622Two 2W Speakers |
| Ethernet | LAN chip: Realtek RTL8111G LAN Chip, support Gigabit LANEthernet interface: 10/100/1000 Based-Tx Ethernet compatible |
| Storage | 1 x SATA 2.5"1 x mSATA (share with mini-PCIe) |
| Expansion | 1 x mini-PCIe slot (Full size)1 x mini-PCIe slot (Half size) |
| Environment | Operating temperature: -10°C to 40°CStorage temperature: -20°C to 60°CHumidity: 10 to 90% (non-condensing) |
| Certification | CEFCCE/e-Mark |
| Operating System | Win7/WES7/Win8/WE8S/Win10/Linux |
| Mechanical | Color: Pantone Black CEnclosure: Aluminum and IronMounting: support VESA75/100/200mmIngress protection: Front bezel IP54Dimension: 530.46mm x 323mm x 58mmWeight: 7kg |

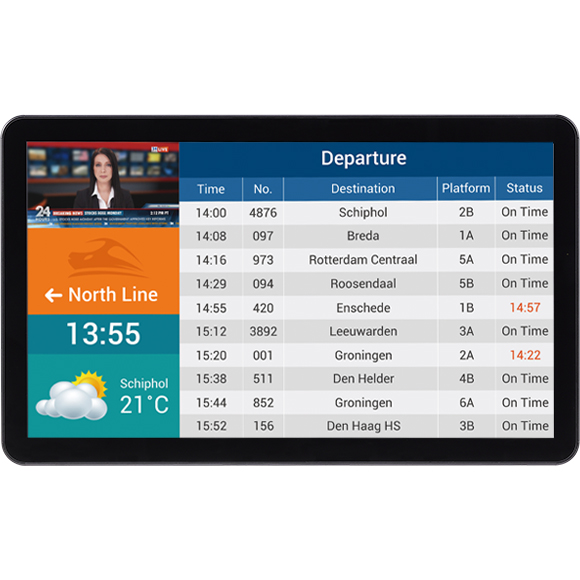

TPPC 2401
The 23.8” fanless panel pc, TPPC 2401 is a 23.8” 16:9 TFT-LCD with resolutions to 1920 x 1080 (Full-HD) and industrial motherboard making it the perfect “ AIO” in transit panel PC solution. Wide-range power input (9V-36V DC) can let TPPC 2401 to be capable of setting up in various application environment and vehicles, which is included in retail outlets, supermarkets, train station, airport and bus. It is compliant to in-vehicle industrial standard, like E/e-Mark.
TPPC 2401
23.8” Full-HD Passenger Information Panel PC Powered by Intel Atom® x5-E3930 Processor
- Main Feature
- 23.8” TFT-LCD FHD 16:9 fanless panel computer
- Powered by Intel Atom® x5-E3930 processor, 1.3GHz
- Wide-range DC input of 9V to 36V DC
- Support ignition control for power on/off delay timing management
- Compliant with IP54 on the front panel
- Tempered glass, surface hardness 6H
- 1 x DDR3L up to 8GB, M.2 (2242) B-Key SSD for storage device
- 1 x mini-PCIe expansion available for wireless communication
- CE/FCC/E/e-Mark
| LCD Panel | LCD size: Innolux 23.8,16:9Resolution: Full-HD, 1920 x 1080Luminance: 350 nits cd/m2Contrast ratio: 1,000LCD color: 16.7MView angle: 178 (H), 178 (V)Backlight: LED |
| System | Intel Atom® x5 E3930 processor, 1.3GHz (burst mode: 1.8GHz) |
| System Front | 1 x Ambient light sensor |
| Main Memory | 1 x 204-pin DDR3L SO-DIMM socket, up to 8GB. Support up to 1866 Mhz, non-ECC and unbuffered memory |
| Rear I/O | 1 x Power input connector, 6-pin (9V-36V DC & Ignition control)1 x DB9 COM port for RS232/422/4852 x RJ45 Intel® I210-AT gigabit LAN ports4 x USB 3.0, support USB 2.01 x HDMI 1.4b (support 4K x 2K @30Hz)1 x Line-in, Line-out with 16Ω Amplifier |
| Audio | Realtek ALC886 audio codec |
| Storage Device | 1 x M.2 (2242) B key SSD, up to 256G max.1 x 2.5” SATA SSD reserved |
| Expansion | 1 x mini-PCIe full-size connector on board (support PCIe/USB) |
| Power Management | 9V to 36V DC input (UPS: 12V, 24V and 36V)Ignition on/off control & programmable on/off delay timing |
| Environment | Vibration - IEC60068-2-64 - Operating: 1G, random, 5-500Hz, 1hr/axis (w/ storage)Drop - IEC60068-2-32 - ISTA-2A STD - 10.4kg (packing weight) & 81cm (falling height)Temperature - Operating temperature: 0~50°C - Storage temperatures: 0~70°C - Damp heat test per EN60068-2-30, 45~55°C, 95%, 48Hrs, non-condensing |
| Operating System Support | Win10 IoT Enterprise 64-bitLinux Yocto 4.14 |
| Mechanical Information | Color: blackVESA mount (100mm x 100mm; 200mm x 200mm)Dimension: 580.31mm (W) x 354.6mm (D) x 55.5mm (H)System weight (N.W): 10kg, 22lbPackage weight (G.W): 12kg, 26.45lb |
| Certification | CE (EN55024, EN55032, EN55035)FCC Class A (Part 15B)E-mark: E-13, 12/24V |

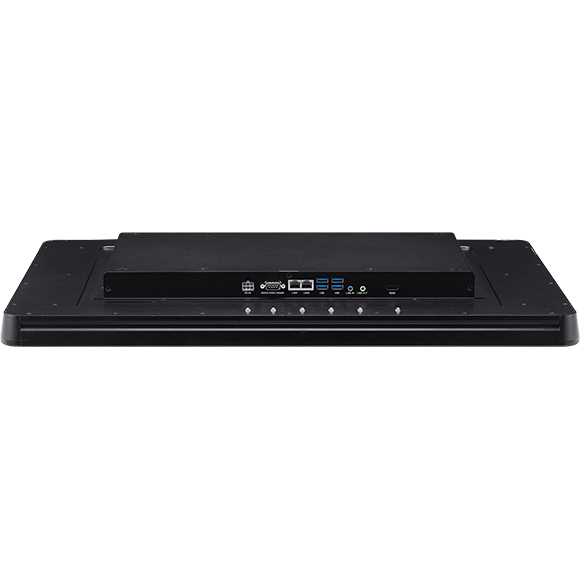

TPPC 2701
The 27” fanless panel pc, TPPC 2701 is a 27” 16:9 TFT-LCD with resolutions to 1920 x 1080 (Full-HD) and industrial motherboard making it the perfect “AIO” in transit panel PC solution. Wide-range power input (9V-36V DC) can let TPPC 2701 to be capable of setting up in various application environment and vehicles, which is included in retail outlets, supermarkets, train station, airport and bus. It is compliant to in-vehicle industrial standard, like E/e-Mark.
TPPC 2701
27” Full-HD Passenger Information Panel PC Powered by Intel Atom® x5-E3930 Processor
- Main Feature
- 27” TFT-LCD FHD 16:9 fanless panel computer
- Powered by Intel Atom® x5-E3930 processor, 1.3GHz
- Wide-range DC input of 9V to 36V DC
- Support ignition control for power on/off delay timing management
- Compliant with IP54 on the front panel
- Tempered glass, surface hardness 6H
- 1 x DDR3L up to 8GB, M.2 (2242) B-Key SSD for storage device
- 1 x mini-PCIe expansion available for wireless communication
- CE/FCC/E/e-Mark
| LCD Panel | LCD size: AUO 27”, 16:9Resolution: Full-HD, 1920 x 1080Luminance: 300 nits cd/m2Contrast ratio: 3,000LCD color: 16.7MView angle: 178 (H), 178 (V)Backlight: LED |
| System | Intel Atom® x5 E3930 processor, 1.3GHz (burst mode: 1.8GHz) |
| System Front | 1 x Ambient light sensor |
| Main Memory | 1 x 204-pin DDR3L SO-DIMM socket up to 8GB. Support up to 1866 Mhz, non-ECC and unbuffered memory |
| Rear I/O | 1 x Power input connector, 6-pin (9V-36V DC & Ignition control)1 x DB9 COM port for RS232/422/4852 x RJ45 with LEDs for gigabit LAN4 x USB 3.0, support USB 2.01 x HDMI 1.4b (support 4K x 2K @30Hz)1 x Line-in, 1 x Line-out with 16Ω Amplifier |
| Audio | Realtek ALC886 audio codec |
| Storage Device | 1 x M.2 (2242) B key SSD, up to 256G max.1 x 2.5” SATA SSD reserved |
| Expansion | 1 x mini-PCIe full-size connector on board (support PCIe/USB) |
| Power Management | 9V to 36V DC input (UPS: 12V, 24V and 36V)Ignition on/off control & programmable on/off delay timing |
| Environment | Vibration - IEC60068-2-64 - Operating: 1G, random, 5-500Hz, 1hr/axis (w/ storage)Drop - IEC60068-2-32 - ISTA-2A STD - 16.1kg (packing weight) & 81cm (falling height)Temperature - Operating temperature: 0~50°C - Storage temperatures: 0~70°C - Damp heat test per EN60068-2-30, 45~55°C, 95%, 48Hrs, non-condensing |
| Operating System Support | Win10 IoT Enterprise 64-bitLinux Yocto 4.14 |
| Mechanical Information | Color: blackVESA mount (200mm x 200mm; 200mm x 400mm)Dimension: 655.4mm (W) x 399.1mm (D) x 67.2mm (H)System weight (N.W): 13.2kg, 29.1lbPackage weight (G.W): 16.1kg, 36.8lb |
| Certification | CE (EN55024, EN55032, EN55035)FCC Class A (Part 15B)E-mark: E-13, 12/24V |
