Digital Land Mobiles
Produced to pass rigorous in-house test as well as environmental tests to the US Military Standard 810 specifications, Icom digital (IP) land mobile radio terminals with roaming feature and repeater systems let you connect dispersed sites or different bands over IP network with no control server. No matter your location, Icom digital systems will provide seamless communication across your remote sites using existing IP network.
Our Range VHF and UHF Transceivers
Simple Operation, Versatile Functions and Rugged Construction for Your Day-to-day Communication Needs

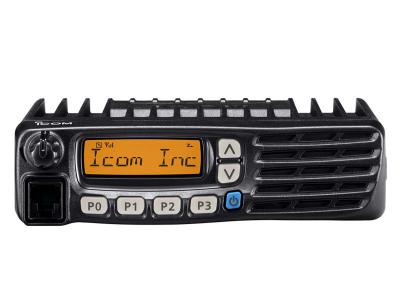

The F5011 series is designed for the everyday operation from education, agriculture to distribution. This entry-level radio has everything needed to get started at 8 channels and P0-P3 programmable buttons.
Channels: |
8 | |
Output Power: |
50W VHF / 45W UHF | |
Frequencies: |
136-174 VHF/400-470, 450-512 UHF | |
Programmable Keys: |
4 |
Multiple Signaling Options
Use the built-in 2-Tone, 5-Tone, MDC 1200, CTCSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking. Up to ten 2-Tone or eight 5-tone codes can be decoded on a channel. Features such as stun, kill, revive, answer back, auto TX, scan audio output are programmable to respond to each tone. The F5011 series has a built-in MDC 1200 for transmitting a PTT ID and emergency * signal and for receiving radio check, stun and revive. Assimilate the radio easily into existing MDC 1200 systems.
(*No ACK transmission)
Enhanced Scan Features
The priority scan function allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.
Remote Channel Control with Optional ACC Cable
The optional ACC cable allows you to connect with various external devices to control audio output, modulated signal input, remote channel control, horn honk and many more functions. OPC-1939 is a D-SUB 15-pin type and OPC-2078 is a D-SUB 25-pin type.
Other Features
- 4W (typ.) front mounted speaker
- Microphone hanger action programmable
- Talk around function
- Power-on password function
- Nuisance delete function
- Time-out-timer, lock-out penatly timer
| General | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Frequency range |
F5011
136–174MHz F6011
400-470MHz 450-512MHz |
||||||||
| Number of channels | 8 channels | ||||||||
| Channel spacing |
F5011: 12.5/25 kHz, 15/30 kHz F6011: 12.5/25 kHz |
||||||||
| Type of emission |
116K0F3E/11K0F3E |
||||||||
| PLL channel step | 2.5 kHz, 3.125 kHz | ||||||||
| Antenna impedance | 50Ω (SO-239) | ||||||||
| Operating Temp. range |
–30°C to +60°C –22°F to +140°F |
||||||||
| Power supply requirement | 13.6V DC | ||||||||
|
Current drain (approx) Tx Rx Max Audio |
|
||||||||
|
Dimensions (W×H×D) (projections not included) |
150×40×167.5 mm 5.91× 1.57× 6.59 in |
||||||||
| Weight (approx.) | 1.11kg; 2.4lb | ||||||||
| Transmitter | |
|---|---|
| Output power (approx) |
F5011: 50W, 25W, 5W (Hi, L2, L1) F6011: 45W, 25W, 4.5W (Hi, L2, L1) |
| Max. frequency deviation | ±5.0/2.5 kHz (Wide/Narrow) |
| Frequency error | ±2.5ppm |
| Spurious emissions | F5011: 70dB min. F6011: 70dB typ. |
| FM Hum and Noise | 46/40dB typ. (Wide/Narrow) |
| Audio harmonic distortion | 3% typ. (AF 1kHz 40% deviation) |
| Ext. microphone impedance | 600Ω (8-pin modular) |
| Receiver | |
|---|---|
| Sensitivity (12dB SINAD) | 0.25μV typ. |
|
Adjacent channel selectivity |
75/65dB typ. (Wide/Narrow) |
| Spurious response rejection | 70dB typ. |
| Intermodulation rejection | 75dB typ. |
| Hum and noise ratio | 45/40dB typ. (Wide/Narrow) |
| Audio output power |
4W typ. at 5% distortion with a 4Ω load |
| External speaker connector |
2-conductor 3.5 (d) mm (1⁄8″) /4Ω |
Applicable U.S. Military Specifications
The F5061/F6061 and RMK-3 have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard | MIL 810 F | |
| Method | Proc | |
| Low Pressure | 500.4 | I, II |
| High Temp. | 501.4 | I, II |
| Low Temp. | 502.4 | I, II |
| Temp. Shock | 503.4 | I |
| Solar Radiation | 505.4 | I |
| Humidity | 507.4 | – |
| Settling Dust | 510.4 | III |
| Vibration | 514.5 | I |
| Shock | 516.5 | I, IV |
Also meets equivalent MIL-STD-810-C, -D and -E
Measurements made in accordance with EIA-152C/204D, TIA-603. All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- Hand microphone, HM-152
- Microphone hanger
- Key assign stickers
- DC power cable
- Mounting bracket kit
Antennas
118-940MHz
144-174MHz 3dBgain, 59" high
450-470MHz 5dB gain, 40" high
152-162MHz, 21.6". Factory
tuned to 157MHz
Cables
9.8ft DC power cable
23ft DC power cable
Mic Extension cable
(16.4ft)
Mic Extension cable
(8.2ft)
D-Sub 15-pin ACC cable
D-Sub 25-pin ACC cable
Encryption
Non-rolling voice scrambler
Rolling voice scrambler
External Speakers
20W
5W w/3.5mm speaker jack
Microphones
Noise cancelling
Mounting Hardware
NMO Permanent Mount, no connector
Trunk lid mount
Black magnetic mount
Power Supplies
120Vpower supply & cabinet
220Vpower supply & cabinet

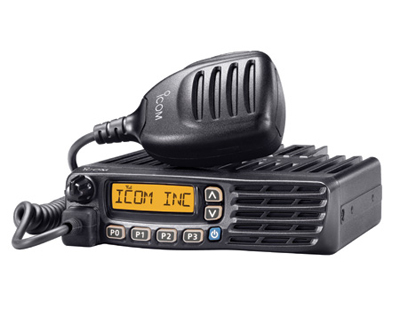

The F5121D series are paired with IDAS and offers digital conventional and single-site trunking. The optional GPS, lone worker function, Logic Trunked Radio (LTR®) and Mixed Mode Operation make it ideal for any operation
Channels: |
128 channels/8 zones | |
Output Power: |
50W VHF / 45W UHF | |
Digital Conventional: |
IDAS built-in | |
Digital Trunking: |
Built-in type D single-site | |
Frequencies: |
136-174 VHF / 400-470, 450-512 UHF | |
Programmable Keys: |
6 |
IDAS™ Digital Mode Features
- PTT ID
- Status
- Radio check
- Call alert
- Emergency (no ACK)
- GPS data (PC and software required to show received position data)
- Individual/Talkgroup list (Max 500)
- RAN (Radio Access Number)
- Stun/kill/revive (RX)
- Remote monitor (RX)
- Digital voice scrambler
- SDM (Short Data Message)
Multiple Signaling in Analog Mode
2-Tone and 5-tone signaling gives you selective calling, quiet stand-by and other convenient functions with programming. The stun/kill functions disable a radio over the air and the revive function restores the stunned radio
The following MDC features are available with the built-in MDC signaling.
- PTT ID
- Radio check (RX)
- Emergency (No ACK)
- Stun/Revive (RX)
- 500 alias table (Max.)
Scan Features
The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The transmit channel and talk back functions allow you to make a quick response while scanning.
Lone Worker Function
When the radio is not operated for a preset period, a warning beep will sound, alerting the radio user to check in. If the radio user does not check in before the preset time runs out, then the radio automatically sends out an emergency signal.
Additional Features
- CTCSS/DTCS encode/decoder*
- 8 DTMF autodial memories
- Microphone hanger action programmable
- PC programmable
- Power-on password function
- Time out timer
- Talk around function
- Nuisance delete function*
- Forced narrow function*
| General | |||
|---|---|---|---|
| Frequency coverage |
F5121D
136–174MHz F6121D
400-470MHz 450-512MHz |
||
| Number of channels | 128 channels (8 zones) | ||
| Type of emission | F5121D: 16k0F3E, 11K0F3E, 4K00F1E/F1D F6121D: 11K0F3E, 4K00FIE/F1D |
||
| Channel spacing | F5121D: 6.25/15/30kHz, 6.25/12.5/25kHz F6121D: 6.25/15/30kHz, 6.25/12.5kHz |
||
| PLL channel step | 2.5 kHz, 3.125 kHz (VHF) | ||
| Power supply requirement | 13.6V DC | ||
| Antenna impedance | 5OΩ (SO-239) | ||
| Operating temperature range | -30°C to +60°C; -22°F to +140°F | ||
| Current drain Tx High (50W/45W) Rx Max. audio Standby |
|
||
| Dimensions (proj. not included) (W×H×D) |
150×40×167.5mm; 5.91×1.57×6.59in | ||
| Weight | 1.1kg; 2.4lb | ||
| Transmitter | |||
| Output power (at 13.6V DC) | F5121D: 50W, 25W, 5W (hi, L2, L1) F6121D: 45W, 25W, 4.5W (Hi, L2, L1) |
||
| Max. frequency deviation | ±5.0 kHz (wide) ±2.5 kHz (narrow) |
||
| Frequency stability |
|
||
| Spurious emissions | 72dB min., 70dB min. | ||
| FM Hum and noise | F5121D: 46/40dB typ. (Wide/Narrow) F6121D: 40dB typ. (Narrow) |
||
| Audio harmonic distortion (AF 1kHz 40% deviation) |
3% typ. | ||
| External microphone connector | 600Ω (8-pin modular) | ||
| Receiver | |||
| Sensitivity (at 12dB SINAD) (at 5% BER) |
0.25μV typ. 0.18μV typ. |
||
| Adjacent channel selectivity | F5121D: 80/70dB typ. (W/N), 65dB typ. (digital) F6121D: 75/65dB typ. (W/N), 60dB typ. (digital) |
||
| Spurious response rejection | 70dB min. | ||
| Intermodulation rejection | 75dB typ. (W/N) 70dBμV emf typ. (digital) |
||
| Hum and noise | 45/40dB typ. (W/N) | ||
| Audio output power (at 5% distortion) | 4 W typ. | ||
| External speaker connector | 2-conductor 3.5 (d) mm (1⁄8")⁄8Ω | ||
Measurements made in accordance with EAIA-152-C/204D or TIA-603.
Applicable U.S. Military Specifications and IP Rating
| Standard | MIL 810 F | |
| Method | Proc | |
| Low Pressure | 500.4 | I, II |
| High Temp. | 501.4 | I, II |
| Low Temp. | 502.4 | I, II |
| Temp. Shock | 503.4 | I |
| Solar Radiation | 505.4 | I |
| Humidity | 507.4 | – |
| Settling Dust | 510.4 | III |
| Vibration | 514.5 | I |
| Shock | 516.5 | I, V |
Also meets equivalent MIL-STD-810-C, -D and -E.
Supplied Accessories
- Hand microphone (HM-152)
- microphone hanger
- DC power cable
- key assign stickers
- mounting bracket kit
All stated specifications are subject to change without notice or obligation.
Antennas
118-940MHz
144-174MHz 3dBgain, 59" high
450-470MHz 5dB gain, 40" high
152-162MHz, 21.6". Factory
tuned to 157MHz
Cables
9.8ft DC power cable
23ft DC power cable
Mic Extension cable
(16.4ft)
Mic Extension cable
(8.2ft)
D-Sub 15-pin ACC cable
D-Sub 25-pin ACC cable
External Speakers
20W
5W w/3.5mm speaker jack
Microphones
Noise cancelling
Mounting Hardware
NMO Permanent Mount, no connector
Trunk lid mount
Black magnetic mount
Power Supplies
120V power supply & cabinet
220V power supply & cabinet

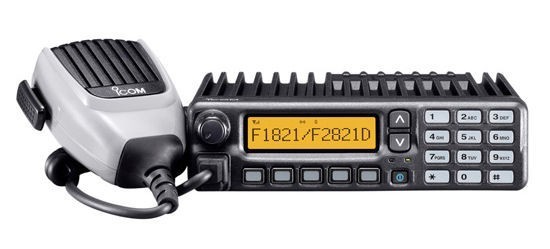

For organizations who run an analog radio system and must migrate to a conventional P25 digital system, Icom provides one of the best solutions. The F2821D series mobile allows you to program P25 digital and/or FM analog mode per channel. Flash ROM capability means future upgrades and flexible customization, tailored for your system. Moreover, built-in multiple tone signaling capability and an optional voice scrambler satisfy existing analog FM system requirements. Icom’s frequency range coverage and rugged construction ensures a flexible, long life radio for you. Icom is the smart choice for current – and future – public safety communication needs.
Channels: |
256 channels, 32 zones | |
Output Power: |
45W | |
Frequencies: |
400-470MHz, 450-512MHz | |
Programmable Keys: |
5 | |
Versions: |
UHF P25 ready with full DTMF keypad UHF P25 upgradeable with full DTMF keypad |
P25 Solution
The F2821D is P25 compliant. The mixed mode scan is compatible with both analog FM mode and P25 digital mode allowing users to program digital and/or analog FM modes per channel. The mixed mode scan allows you to detect and receive both analog FM and P25 digital modes and to transmit either mode depending on programming.
Encryption Options
For basic encryption the F2821D comes with a built-in inversion type voice scrambler. For a slightly more secure system, the optional rolling and non rolling (UT-109/UT-110) are available. Many public safety agencies require high level encryption: AES & DES. Icom offers an AES and DES upgrade to provide secure encryption for the F2821D.
Rugged Construction for Public Safety Users
With heavy-duty construction, the F2821D is built to last. The F2821D incorporates a 4W speaker in an impact resistant polycarbonate front panel for crisp clear audio, and includes a backlit 10-keypad for extended operation.
Additional Features
- High contrast LCD with dot matrix display and 1 or 2 lines of characters
- MDC1200 compatible
- Built-in CTCSS, DTCS, 2-tone, 5-tone
- Encode or decode up to 10 2/5-tone signals on a channel
- Detachable front panel for flexible installation
- Radio stun/kill disables a lost or stolen radio over the air
- Power-on password prevents unauthorized people turning on the radio
- Public address (PA) function allows user to speak through the radio mic
- RX speaker function allows user to relay the received audio over the loud speaker
- Microphone hanger action programmable (scan, monitor, priority channel)
- Optional OPC-617 D-SUB 9 pin connector for dimmer control, modem connection
- D-SUB 25 pin connector for future PC connection
- Built-in audio compander (Analog mode only)
| General | |||
|---|---|---|---|
| Frequency range |
400-470MHz
450-512MHz |
||
| Number of channels | 256 channels/ 32 zones | ||
| Channel spacing |
12.5/25 kHz, 15/30 kHz |
||
| PLL channel step | 2.5 kHz, 3.125 kHz (VHF) 5 kHz, 6.25 kHz (UHF) |
||
| Antenna impedance | 50Ω | ||
| Operating Temp. range | –30°C to +60°C –22°F to +140°F |
||
| Power supply requirement | 13.6V DC nominal | ||
| Current drain (approx)
Tx Rx |
|
||
|
Dimensions (W×H×D) (projections not included) |
175×45×170 mm 67⁄8 ×125⁄32 ×611⁄16 in |
||
| Weight (approx.) | 1.5kg; 3.3lb | ||
| Transmitter | |
|---|---|
| Output power (approx) |
45W (UHF) |
| Max. frequency deviation | ±5.0/2.5 kHz (Wide/Narrow) |
| Frequency error | ±2.0ppm |
| Spurious emissions | 75dB typ. |
| FM Hum and Noise | 45/40dB typ. (Wide/Narrow) |
| Adjacent channel power | 70/60dB min. (Wide/Narrow) |
| Audio harmonic distortion: | 3% typ. (40% deviation) |
| Modulation limiting | 70–100% of Max. deviation |
| Ext. microphone impedance | 600Ω (8-pin modular) |
| Receiver | |
|---|---|
|
Sensitivity Analog (12dB SINAD) Digital (5% BER) |
0.25/0.3μV typ. 0.25/0.3μV typ. |
|
Squelch sensitivity
|
0.25/0.3μV typ. 73dB typ. |
|
Adjacent channel selectivity Analog Digital |
80/75dB typ. (Wide/Narrow) 73dB typ. |
| Spurious response | 80dB typ. |
| Intermodulation Analog Digital |
77/75dB typ. (Wide/Narrow) 77dB typ. |
| Hum and noise ratio | 50/45dB typ. (Wide/narrow) |
| Audio output power External audio (D-sub) |
(at 10% distortion with an 8Ω load) |
| External speaker connector | 2-conductor 3.5 (d) mm (1⁄8″)/4Ω |
Applicable U.S. Military Specifications
| Standard | MIL 810 C | MIL 810 D | MIL 810 E | MIL 810 F | ||||
| Method | Proc | Method | Proc | Method | Proc | Method | Proc | |
| Low Pressure | 500.1 | I | 500.2 | I, II | 500.3 | I, II | 500.4 | I, II |
| High Temp. | 501.1 | I | 501.2 | I, II | 501.3 | I, II | 501.4 | I, II |
| Low Temp. | 502.1 | I | 502.2 | I, II | 502.3 | I, II | 502.4 | I, II |
| Temp. Shock | 503.1 | I | 503.2 | I | 503.3 | I | 503.4 | I |
| Solar Radiation | 505.1 | I | 505.2 | I | 505.3 | I | 505.4 | I |
| Humidity | 507.1 | I, II | 507.2 | II, III | 507.3 | II, III | 507.4 | – |
| Salt Fog | 509.1 | I | 509.2 | I | 509.3 | I | 509.4 | – |
| Dust Blowing | 510.1 | I | 510.2 | I | 510.3 | I | 510.4 | I |
| Vibration | 514.2 | VIII, X | 514.3 | I | 514.4 | I | 514.5 | I |
| Shock | 516.2 | I, II, V | 516.3 | I, IV | 516.4 | I, IV | 516.5 | I, IV |
Supplied Accessories
- Hand microphone, HM-148G
- DC power cable
- Microphone hanger
- Mounting bracket kit
- External speaker, SP-22
- Key assign stickers
Antennas
118-940MHz
144-174MHz 3dBgain, 59" high
450-470MHz 5dB gain, 40" high
152-162MHz, 21.6". Factory
tuned to 157MHz
Cables
9.8ft DC power cable
23ft DC power cable
Mic Extension cable
(16.4ft)
Mic Extension cable
(8.2ft)
ACC cable
External Speakers
20W
5W w/3.5mm speaker jack
Internal Modules
Non-rolling voice scrambler
Rolling voice scrambler
P25 digital board
KVL -
KVL unit
Interface cable
Microphones
Standard mic
Noise cancelling
Desktop microphone
Mounting Hardware
NMO Permanent Mount, no connector
Trunk lid mount
Black magnetic mount
Power Supplies
120Vpower supply & cabinet
220Vpower supply & cabinet
RedHawk - more information >
Speaker microphone with GPS receiver and display
Cable connecting RedHawk to radio
Photo unavailable
Remote Mounting
Remote mount kit
OPC-609: 6.2 ft, OPC-607: 9.8 ft,
OPC-726: 16.4 ft, OPC-608: 26.2 ft
Upgrades
P25 upgrade
DES encryption
AES encryption
