Focusing on high-performance computing and the latest network technology, the Network and Communication Solutions (NCS) Group is committed to helping customers build cutting-edge network infrastructure in the digital world. Integrating a wide range of technologies based on x86 and RISC architecture and our software expertise, NCS’ network application platform is widely adopted in CDNs, cyber security, load balancers, uCPEs, routers, SD-WAN, edge computing, storage, NVRs, and other industrial network applications for business of all sizes.
Switch > PSNA 110

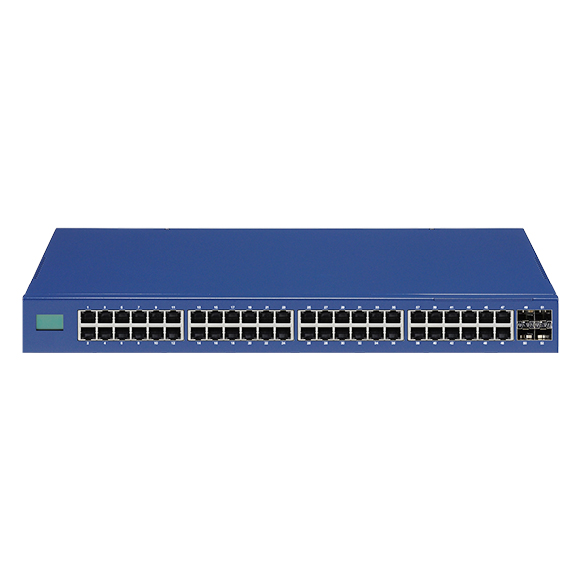

PSNA 110
48 Ports 10G-Switch with PoE- Main Feature
- 48 x GbE PoE+ ports, 4 x 10GbE SFP+ ports, 2 x QSFP ports (on the rear)
- Support PoE at/af with 550W PoE budget
- Redundant & hot- swappable PSU with two 600W Built-in power supply
- Industrial design 1U rackmount kit
- OLED on the front panel that displays the system status
| CPU | ARM® Cortex™-A9 processor embedded in BCM56340 |
| SDRAM | 512MBytes DDR3 SDRAM |
| Flash | 256MBytes NAND flash |
| Networking | Chipset: BCM56340 + B50282 + BCM59111 |
| Physical | Construction: metal top/bottom case and aluminum panelDimensions: 19”design, 441mm(W) x 44mm(H) x 450mm(D)Mounting: rack mount and rack rail |
| Display | OLED panel: external uOLED (uOLED-96-G2) |
| I/O Interface-Front | LAN: 6 x 2 x 4 RJ45 w/ status LED portSFP+: 2 x 2 SFP+ cage (10G) |
| I/O Interface-Rear | QSFP+: 1X2 QSFP+ cage (21G)Power connector: hot swap modularize AC power connector (default shipping two power units)Reset button x 1 |
| Power | Power voltage: hot swap dual modularize AC power input 90~264VAC 50/60Hz |
| Internal I/O | Console: serial port (RS232 DB9 female) |
| PoE | PSE - BCM59111 (IEEE802.3at per port 30W) - Total power budget base on Power |
| System Cooling | Cooling method: with smart Fan (0~6200rpm)Cooler type: passive aluminum heat sink |
| Environment | Ventilation: IP30 (the access probe of 2.5mm diameter shall not penetrate)Operating temp.: 0~45 °CStorage temp.: -20~75 °CRelative humidity: 10%~90% non-condensingVibration: test specification for SIT specShock: non-OP shock (refer to IEC68-2-27)Acoustic noise: ISO 11201:1995 (E)/ISO 7779:1999/ Amd.1:2003 (E)EMI/EMC:CE/FCC Class AESD: 2/4KV contact discharge, 2/4/8KV air discharge, Criteria BSafety: CB |
Storage > iNAS 330
The iNAS330 is extremely rugged-design network-attached storage (NAS), which was designed to provide high performance, reliability storage in harsh environments. Equipped with SSD storage technology, it is able to record the data correctly in harsh environments, such as oil exploration, transportation, and Industrial automation…, etc.
Furthermore, it offers several data backup options. It supports FTP service and SMB/CIFS protocol for file sharing among cross-platforms. Atlas OS™ provides real-time information, toolkit, widgets and easy mode of operation; software center provides more application extensions in the future, based on application requirements. iNAS330 also can be networking surveillance storage, with high-resolution camera, the file system could be used on video recording which supports RAID 5 and also that offers the better data protection.
The iNAS330 supports Power over Ethernet (PoE/PoE+) and follows the specifications in IEEE 802.3af/ IEEE 802.3at. It has dual PoE+ interface which supports power redundancy. The iNAS330 is a fanless but high efficient for thermolysis, dust- and water-protected IP 54-rated chassis.
- SD-WAN Control Plane
- vCPE (Virtualized CPE)
- uCPE (Universal CPE)
- Firewall/IPS/AntiVirus
- VPN and network security appliance
- SMB routers
- Industrial IoT gateway
- Industrial networking appliance
- Vehicle applications

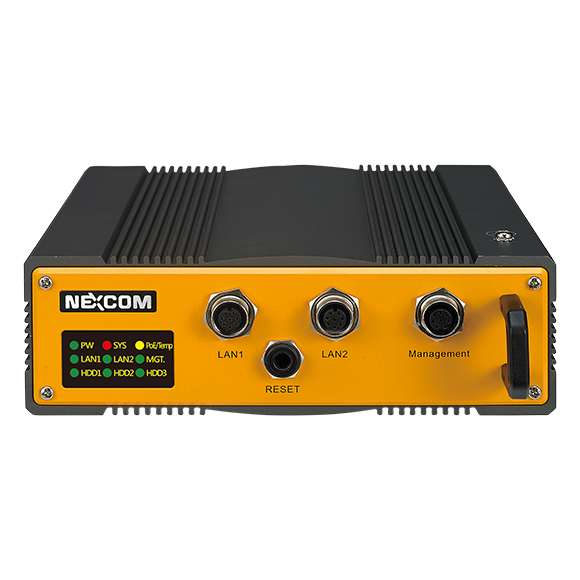

iNAS 330
Rugged-Design Industry Storage- Main Feature
- 2 Gigabit Ethernet ports for data/power redundancy with PoE+
- Data protection in harsh environments
- Fully compliant with EN50155 (railway applications), EN61373 (vibrations & shocks)
- Wide temperature range support, -40°C ~ 70°C
- IP rating: IP 54 (NEMA)
| Hardware Features | Computer - Processor: Dual Cortex®-A9 CPU - Storage: Up to 3 x 2.5" HDD/SSD (optional) |
| Ethernet | 2 x Gigabit LAN ports for data redundancy (M12)1 x Gigabit LAN port for management (M12) |
| Button | Reset button: Reboot System/Reset to factory default |
| LEDs | Power LED: power On/OffSystem LED: system statusPoE/Temp LED: PoE/Temp statusHDD LED: HDD1, HDD2,HDD3 (read/write/fail)LAN LED: 10/100/1000M x3 (link/activity) |
| Power Requirements | Input: PoE (IEEE 802.3af), or PoE + (IEEE 802.3at)Power redundancy |
| HS Control | Smart heating system |
| Physical Characteristics | FanlessHousing: metal, IP 54 protectionMounting: wall mount (optional) |
| Environmental Specification | Operating temperature: -40°C ~ +70°C (-40°F ~ +158°F) For SSD -25°C ~ +55°C (-13°F ~ +131°F) For HDD Storage temperature: -40°C ~ 85°C (-40°F ~ 176°F)Humidity: 5% - 95%, non-condensing |
| Certifications | FCC/CERoHS/WEEE |
| Compliance | EN50155 (railway applications)IEC61373 (vibrations & Shocks)EN60950; EN61000 (immunity, emission)EN60068-2-30/IEC68-2-30 (environmental testing) |
| Package Content | iNAS 330 unit x 1QIG x 1CD x 1 |
| Optional Accessories | Wall-mount-kit: 2 extra brackets and screwsM12 cables: waterproof 8pin male M12 to RJ45 gigabit Ethernet cable, rated IP67 |
| System Dimensions | 246mm (w) x 194mm (D) x 60mm (H) (9.69" x 7.64" x 2.36") |
| Software Features | OS: Atlas OS ™ - Web-based GUI (based on HTML5 and CSS3) - Centralized navigation panel and Dual-desktop system: Navigation Panel: For system configurations, with some toolkits on the toolbar - Home: for applications operations - Dashboard: For widgets exhibitionAPPs - Storage Manager - RAID management (JBOD, RAID1, RAID 5)/Auto RAID rebuilding - Data Vault - Log Book - Software CenterWidgets - System Guardian - Network SurveillanceConfigurations - Files and permissions - Network and connectivity - System and devicesToolkit - Profile: account management - Real-time notification - System information - Network status |
| Client O.S. support | Windows 7+, Windows Server 2003 R2, 2008, 2008 R2 & 2012 or laterLinux & UNIXMac OS X 10.7 or later |
| Web Browsers Support | Mozilla FirefoxMac SafariGoogle ChromeOpera |
| Networking | HTTP/H - SAMBA 2 (CIFS),Open SSL (TLS),FTP / FTPSHTTP 1.1 / HTTPSIPv4,Link Aggregation, DHCP,NTP,HTTP AuthenticationRESTful API |
Storage > PNSA 3170

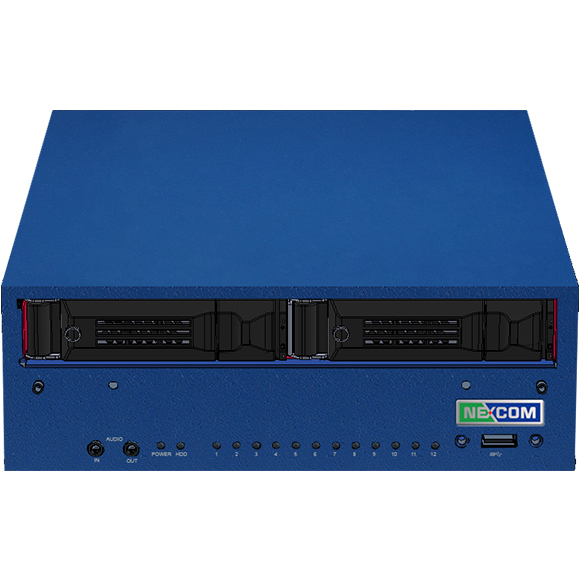

PNSA 3170
Intel® 7th Gen Xeon®/Core™/Pentium® Processors (Kabylake-S), Desktop Appliance- Main Feature
- Desktop appliance
- Intel® 7th Xeon®/Core™/Pentium®
- OnBoard 12 10/100 POE LAN ports
- Two swappable HDD tray
| Main Board | DNB 3170Supports Intel® 7th gen. Xeon®/Core™/Pentium® processorsIntel® H110 |
| Main Memory | 2 x DDR4 2400 memory DIMM, support ECC/non-ECC memory, max. 32GB |
| LAN Features | 12 x Ethernet ports support PoE (max. 30W/port)Support 10/100 link speed |
| I/O Interface-Front | Power status/HDD status/LAN status LEDs1 x USB 3.0 port2 x 3.5’’ swappable HDD tray |
| I/O Interface-Rear | 1 x HDMI port1 x DP port1 x Power button switch2 x USB 3.0 ports2 x Management ports (1 x RJ45, 1 x SFP)12 x 10/100 802.11at PoE port, max. 30W/port |
| Storage Devices | 1 x SATA M.2 2242 slot |
| Power Input | External power adapter 54V/270W |
| Dimensions | Chassis dimension: 230 x 347 x 78 mm |
| Weight | Without packing: TBCWith packing: TBC |
| Certifications | CE approvalFCC Class AUL |
